Project Red Strokes: Stanced Out. Lightning Style.

Every great street truck build needs to get one thing right above all else, the stance. Make a ton of horsepower, pick the right paint color, add all the right cosmetic bolt-ons, but if it doesn’t sit right, the whole build falls flat. For our 7.3L Power Stroke crew cab Lightning replica project, getting the ride height dialed in was mission critical.

When we took ownership of this 2wd crew cab, it was what we’d call “grandpa.” A bone stock, daily driver. It had been taken very well care of. It was reliable. Practical. But it was also kind of boring and not the kind of truck that turns heads. Our goal has always been to transform it into the ultimate street truck while maintaining the unmistakable personality of the 1994-1997 Ford OBS.

Since it was wearing that signature OBS Ford vermillion red paint, we couldn’t think of anything more iconic, or street truck than an original Ford Lightning. We could see the potential here, and even after the paint match, the lower bumper valance, and the blacked-out chrome accents, there was no way around it. The truck had to get lower.

Why Stance Matters

The original OBS Lightning trucks were known for their aggressive street presence. They sat lower than a standard F-150 and carried a performance-oriented attitude that matched their SVT pedigree. Recreating that look on our crew cab Power Stroke build meant more than simply lowering the truck a little bit. We needed the proportions to be just right.

The extra set of doors on a crew cab adds length and visual weight to the truck, which means the stance has to be spot-on to keep everything balanced. Too high and it still looks like a work truck. Too low and you start sacrificing ride quality and practicality.

Our goal was simple: achieve a stance that closely mirrors a factory OBS Lightning, while still maintaining excellent ride quality and drivability.

The DJM 4-Inch Rear Drop Kit

To get things moving in the right direction, we turned to DJM Suspension and their 4-inch rear drop kit. DJM has long been a trusted name when it comes to lowering trucks, and their system for OBS Fords offers a clean and effective way to bring the rear down without completely reinventing the suspension.

The kit includes two main components, a front leaf spring hanger and a longer rear shackle. Together, these parts relocate the mounting points for the leaf springs to lower the rear ride height while maintaining proper suspension geometry.

Once installed, the setup dropped the rear of the truck 3 1/4”, but with adjustable holes gives you room to adjust to your liking. Dropping that rear end down instantly started giving the truck the aggressive profile we were looking for. But getting there wasn’t exactly a quick bolt-on job. If you’re tackling this one yourself, be prepared.

Bed Removal Makes Life Easier

Anyone who has worked on OBS trucks knows the factory rivets used in the suspension mounts are no joke. The front leaf spring hanger is attached to the frame with several heavy-duty rivets that were never intended to come out. Rather than trying to fight everything with the bed in place, we decided to make life easier by removing it altogether.

Having an electric winch mounted in the garage ceiling made the process incredibly simple. With a few straps and some careful lifting, the bed came off quickly and safely, giving us wide-open access to the frame and suspension components. This will save a ton of time and frustration during the install. Whether you have a ceiling hoist, a cherry-picker, or a couple of strong buddies you can pay off with beer, removing the bed is 100% the right first step to working on the rear suspension.

Removing the Factory Rivets

With the bed out of the way, the real work began. Cutting off the factory rivets takes patience. Lots of it. We started by using a grinder to cut a cross pattern in the heads, that we could then air chisel off easily. After that, we switched to an air hammer bit to drive the remaining rivet bodies out of the frame. It’s not glamorous work, but it has to be done.

Once the rivets were gone, the factory front hanger finally came off, making room for the new DJM component.

Repositioning the Leaf Springs

The replacement front hanger from DJM relocates the leaf spring mounting point higher up on the frame, effectively lowering the rear of the truck without drastically altering suspension geometry. Another nice feature of the kit is that the hanger includes two different mounting holes, allowing for some adjustability depending on how aggressive you want the drop to be.

Since we were chasing that true Lightning-inspired stance, the choice was easy. We went with the highest mounting hole, which gives the maximum drop.

Dialing in the Rear Shackles

Moving to the back of the leaf springs, the factory shackles were swapped out for the longer DJM shackles included in the kit. Just like the front hanger, these also offer two mounting positions, allowing you to fine-tune the final ride height if needed. That adjustability can be incredibly helpful when dialing in a truck’s stance, especially when other suspension components or tire sizes come into play.

For our build, we again opted for the longest mounting position on the shackles to achieve the most aggressive drop possible. With everything tightened down, the rear suspension was officially transformed.

Bringing the Front Down

Once the rear height was sorted out, it was time to address the front of the truck. Lowering the front of an OBS truck can sometimes require a lot of work as well, especially if you’re going to go real low. DJM offers a 3” drop kit for the front of these old trucks, but we weren’t wanting to go that low. We only needed a touch to get that look we were after and match closer to a factory Lightning.

Rather than going with traditional drop springs and the lower I-beams, we took a different route by using custom lower coil pads originally designed for a late-model Jeep Wrangler. These pads were notched and then used to replace the factory cast pieces (required removed the factory sway bar) to effectively lower the front of the truck about one inch. This ended up being exactly what we needed to balance the truck with the rear drop. Sometimes the best solutions come from thinking outside the typical parts catalog. We’ll turn to one of our friends at the suspension shop to fab up some new brackets so we can get the front sway-bar reinstalled later on.

Maintaining Ride Quality with Bilstein 5100 Shocks

Lowering a truck is only half the equation though, you really need to match the new setup with proper shock absorbers. Lowered trucks are often known for their kidney jarring miserable driving experience, that is not something we wanted here.

Because our truck now sits significantly lower than stock, we need some shocks considerably shorter than stock. We wanted a quality shock too, not just some cheap hydraulic unit. We were able to source a set of popular Bilstein 5100’s that worked out perfectly, both front and rear.

Bilstein’s reputation for performance and durability made them an easy choice for this build, and they ensure the truck rides just as good as it looks. The result is a truck that feels planted and controlled without being harsh or uncomfortable.

The Final Stance

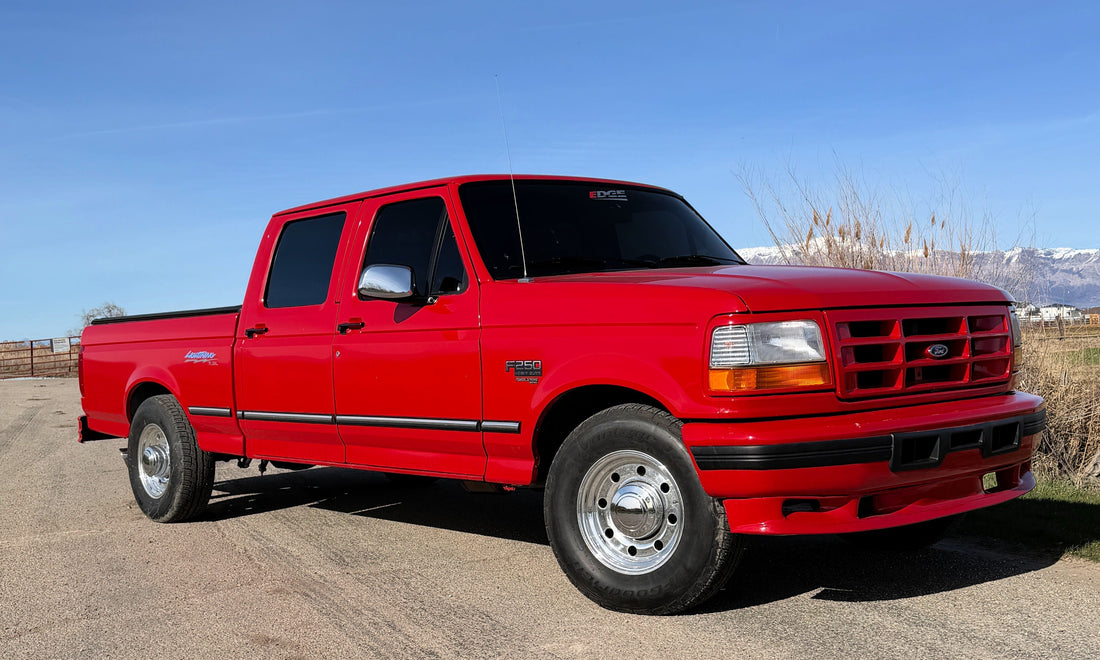

With everything installed and back on the ground, the transformation was immediate.

The truck now sits almost identical in stance to an original OBS Lightning, but there’s something undeniably cooler about seeing that same aggressive profile stretched across a crew cab body. The longer wheelbase gives the truck a unique presence that stands out even among other lowered OBS builds we’ve seen. It looks purposeful. And ready to hit the street.

Finishing Touches

To really sell the Lightning replica look, we added one more detail. We had a set of replica Lightning bedside decals made specifically for the truck. Of course, since this build is powered by the legendary Power Stroke diesel engine, we gave them a little custom twist with some 7.3L-inspired flair.

What’s Next

With the stance finally dialed in, our once humble grandpa truck is starting to look like the street truck we envisioned from the beginning. Lower, wider, and unmistakably aggressive, the 7.3L Lightning is quickly becoming something special. But we’re not done yet.

There’s still plenty more to come as we continue transforming this crew cab Power Stroke into the ultimate OBS street machine. It’s time to throw some power at this rig…
