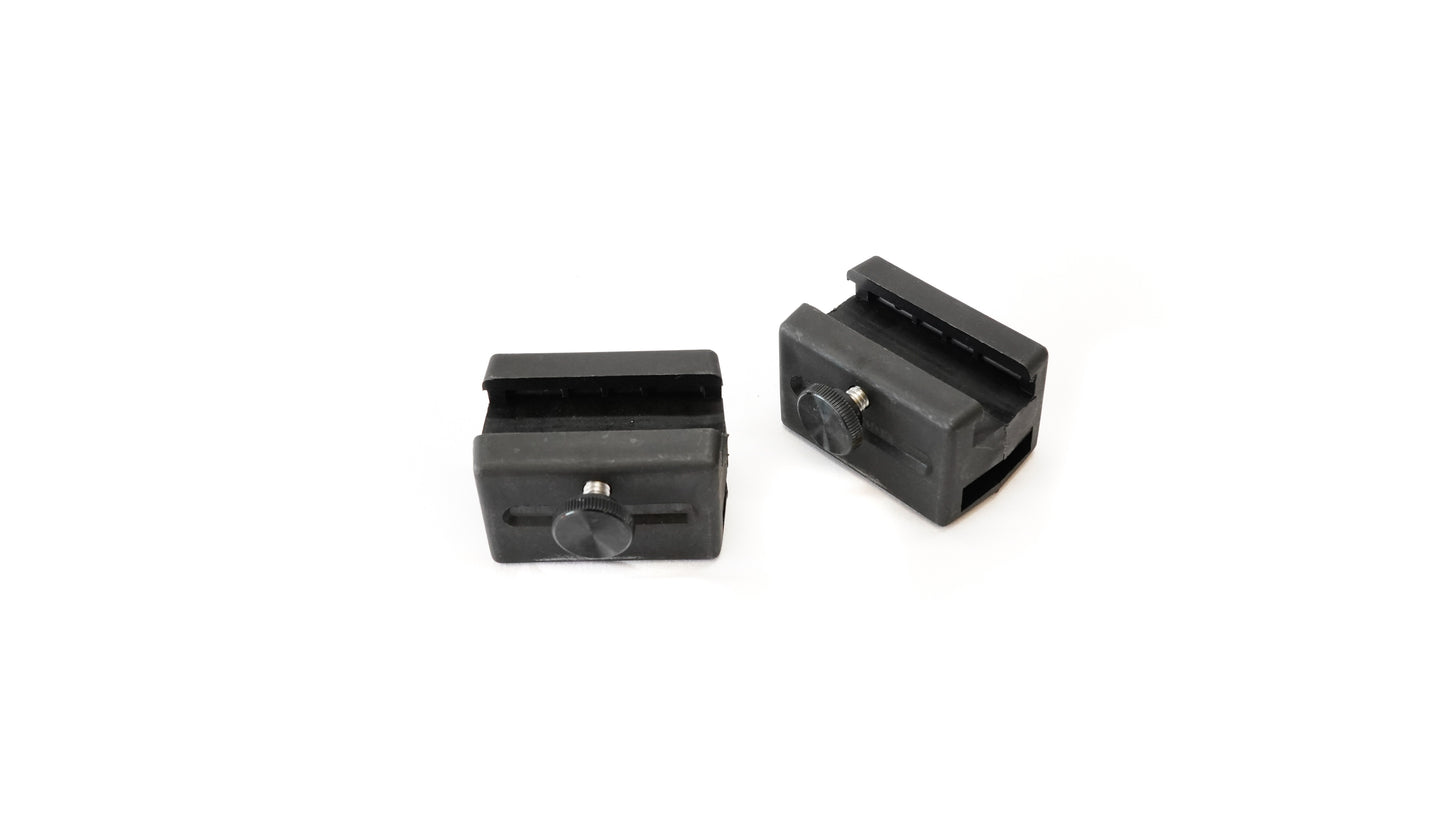

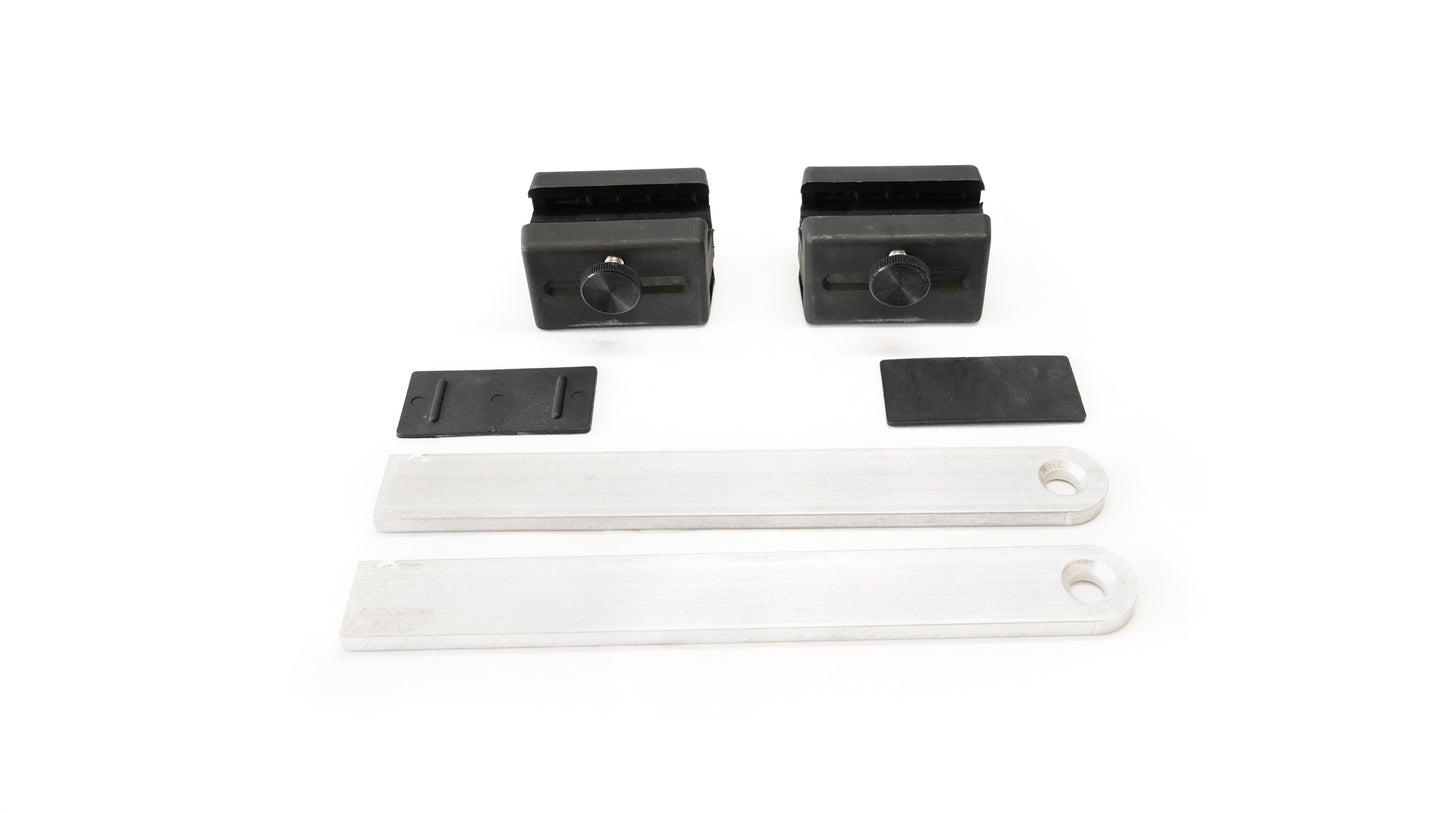

Extend-A-Mirror Kit includes two plastic blocks and two aluminum arms.
Arm Measurement: 8" Long x 1" Wide x 1/4" Thick, 5/16" Hole Size
Block Measures: 2 1/4" x 1 1/2" x 1 1/2"
- Gives 5-1/2" more vision.
- Fits most 2-point low mount truck mirror
Remove mirror head
Position Head Extender bracket (without knob) on front side of mirror support. 1980 and newer vehicles require the supplied shim.
Outside edge of bracket should barely cover original hole.
Slide 8" aluminum extension arm into bracket with the hole pointing away from vehicle.
Position other half of Head Extender bracket on rear side of mirror support and install cap screws.
Re-install mirror head to extension.
Adjust to desired position.
