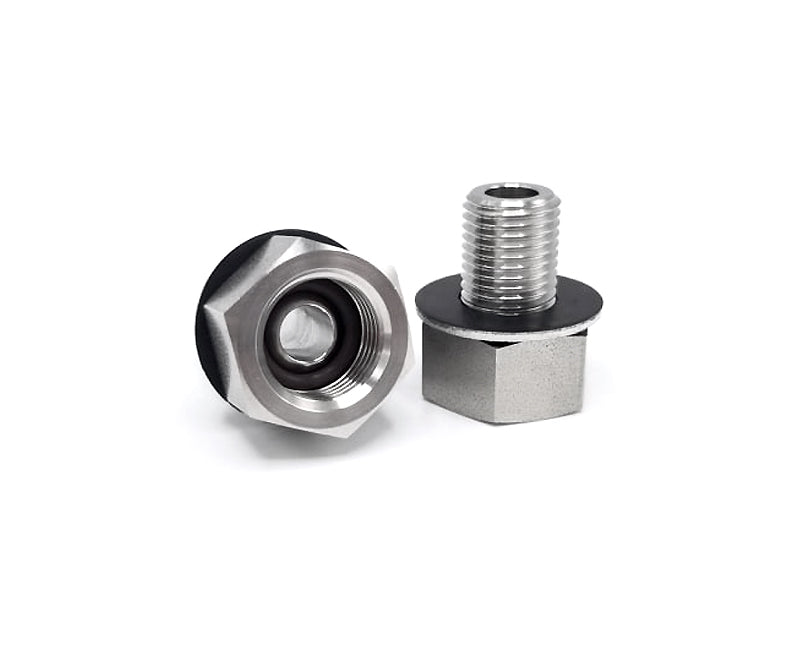

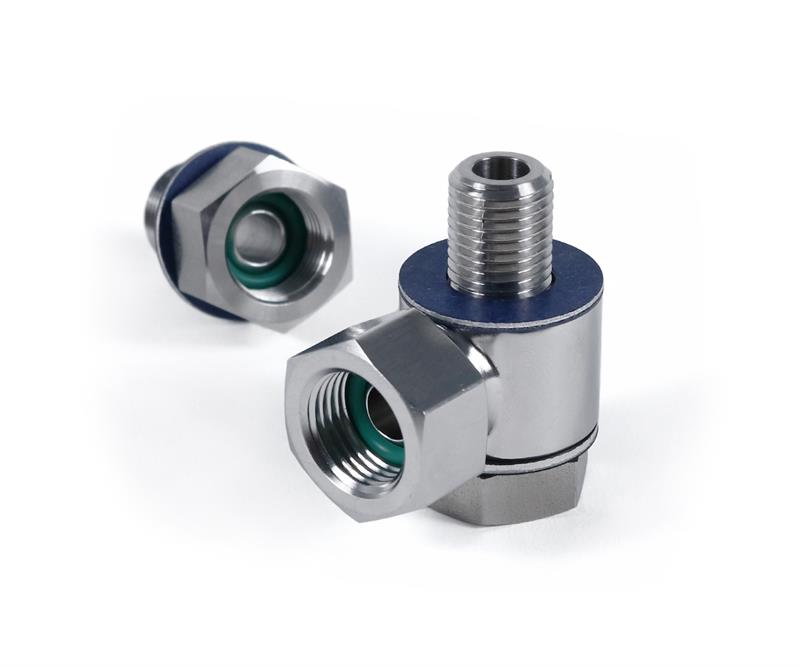

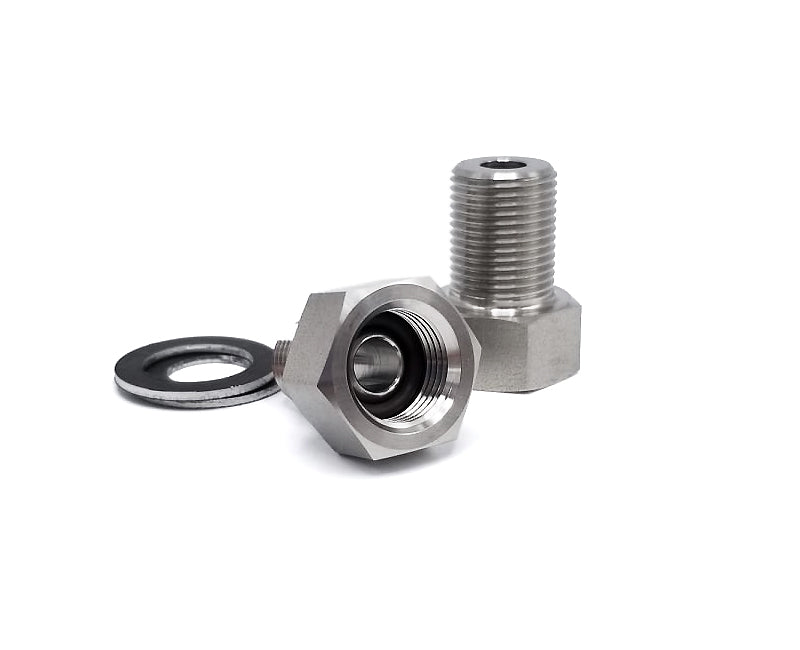

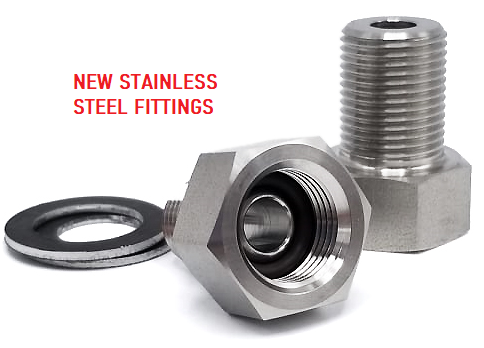

Dieselsite 4R100 Transmission Cooler Bypass Delete Kit - 1999-2003 Ford F-Series & E-Series

4R100 Transmission Cooler Bypass Delete – Full Flow Modification (1999–2003 Ford)

If you’re upgrading your transmission cooling system, deleting the factory cooler bypass tube is only half the fix. This modification allows 100% transmission fluid flow to the cooler, eliminating one of the most overlooked restrictions in the 4R100 automatic transmission.

🔥 Why Remove the Factory Bypass Tube?

From 1999–2003, Ford equipped the 4R100 transmission with an external cooler bypass tube designed to reroute fluid back to the transmission until operating temperature was reached.

Unfortunately:

• These bypass tubes commonly fail, blocking fluid flow to the cooler

• Even when functioning correctly, the bypass never fully closes

• As a result, not all transmission fluid is ever sent through the cooler

The end result is elevated transmission temperatures and increased risk of premature failure.

🔥 The Hidden Restriction Most Kits Miss:

Many bypass delete kits remove the external tube but do not address the restriction inside the banjo bolt.

Inside the factory banjo bolt is:

• A spring and check ball

• Designed to work in conjunction with the bypass tube

• Restricts up to 75% of fluid flow to the cooler

Once the bypass tube is removed, this internal restriction is no longer necessary — yet it continues to choke off fluid flow unless addressed.

⚙️ What This Modification Does:

• Eliminates the internal check ball and spring restriction

• Allows full, unrestricted fluid flow to the transmission cooler

• Maximizes the effectiveness of upgraded or oversized coolers

• Reduces transmission operating temperatures

• Improves long-term transmission reliability

🚨 Why This Matters:

Heat is the leading cause of transmission failure. Even the best transmission cooler cannot do its job if fluid flow is restricted. Removing both the bypass tube AND the internal banjo bolt restriction ensures your cooler actually receives the flow it was designed for.

🚗 Applications:

• 1999–2003 Ford trucks equipped with the 4R100 automatic transmission

If you’re serious about protecting your transmission, this full-flow cooler modification is a critical step that ensures your cooling system works the way it should — with no shortcuts and no bottlenecks.
