PMF Suspension Dual Steering Stabilizer Kit | 2005–2019 Ford F-250/F-350 Super Duty 4x4

The PMF Suspension Dual Steering Stabilizer Kit is designed to improve steering control and reduce feedback through the steering wheel on 2005–2019 Ford F-250 and F-350 Super Duty 4x4 trucks.

Whether your truck is stock height or lifted, this dual opposed stabilizer setup helps absorb steering feedback caused by potholes, rough roads, and uneven pavement. By distributing steering damping across two stabilizers, the system also helps reduce shock loads transmitted through the steering components.

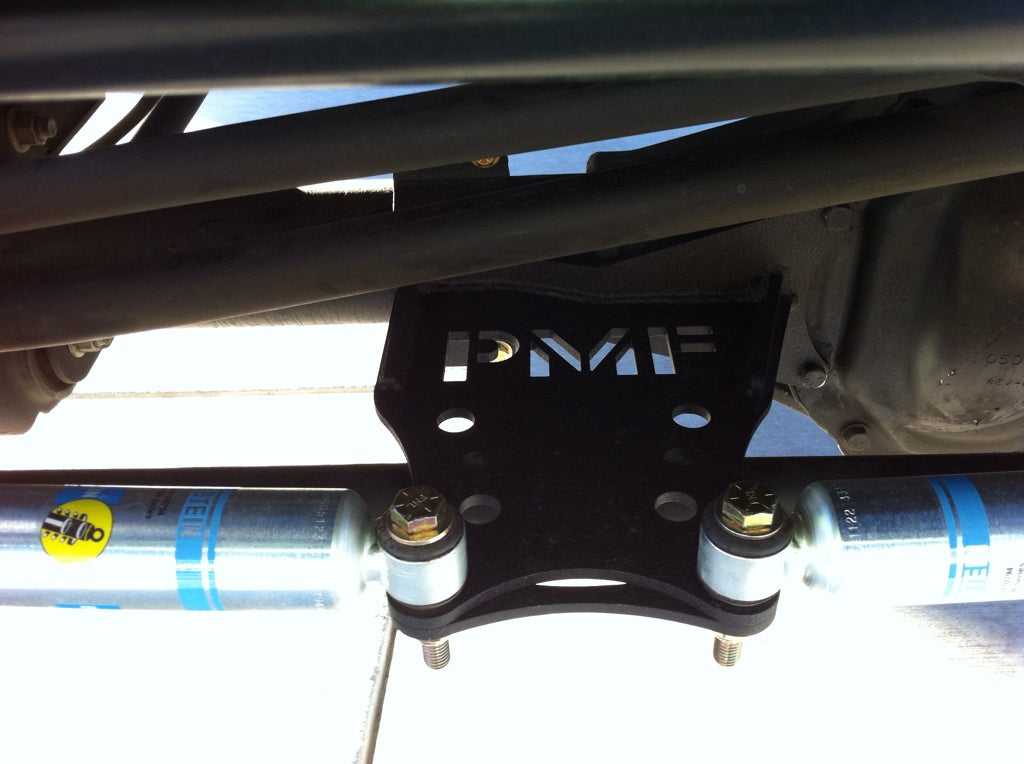

The kit features a heavy-duty, gusseted center mounting bracket and 3/8-inch steel outer mounting brackets. Its adjustable mounting configuration allows the stabilizers to be positioned above or below the center bracket to accommodate different suspension heights and clearance requirements.

Key Features

• Dual opposed steering stabilizer design helps reduce steering wheel feedback and road vibrations.

• Bolt-on installation with no drilling required under normal installation conditions.

• Stock-height and lifted truck compatibility with two stabilizer mounting positions.

• Heavy-duty gusseted center bracket reinforced at the top and bottom.

• 3/8-inch steel outer mounting brackets designed to resist deformation when tightening the U-bolts.

• Above- or below-center mounting options to accommodate suspension height and ground clearance.

• Multiple stabilizer options from Bilstein, Fox, and King.

• Complete installation kit includes brackets, stabilizers, clamps, and mounting hardware.

Stabilizer Options

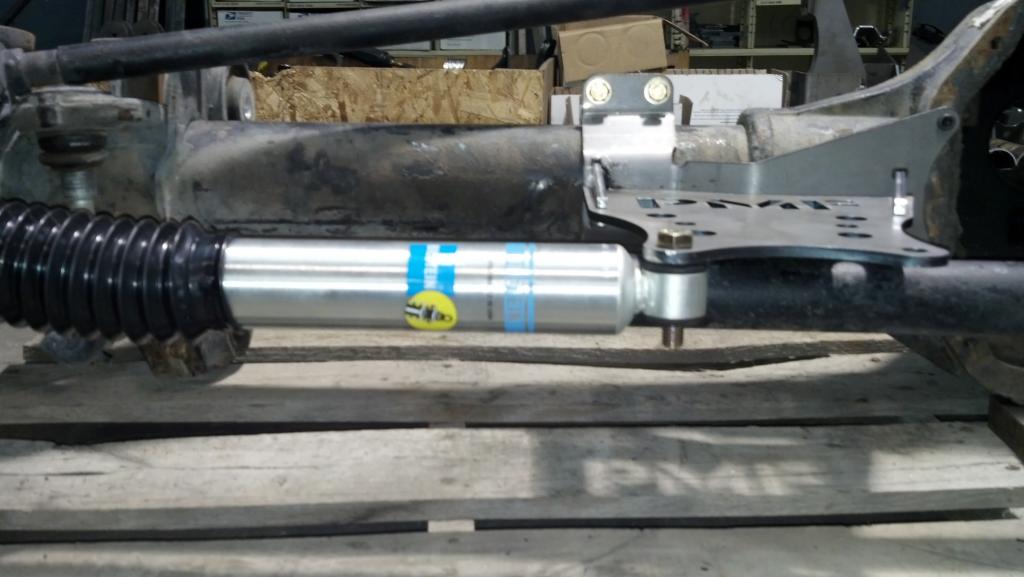

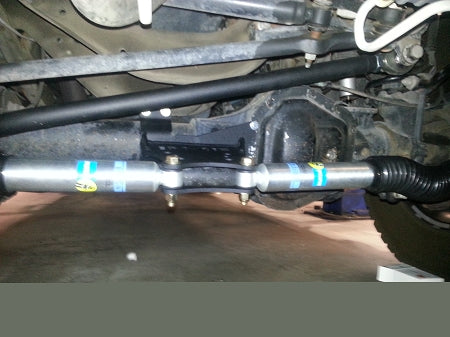

Bilstein 5100

A durable, cost-effective option for daily-driven trucks, towing applications, and general steering upgrades.

• Zinc-plated steel body

• Gas-over-hydraulic design

• Designed to resist performance fade

• Removable black protective boots

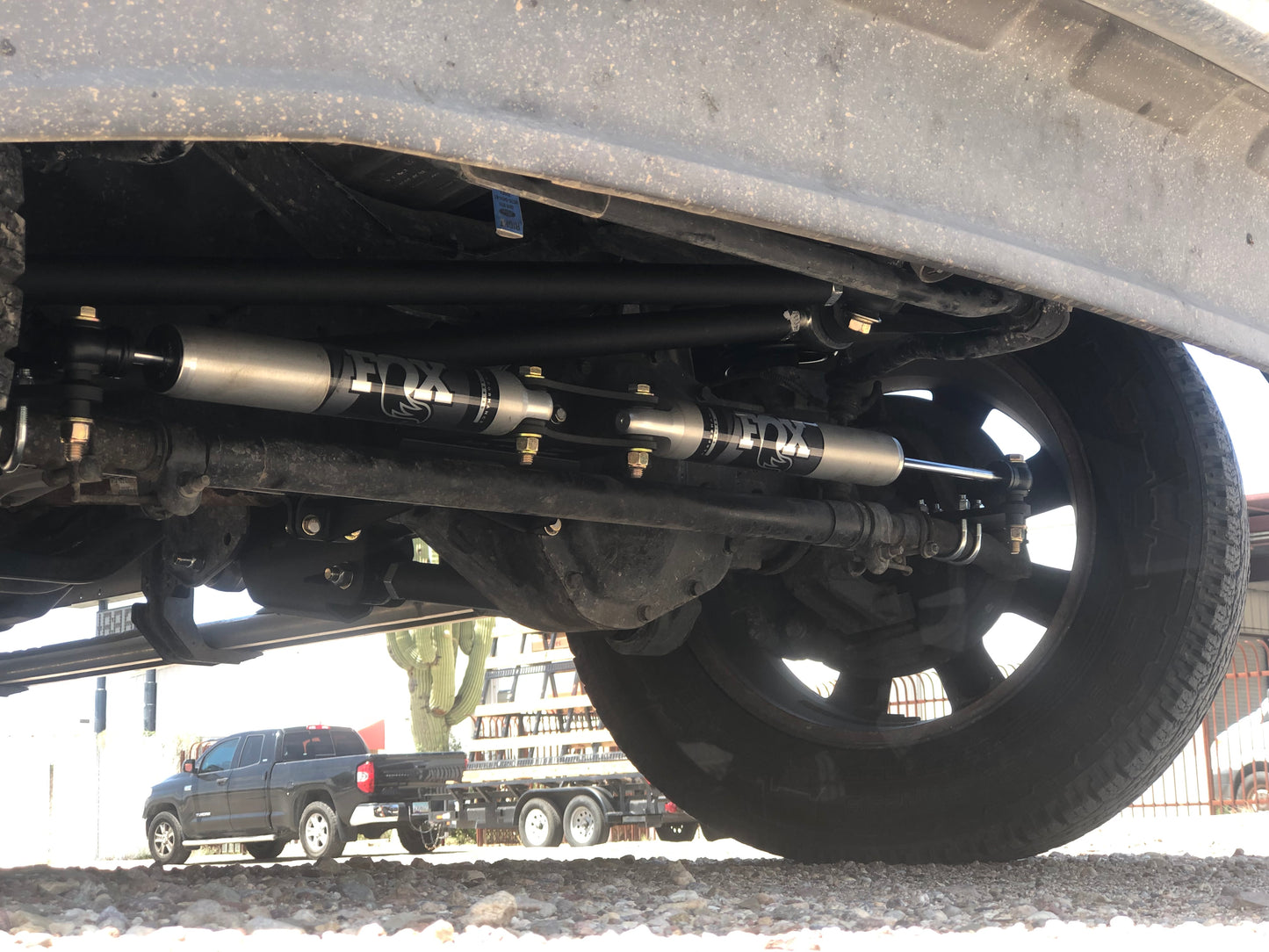

Fox 2.0 IFP

An upgraded stabilizer featuring aluminum construction and internal floating piston technology.

• 2.0-inch 6061-T6 aluminum body

• Corrosion-resistant construction

• Internal floating piston separates oil from the nitrogen charge

• Black anodized billet components

• Multiple sealing surfaces for long-term durability

King 2.0

A serviceable performance stabilizer designed for demanding applications.

• 2.0-inch aluminum body

• Blue anodized billet aluminum components

• Heavy-duty 1/2-inch hard-chromed shafts

• Custom valving for this application

• Precision internal components

• Rebuildable and serviceable construction

Fitment

• 2005–2019 Ford F-250 Super Duty 4x4

• 2005–2019 Ford F-350 Super Duty 4x4

Does NOT fit:

• WideTrack-equipped vehicles

• Lowered trucks

• 2WD applications

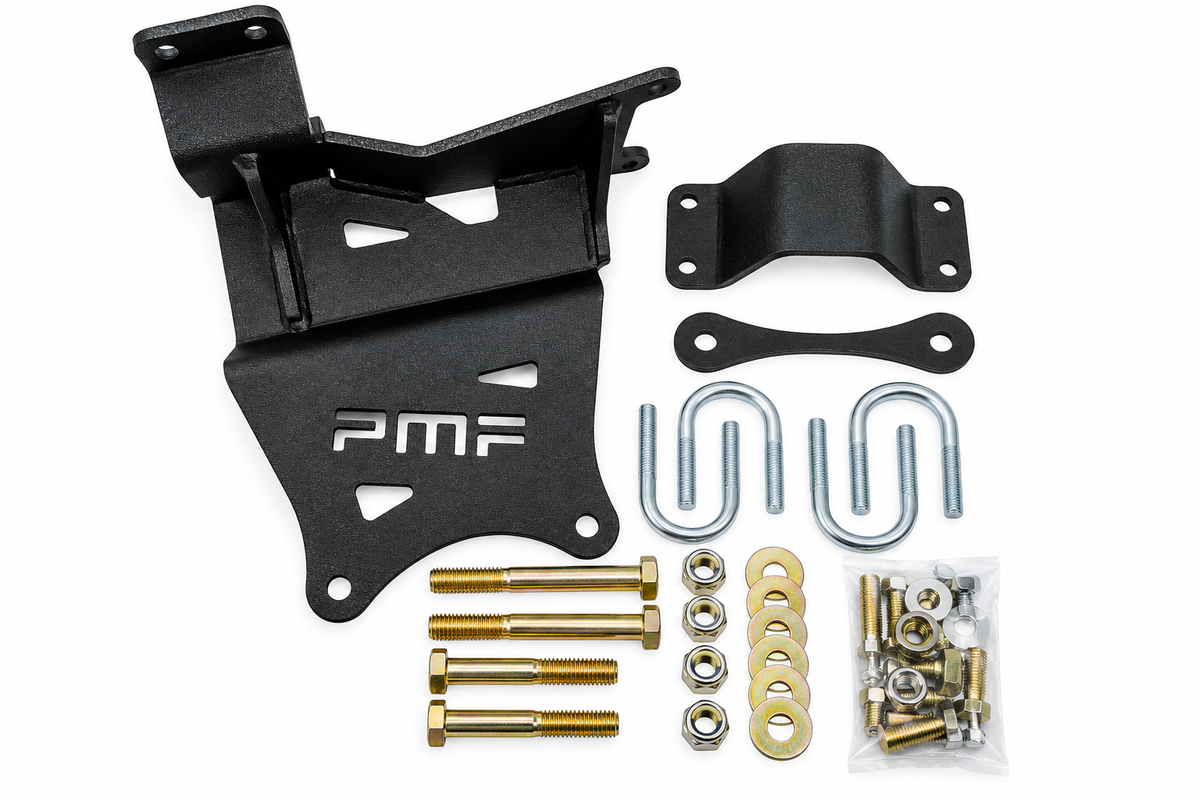

Kit Includes

Important Installation Notes

Aftermarket Differential Covers

If your truck has an aftermarket differential cover, modifications may be required to install the center mounting bracket.

The bracket is designed with additional clearance to accommodate Mag-Hytec and similar aftermarket differential covers. However, some grinding or milling may still be necessary depending on the cover being used.

Stabilizer Mounting Position

The stabilizers can be installed above or below the center mounting bracket.

• Below-center mounting: An option for trucks with sufficient clearance.

• Above-center mounting: Allows additional ground clearance on lifted trucks and helps position the stabilizers away from road debris and obstacles.

Steering and Suspension Condition

Steering stabilizers help control steering feedback but are not intended to correct worn ball joints, tie rods, track bars, or other steering and suspension components. Inspect these components before installation if your truck is experiencing excessive wandering or looseness.

Important: This kit is designed for stock-height and lifted 4WD trucks. It is not compatible with lowered trucks or WideTrack-equipped vehicles.
