Ford OBS 0"-3" Trac Bar Bracket (05+ Superduty Swap)

Ford OBS 0"-3" Trac Bar Bracket (05+ Superduty Swap)

Regular price $399.99
Regular price Sale price $399.99
Sale Sold out

View full details

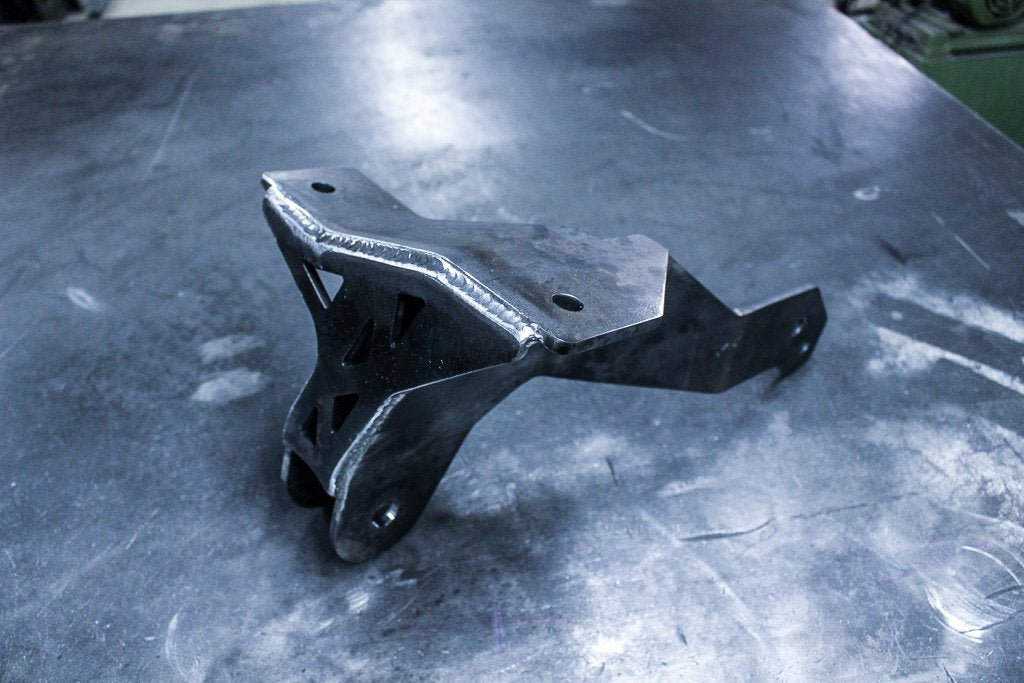

RYD Motorsports Ford OBS 0"-3" Trac Bar Bracket (05+ Superduty Swap)

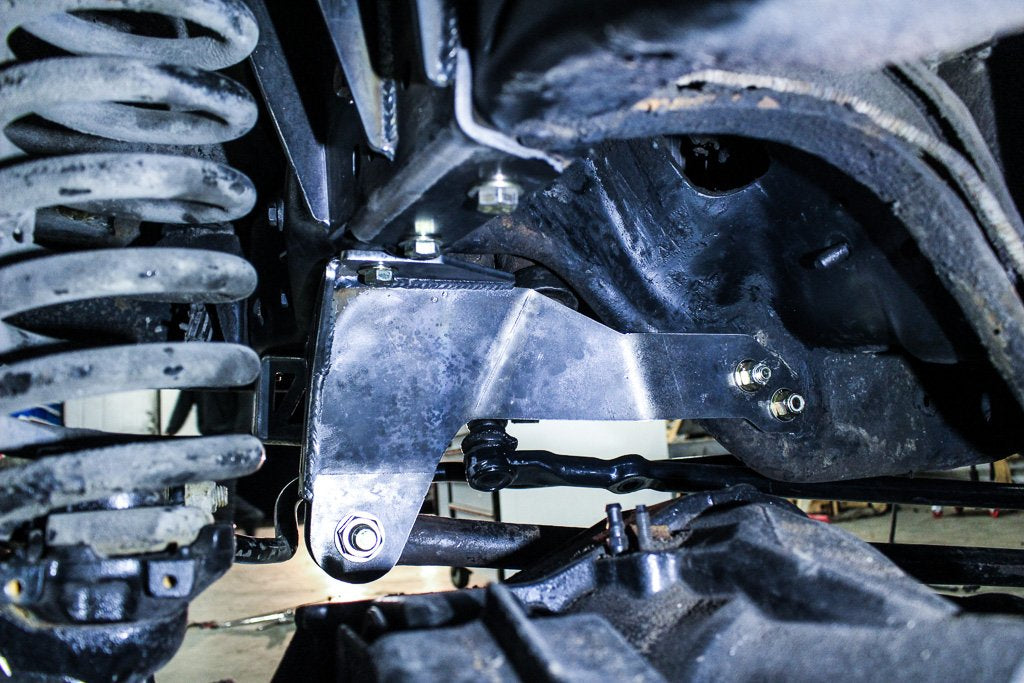

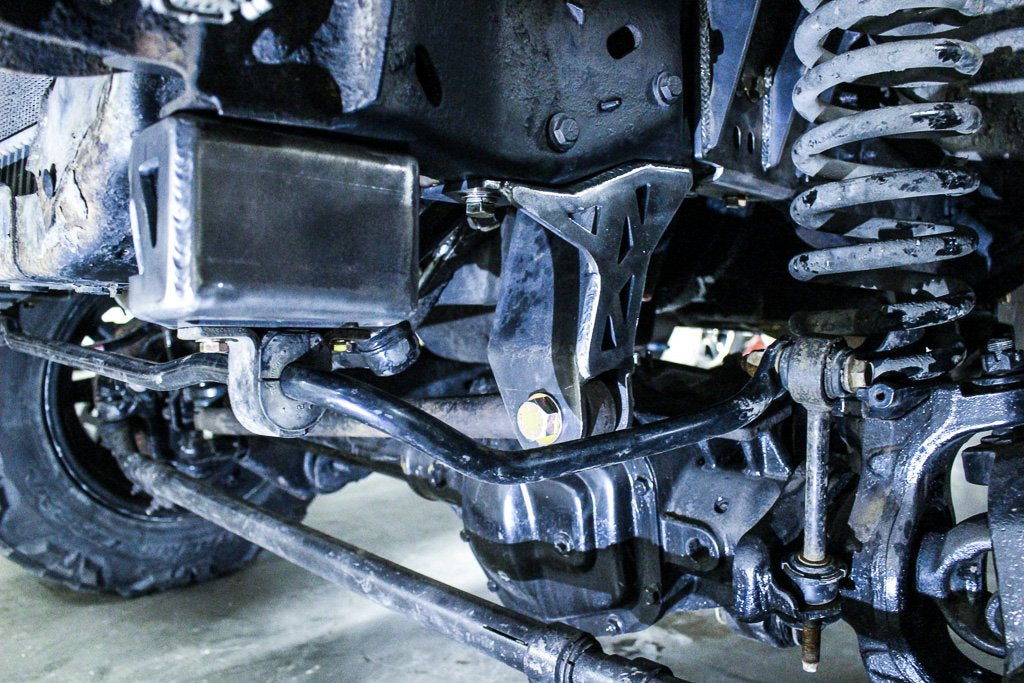

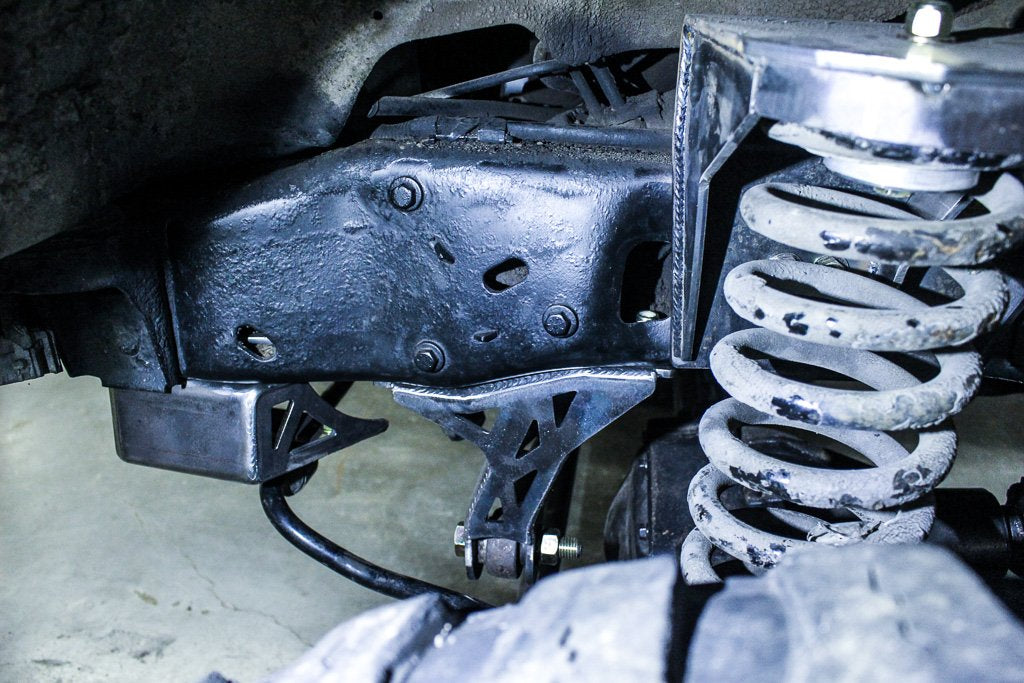

This Trac Bar Bracket is designed to correct steering angles and center the front axle using the factory 05+ superduty trac bar and theĀ 0"-3" Pitman Arm. It bolts into factory holes on the frame after you remove the two studs and requires two holes to be drilled in the engine crossmember.

This bracket will not work with lifted applications that require a dropĀ pitman arm. This is to be used with the stock pitman arm with stock height springs or aĀ levelling kit. If you want to go above that you must use our 4"-8" Lift Trac Bar Kit and 4"-8" Drop Pitman Arm.Ā

Ā For proper alignment you will need to use our coil buckets. If you want to use factory 05+ coil buckets you will need to buy our adjustable trac bar to get proper alignment.



  • CNC Cut and BentĀ
  • 1/4" PlateĀ
  • Bolt InĀ
  • Fits 92-97 F150,F250, and F350 FramesĀ
  • For Use With Stock Coil Springs or Levelling Kit
  • Grade 8 Hardware IncludedĀ

**May require minor trimming if using the Superduty Steering Box**Ā Ā

Install Instructions
