FORD OBS AXLE CONVERSION KIT (05+ SUPERDUTY SWAP)
FORD OBS AXLE CONVERSION KIT (05+ SUPERDUTY SWAP)
Please select a valid combination of attributes.
RYD Motorsports OBS 05+ SUPERDUTY AXLE CONVERSION KIT
This is the entry level 05+ Superduty Axle Conversion Kit which was designed to use all the factory parts from the Superduty suspension and steering to keep things and simple as possible.
All these brackets are bolt in and locate from existing holes in the frame of a 4x4. If you are converting your truck from 2wd we can provide you with measurement for where to drill holds for the brackets.
Add the Driveshaft Conversion U-Joints to bolt your OBS Driveshafts up to the Superduty Axles
Upgrade your 05+ Superduty Axle Swap by replacing the radius arms with the Short Arm 4 Link Kit! The 4-link conversion offers improved stability, strength and caster control during wheel travel.
NOTE: If you have a ZF5 Transmission you will need to use the ZF5 Crossmember!
**Driveshafts may need to be shortened or Lengthened**
No welding required

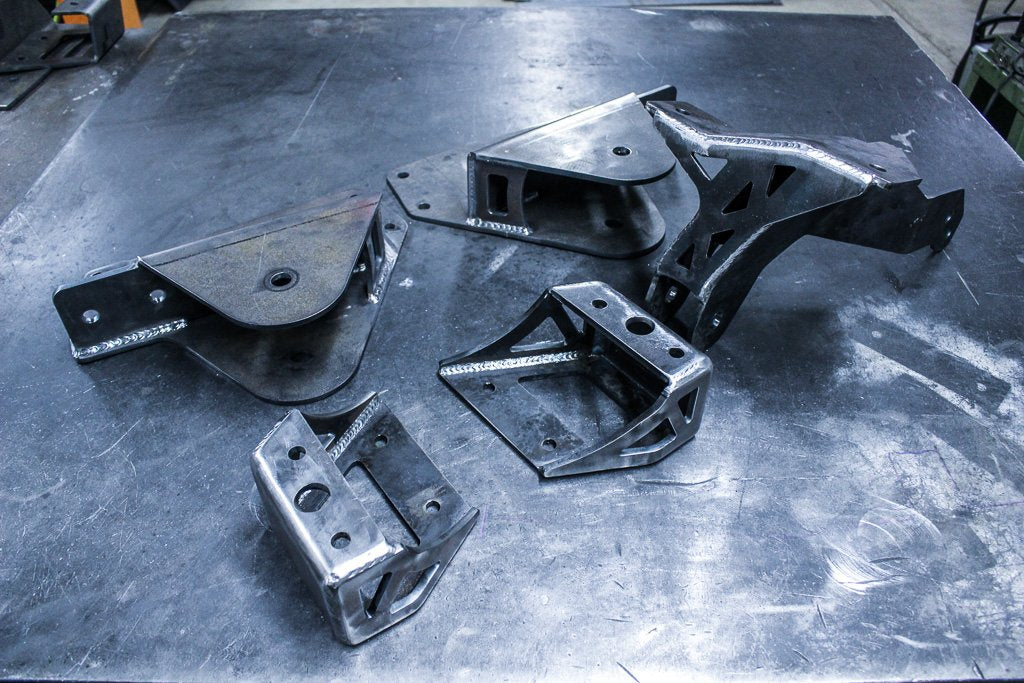

Kit Includes
- Coil Buckets
- Trac Bar Bracket

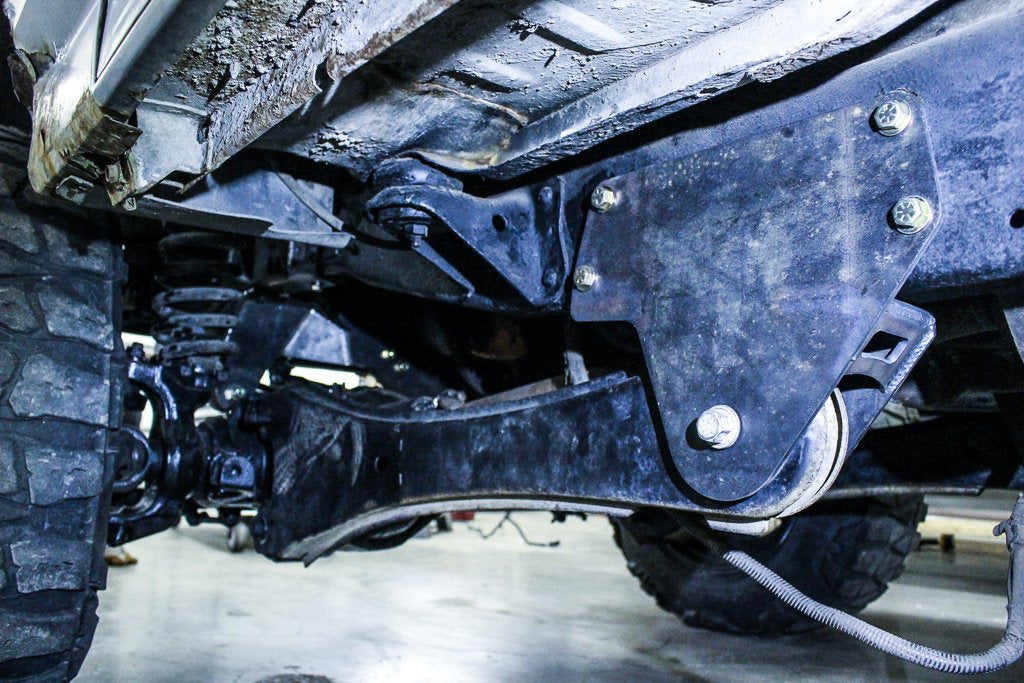

- Radius Arm Brackets

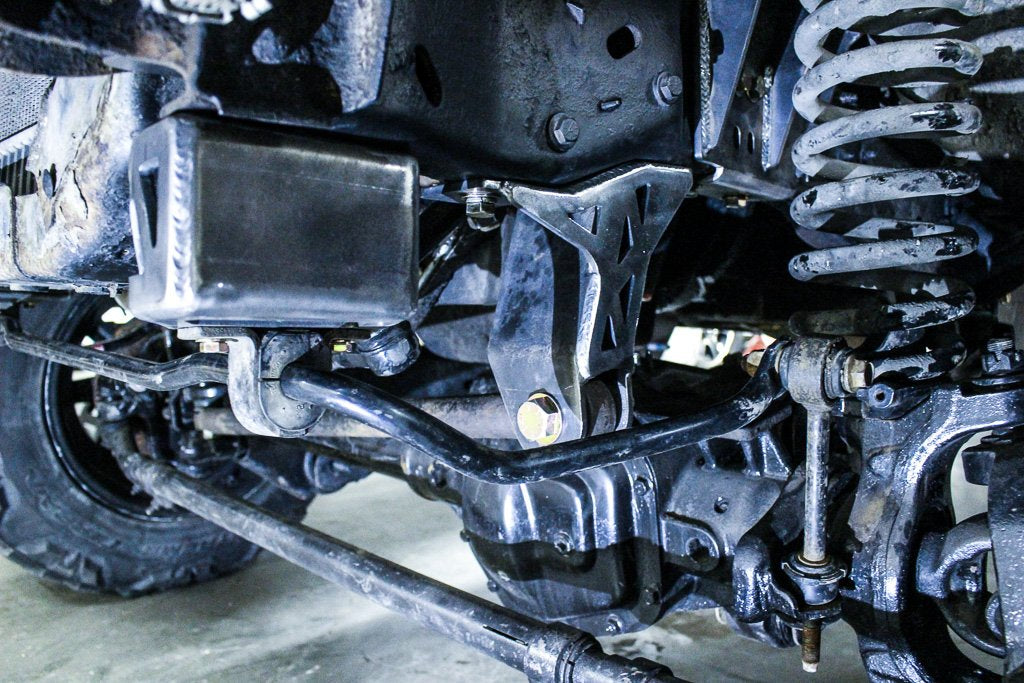

- Sway Bar Brackets
- Pitman Arm (machined to accept superduty steering)
- Grade 8 Hardware
Optional
- Stainless Brake lines
- Driveshaft Conversion U-Joints
- 0"-4" Short Arm 4 Link Upgrade
- ZF5 Transmission Crossmember
Parts You Will Need From 05+ Superduty
- Front Axle
- Coil Springs
- Trac Bar
- Steering
- Sway Bar and End Links
**FOR OFF-ROAD USE ONLY**
INSTALL INSTRUCTIONS
