Shackle Bracket Tow Hooks (1992-1997)

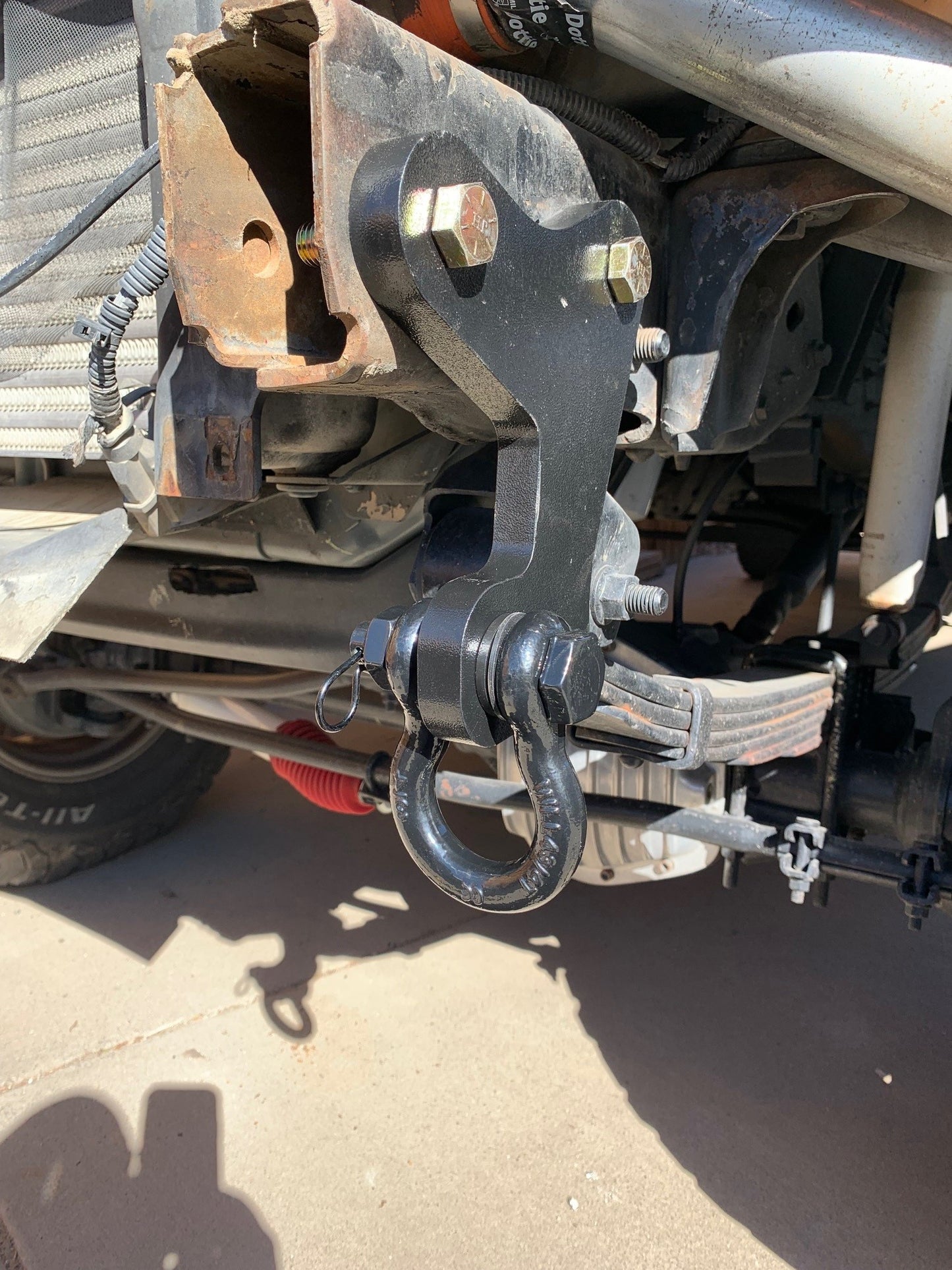

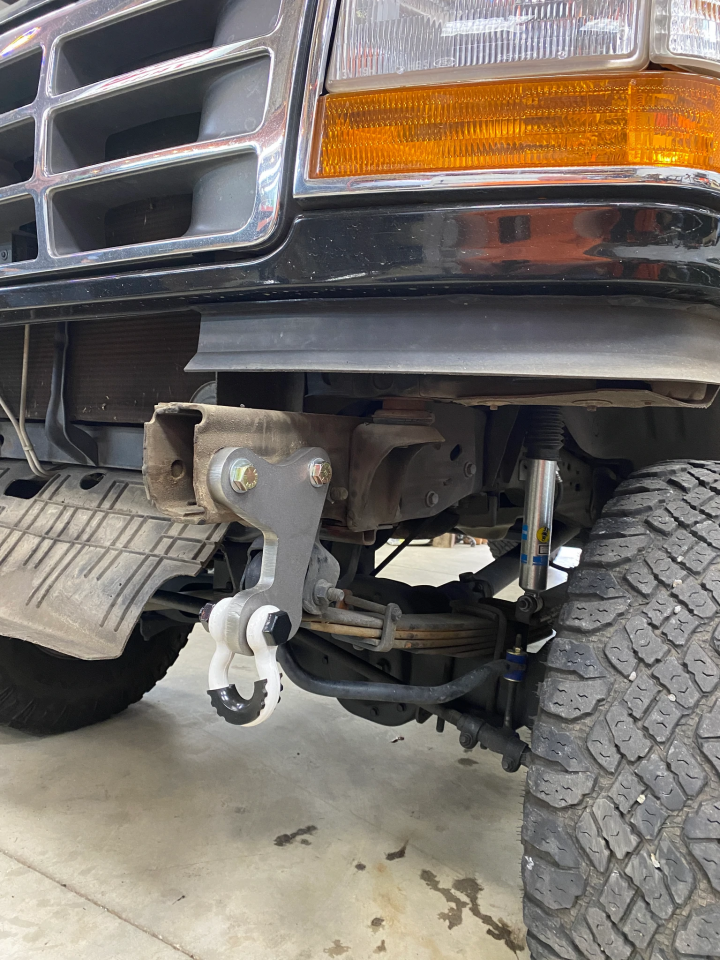

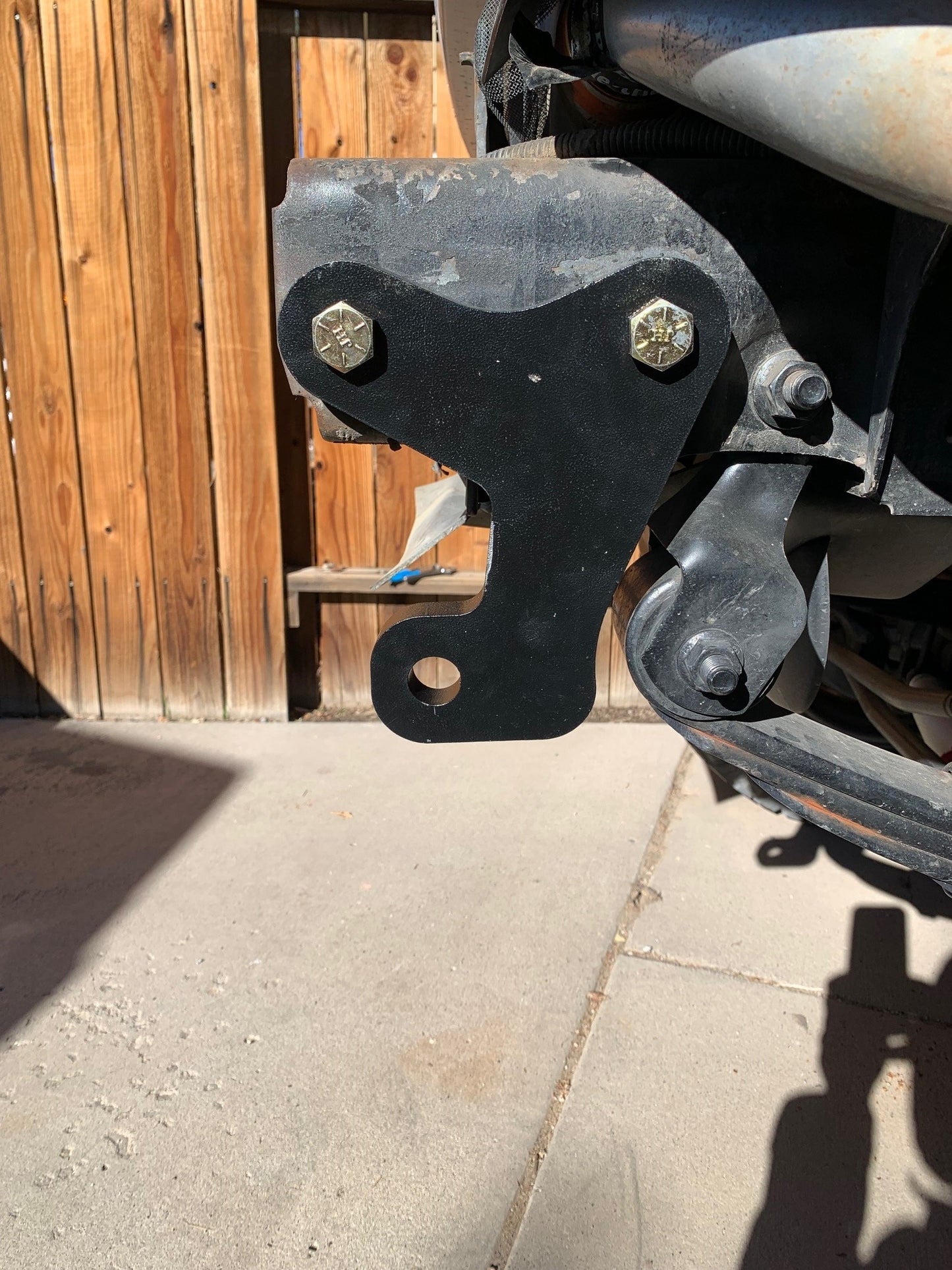

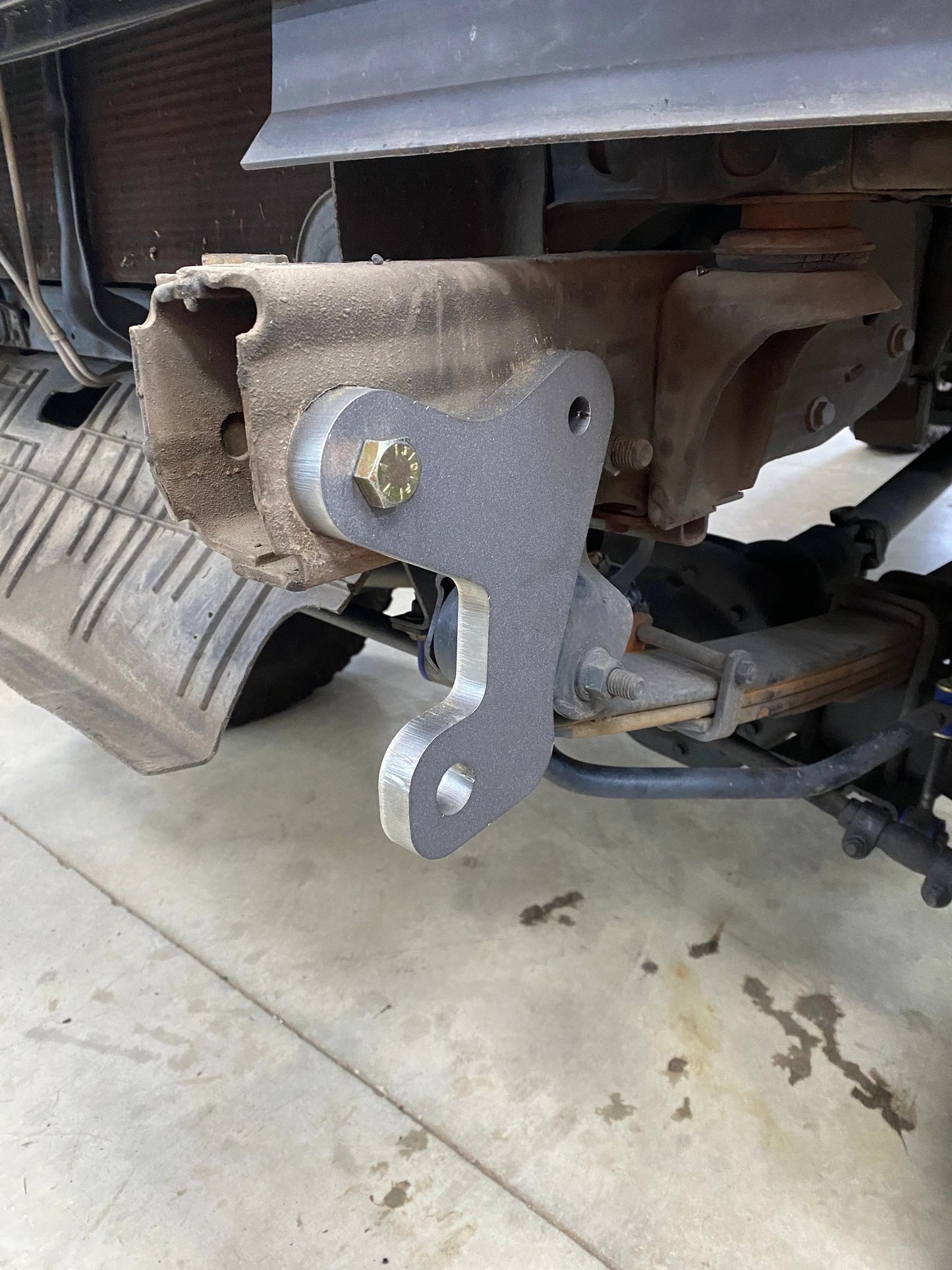

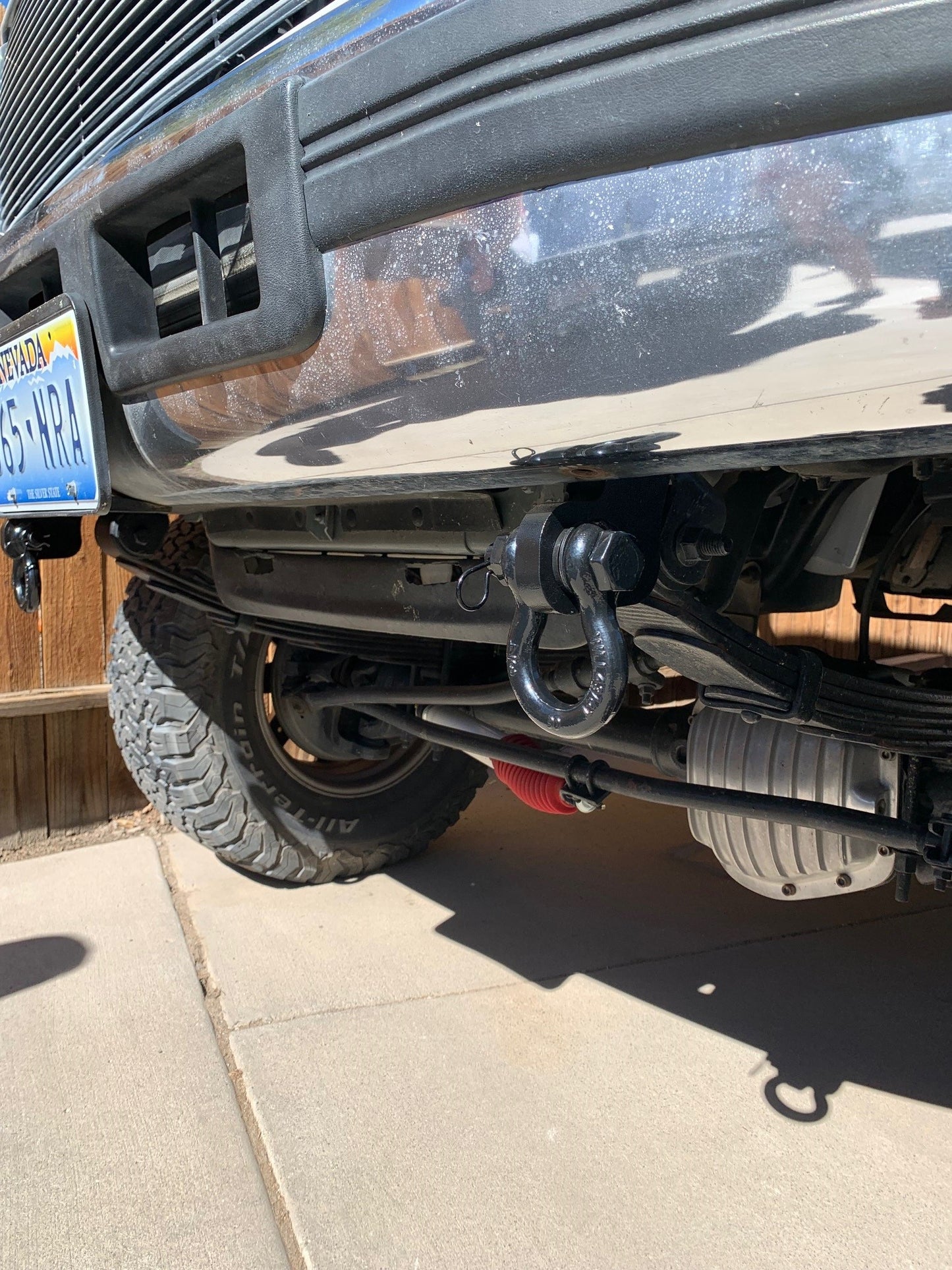

The Engineered Vintage Shackle Bracket bolts to the frame and provides a solid front tow point underneath the stock bumper for pulling / vehicle recovery while not compromising front bumper or frame looks or integrity. These Shackle Brackets each attach with (2) 5/8" diameter bolts & accept a shackle / Clevis with up to a 7/8" pin diameter. Some trucks may require drilling 5/8” diameter holes in frame to mount these.

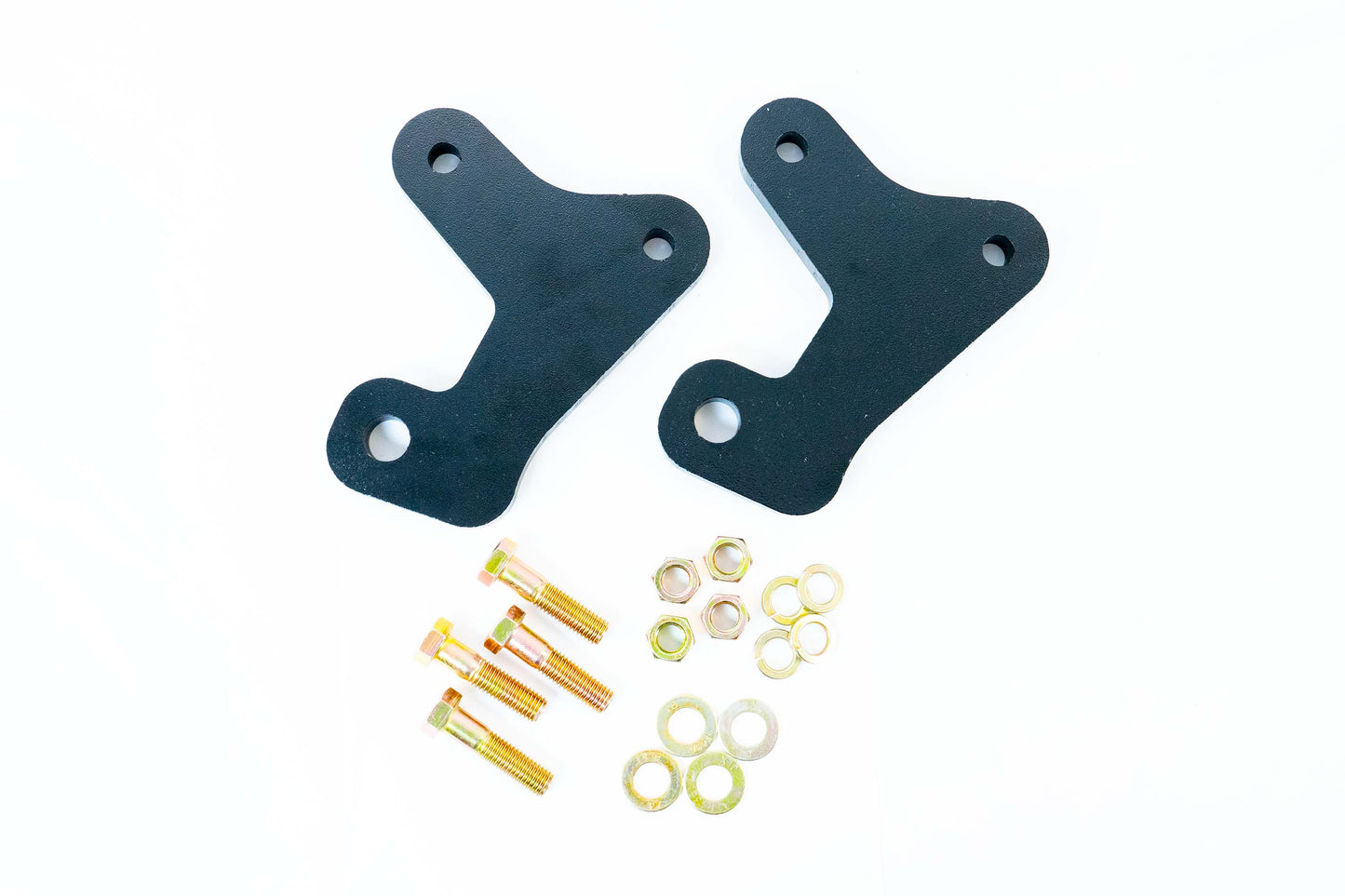

(2) 3/4" steel laser cut brackets in black powder coat finish
(4) 5/8" x 2" long bolts
(4) 5/8 washers
(4) 5/8 nuts & lock washers (or lock nuts)
*Note that shackles are not included in our kits with the variety of options available on the market and to keep costs low.
Engineered Vintage recommends the Ambull 3/4” shackle with cotter pin - available on Amazon in ~12 different color choices.
Laser cut from A-36 equivalent steel, with tensile failure point of 36,000 lbs / square inch or higher.
Grade 8 bolts of 5/8 diameter will fail at 40,000 lbs (in shear) or better per bolt
