SKU:FORD-FSR-002i-Raw

Reverse Shackle Kit - (OBS Springs) 1992-1997 F-250/350

Reverse Shackle Kit - (OBS Springs) 1992-1997 F-250/350

sold in last hours

Regular price $454.00
Regular price Sale price $454.00
Sale Sold out

customers are viewing this product

Pairs Well With

View full details

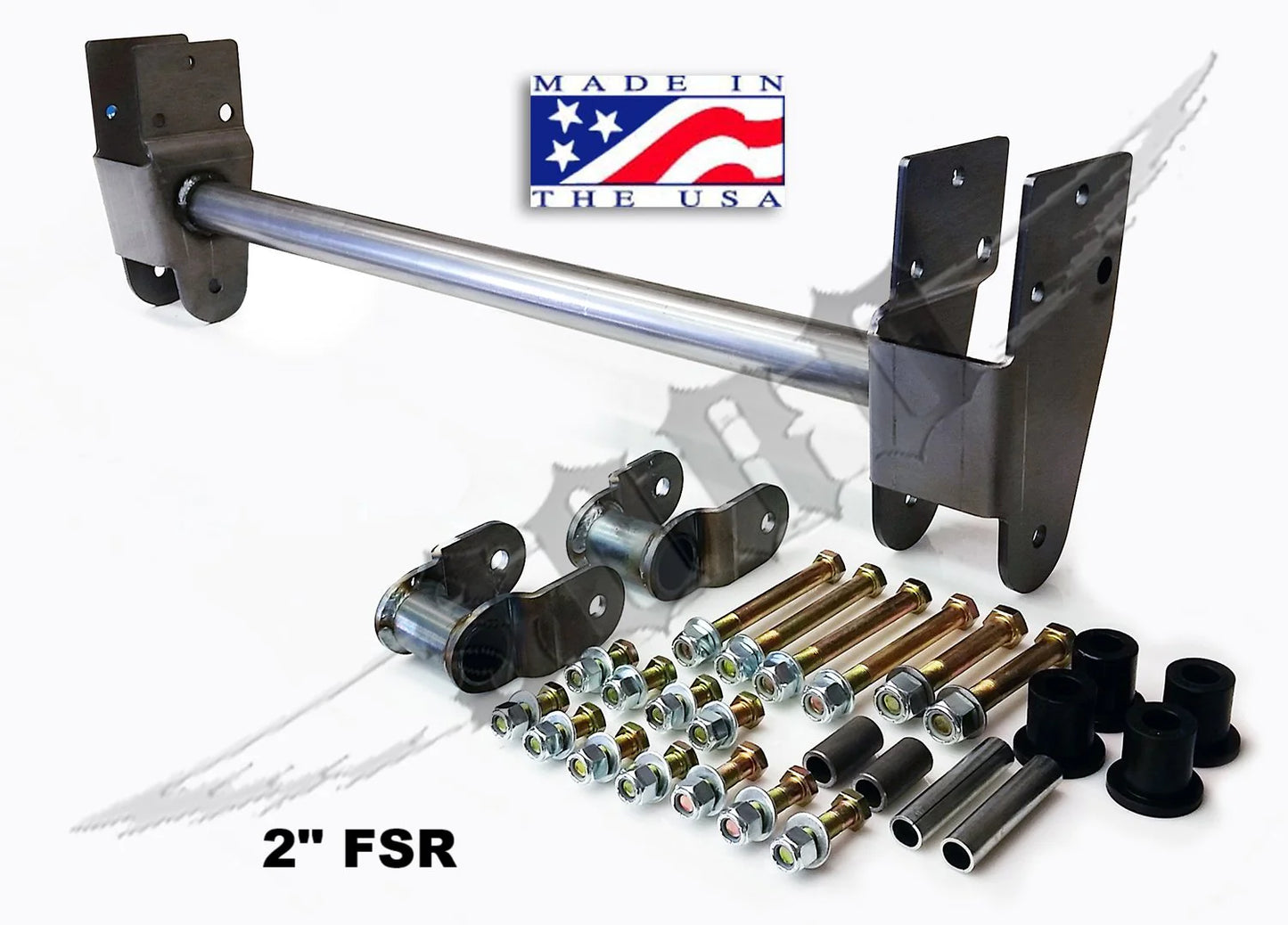

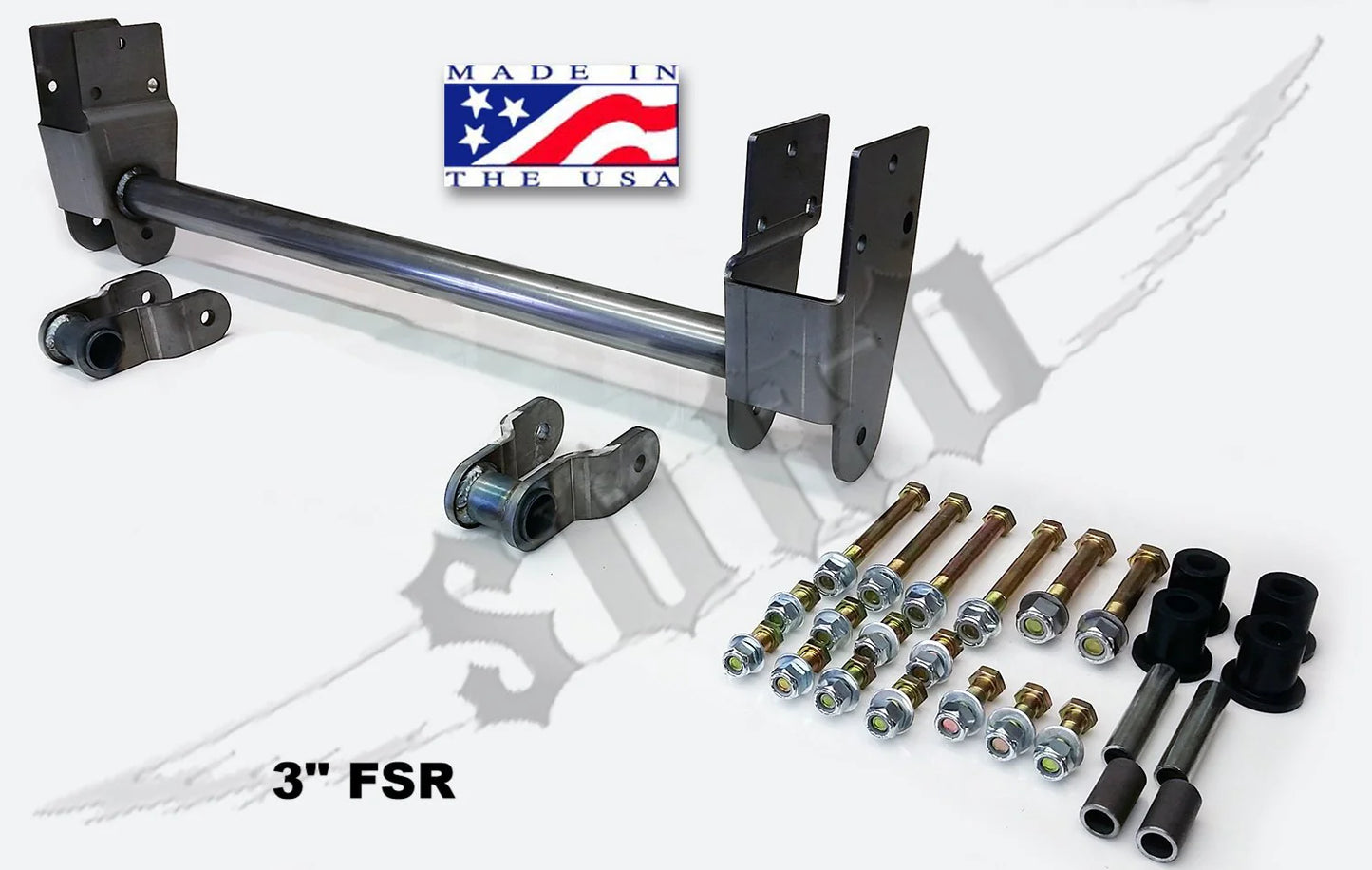

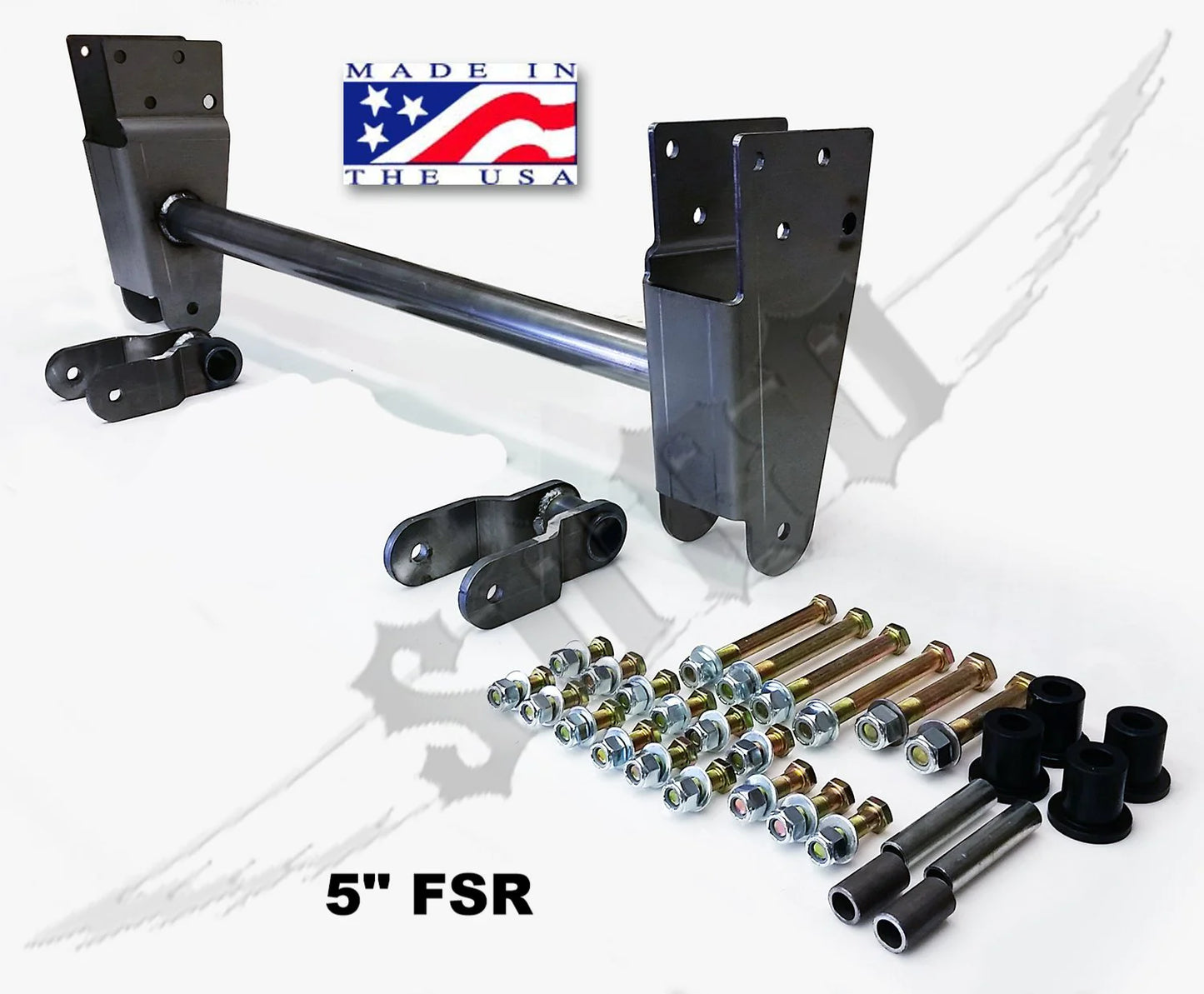

Sky's Offroad Design Shackle Reversal Kit (FSR & FSRSD)

Application:

  • Truck:

    • 1992–1997 Ford F-350 w/ 1985–1997 Dana 60

    • 1992–1997 Ford F-250 w/ TTB & drop brackets (e.g., Sky’s TTB Drop Brackets)

  • Springs: 1980–1997 52" F250/F350 Leaf Springs


πŸ”§ Key Benefits:

  • Improves ride quality by moving the front shackle to the rear of the leaf spring

  • Eliminates weak factory front shackle design

  • 2" kit will level a stock-height F-350

  • Intercooler-compatible option available – lowers crossbar for future upgrades


πŸ“¦ Installation Notes:

  • Sway bar modifications required – either delete or extend end links

  • Frame may need slight correction – common spread at front horns due to age

  • Use quality springs and bushings – poor fitment from worn parts can cause clearance issues

  • Lift springs often shorter than stock – pre-fit hanger before drilling all mounting holes

  • Some factory rivet holes may require cleanup with a die grinder


πŸ”© Recommended Add-Ons (2" Reversal):

F-350 (85–97 Dana 60):

  • 10” Bilstein shocks

  • Adjustable panhard bar

  • Sway bar end link extensions

F-250 TTB:

  • 10” Bilstein shocks

  • Sky’s TTB drop brackets

2WD–4WD Swap:

  • 10” Bilstein shocks

  • Adjustable panhard bar

  • Ford 2WD–4WD frame box kit

  • 92–97 extended stainless brake lines

  • Low-profile shackle hangers (2" kit only)

  • Stock F-350 pitman arm

  • Sway bar end link and frame bracket kits


πŸ”© Recommended Add-Ons (3" Reversal):

F-350 (85–97 Dana 60):

  • 10” Bilstein shocks

  • Adjustable panhard bar

  • 3” panhard drop bracket

  • Drop pitman arm

  • Sway bar end link extensions

F-250 TTB:

  • Sky’s TTB drop brackets

  • Drop pitman arm

2WD–4WD Swap:

  • All of the above plus frame box kit and shackle hanger upgrades


Note: These trucks vary due to age, use, and prior modifications. Email contact@cpaddict.com for a custom part list to match your setup.
