Dana 60 Front U-Bolt Flip Kit - 1988-1997 Ford F-Series

Sky Manufacturing Dana 60 Front U-Bolt Flip Kit

Fits: 1988–1997 Ford Dana 60 (Kingpin or Ball Joint)

Upgrade your front suspension setup with Sky’s simple and effective U-bolt flip kit designed specifically for Ford Dana 60 axles. Whether you're doing a solid axle swap or looking to clean up and strengthen your factory setup, this kit improves ground clearance, eliminates low-hanging hardware, and is built to handle off-road abuse.

🔧 Key Features:

• Application-Specific Design:
  Precision-fit for 3" wide leaf springs and Ford Dana 60 axles—no slotted universal holes.

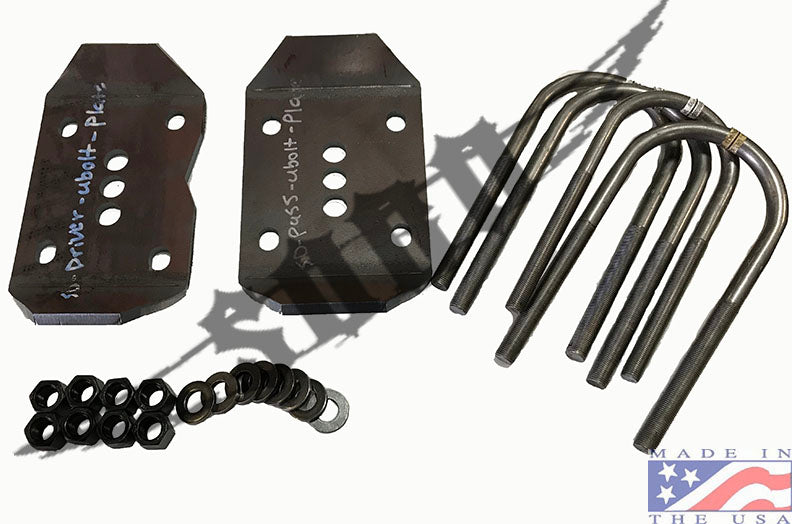

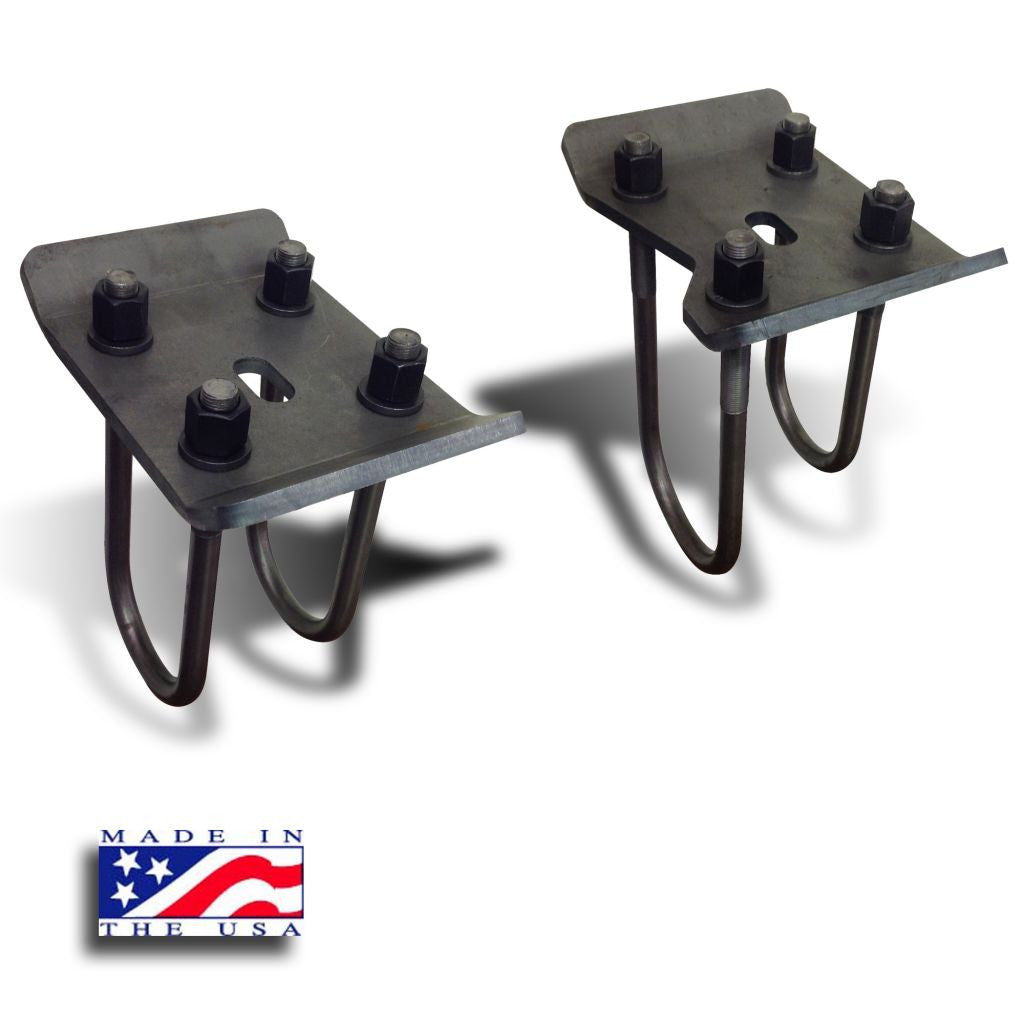

• U-Bolt Flip Setup:
  Replaces factory bottom-mount U-bolts with upward-facing 5/8" Grade 8 U-bolts for more clearance and strength.

• Heavy-Duty Spring Plates:
  Formed from 3/8" AR50 laser-cut steel for maximum durability.

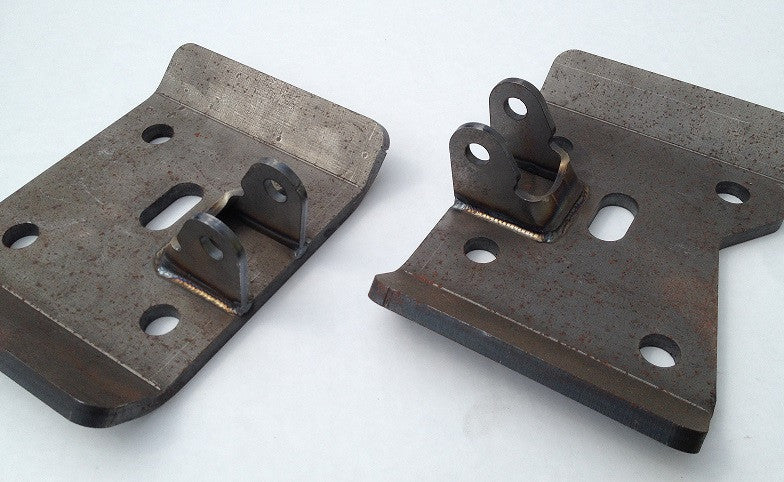

• Optional Shock Mounts:
  Shock tabs are available and built from 3/16" steel with a 1/2" eyelet (welded to plate).

🛠 Installation Notes:

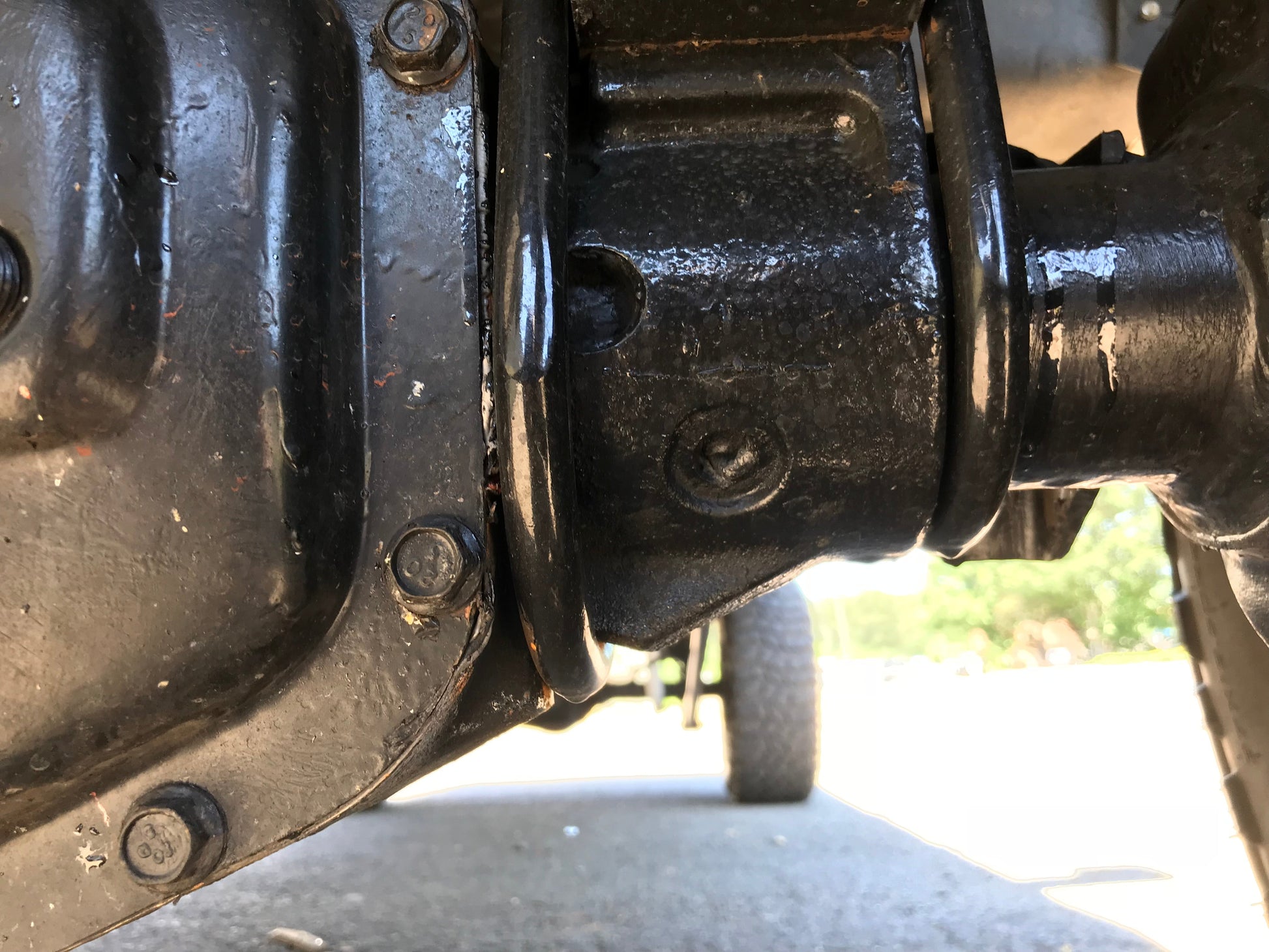

• Differential Housing Notch Required:
  You will need to notch the housing web to route the U-bolt correctly.

• Trac Bar Modification:
  The factory trac bar axle mount is removed with this flip. You’ll need to fab a new mount or clearance the plate if reusing the short factory bar.

Made in the USA

This kit is purpose-built for strength, clearance, and performance—no compromises. Perfect for custom builds, Dana 60 swaps, or simply improving what Ford started.
