Engineered Vintage Shackle Bracket Tow Hooks - 1967-1977 Ford F-Series

Engineered Vintage Shackle Bracket Kit – 1967–1977 Ford F-250 Highboy

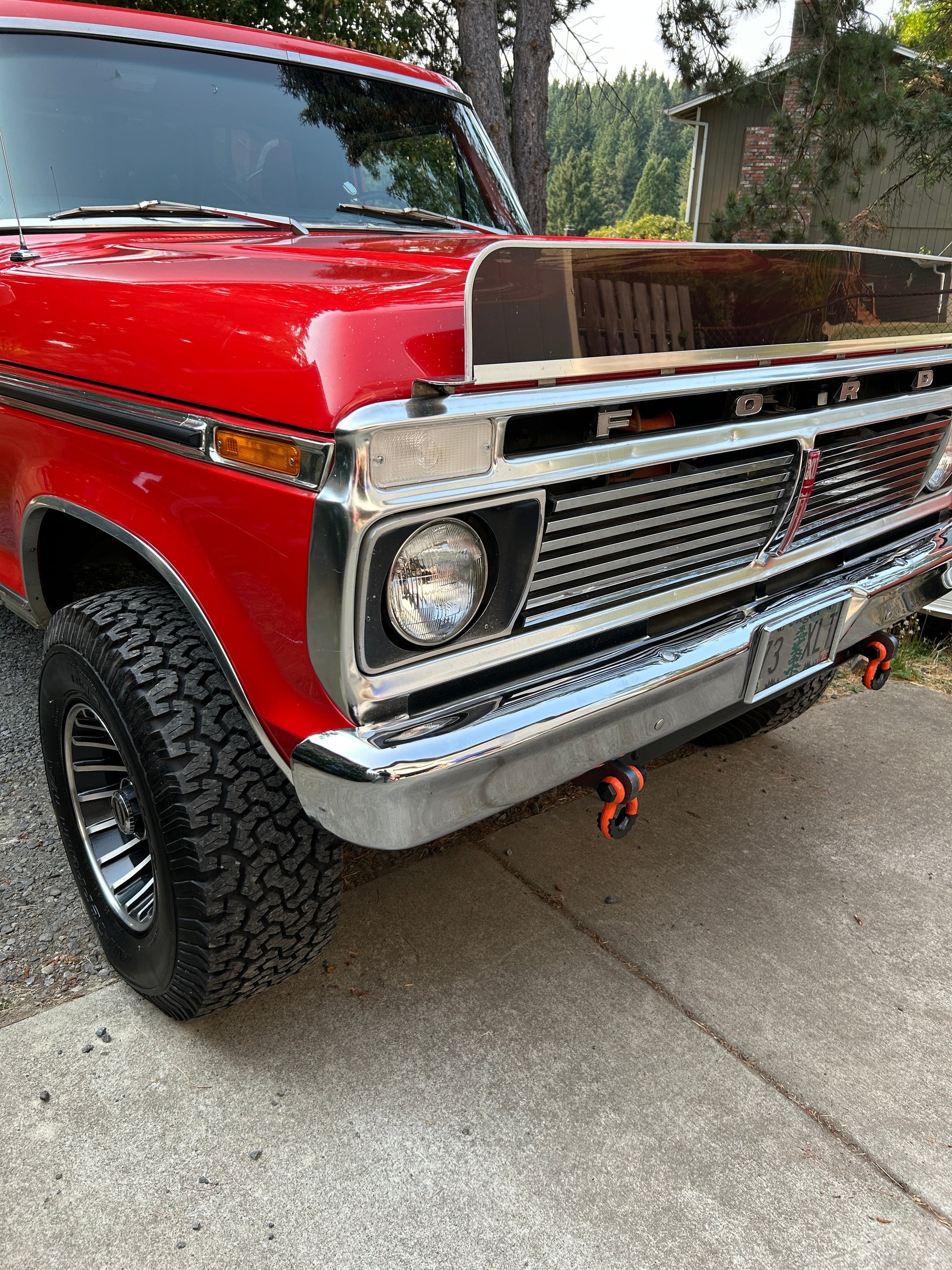

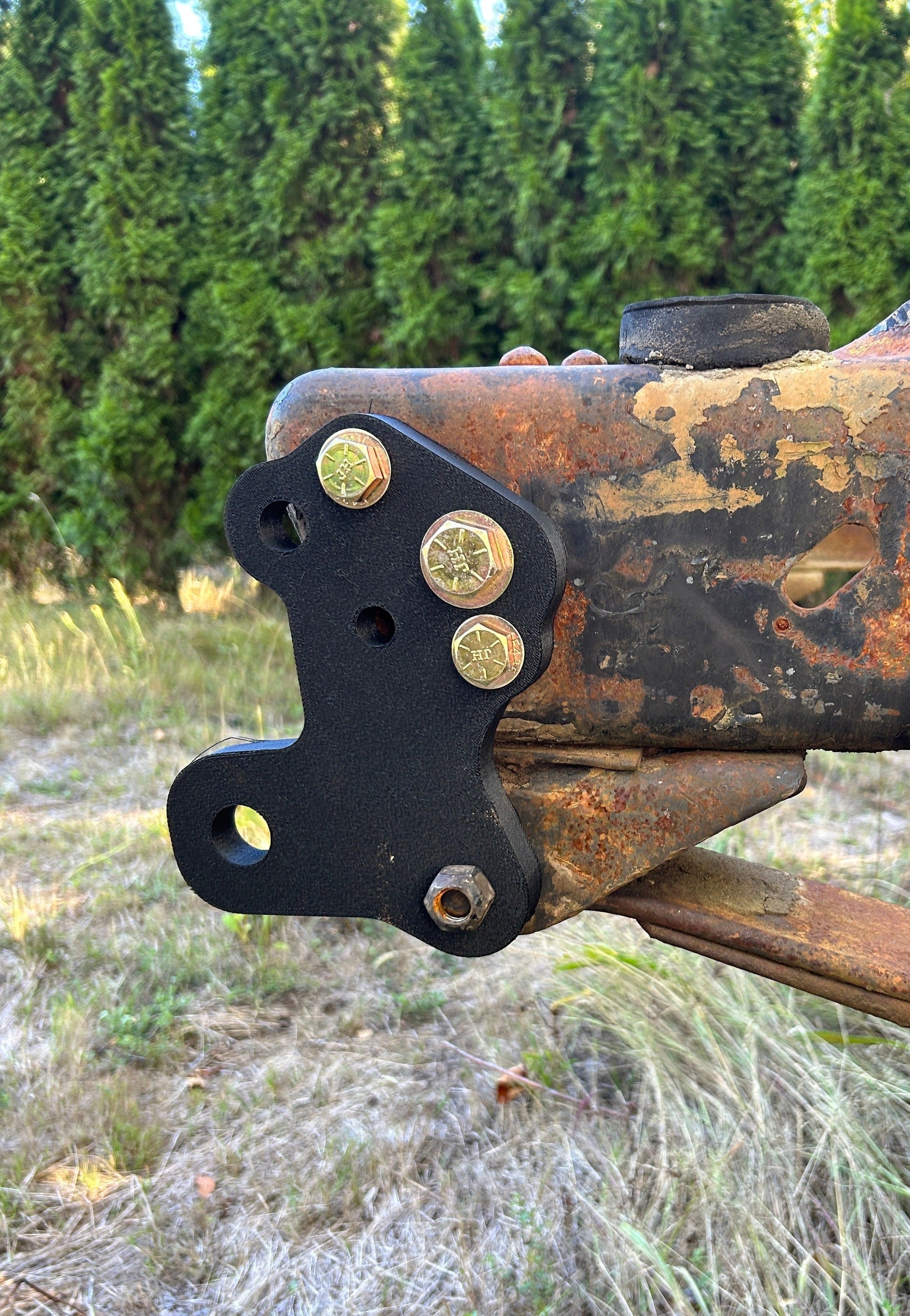

Designed as the ultimate strength recovery solution for classic Highboy trucks, this shackle bracket kit bolts directly to the stock holes in 1967–1977 Ford F-250 frames. By tying into the front suspension bolt and three frame holes, it provides unmatched pulling strength without compromising your truck’s classic looks.

⚠️ Fitment Requirements:

• Fits 1967–1977 Ford F-250 Highboy style trucks only

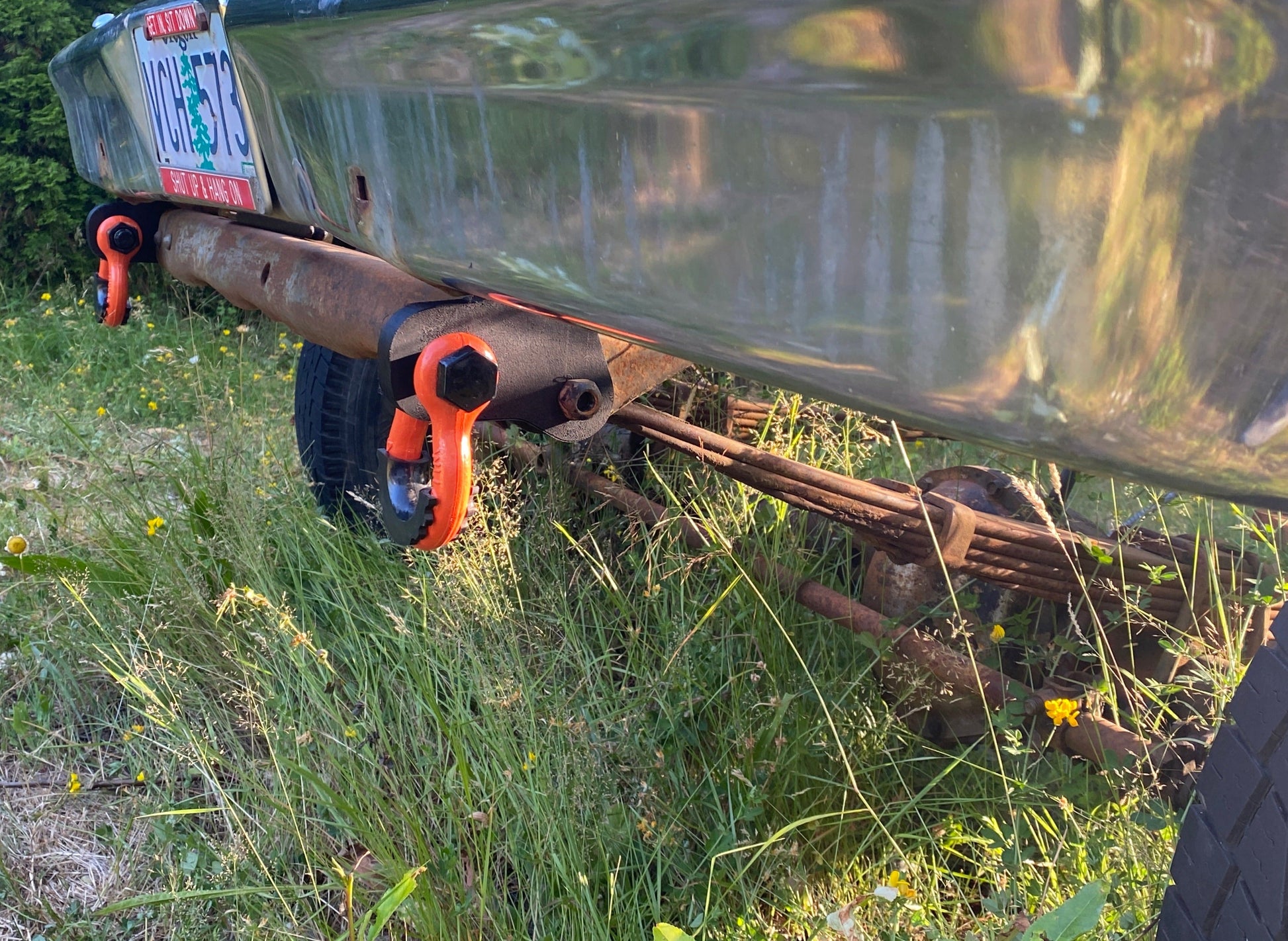

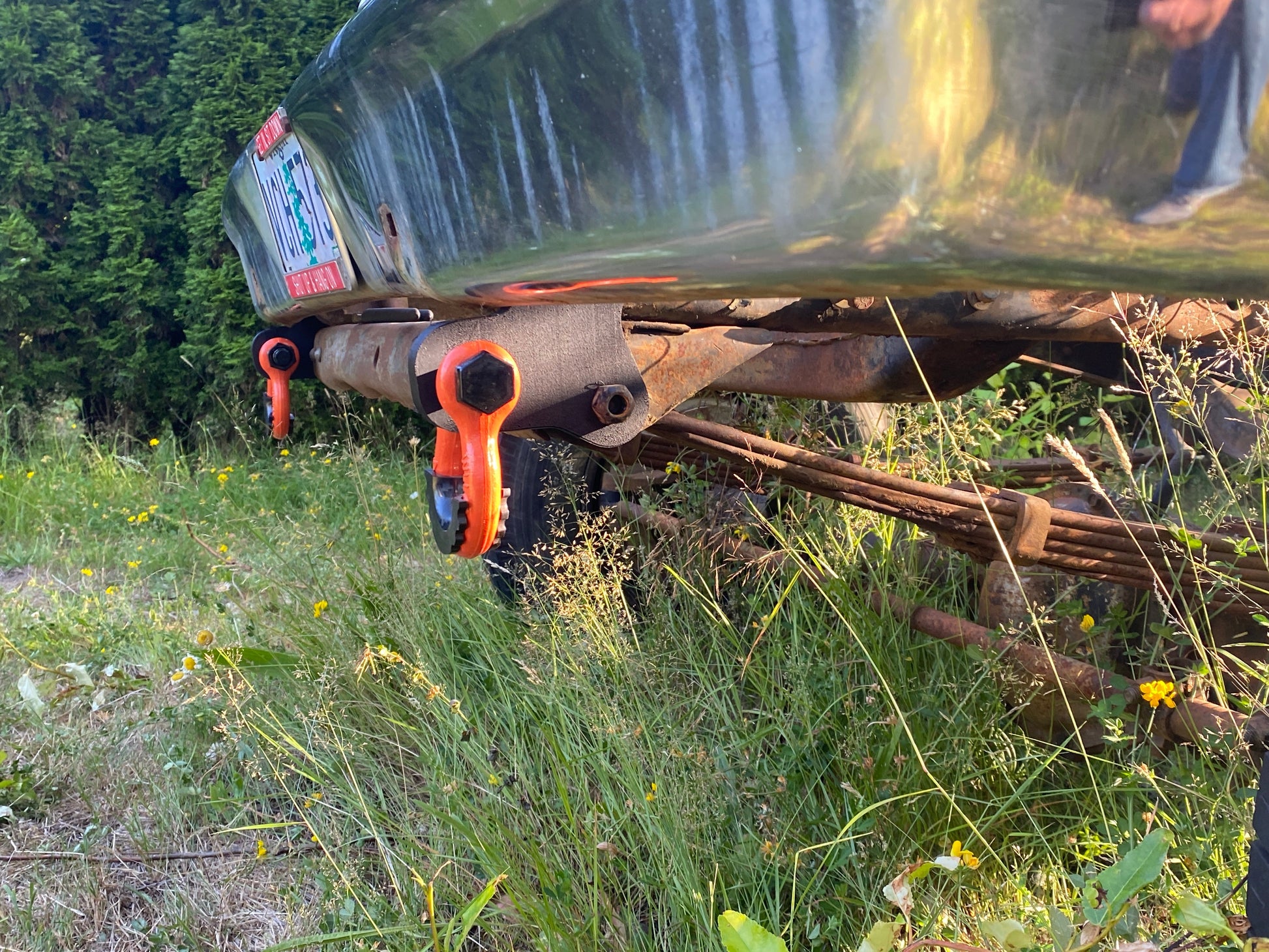

• Truck must have front cross-member & leaf spring suspension (as shown in pictures)

• Requires drilling one 5/8” hole in bumper mount

• Requires removal of stock weld nuts in frame (to upgrade to 1/2" bolts)

🔥 Key Features:

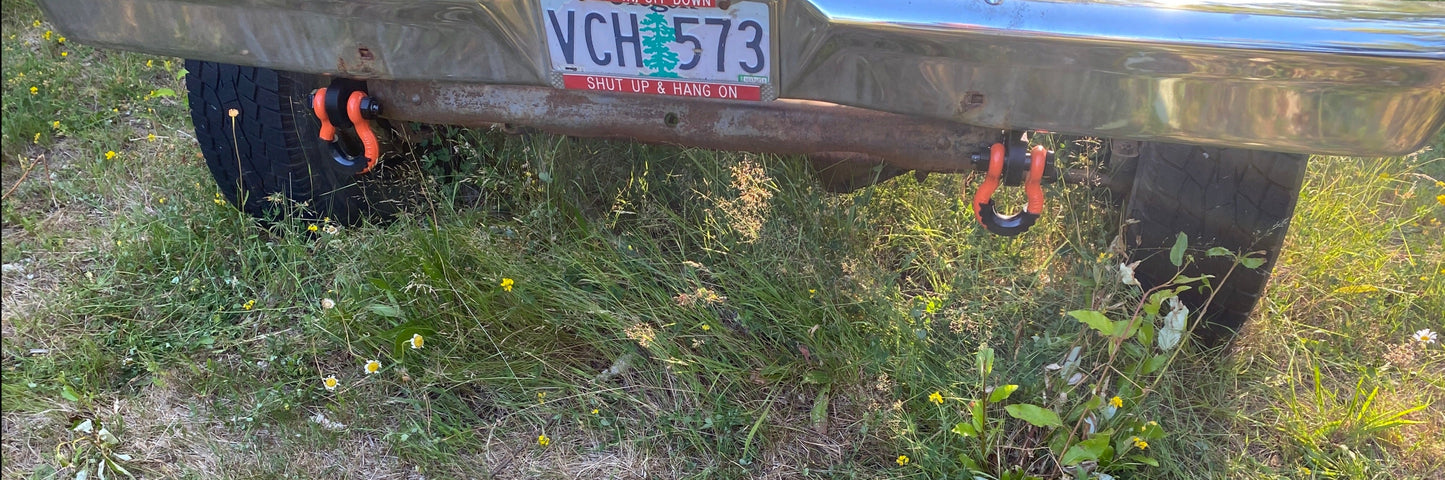

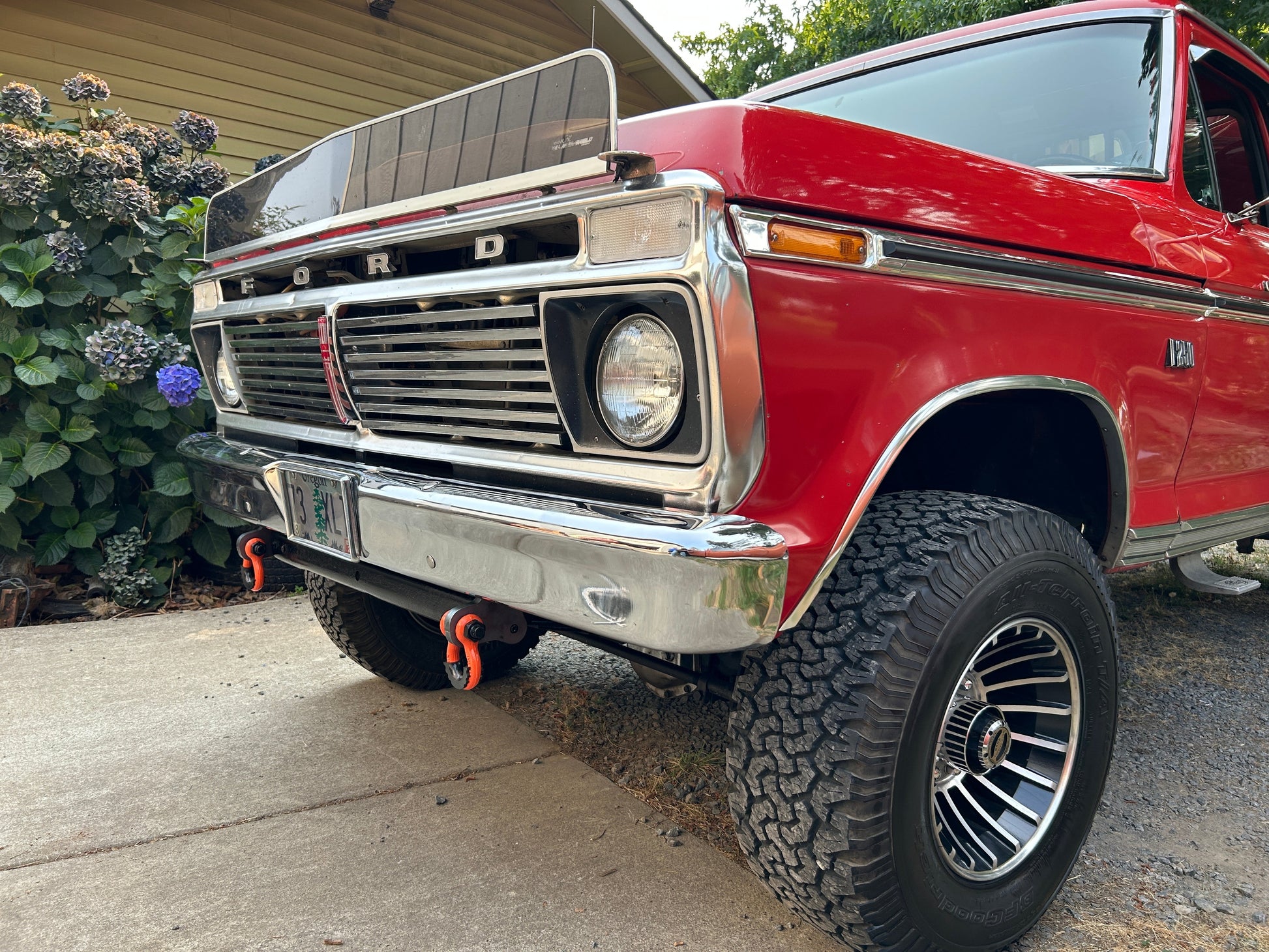

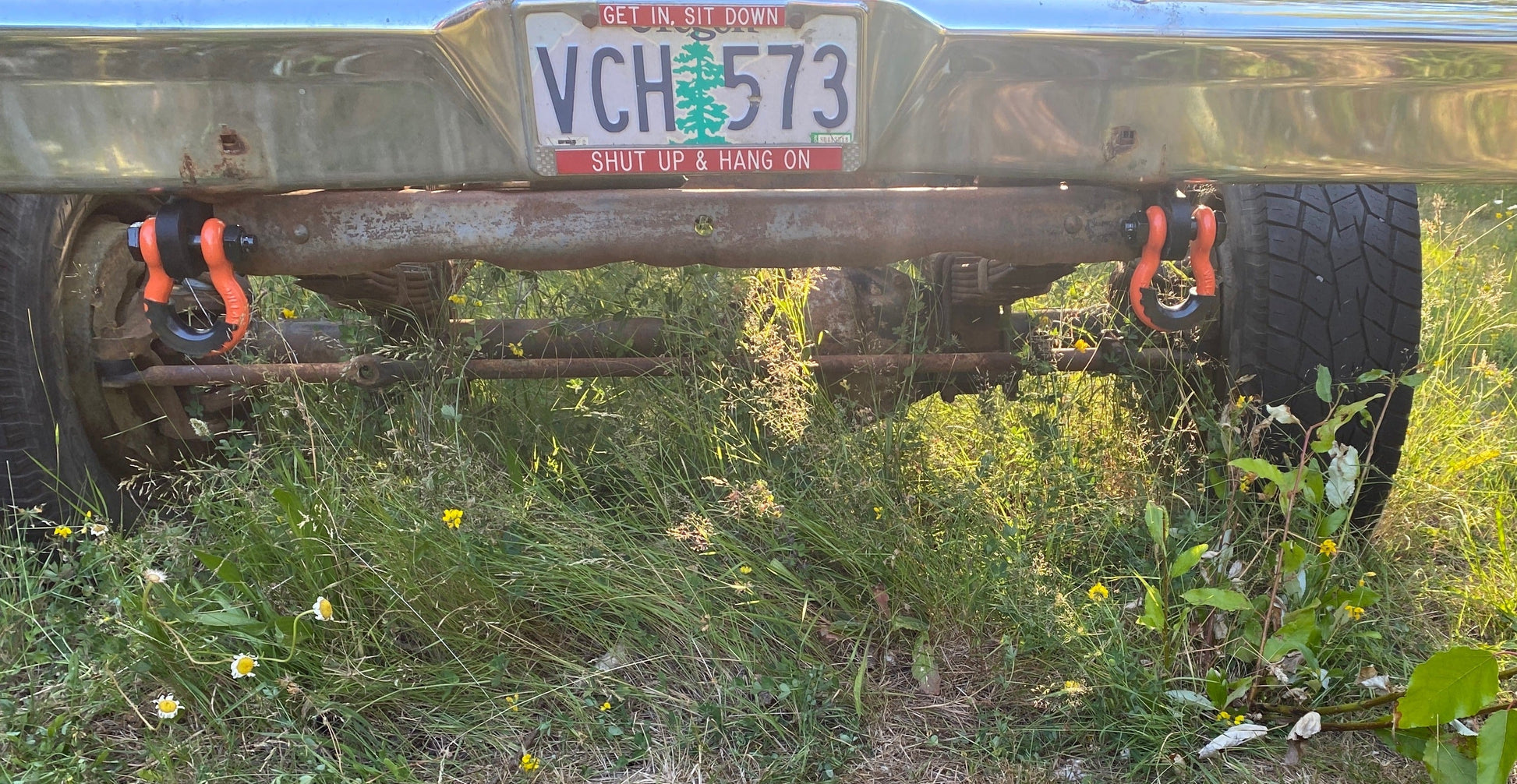

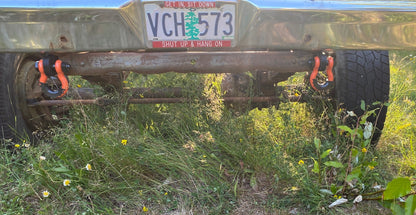

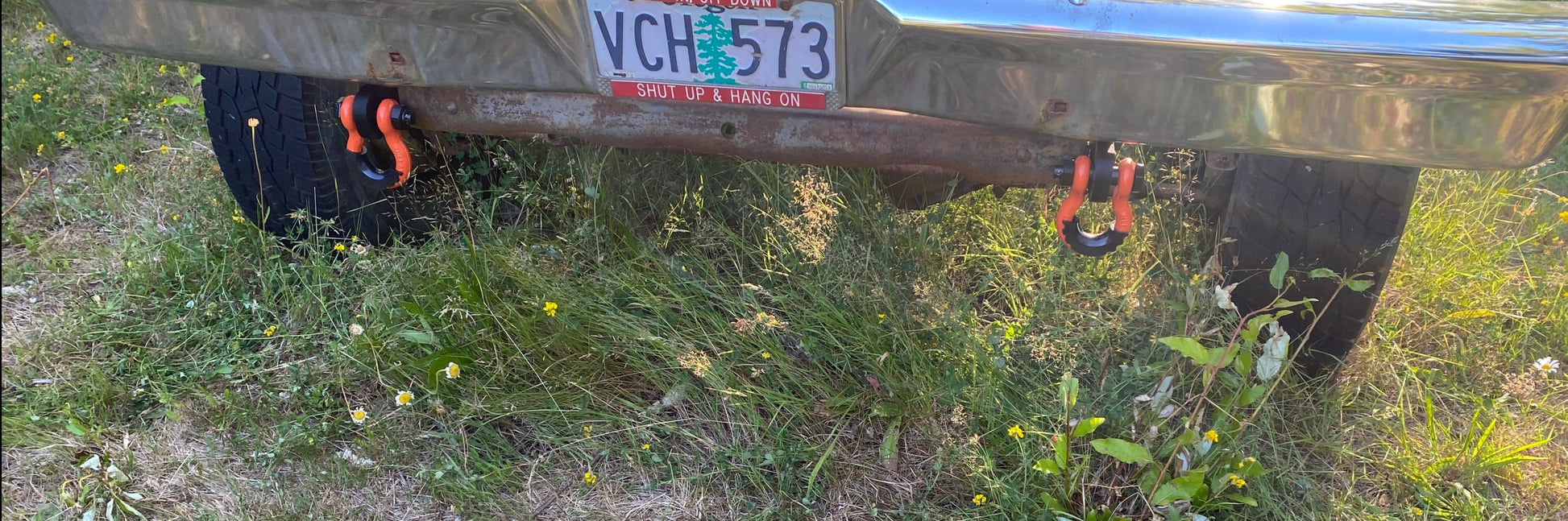

• Heavy-Duty Design – Provides a solid front tow point underneath the stock bumper for recovery

• Premium Construction – Laser-cut from A-36 steel (tensile failure point of 36,000 lbs/sq in)

• Grade 8 Hardware – Brackets attach with grade 8 bolts for ultimate strength

• Shackle Ready – Accepts shackles/clevis with up to 7/8" pin diameter

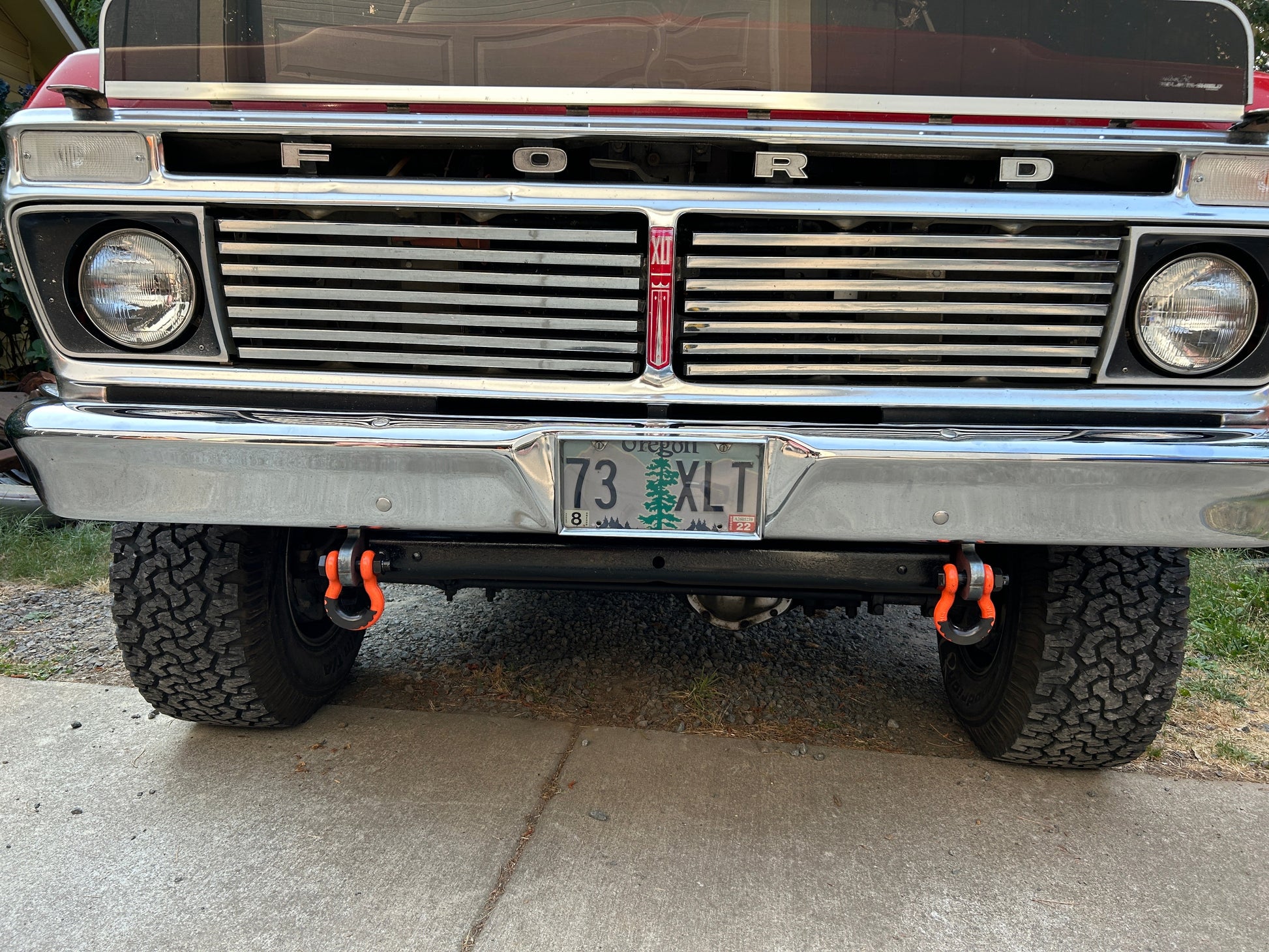

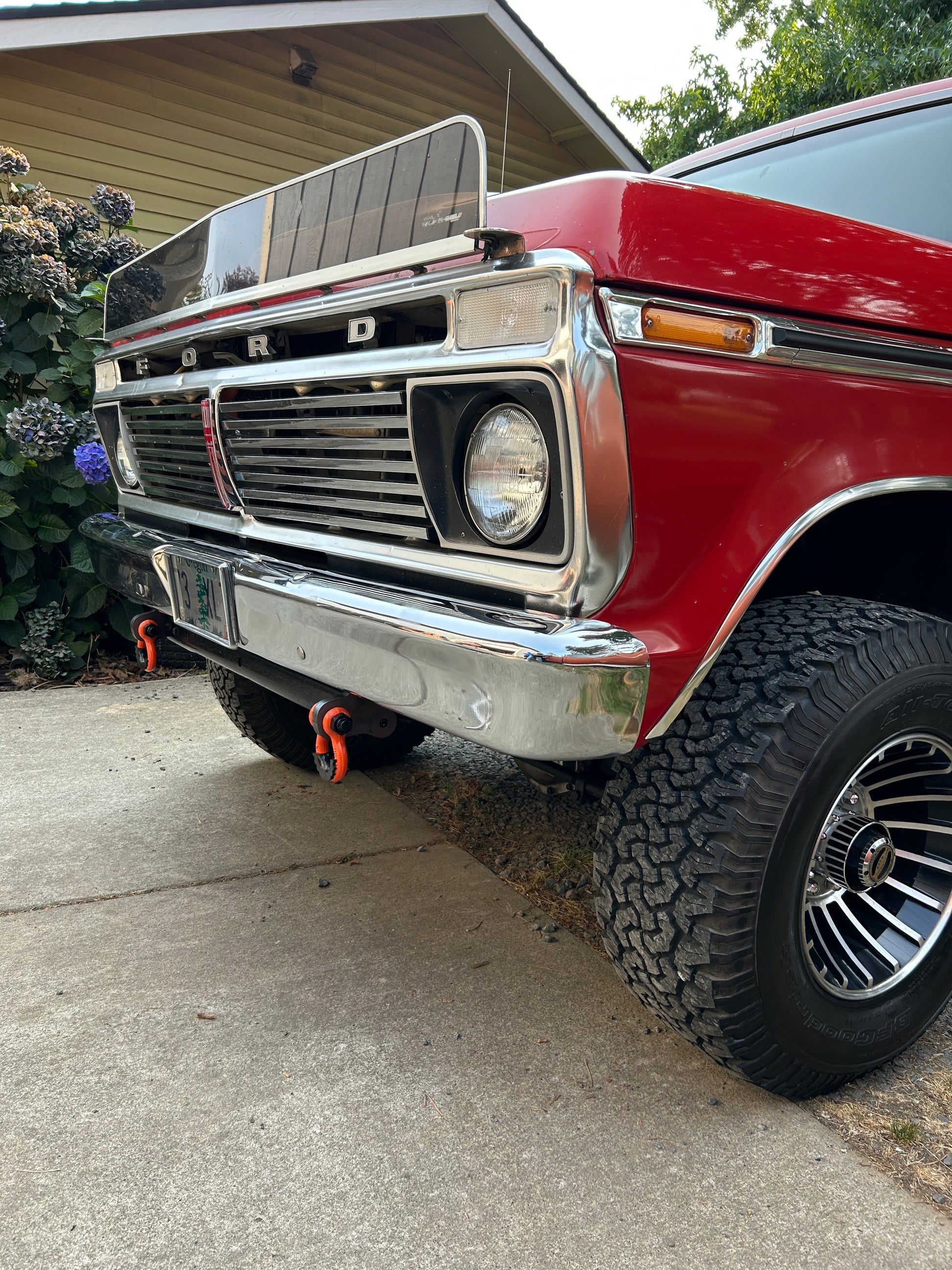

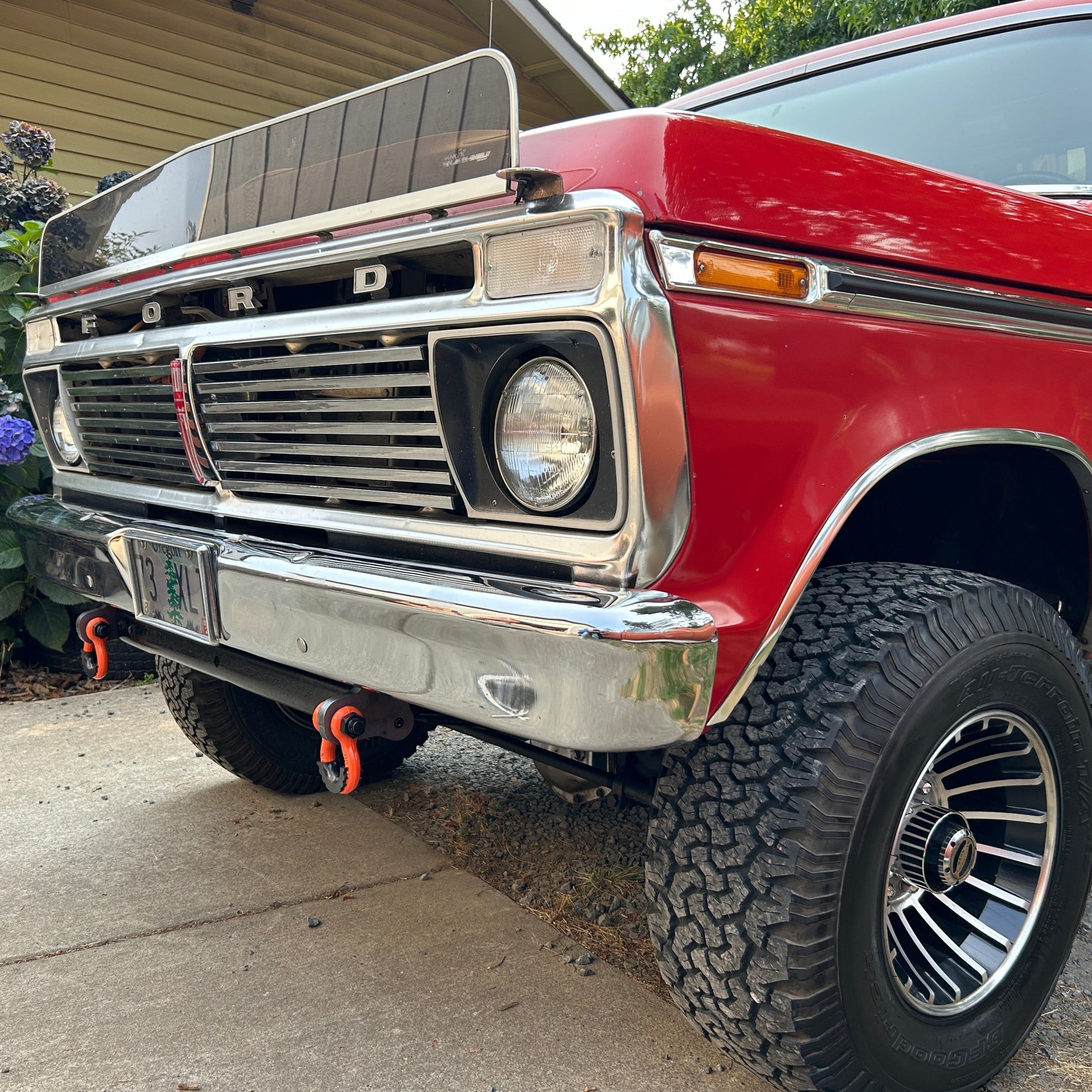

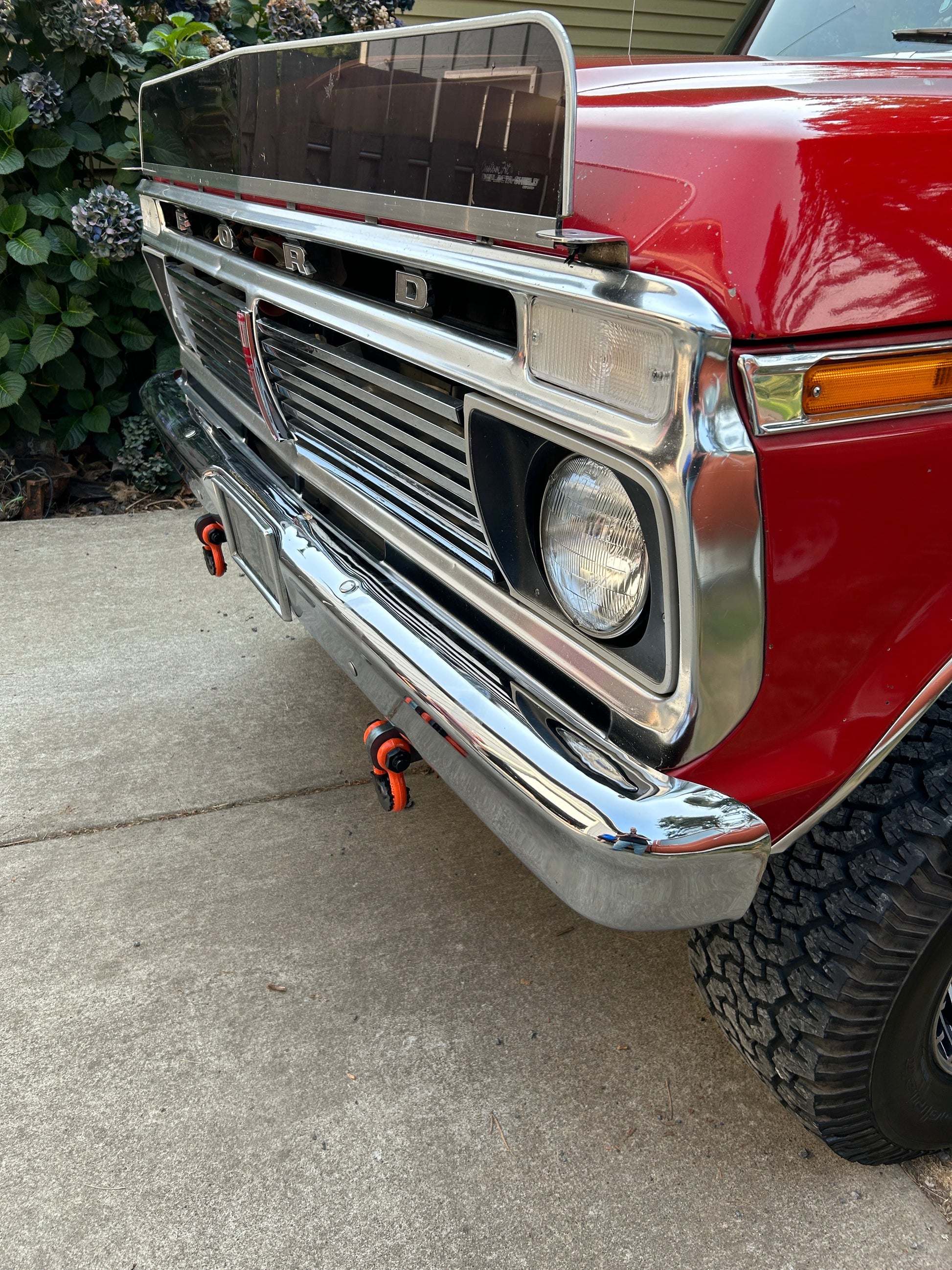

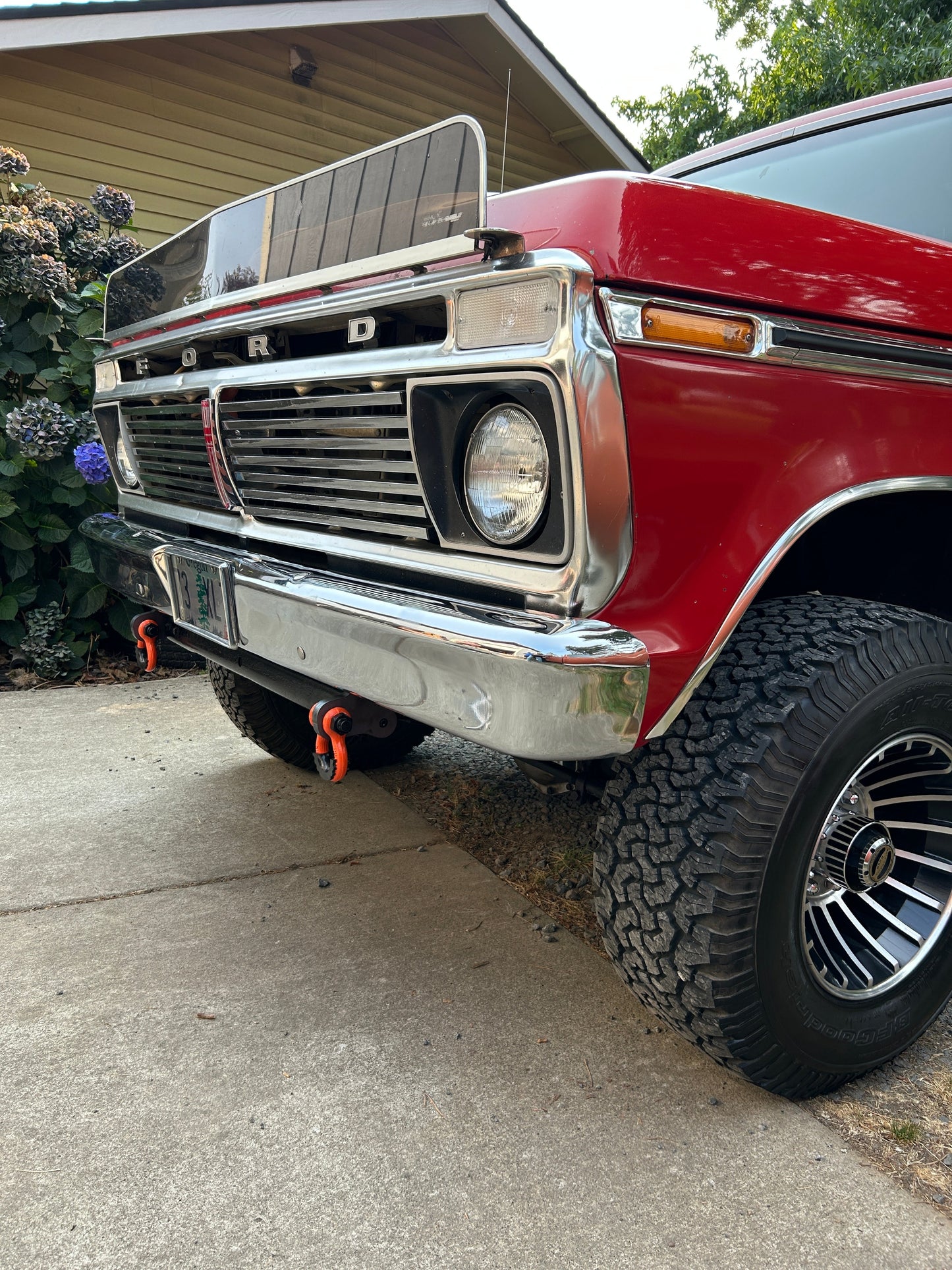

• Protects Appearance – Strong recovery solution that maintains OEM bumper and frame looks

• Durable Finish – Black powder-coated brackets for corrosion resistance

• Free Shipping in the USA – Ships fast and ready to install

📦 Kit Includes:

• (2) 3/4" steel laser-cut brackets (black powder coat)

• (2) 5/8" x 2" long bolts, (6) 5/8" washers, (2) 5/8" nyloc nuts

• (2) 9/16" x 6" long bolts, (4) 9/16" washers, (2) 9/16" nuts

• (4) 1/2" x 2" long bolts, (8) 1/2" washers, (4) 1/2" nyloc nuts

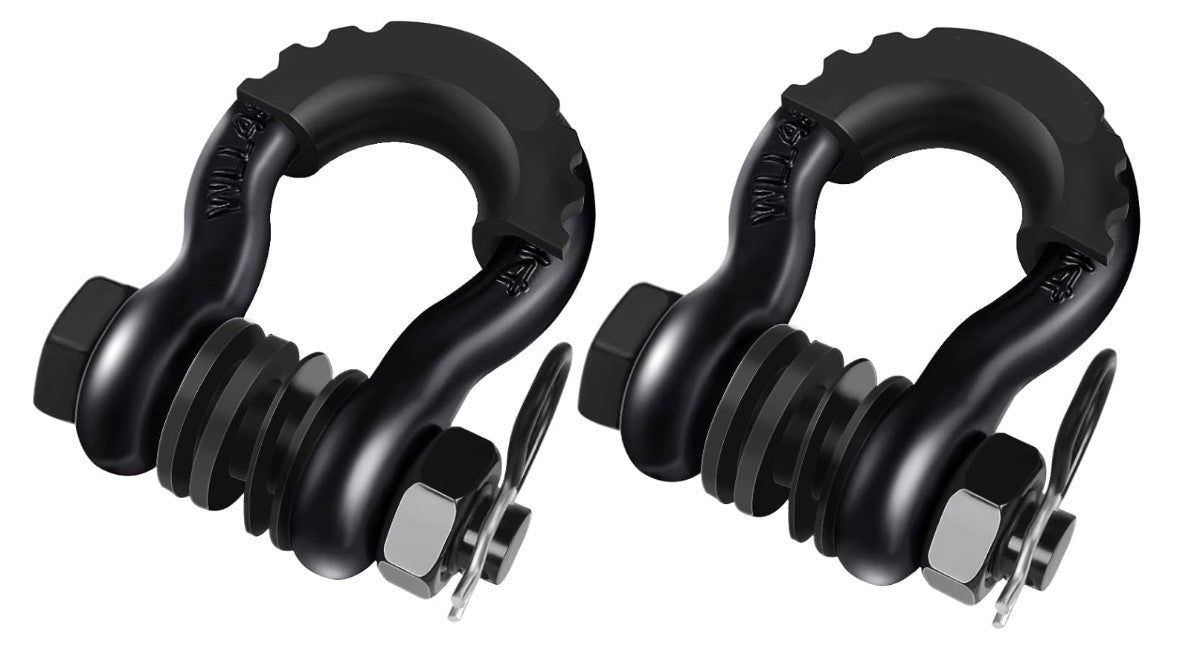

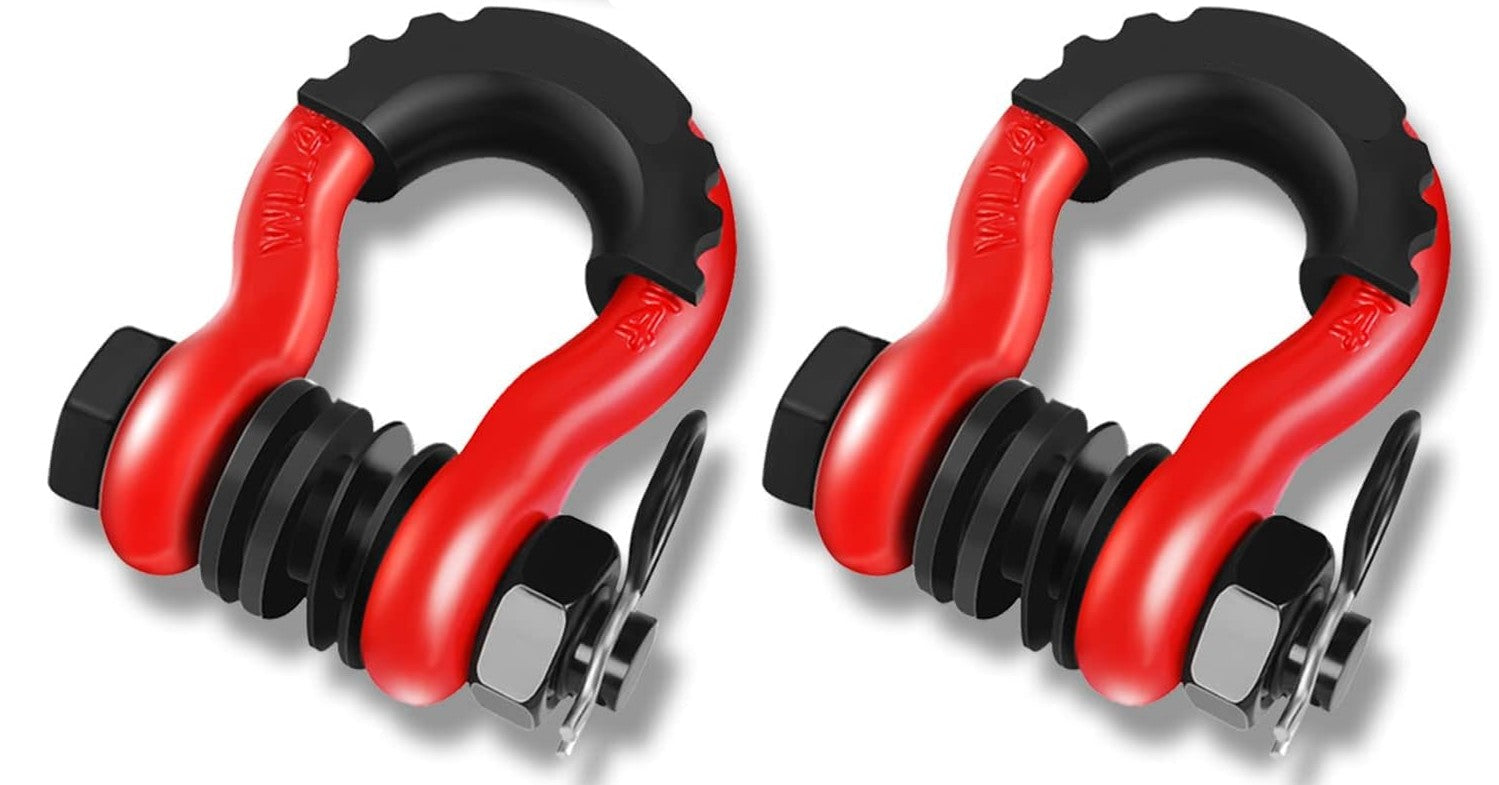

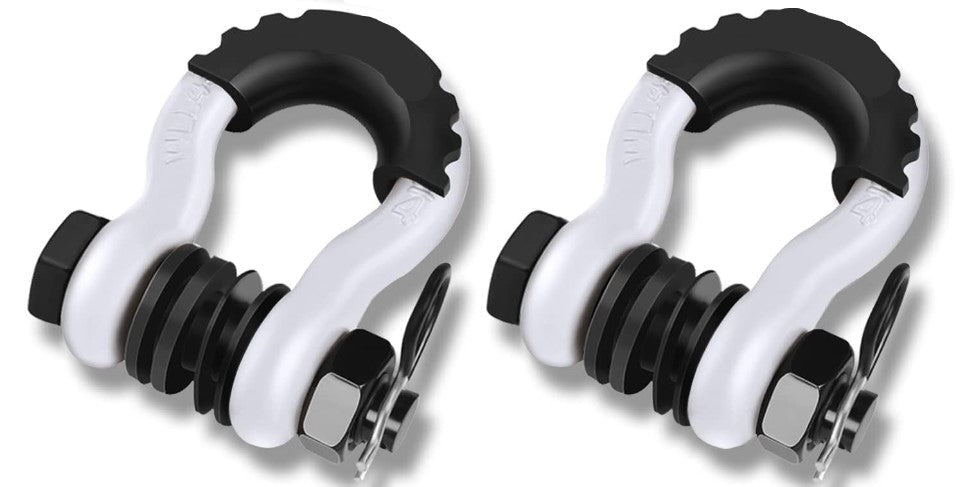

⚠️ Shackles sold separately — we recommend our cotter-pin style shackles to prevent bolt walkout while driving.

Upgrade your classic Highboy with this Engineered Vintage Shackle Bracket Kit — built tough for recovery, designed to last, and made to fit right.
