2WD to 4WD Conversion Kit for OBS Dana 60 Axle - 1992-1997 Ford F-Series

Sky's Offroad 2WD to 4WD Conversion Kit – 1992–1997 Ford F-250/350

Application: Converts 2WD trucks to accept an 85–97 Dana 60 front axle
Lift Height: 2" front shackle reversal

Upgrade your OBS Ford's front suspension with this complete 2WD-to-4WD conversion kit featuring a front shackle reversal and essential hardware for a smoother ride and better articulation. Whether you have a donor truck or just the axle, there's a kit option to match your build.

🔧 Choose Your Kit:

✅ BASIC KIT – If you have a full 4x4 donor truck

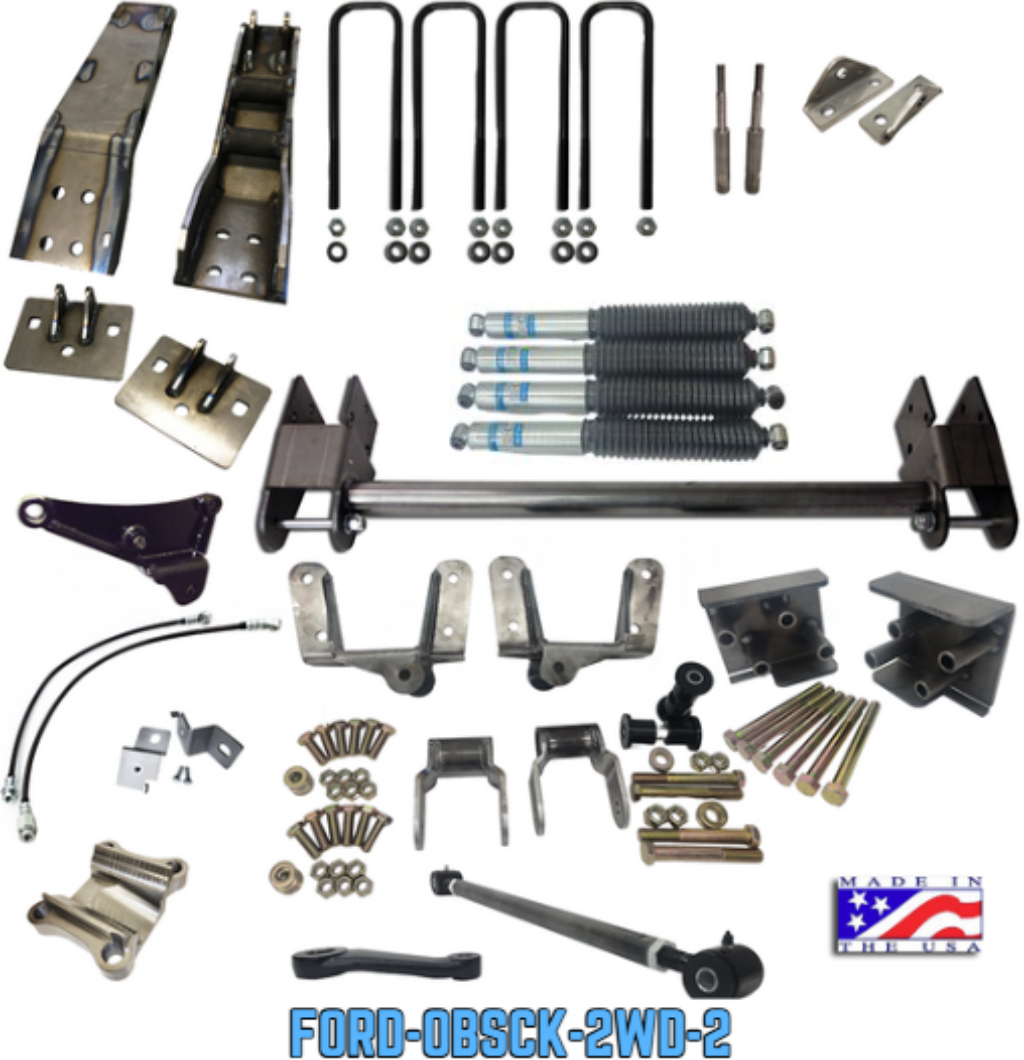

Includes:

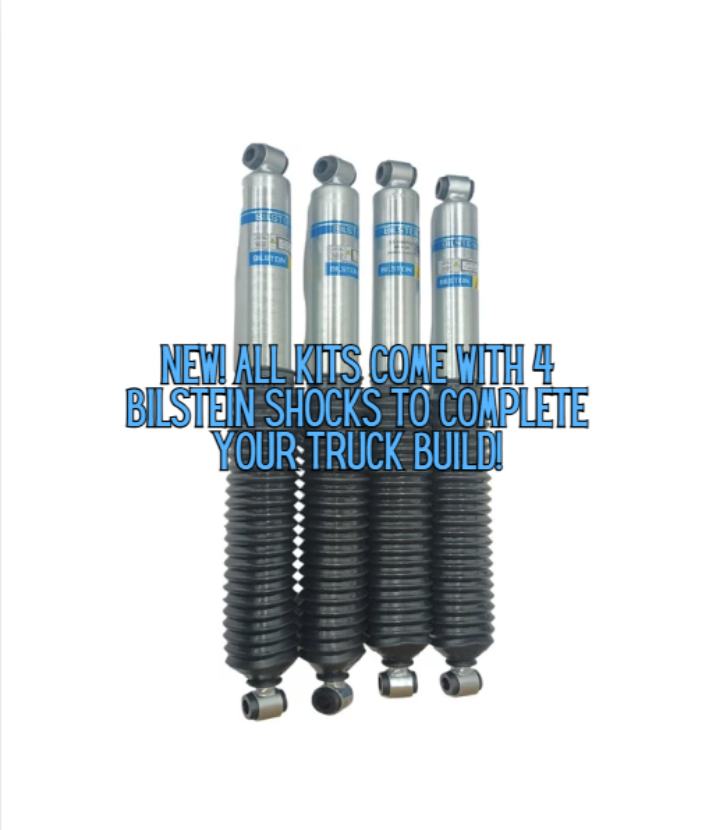

• (4) Bilstein 10" shocks

• Front Shackle Reversal Kit

• Front Shackle Hangers

• 2WD-to-4WD Frame Box Kit with installation jigs

• Adjustable Panhard Bar

• Sway Bar End Link Extensions

🚛 DELUXE KIT – If you only have a Dana 60 axle

Includes everything in the BASIC kit, plus:

• Stock replacement panhard bracket

• F-350 4WD pitman arm

• Driver-side U-bolt plate

• Shock mounts

• Front brake line brackets

• Front extended brake lines

• New U-bolts

• Sway bar frame brackets

⚙️ Fitment:

• Trucks:

  • 1992–1997 Ford F-350 with Dana 60

  • 1992–1997 Ford F-250 with Dana 60 (already swapped in)

• Springs:

  • 80–97 F-250/F-350 52" leaf springs

🛠 Notes:

• The intercooler-specific version lowers the crossbar for clearance

• Quality leaf spring bushings are required for proper shackle clearance

• Some frame rivet holes may need slight trimming for installation

• Install under vehicle weight for accurate geometry

• Check alignment after install

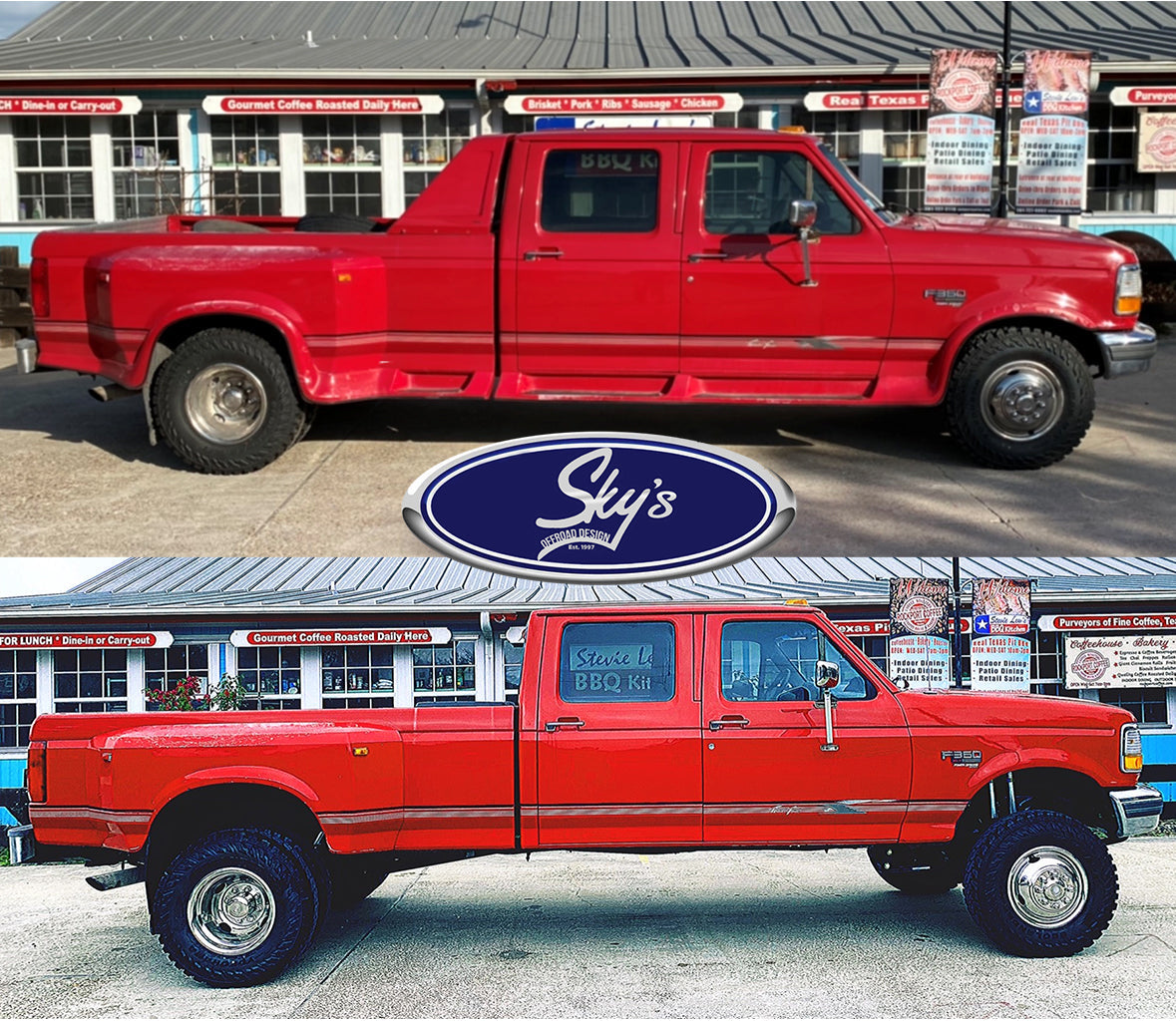

This kit transforms your OBS Ford from 2WD to a functional 4WD platform, with improved ride quality, suspension geometry, and clearance — all in a well-supported bolt-on package.
