Desolate Motorsports 6" "ALL IN" Suspension System (Front & Rear) – 1980–1996 Ford F-Series

Desolate Motorsports 6" "ALL IN" Suspension System (Front & Rear) – 1980–1996 Ford F-150 4WD

If you're looking for the ultimate suspension package for your OBS F-150, the Desolate Motorsports 6" "ALL IN" Suspension System lives up to its name. This complete front and rear suspension kit combines premium components, modern suspension geometry, and race-inspired engineering to create one of the highest-performing Twin Traction Beam (TTB) lift systems available.

Unlike traditional lift kits that simply raise the truck, the ALL IN package completely transforms how your F-150 drives. Featuring reinforced TTB beams, billet radius arms, Fox shocks, Deaver leaf springs, and a rear sway bar system, this kit dramatically improves ride quality, suspension articulation, and off-road capability while maintaining excellent highway manners.

Whether you're building the ultimate daily driver, overland truck, or weekend trail machine, this system delivers the comfort, control, and durability your OBS deserves.

🔥 Key Features

• Fits 1980–1996 Ford F-150 4WD

• Complete Front & Rear Suspension System

• Approximately 6" of Lift

• 12" of Front Wheel Travel

• 17" of Rear Wheel Travel

• Clears 35–37" Tires

• Premium Fox 2.0 Performance Shocks

• Custom Deaver Rear Leaf Springs

• Heavy-Duty Billet Radius Arms

• Bolt-On Rear Sway Bar System

• Engineered by Desolate Motorsports

🛠️ Front Suspension Highlights

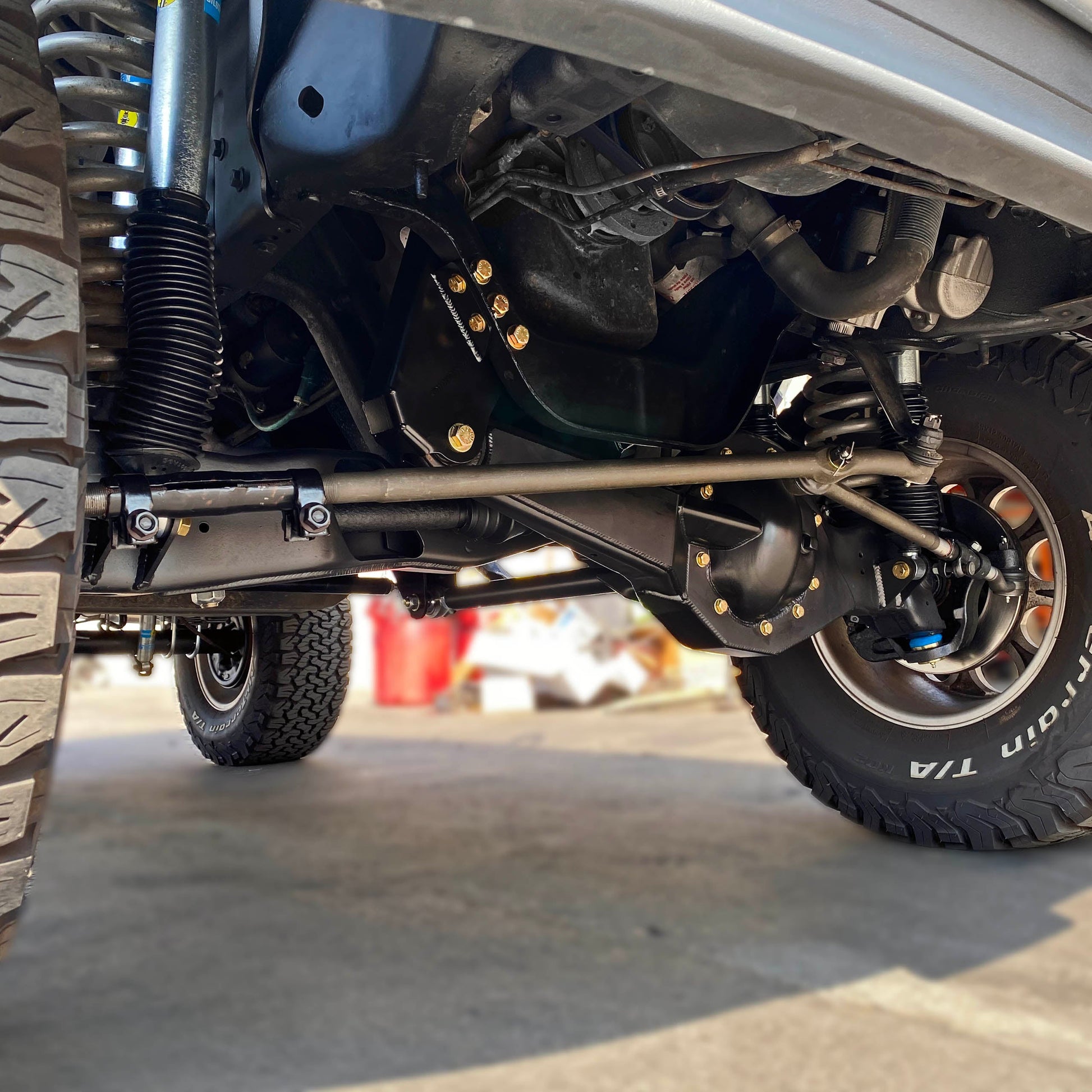

The front suspension is engineered to retain the advantages of the Twin Traction Beam design while dramatically improving strength, suspension travel, and steering stability.

Features include:

• Modified stock-width TTB beam housings

• Camber-corrected beams for lifted ride height

• Heavy-duty 2" drop beam pivot brackets

• 3/16" steel beam reinforcement plating

• Integrated mini truss and bash guards

• Stainless steel 1" uniball beam pivots

• CNC-machined billet aluminum extended radius arms

• Massive 1.25" heim joint pivots

• Billet radius arm cross bar

• Increased caster geometry for improved highway handling

• 4" lift coil springs

• Proprietary billet coil spacers for a total of approximately 6" of lift

• Dual Fox 2.0 front shocks (optional dual-shock configuration)

• Adjustable alignment cams

• Full drop pitman arm

• Stainless steel extended front brake lines

• Front limit straps

Replacing the factory beam bushings with stainless uniballs eliminates suspension deflection while increasing articulation and durability for aggressive on- and off-road driving.

💪 Rear Suspension Highlights

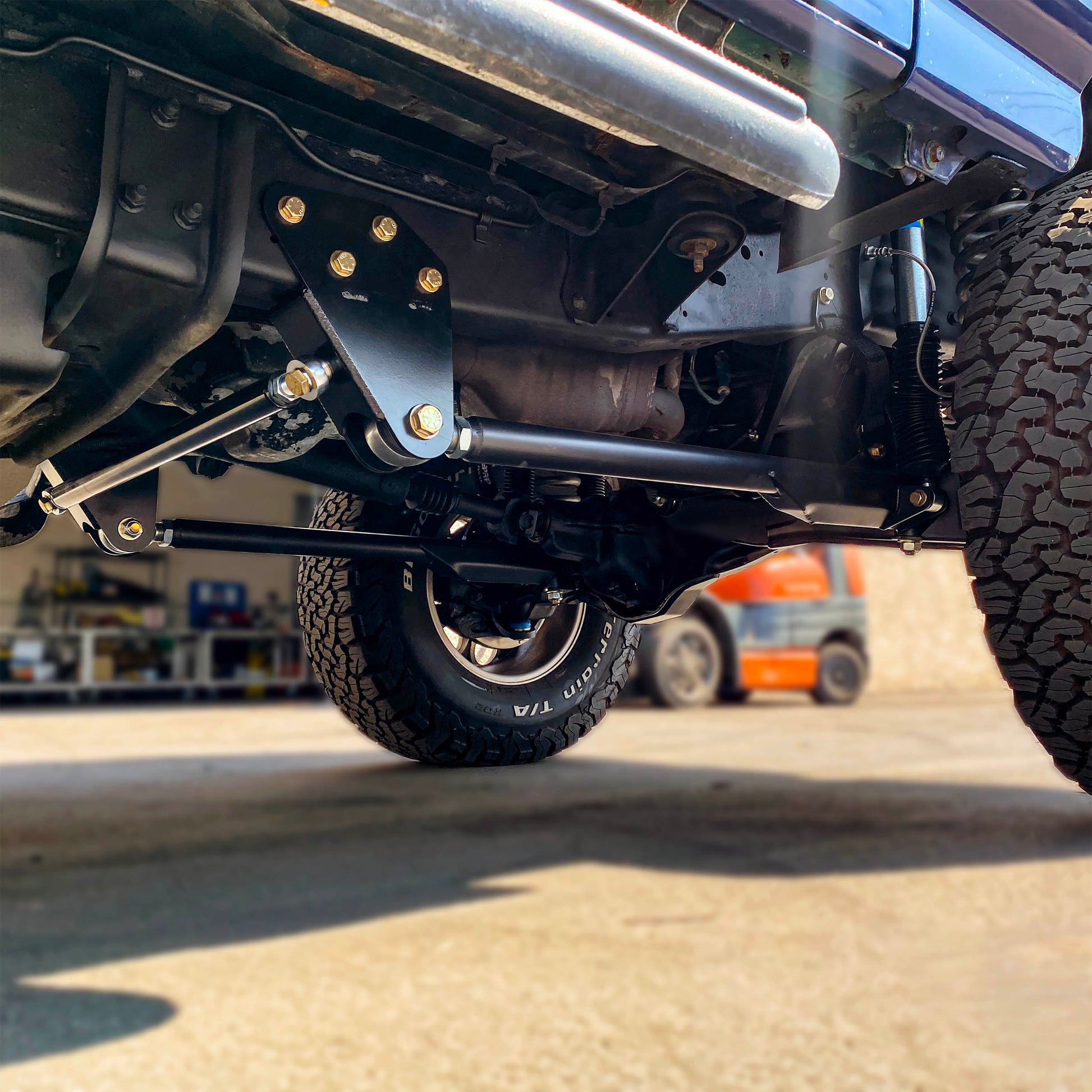

The rear suspension is designed to perfectly complement the front system, delivering exceptional ride quality without compromising control.

The package includes:

• Custom Deaver Q80-2 progressive rear leaf springs

• Extended rear shackles

• Fabricated rear shackle hangers

• F-Series front leaf spring mounts

• Bolt-on rear sway bar system

• CNC-machined billet sway bar arms

• Heat-treated torsion sway bar

• Precision-machined sway bar links

• Billet upper rear shock mounts

• Weld-on lower rear shock mounts

• Fox 2.0 × 12" remote reservoir rear shocks

• New axle perches

• Heavy-duty 5/8" U-bolts

Together, these components provide an impressive 17 inches of rear wheel travel while helping control body roll and maintaining excellent stability on the street.

🚙 Why Upgrade?

This isn't just a lift kit—it's a complete suspension system designed to modernize the way your OBS F-150 drives.

Benefits include:

• Dramatically improved ride quality

• Increased suspension articulation

• Better steering feel and stability

• Reduced suspension deflection

• Improved body control

• Greater off-road capability

• Increased durability over factory components

• Excellent highway manners

• Balanced front-to-rear suspension performance

From winding highways to desert trails, this system is built to inspire confidence in every driving environment.

🚚 Fitment

• 1980–1996 Ford F-150 4WD

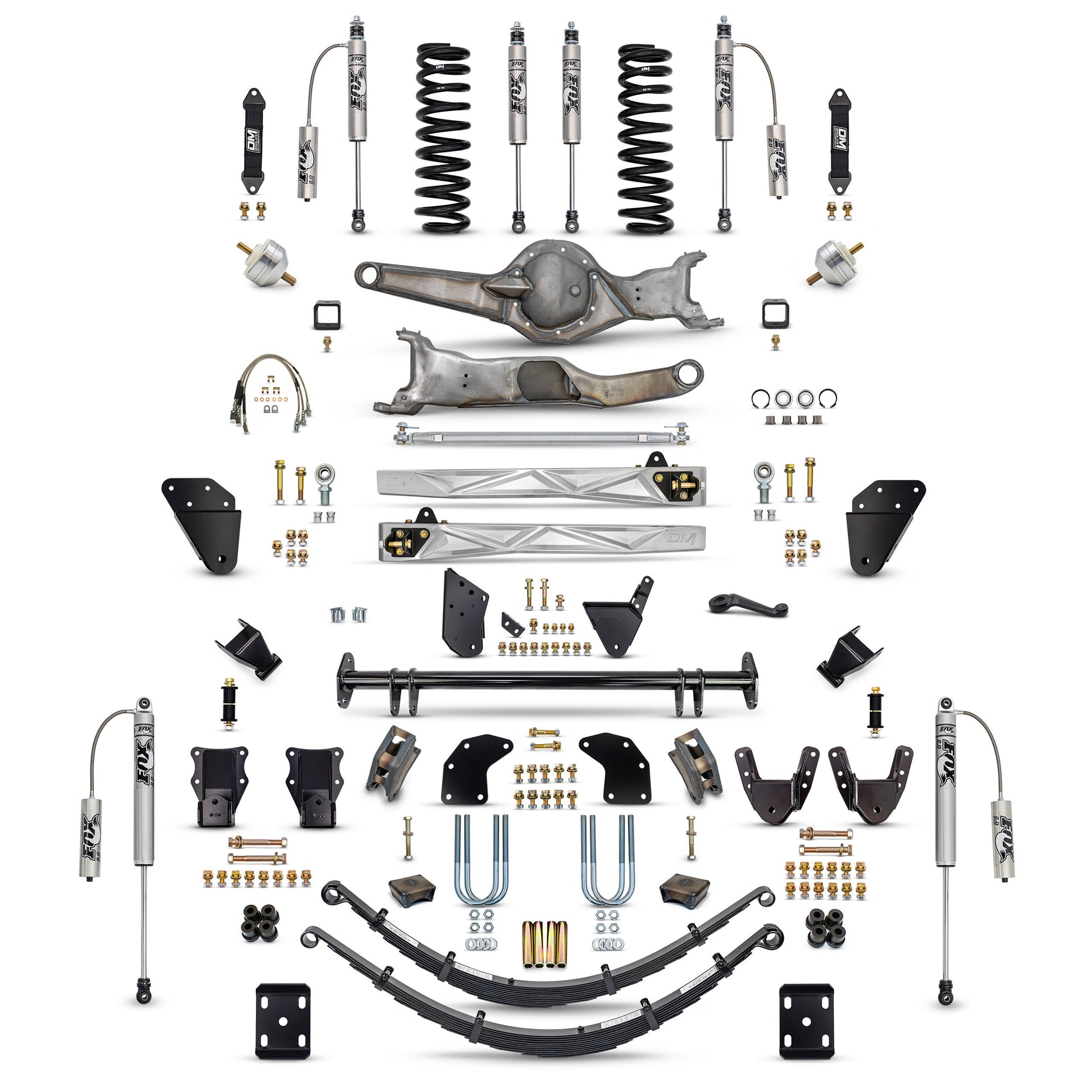

📦 What's Included

Front Suspension

• Modified reinforced TTB beam housings

• 2" drop pivot brackets

• Billet aluminum radius arms

• Billet radius arm cross bar

• 4" lift coil springs

• Billet coil spacers

• Dual Fox 2.0 front shocks

• Adjustable alignment cams

• Drop pitman arm

• Stainless steel front brake lines

• Front limit straps

Rear Suspension

• Deaver Q80-2 leaf springs

• Extended shackles

• Fabricated shackle hangers

• Front leaf spring mounts

• Bolt-on rear sway bar kit

• Billet sway bar arms

• Heat-treated torsion bar

• Billet upper shock mounts

• Weld-on lower shock mounts

• Fox 2.0 × 12" reservoir shocks

• Heavy-duty 5/8" U-bolts

• Rear axle perches

⚠️ Important Notes

• Designed specifically for 1980–1996 Ford F-150 4WD

• Vehicles must be aligned after installation

• Rear Deaver leaf springs are not recommended for heavy towing or maximum payload applications

• Dual front shock option requires factory dual-shock coil buckets

• Dual Fox configuration includes:

  • Primary Fox 2.0 remote reservoir shock

  • Secondary Fox 2.0 non-reservoir auxiliary shock

• Rear lower shock mounts require welding during installation

• Rear axle perches are included for recommended pinion angle correction

If you're ready to give your OBS F-150 the suspension it should have come with from the factory, the Desolate Motorsports 6" ALL IN Suspension System delivers premium ride quality, exceptional suspension travel, and uncompromising durability. From billet components and reinforced TTB beams to Fox shocks and Deaver springs, every part is designed to work together to create one of the finest suspension systems available for the classic Ford platform.
