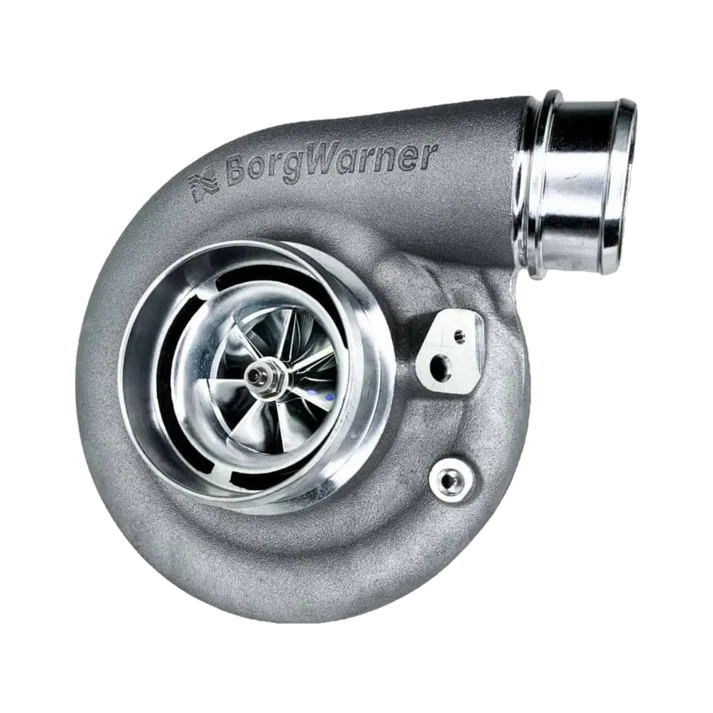

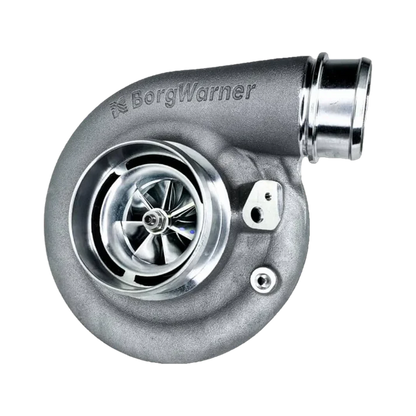

Borg Warner S364.5SXE Turbocharger

Borg Warner SX-E Supercore Turbocharger Assembly

The Borg Warner SX-E Supercore Turbocharger Assembly delivers advanced technology and performance for your vehicle's turbocharging needs. Designed with cutting-edge features like a billet compressor wheel, ported compressor housing, and integrated speed sensor port, this turbo is perfect for high-performance applications. Whether you're upgrading an existing setup or building a new system, the SX-E Supercore provides exceptional efficiency, durability, and versatility.

Features & Specifications

• Compressor Housing:

  • 4" Inlet / 2.5" Outlet Ported Housing with Speed Port (sensor not included).
  • Port shroud map width enhancement for improved airflow.
  • Integrated pre-tapped speed sensor and boost pressure ports.

• Compressor Wheel:

  • 64.5mm/87mm forged milled (billet) wheel with extended tip technology for optimized performance.
  • Aerodynamic design enhances airflow and efficiency.

• Turbine Wheel:

  • 82/68mm turbine wheel for high-flow exhaust gas management.

• Bearing System:

  • 360° thrust bearing for improved durability and reliability under high-performance conditions.
  • Non-water-cooled bearing housing with 1/4" NPT oil inlet and standard T3-T4 oil drain compatibility.

• Versatility:

  • Flexible compressor cover outlet options for S300SX-E models.
  • Compatible with existing SX turbine housings.
  • Choose from Borg Warner factory or AGP custom cast turbine housings (not included).

Included in the Kit

• Complete Supercore Assembly (excluding turbine housing).
• Mounting hardware, clamp plates, cap screws, and mounting gaskets for seamless installation.
• Note: Speed sensor and turbine outlet V-band are not included.

Key Benefits

• Optimized Aerodynamics: Extended tip compressor wheel and advanced ported housing design maximize airflow and pressure efficiency.
• Durable Construction: High-quality materials and a 360° thrust bearing ensure longevity and reliability under extreme conditions.
• Flexible Compatibility: Interchangeable with existing SX turbine housings for easy integration into current setups.
• Enhanced Performance: Pre-machined speed sensor and boost ports for precise monitoring and tuning capabilities.

Applications

The Borg Warner SX-E Supercore is ideal for:

• Performance builds requiring high flow and efficient boost management.
• Custom turbo setups for racing, towing, or off-road vehicles.
• Upgrading existing S300 turbochargers for enhanced performance.

Take your vehicle's performance to the next level with the Borg Warner SX-E Supercore Turbocharger Assembly, engineered for precision, power, and adaptability.
