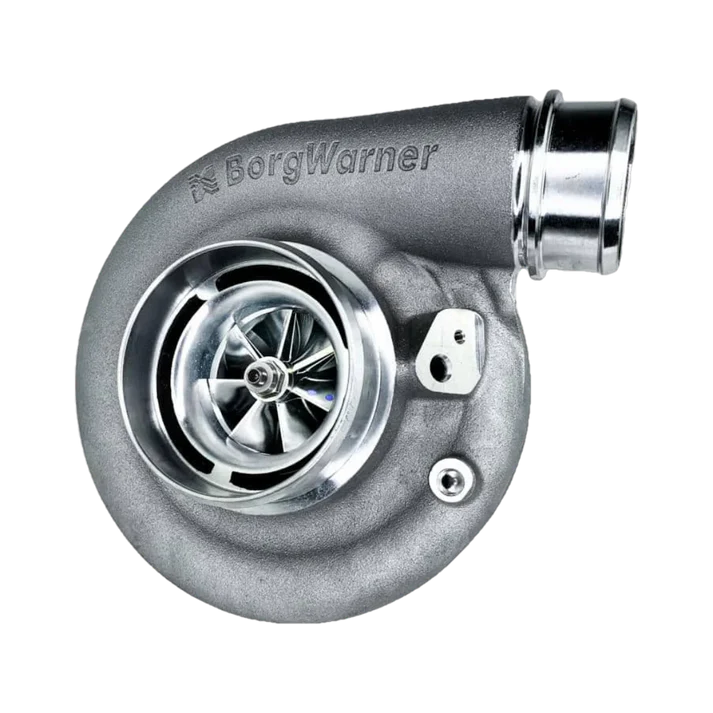

Borg Warner S366SXE Turbocharger

Borg Warner S366-SXE Supercore Turbocharger Assembly

The Borg Warner S366-SXE Supercore Turbo is designed to deliver outstanding performance for high-demand applications. With advanced features like a billet compressor wheel, ported compressor housing, and pre-machined speed and boost ports, this turbocharger provides exceptional airflow and efficiency. The S366-SXE is the ideal choice for those looking to upgrade their existing setup or build a new high-performance system.

Features & Specifications

Compressor Housing:

• 4" Inlet / 2.5" Outlet Ported Compressor Housing.
• Port shroud map width enhancement for improved flow stability and efficiency.
• Pre-tapped for Speed Sensor (sensor not included) and Boost Pressure Port.

Compressor Wheel:

• 66/91mm Billet Compressor Wheel with Extended Tip Technology for superior airflow and boost efficiency.
• Forged milled (billet) construction ensures durability and lightweight performance.

Turbine Wheel:

• 73/80mm Turbine Wheel for optimized exhaust flow and quicker spool times.

Bearing System:

• 360° Thrust Bearing for enhanced durability and performance under high-stress conditions.
• Non-water-cooled bearing housing with a 1/4" NPT Oil Inlet.
• Standard T3-T4 oil drain compatibility for easy integration.

Versatility:

• Flexible compressor cover outlet options specific to S300SX-E models.
• Interchangeable with existing SX turbine housings for maximum compatibility.
• Compatible with Borg Warner factory and AGP custom cast turbine housings (not included).

Included in the Kit

• Complete S366-SXE Supercore Assembly (excluding turbine housing).
• Turbine housing mounting hardware, clamp plates, cap screws, and mounting gaskets for seamless installation.
• Note: Speed sensor and turbine outlet V-band are not included.

Benefits

• Improved Airflow: Optimized compressor stage aerodynamics and billet wheel design for maximum efficiency and boost performance.
• Enhanced Durability: Built with high-quality materials and 360° thrust bearing for reliable operation under extreme conditions.
• Easy Integration: Compatible with a wide range of turbine housings, making it an excellent choice for upgrades or new builds.
• Advanced Monitoring: Integrated ports for speed sensors and boost pressure provide tuning flexibility and precise data.

Applications

• Perfect for high-performance and custom builds requiring efficient and reliable turbocharging.
• Suitable for racing, towing, or off-road applications.
• Ideal for replacing or upgrading existing S300 turbochargers.

Take your vehicle's performance to new heights with the Borg Warner S366-SXE Supercore Turbocharger Assembly, engineered for power, precision, and reliability.
