CNC Fab HPOP Line Kit - 1999-2003 Ford F-Series

CNC Fabrication Replacement HPOP Lines – 1999–2003 Ford 7.3L Powerstroke

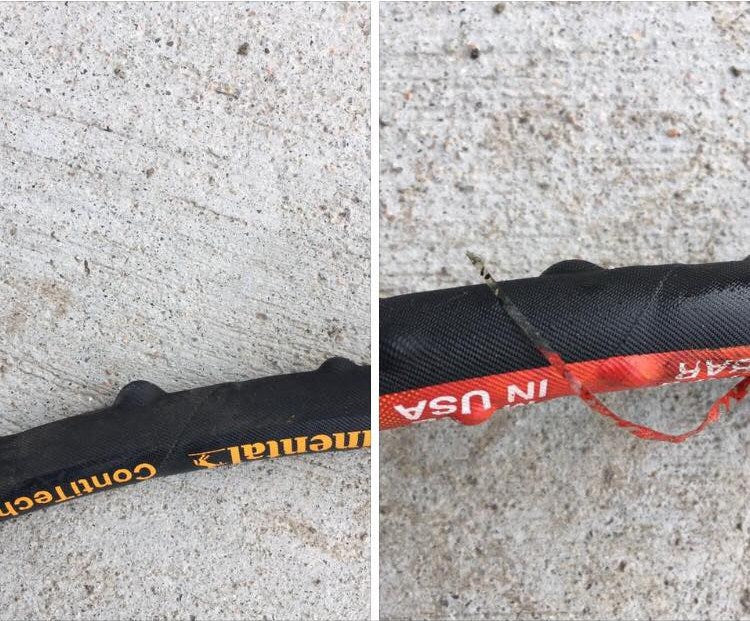

When servicing or replacing your High Pressure Oil Pump, there’s no better time to upgrade the weak factory lines. These CNC Fabrication replacement HPOP lines are built for increased durability, improved reliability, and unrestricted oil flow on 1999–2003 7.3L Powerstroke engines.

Manufactured in the USA, these hoses eliminate the factory quick-connect (STC) fittings at both the pump and cylinder heads, replacing them with proven early-style fittings used on 1994.5–1997 Powerstrokes.

Key Features:

• Made in the USA 🇺🇸

• Upgraded 3/8" hose diameter for improved oil flow

• Aeroquip hoses with DuPont Teflon lining for extreme durability

• Eliminates factory STC fittings on pump and heads

• Early-style fittings (same as 94.5–97 Powerstroke) for reliability

• Ideal upgrade during HPOP replacement or engine service

Pressure & Temperature Ratings:

• Burst Pressure: 16,000 PSI

• Nominal Working Pressure: 5,000 PSI @ 72°F

• Nominal Working Pressure: 3,000 PSI @ 400°F

• Working Temperature Rating: 400°F

Kit Includes:

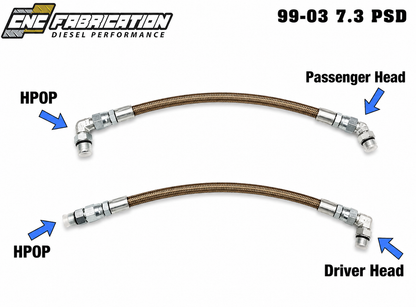

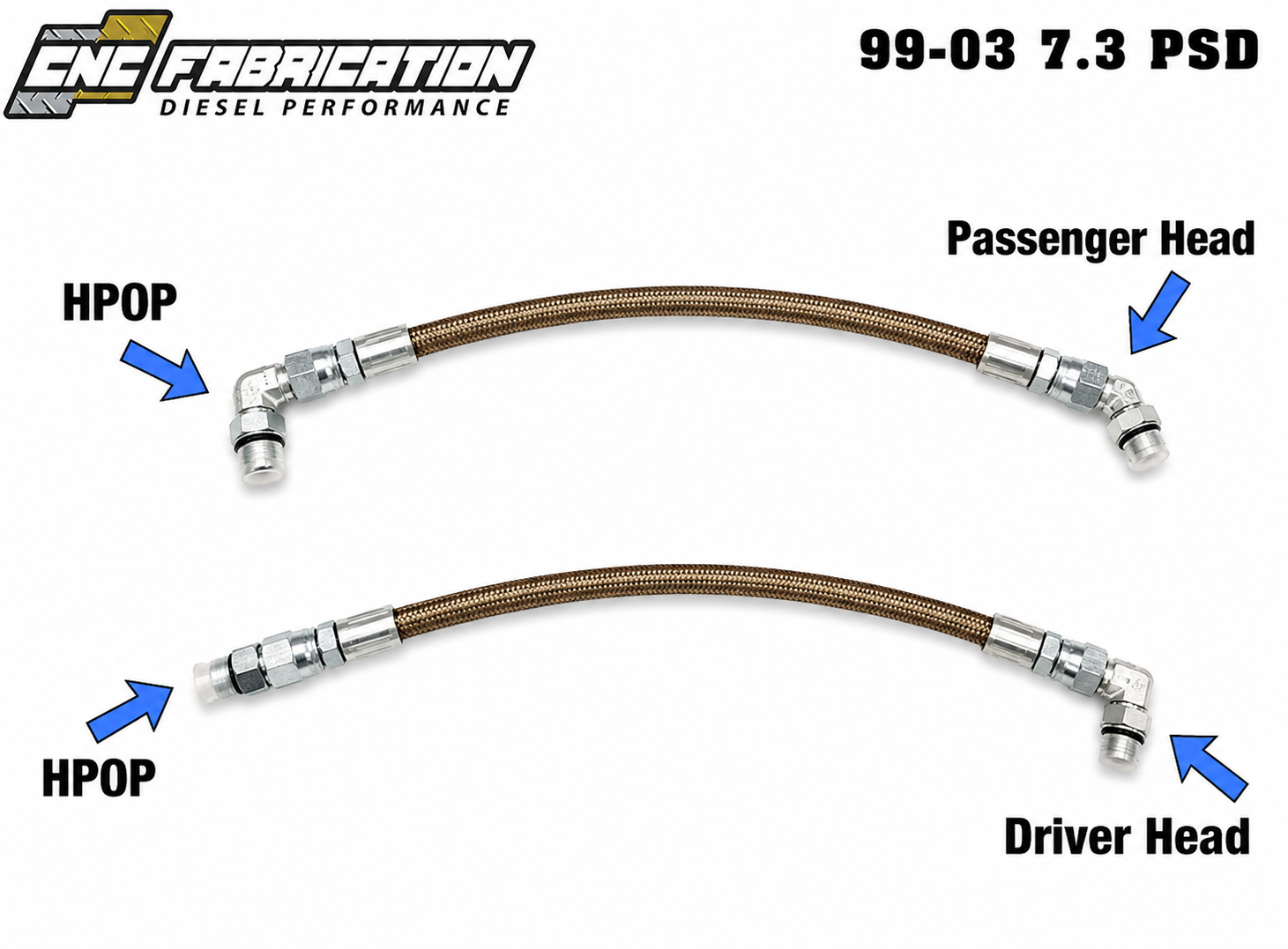

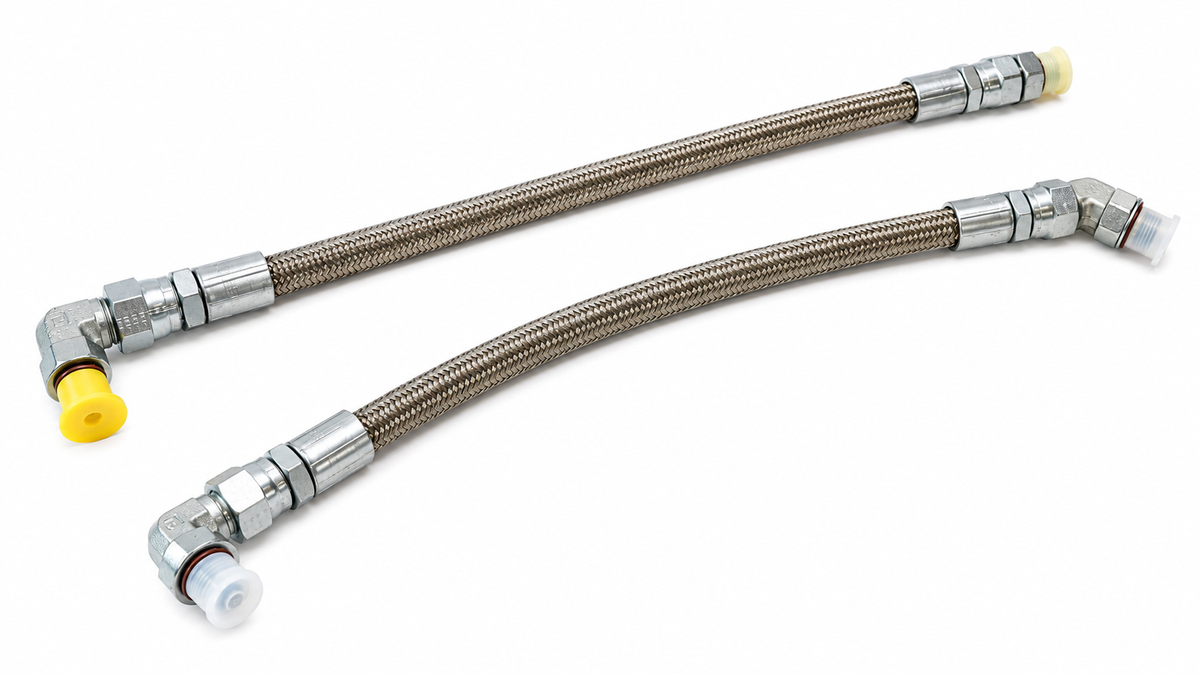

• (2) High-pressure oil hoses

• All required replacement fittings for pump and cylinder heads

Installation Notes:

• Pump fitting torque: 28 ft-lbs

• Head fitting torque: 23 ft-lbs

• Hose end torque: 21 ft-lbs

• Remove spring checks from pump under stock fittings during installation

Built to handle the demands of high-mileage, hard-working, or performance-driven 7.3s, these CNC Fabrication HPOP lines are a must-have upgrade for long-term reliability and peace of mind.
