CNC Fabrication High Pressure Oil Pump Lines (Later 1994-1997) Powerstroke

MADE IN THE USA

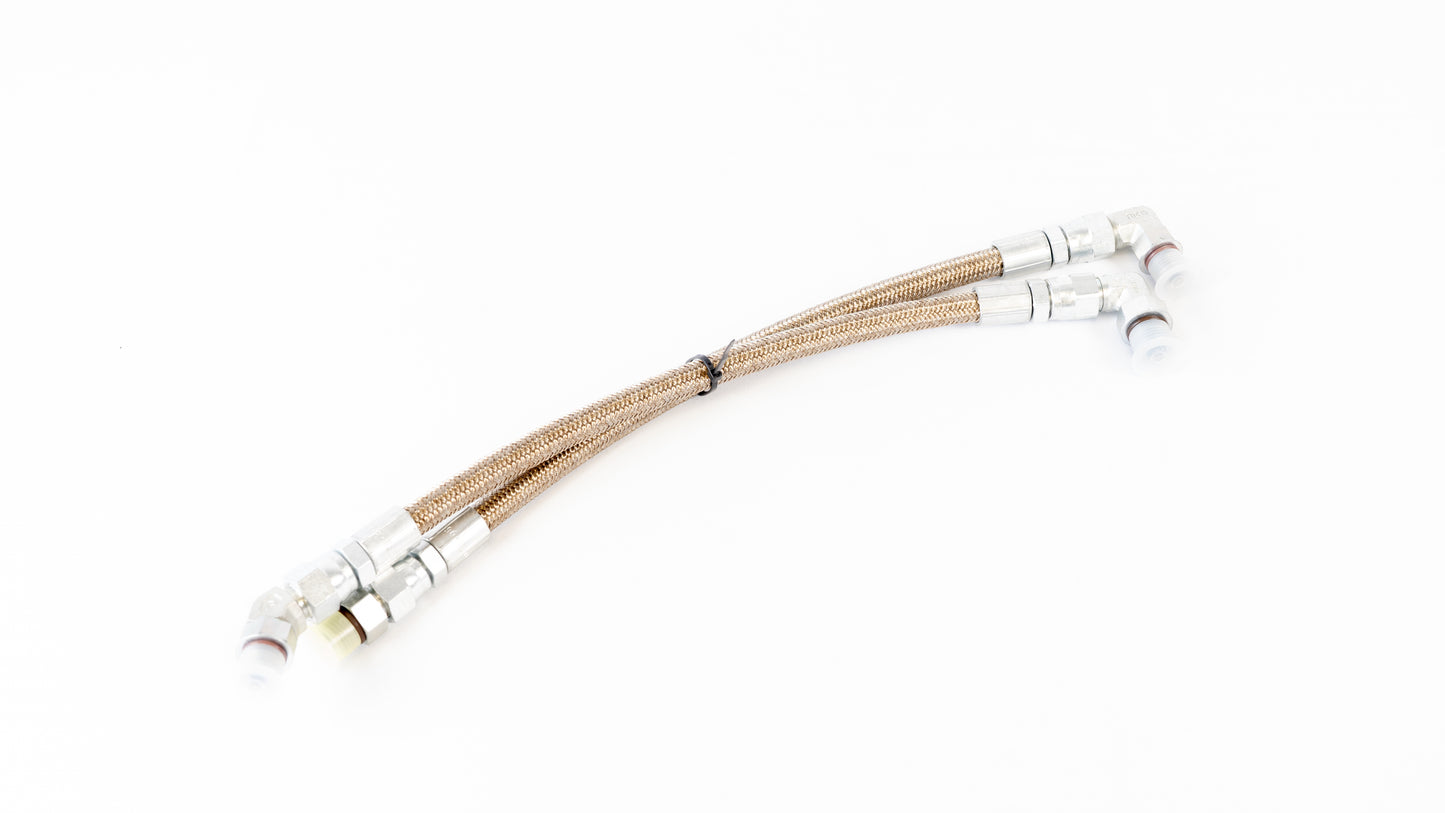

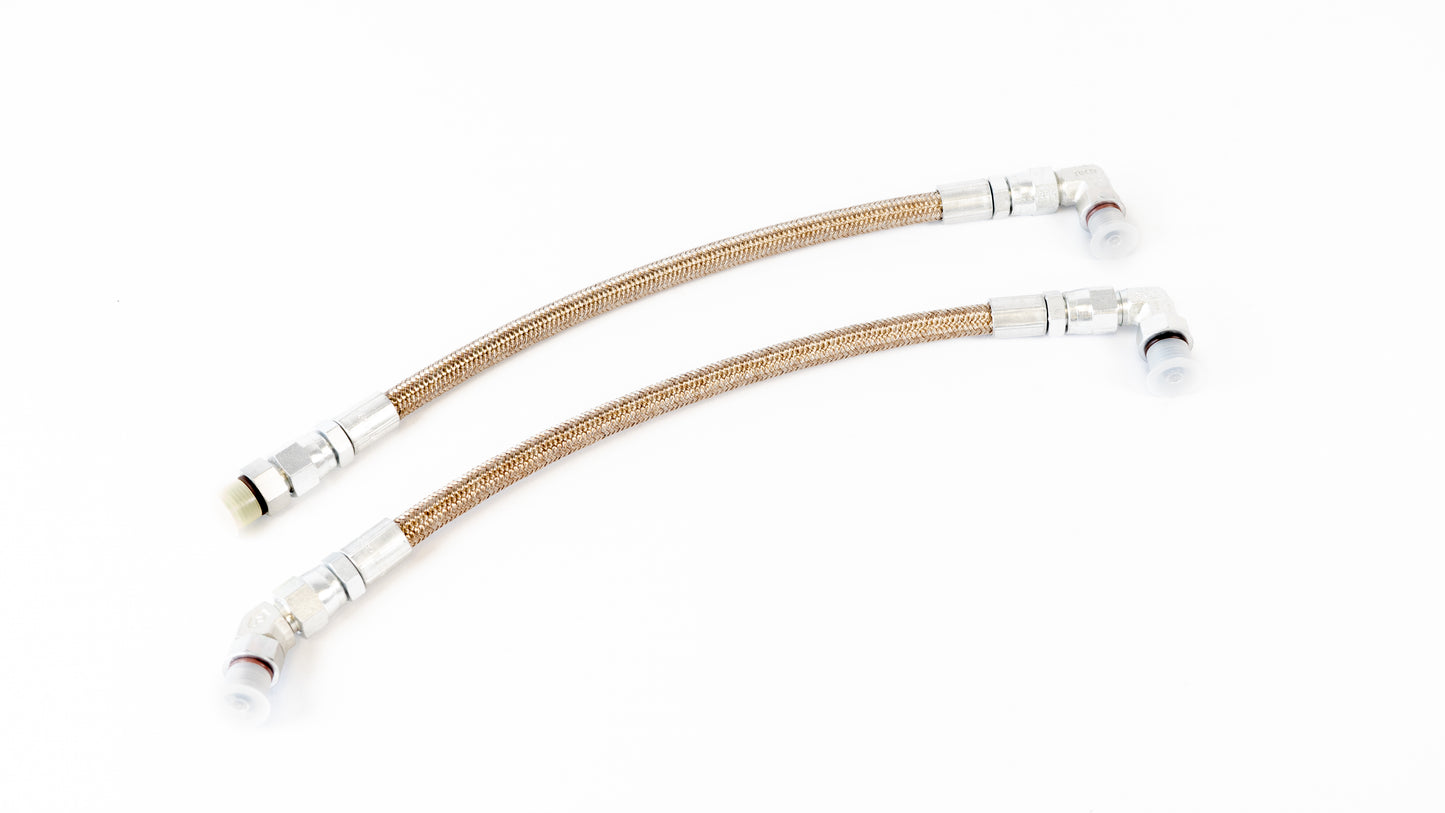

These lines are to replace the typical high mileage expensive OEM HPOP lines. Kit comes with two hoses and all necessary fittings.  Hoses are up-sized to 3/8″, featuring top-of-the-line Aeroquip hose utilizing DuPont teflon-lining with a burst pressure rating of 16,000psi and working temperature rating of 400*f.  Nominal working pressure is 5000psi @ 72 °F and 3000psi @ 400°F (if your engine oil is this hot, you have bigger issues to worry about).

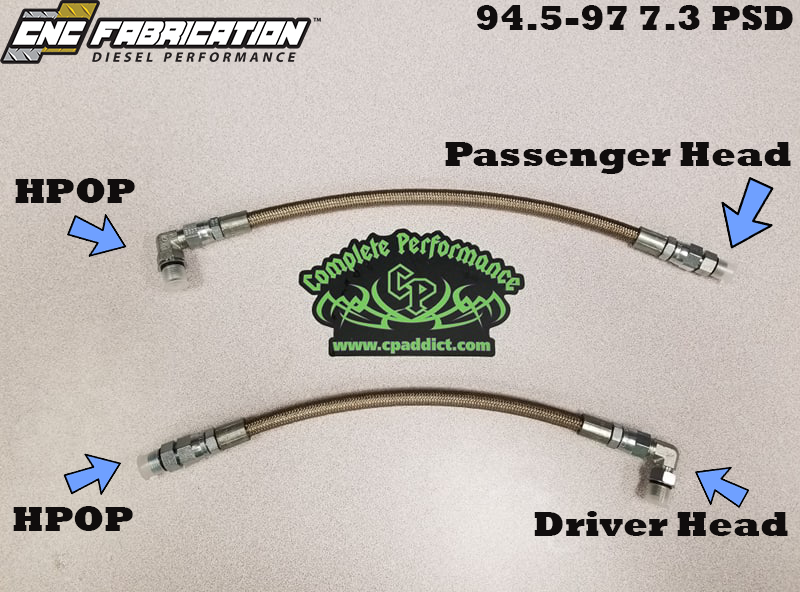

INSTALLATION: These line will route different than OEM.  Driver side will route just like the 99-03 models. Which means it will now route to the second oil galley port and go around the engine lifting eyelet.  The passenger side line will arch slightly over the front fuel bowl lid. This will not hinder the removal of the fuel filter.  The HPx line will route just like the 99-03 trucks also (which is the third set of oil galley ports back starting from the front of the vehicle)  picture of the lines installed will be coming.
