CNC Fab 7.3L Powerstroke HPOP Line Kit - 1994-1997 Ford F-Series

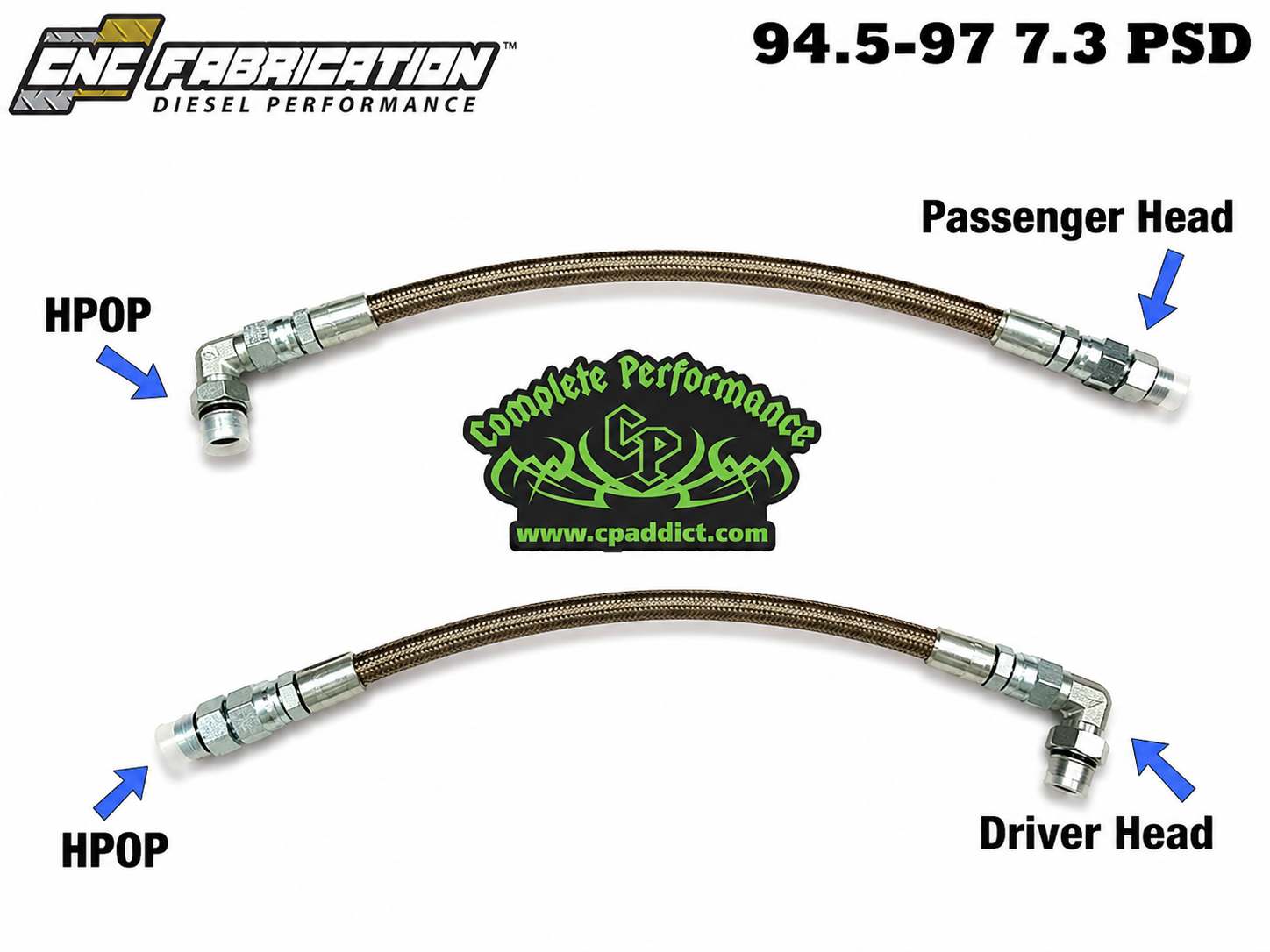

CNC Fabrication High Pressure Oil Pump (HPOP) Line Kit – Late 1994–1997 7.3L Powerstroke
Made in the USA

Replace worn, high-mileage OEM HPOP lines with this upgraded CNC Fabrication HPOP line kit, designed specifically for late 1994–1997 7.3L Powerstroke engines. These lines offer increased reliability, higher pressure capability, and improved routing compared to factory hoses.

Built using top-of-the-line Aeroquip hose with DuPont Teflon lining, this kit is engineered to handle the extreme pressures and temperatures of the 7.3’s high-pressure oil system.

Key Features:

• Direct OEM Replacement Upgrade – Replaces aging, failure-prone factory HPOP lines

• Upsized 3/8" Hose – Increased flow capacity and durability over stock lines

• Premium Aeroquip Hose – DuPont Teflon-lined for long service life

• Extreme Pressure Rated

  • 16,000 PSI burst pressure

  • 5,000 PSI working pressure @ 72°F

  • 3,000 PSI working pressure @ 400°F

• High Temperature Resistance – Rated up to 400°F

• Made in the USA

Kit Includes:

• (2) High-pressure oil hoses

• All required fittings for installation

Installation Notes:

• Line routing differs from OEM

• Driver Side Line routes like 1999–2003 models, utilizing the second oil galley port and routing around the engine lifting eyelet

• Passenger Side Line arches slightly over the front fuel bowl lid without interfering with fuel filter removal

• HPX crossover line (if installed) routes like 1999–2003 trucks using the third oil galley port from the front

Compatibility:

• Late 1994–1997 Ford 7.3L Powerstroke

This kit is ideal for anyone refreshing their high-pressure oil system or pairing with CNC Fabrication’s HPX crossover line for improved pressure balance and reduced system stress.
