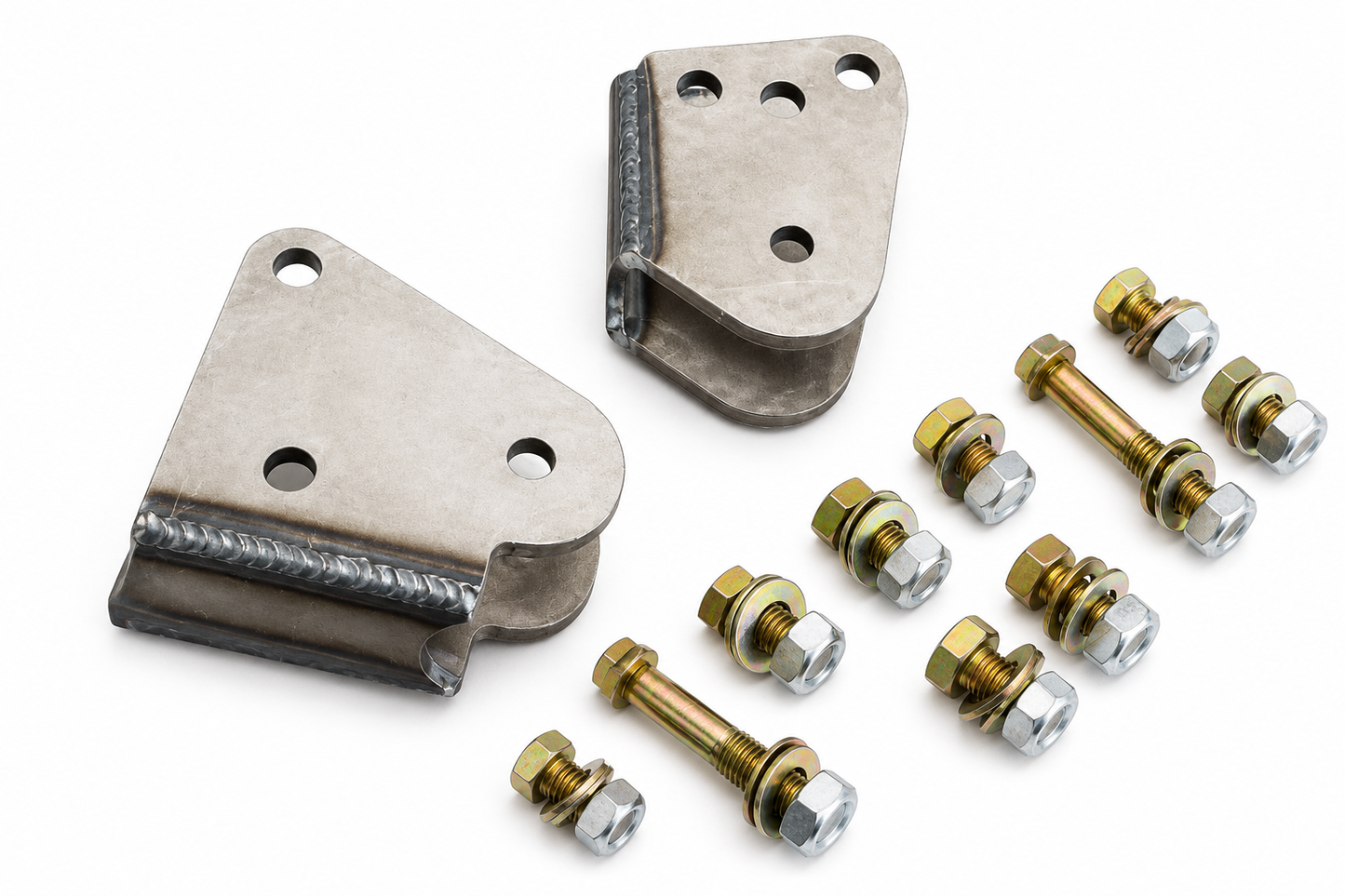

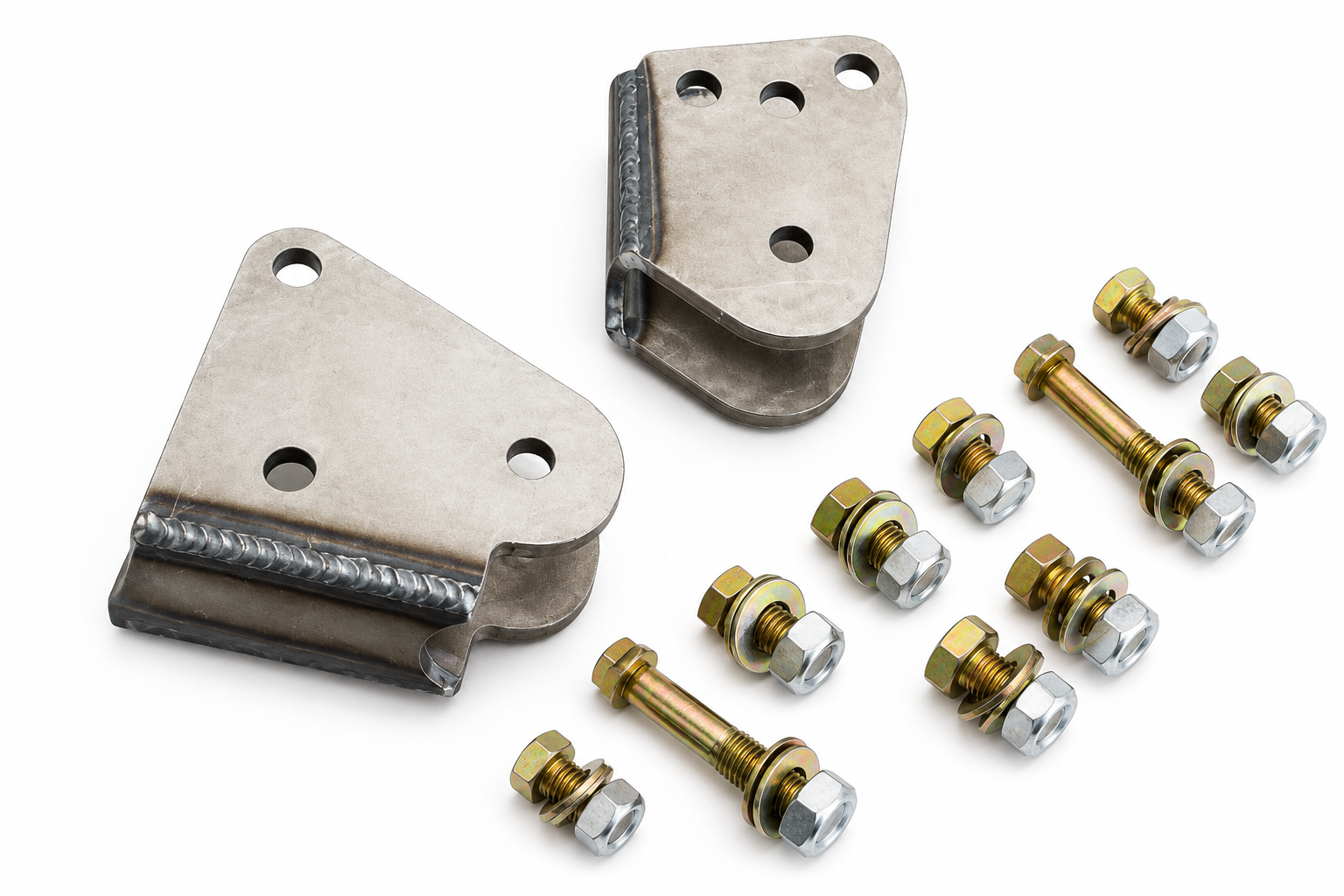

Dana 50 TTB Pivot Brackets / 1980-1997 Ford F-250 & F-350

Dana 50 TTB Pivot Brackets / 1980-1997 Ford F-250 & F-350

Regular price $225.00
Regular price Sale price $225.00
Sale Sold out

Please select a valid combination of attributes.

View full details

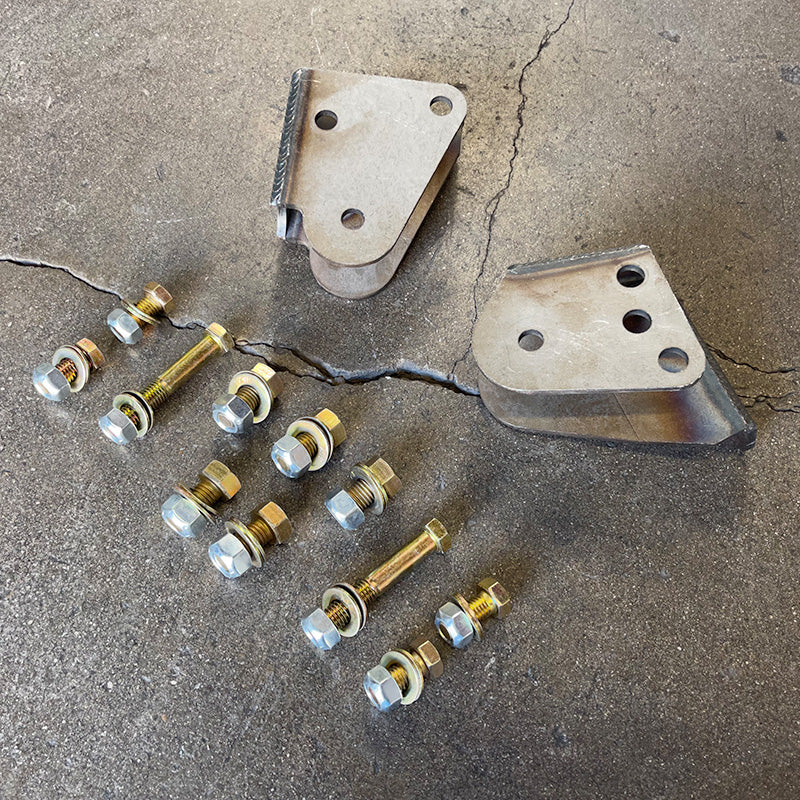

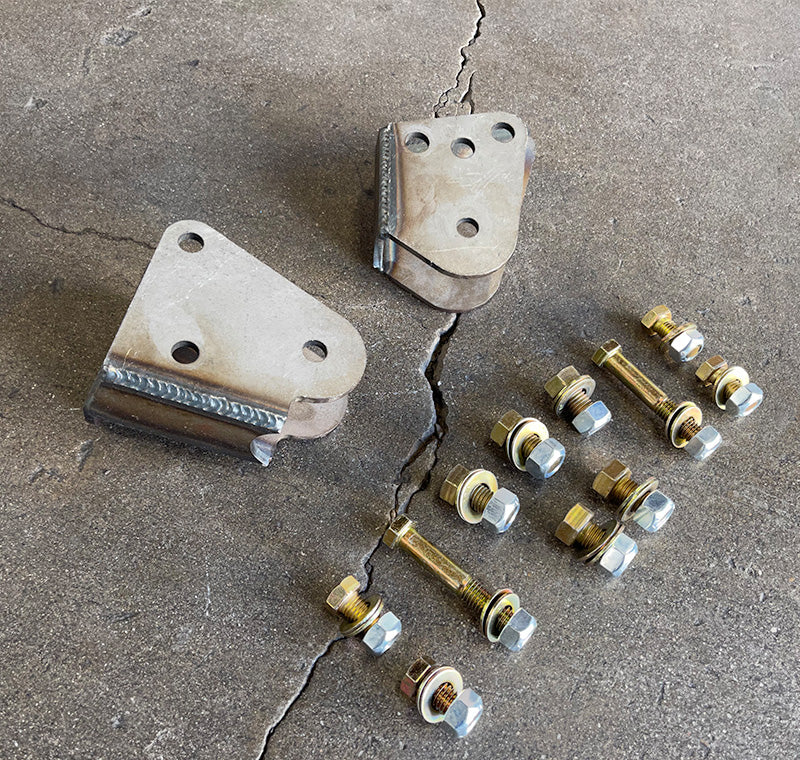

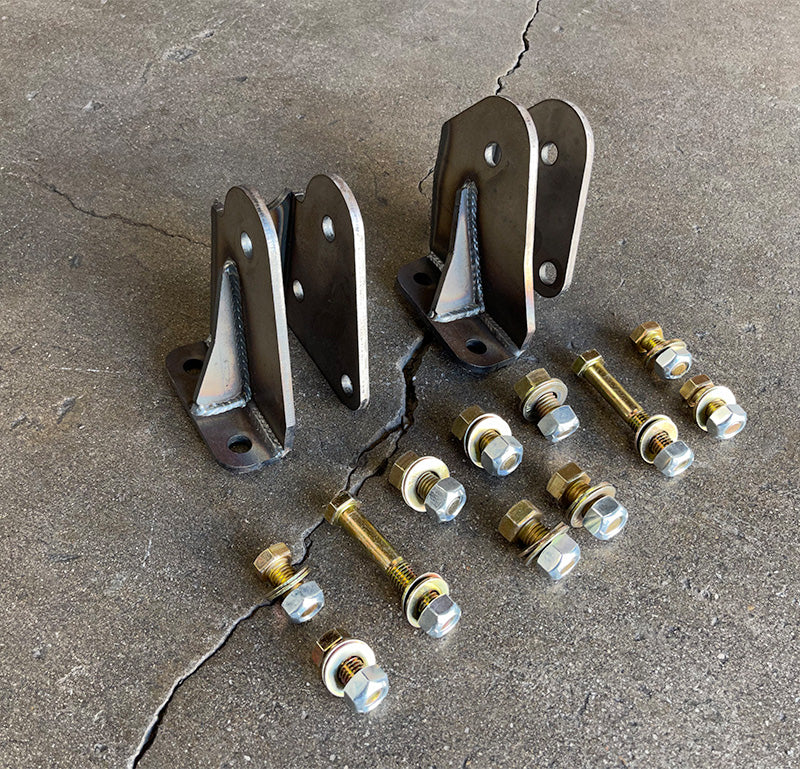

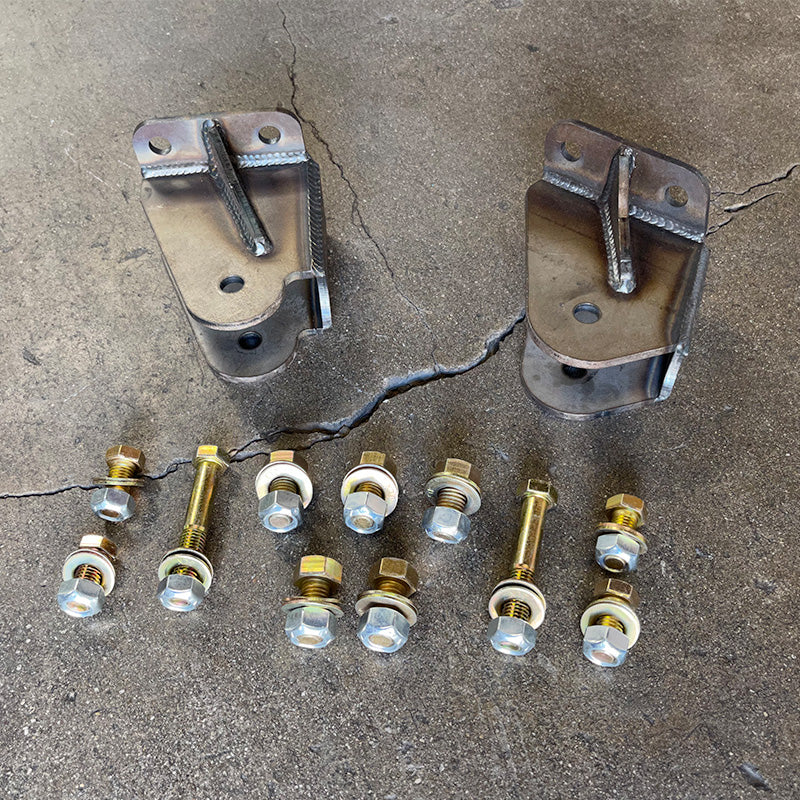

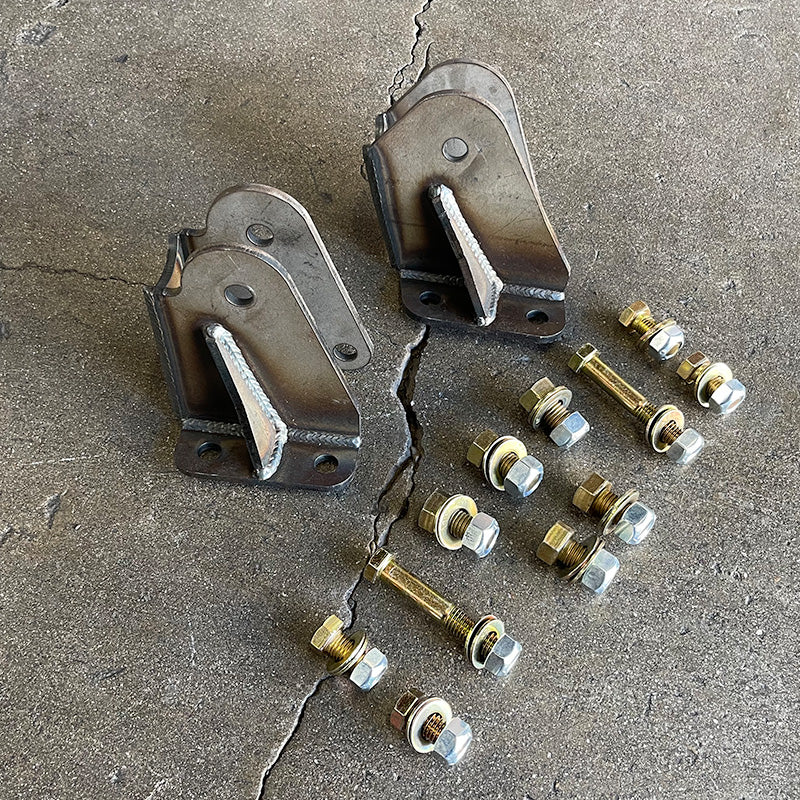

Our Dana 50 TTB Fabricated Pivot Brackets are the perfect solution for your broken or missing beam pivots for the 1980-1997 Ford F-250 and F-350.

These beam pivots are built overkill. They are made from 1/4″ 1020CR steel and added gussets in areas to increase strength. The pivot brackets bolt into stock holes for easy installation (May need to redrill holes due to variations in the Ford crossmembers) and all necessary Grade 8 hardware is supplied.

The original intent of this product was for the Dana 50 owners who have drop-down bracket kits and want to convert to Cut N’ Turned setups. However, we highly recommend these to go along with 3″ and 4 1/2″ widened beam set-ups. Or stock width if you just plan on doing some serious off-road driving. These beam pivots are sold separately or in pairs.


  • 1980-1997 Ford F-250
  • 1980-1986 Ford F-350

Dana 50 TTB Pivot Brackets Includes

  • Driver’s beam (Passenger Frame Rail)
  • Passenger Beam (Under the Oil Pan)
  • Pivot Bracket Set (both sides)
  • Grade 8 Hardware
