Skys Off Road Design Dana 60 Ball Joint High Steer Arm - 1992-2004 Ford F-Series

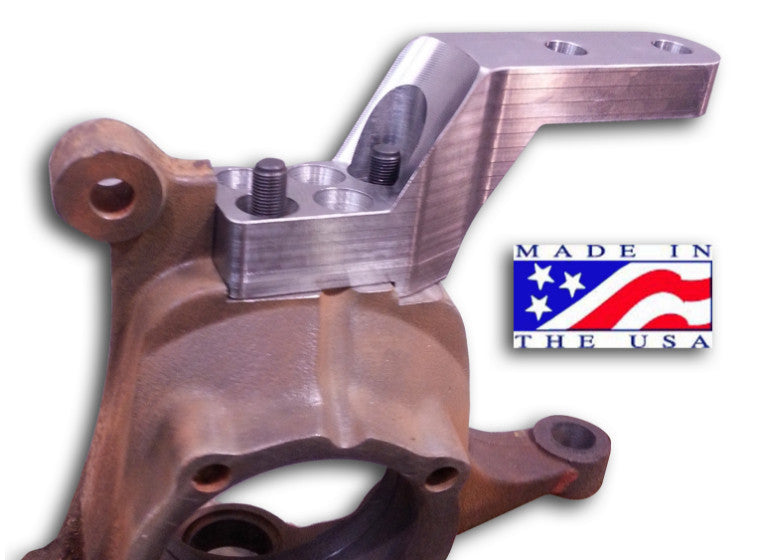

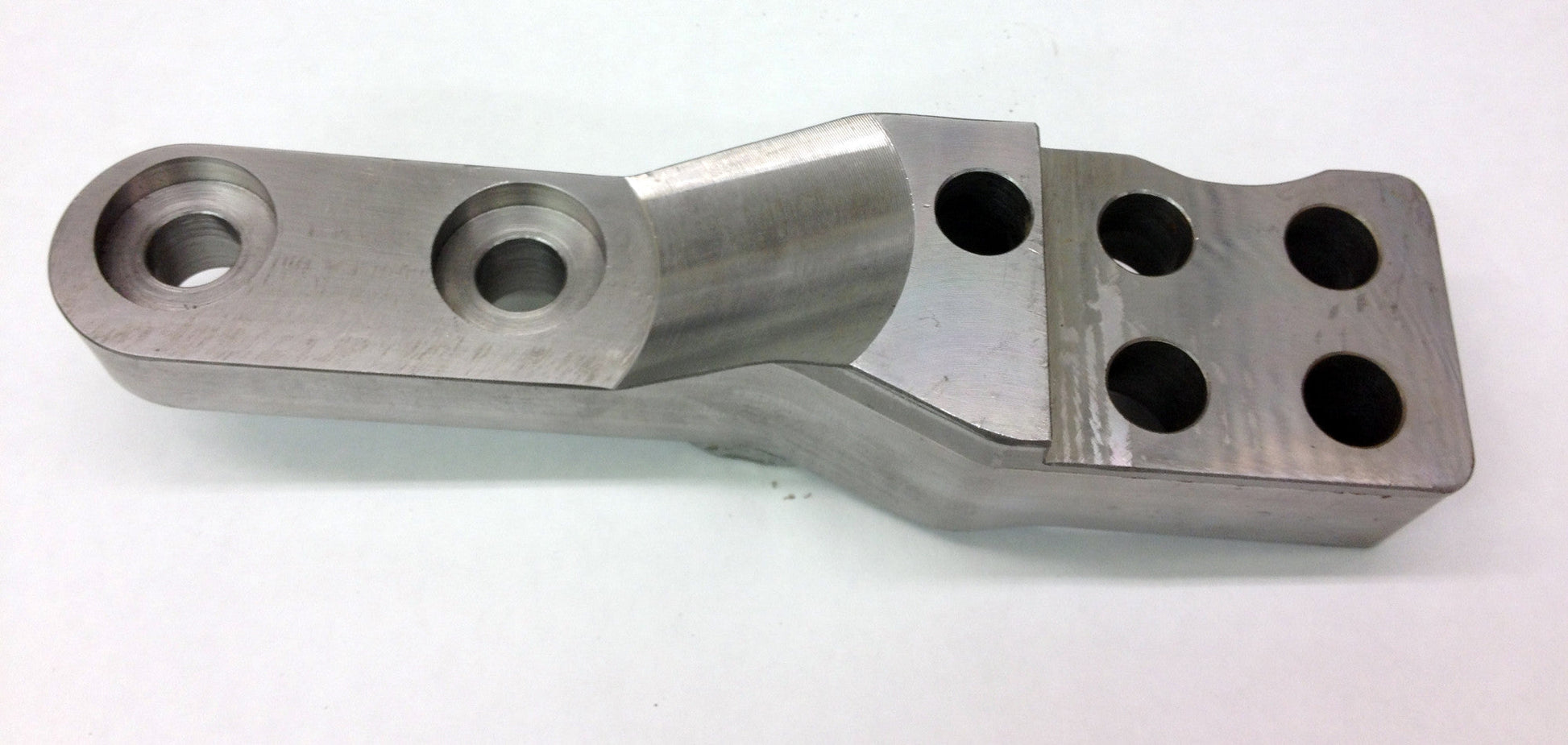

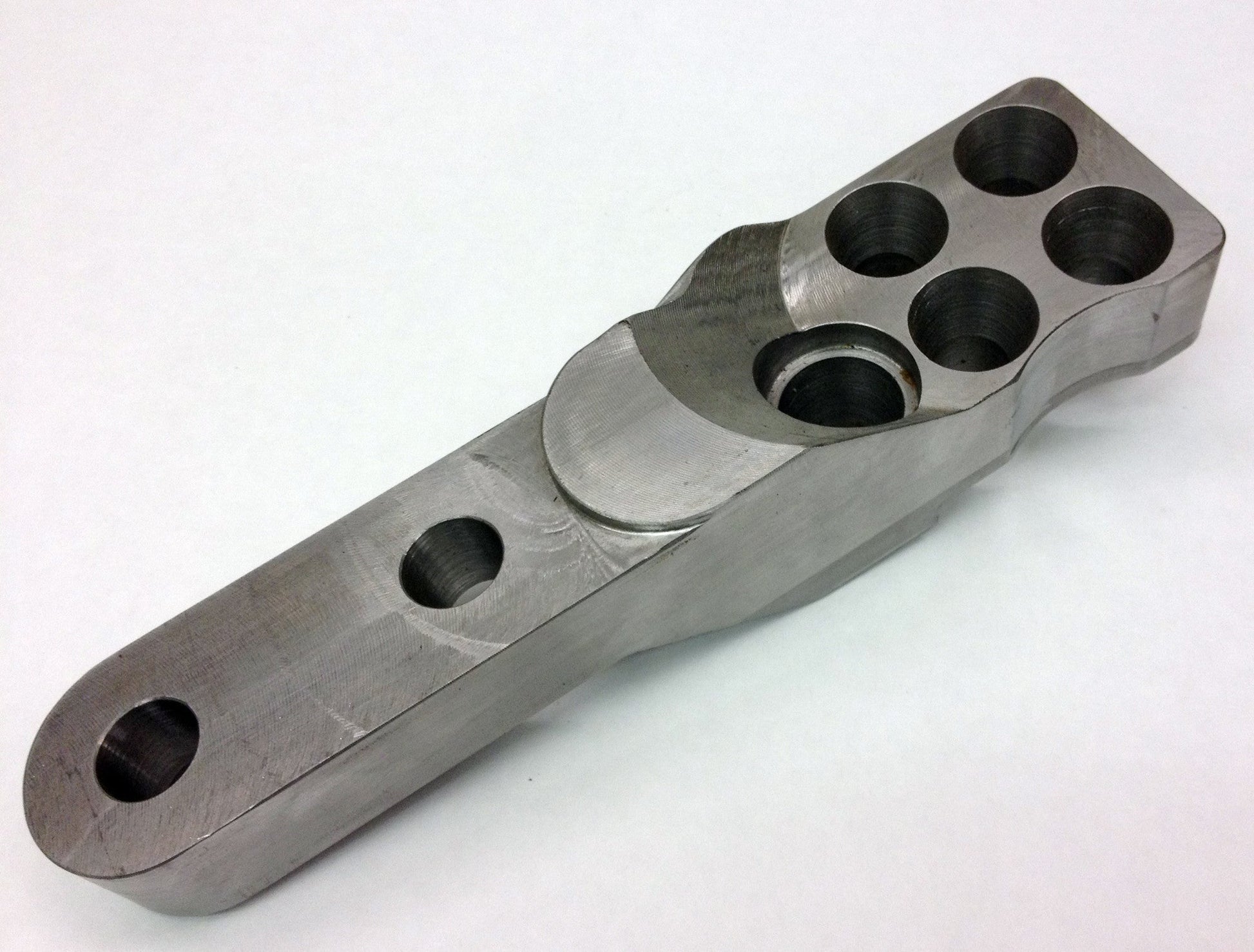

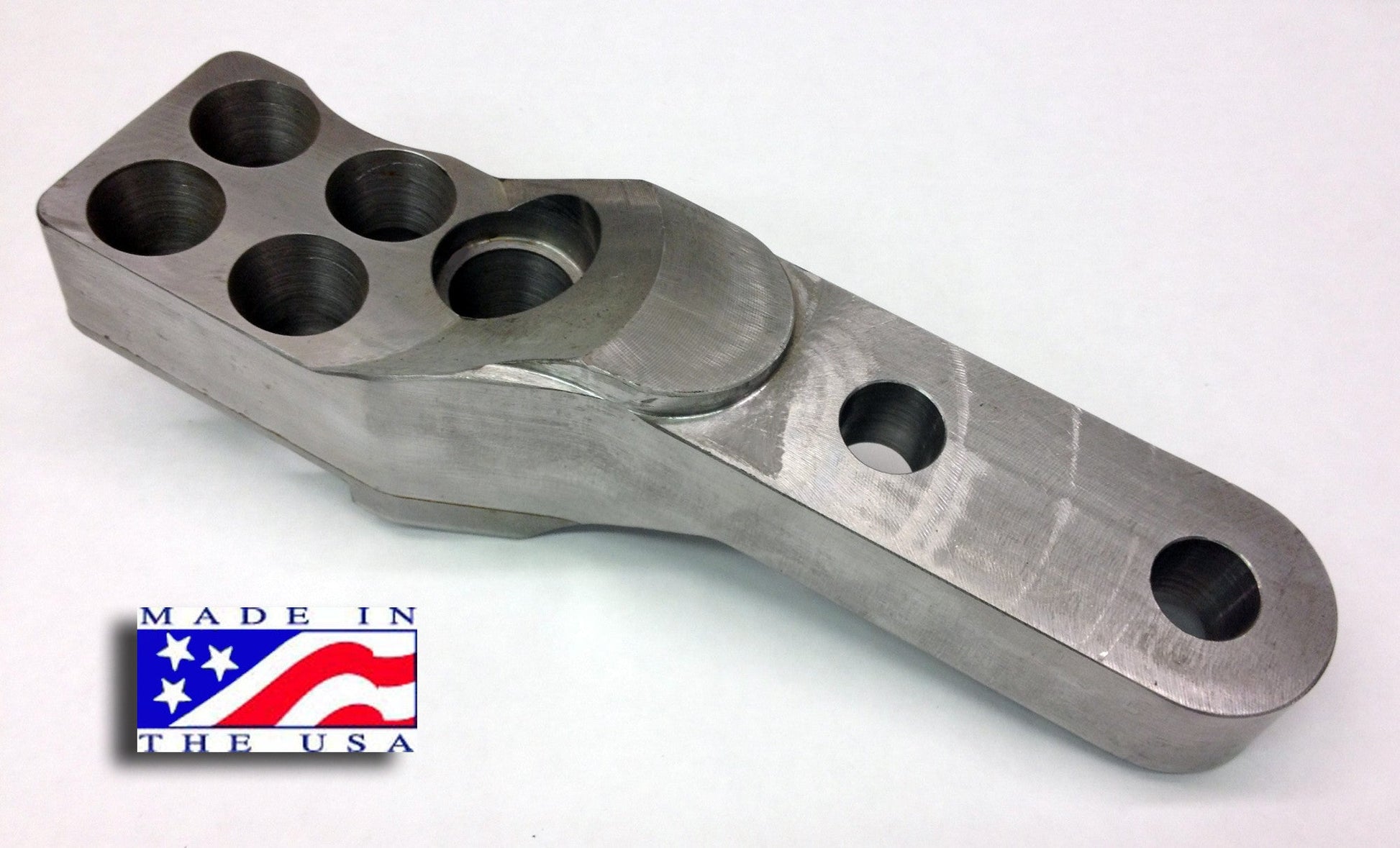

Sky’s Off Road Design – Ford Dana 60 Ball Joint High Steer Arm

Upgrade your steering with the Sky’s Off Road Design Dana 60 High Steer Arm, built for strength, precision, and long-term reliability. Designed to fit 1992–1997 OBS Ford Dana 60 ball joint knuckles as well as 1999–2004 Super Duty knuckles (with machining), this arm is engineered to handle serious off-road abuse while tightening up your steering geometry.

🔥 Key Features:

• Proven Fitment – Fits 1992–1997 OBS Ford Dana 60 knuckles and 1999–2004 Super Duty Dana 60 knuckles (knuckle machining required)

• Heavy-Duty Design – 2" tall arm, machined to fit Sky’s Dana 44 conical washers and chromoly steering studs

• 5-Stud Strength – More secure than standard Dana 60 arms with only 5 short studs, offering superior clamping with conical washers

• Keyed Step Design – Step cut into arm similar to a keyway, helping lock the arm to the knuckle for added security

• Steering Options – Arms are tapered for GM tie rod ends and can be drilled for 3/4" or larger Heim joints

• Material Specs – CNC-machined from ASTM A572 Grade 50 steel (50,000 PSI yield, 65,000 PSI tensile strength), stronger and more rigid than 1018 steel

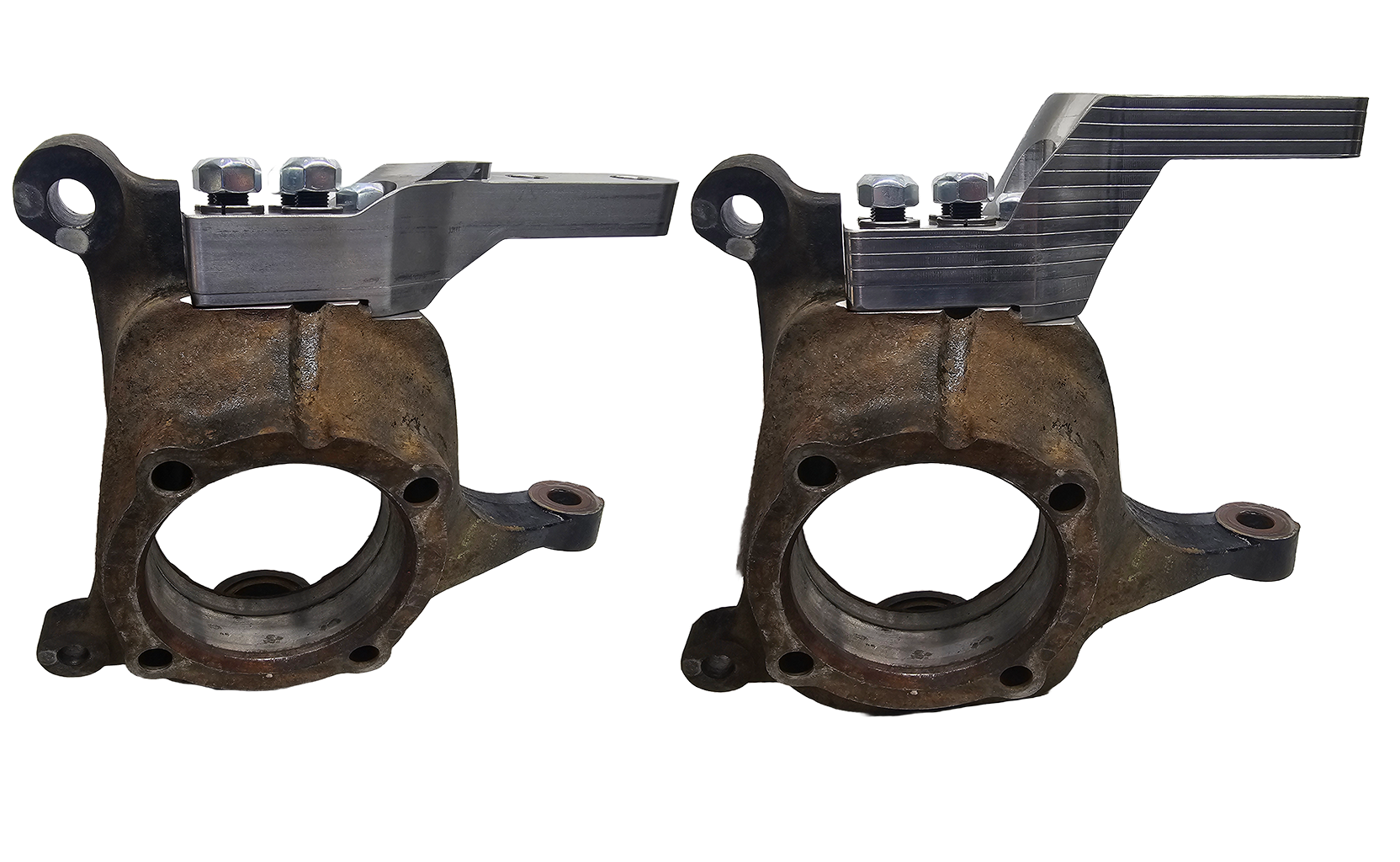

⚙️ Optional Taller Version:

• 1.5" taller passenger-side single-hole arm available

• Designed for trucks running 3.75" or thicker leaf packs that require additional clearance for crossover steering

📦 Recommended with This Part:

• Ford Dana 60 Ball Joint Knuckle Machining Service

• Dana 60 Ball Joint Steering Arm Install/Stud Kit

⚠️ Important Note:

• Knuckle machining is proprietary to Sky’s steering arms — they offer CNC machining of your knuckles to ensure a perfect fit.

• Sold individually. Please select configuration when ordering.

✅ Proven Performance:
Sky’s Off Road Design has been machining Dana 60 Ford ball joint knuckles since 2008, refining the design into a reliable, general-fit option for serious off-road builds
