Desolate Motorsports Complete 6" Lift Kit - 1980-1996 Ford F150/Bronco

Desolate Motorsports 6" Mid-Travel Suspension Package – Coil Spring Setup

Fits: 1980–1996 Ford Bronco / F-150 4x4
Lift: ~6” | Front Travel: 12” | Rear Travel: 17” | Tire Clearance: 35–37”

This is the most complete and performance-driven coil spring mid-travel kit we offer for the OBS platform. Designed for aggressive off-road use while maintaining excellent street manners, this package combines our modified TTB housings, Billet Radius Arms, and a fully upgraded long-travel rear setup to deliver unmatched articulation, strength, and control.

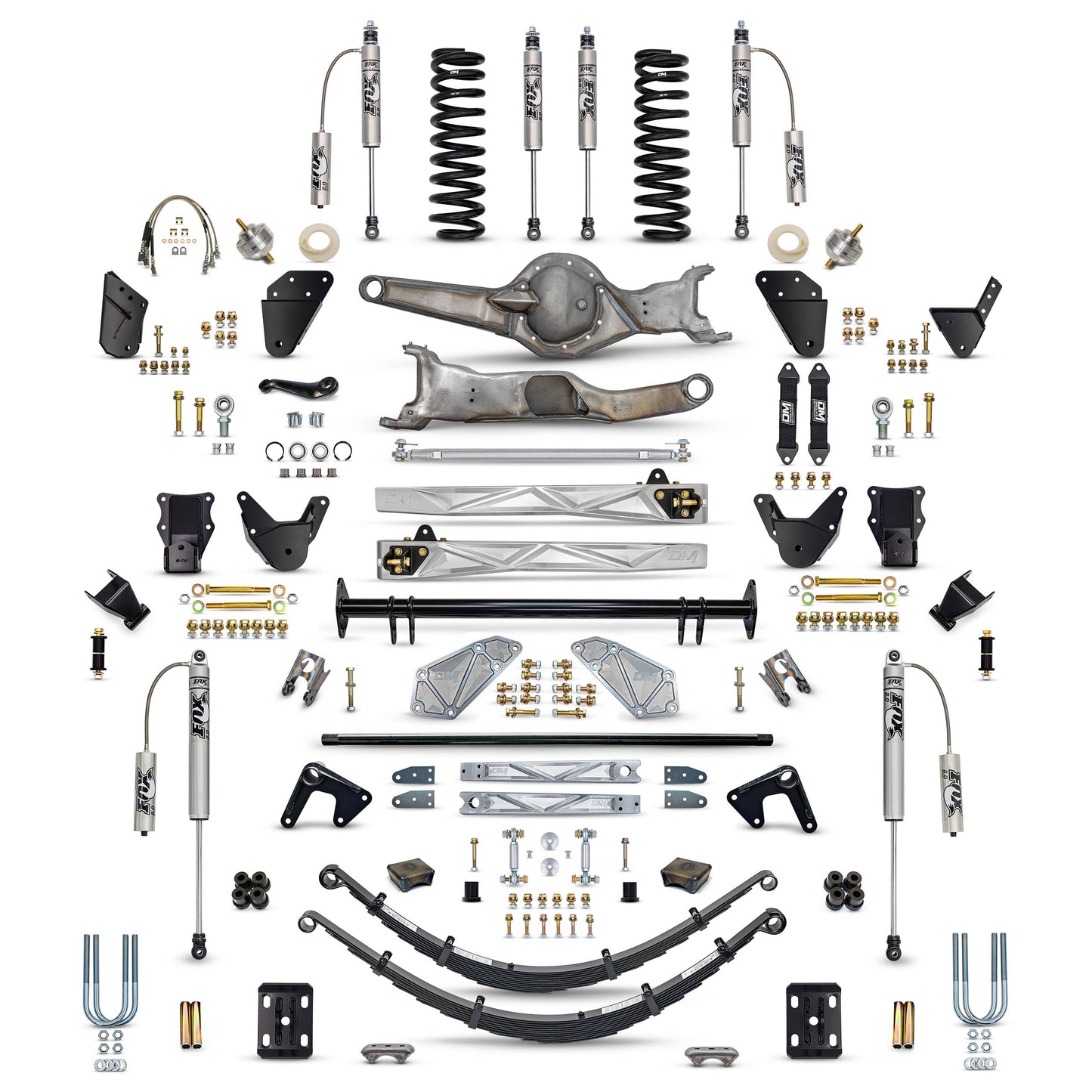

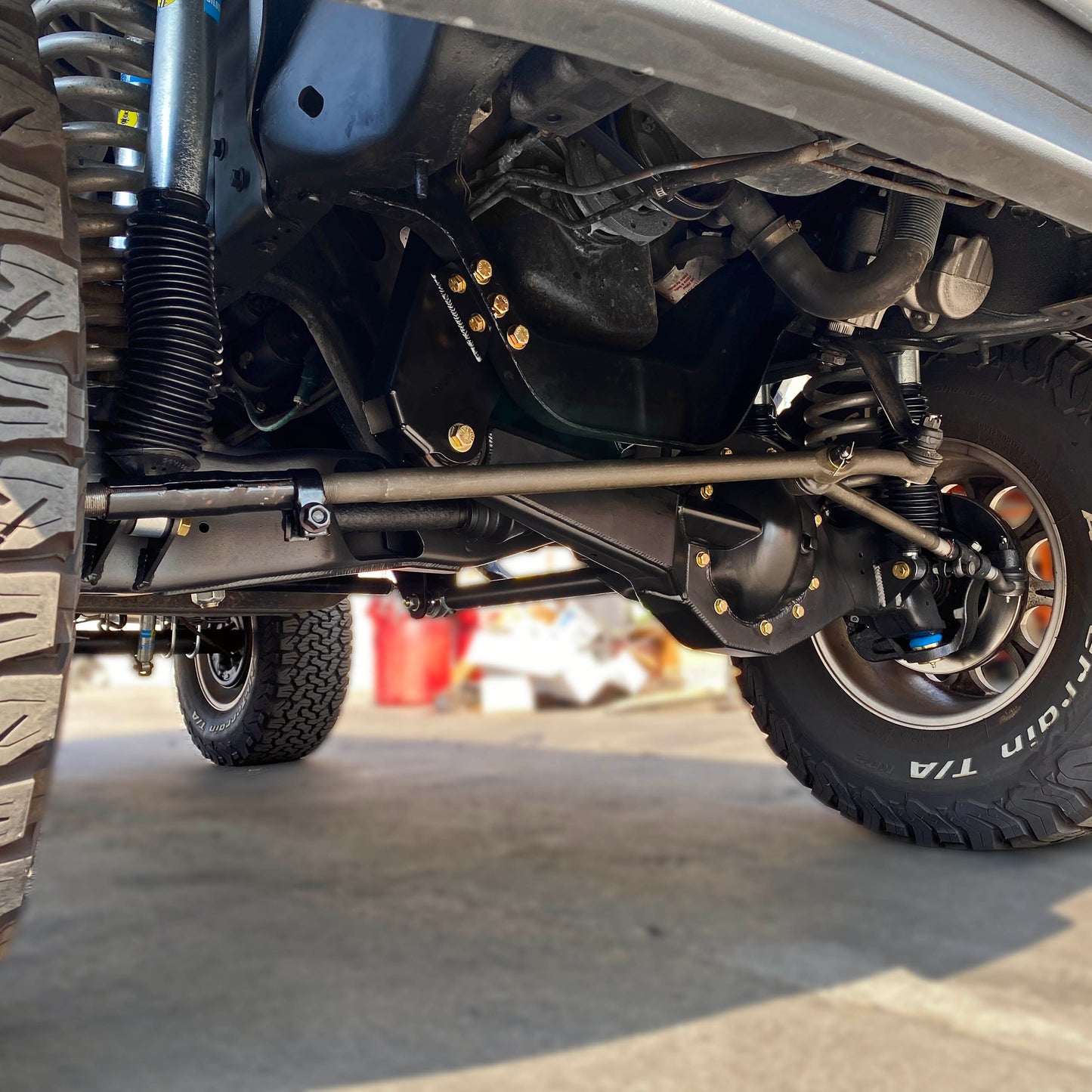

🔧 Front Suspension Highlights:

• Stock Width TTB Housings with:

  • Camber correction

  • 3/16" steel plating in high-stress zones

  • Integrated bash guard and mini truss

  • 1" stainless uniball pivots (no more worn-out bushings)

• 2" Drop Beam Pivots for true 6" of lift

• Billet Radius Arms with 1.25" heim joints

• Dual Fox 2.0 Shocks (Reservoir main + non-resi auxiliary)

• Lift Coils, Adjustable Alignment Cams, Limit Straps, and Stainless Brake Lines

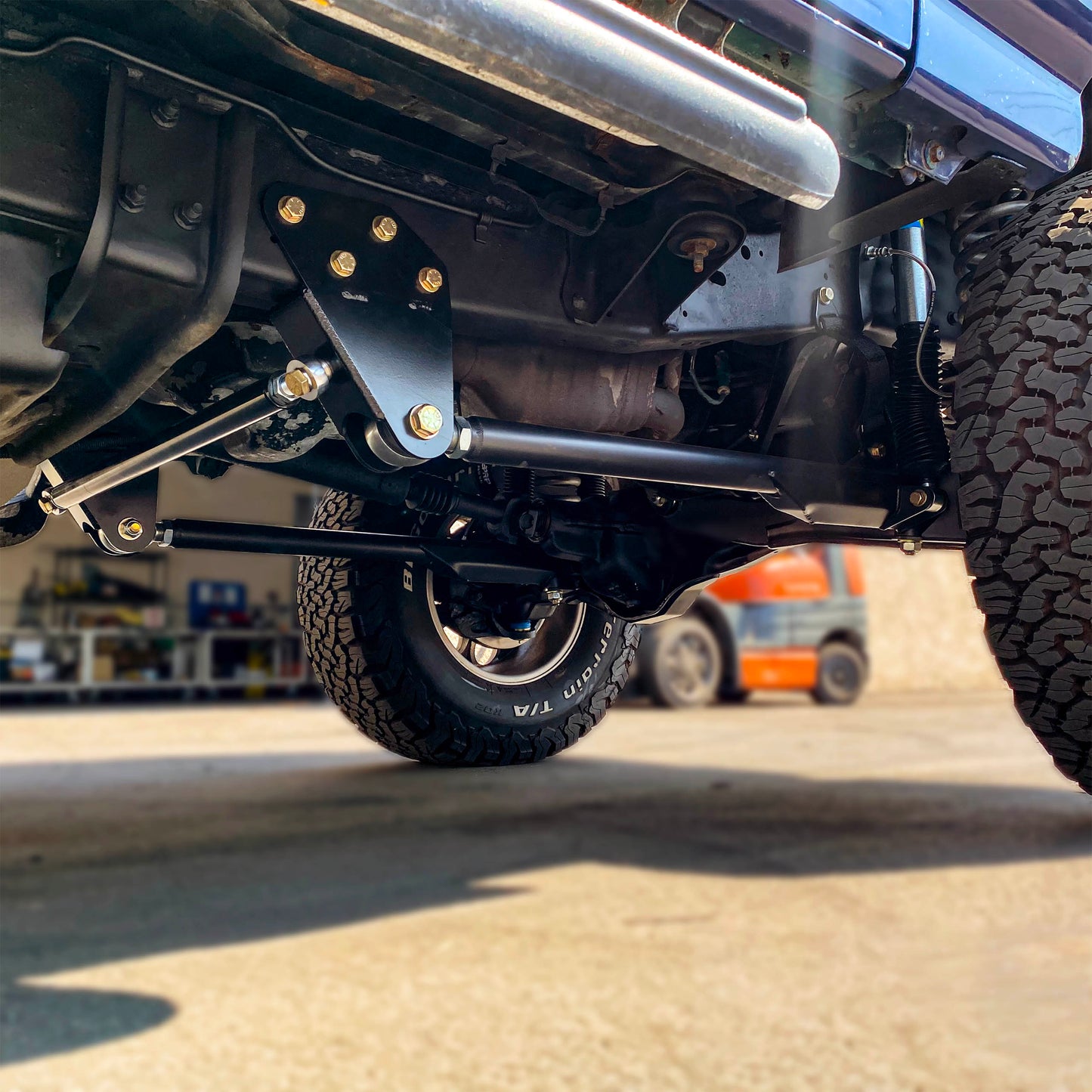

🔧 Rear Suspension Highlights:

• Deaver Q80 9-Leaf Progressive Leaf Springs

• Fabricated Shackle Hangers & Extended Shackles

• Long Travel Sway Bar Kit w/ Billet Arms

• Billet Upper Shock Mounts & Weld-On Lower Mounts

• Fox 12” x 2.0 Reservoir Shocks

• HD U-Bolt Plates, 5/8” U-Bolts, and New Spring Perches

• Delivers 17” of rear wheel travel

⚙️ Requirements & Notes:

• Must have factory dual-shock coil bucket for dual Fox setup

• Professional installation required – includes welding

• Rear Deaver springs not recommended for heavy towing

• Alignment required after install

• Clears up to 37" tires (minor trimming may be necessary)

💥 Features at a Glance:

• ~6” of suspension lift

• 12” front / 17” rear wheel travel

• Improved geometry and articulation over stock

• Billet and plated components built for strength

• Coil spring simplicity with long travel capability

• Ideal for serious trail rigs and adventure Broncos

If you’re looking for the best bolt-on suspension system for an OBS coil spring truck, this is it. From trail to highway, this setup is built to perform.
