Desolate Motorsports Complete 4" Mid Travel Lift Kit - 1980-1996 Ford F150/Bronco

Desolate Motorsports 4" Mid-Travel Elite Suspension Package

Fits: 1980–1996 Ford Bronco / F150 (TTB)
Designed for: Hard Weekend Use + Future Long Travel Upgrade

If you're looking for top-tier performance in a coil spring, mid-travel setup, this is it. Built for aggressive trail use and built with future upgrades in mind, this system pairs the best of our front-end offerings with our full rear suspension package for a well-rounded, trail-dominating ride.

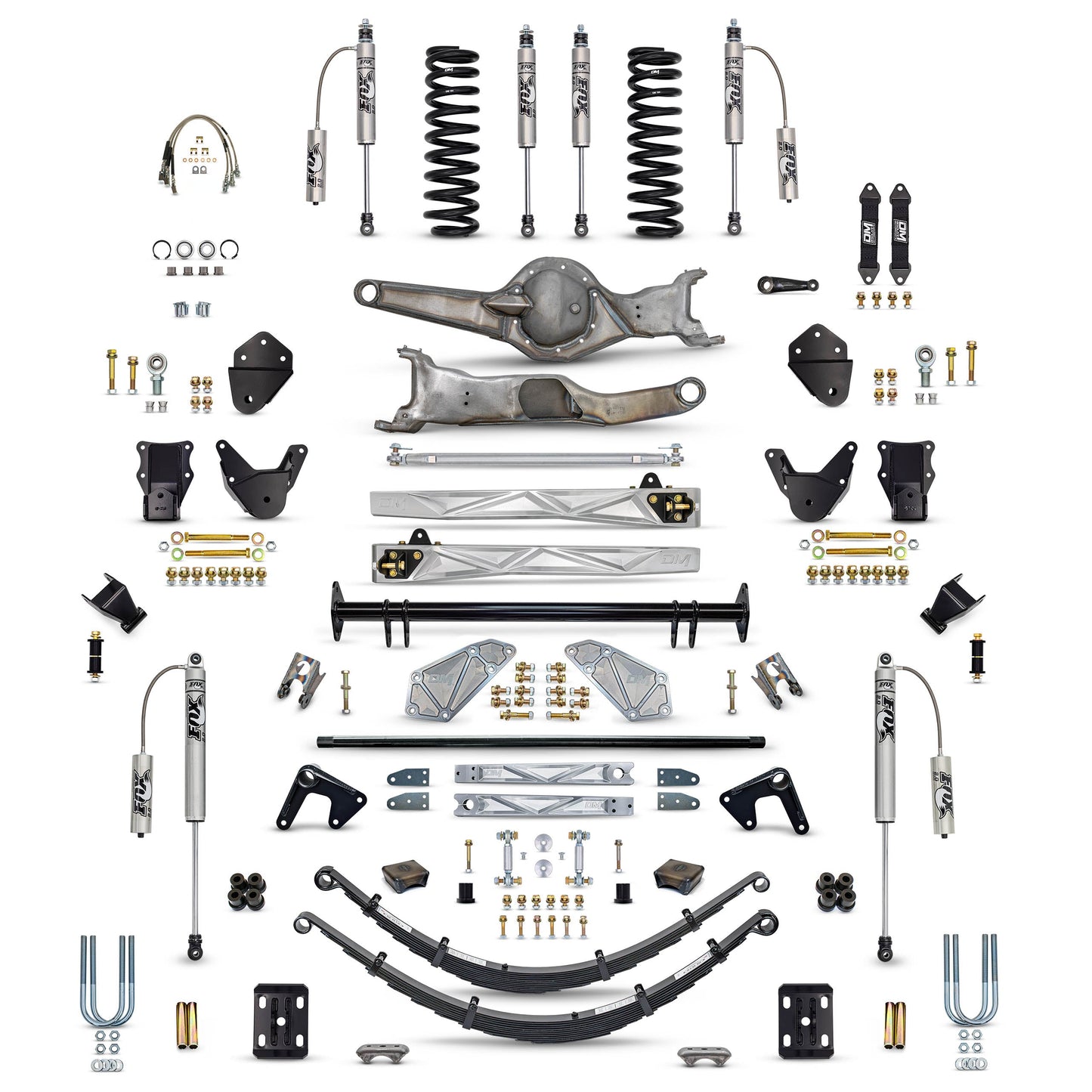

🔧 Front Suspension:

• Stock Width TTB Beams, camber-corrected and plated with 3/16" steel

  • Includes integrated bash guard, mini truss, and 1” stainless uniball pivot conversion

• Billet Radius Arms with 1.25" heim joints

• Dual Fox 2.0 Front Shocks (one with reservoir, one without)

• 4” Lift Coils for added ride height and travel

• Adjustable Alignment Cams

• Stainless Steel Front Brake Lines & Limit Straps

🔧 Rear Suspension:

• Complete Rear Suspension Kit featuring:

  • Deaver Q80 9-leaf progressive springs

  • Extended Shackles & Fabricated Hangers

  • Billet Upper Shock Mount

  • Weld-on Lower Shock Mounts

  • Fox 2.0 x 12” Reservoir Shocks

  • Long Travel Rear Sway Bar w/ Billet Arms

  • New U-bolts, U-bolt plates, & spring perches

📈 Performance Specs:

• 4” Lift Height

• 12” of Front Wheel Travel

• 17” of Rear Wheel Travel

• Clears 35” Tires

• Massively Improved Strength, Travel, and Ride Quality

💡 Notes:

• Dual front Fox shocks require factory dual shock coil bucket

• Rear Deaver Q80s are not recommended for towing or heavy loads

• All vehicles require alignment post-install

• Rear setup is long-travel ready and easy to upgrade to full coilover later

This system is for those who want the best bolt-on mid-travel performance while staying coil spring-based. Future-ready. Trail-tough. Daily-drivable.
