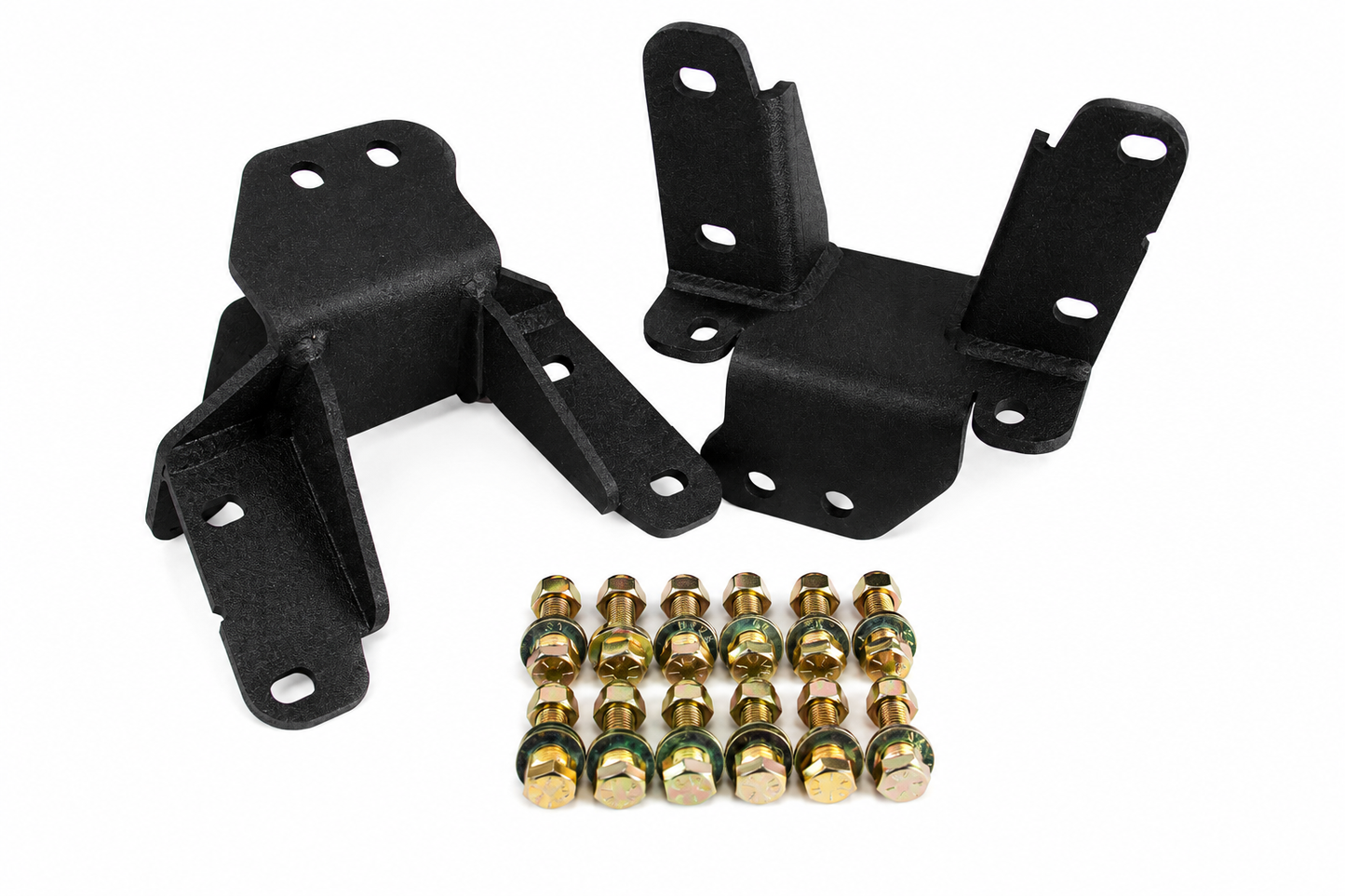

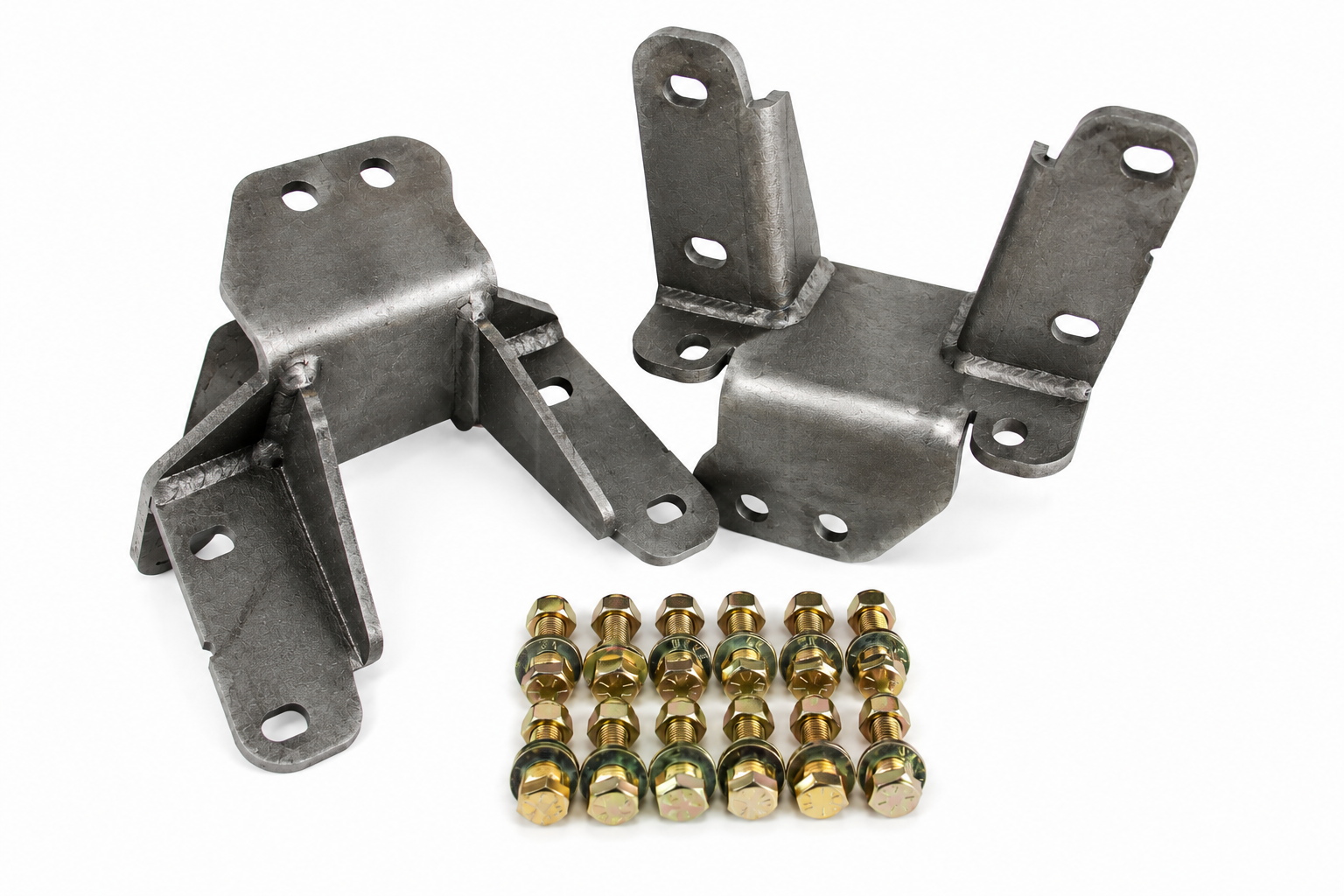

PMF Front Shackle Pivot Brackets

Heavy-Duty Front Shackle Pivot Brackets – Pair
Fits 1980–1997 Ford F-250/F-350

Upgrade your suspension with these heavy-duty front shackle pivot brackets—designed as a direct OEM replacement with enhanced features for improved performance and durability.

Key Features:

• Stronger Than Stock: Made from laser-cut 1/4" steel and CNC-formed for precision and strength, these brackets are a significant upgrade over factory units.

• Improved Geometry: An additional pivot hole, placed 1.5" forward of the OEM location, accommodates aftermarket leaf springs with a shorter eye-to-eye length—preventing the shackle from contacting the frame and improving shackle angle for better ride quality.

• OEM-Compatible Fit: Matches factory bolt configuration for easy installation on 4WD models. Grade 8 hardware for mounting to the frame is included (shackle pivot bolts not included).

• 2WD Conversion Ready: Can be used to convert a 2WD frame to accept a 4WD front end (requires additional components). Note: 2WD frames will require drilling for installation.

• Made in the USA: Built with pride by skilled craftsmen right here in the USA.

Includes:

• 1 Pair of Front Shackle Pivot Brackets

• Grade 8 Frame Mounting Hardware

Vehicle Fitment:

• 1980–1997 Ford F-250 / F-350 (2WD & 4WD)

• Note: 2WD applications will require drilling mounting holes.
