SKU:IDP-73COMPF-OBS

(1994-2003) - IDP Competition fuel system (Includes regulated return) NOW WITH NEW BILLET FILTER BASE!!

(1994-2003) - IDP Competition fuel system (Includes regulated return) NOW WITH NEW BILLET FILTER BASE!!

No reviews

Regular price $1,850.00
Regular price Sale price $1,850.00
Sale Sold out

Please select a valid combination of attributes.

View full details

IDP Competition Fuel System

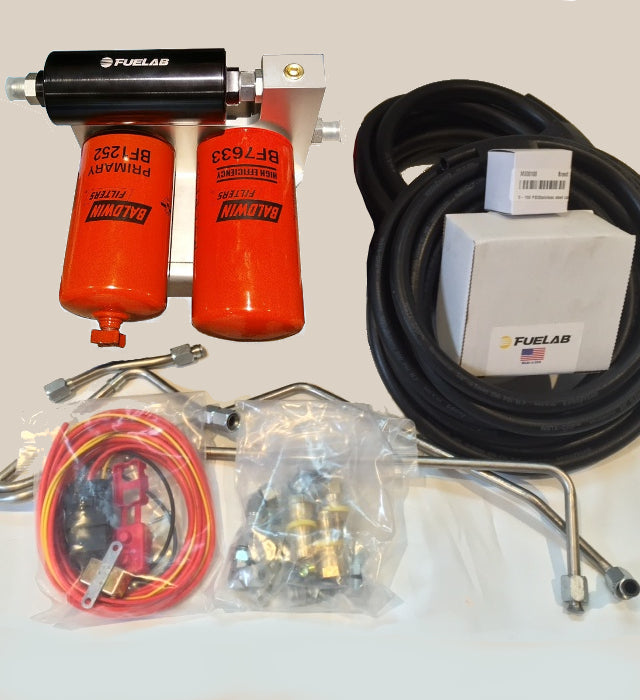

Irate fuel bracket, Fuelab 41401 fuel pump (upgrade to the 41402 for 400+CC injectors), Baldwin filters with billet filter base, -8 line from tank to pump, -8 line from pump to motor, -6 line from motor to tank, 5/8″ pickup tube, Irate regulated return system, all fittings, wiring harness with waterproof conections, relay and circuit breaker. Add a sump for no tank drop install!! This kit comes with our stainless bent hardline fuel bowl delete regulated return kit that eliminates the stock fuel bowl.  This system uses a water separator filter to protect the pump from larger debris and water then the final filter to prevent any contaminants getting to your engine!

**OBS trucks will be required to install draw straw or add a sump onto one tank, selector valve is too restrictive for this system! You can transfer from one tank to the other with a small pump so you still have the capacity of both tanks.

Comes with Stainless Steel Regulated Return kit!

This is the system that is recommended for all injectors, and will support the largest of injectors made for the 7.3L!!  It will also work with stock injectors if you are upgrading later!

*OBS (94-97) trucks will have to use a single tank for the draw straw or sump as this pump requires a minimum of 1/2″ pick up.

In some instances on 99-03 models you may have to remove the up-pipe on the drivers side to fit the new supplied 90* fitting.  On the 94-97 you for sure have to do this because the pedestal and collector sit low and get int the way.

If you have a gen3 or BTS HPOP set up please let us know in the checkout so we can make you the correct lines.

FUELAB has launched a ‚ÄúForever Fixed‚ÄĚ lifetime warranty on all FUELAB branded products, the company announced today. The new warranty covers the original purchaser against all material or workmanship defects for the life of the product.

This new coverage is effective immediately and allows the original purchaser to return the product(s) to FUELAB directly for repair or replacement.

‚ÄúWe make a solid product, and have always gone above and beyond our previously advertised 2-year warranty, so we just decided to make it official and let it be known that we will stand behind our product for as long as you own it.‚ÄĚ, said FUELAB sales rep, Josh Davis. ‚ÄúThe process is extremely simple ‚Äď just call or email us for an RMA number, send the product back to us with proof of purchase, and we‚Äôll take care of the rest!‚ÄĚ

The ‚ÄúForever Fixed‚ÄĚ warranty does not cover damage from standard wear and tear, modifications by the end-user, accidents, or when the product is used for something besides its intended purpose.¬†

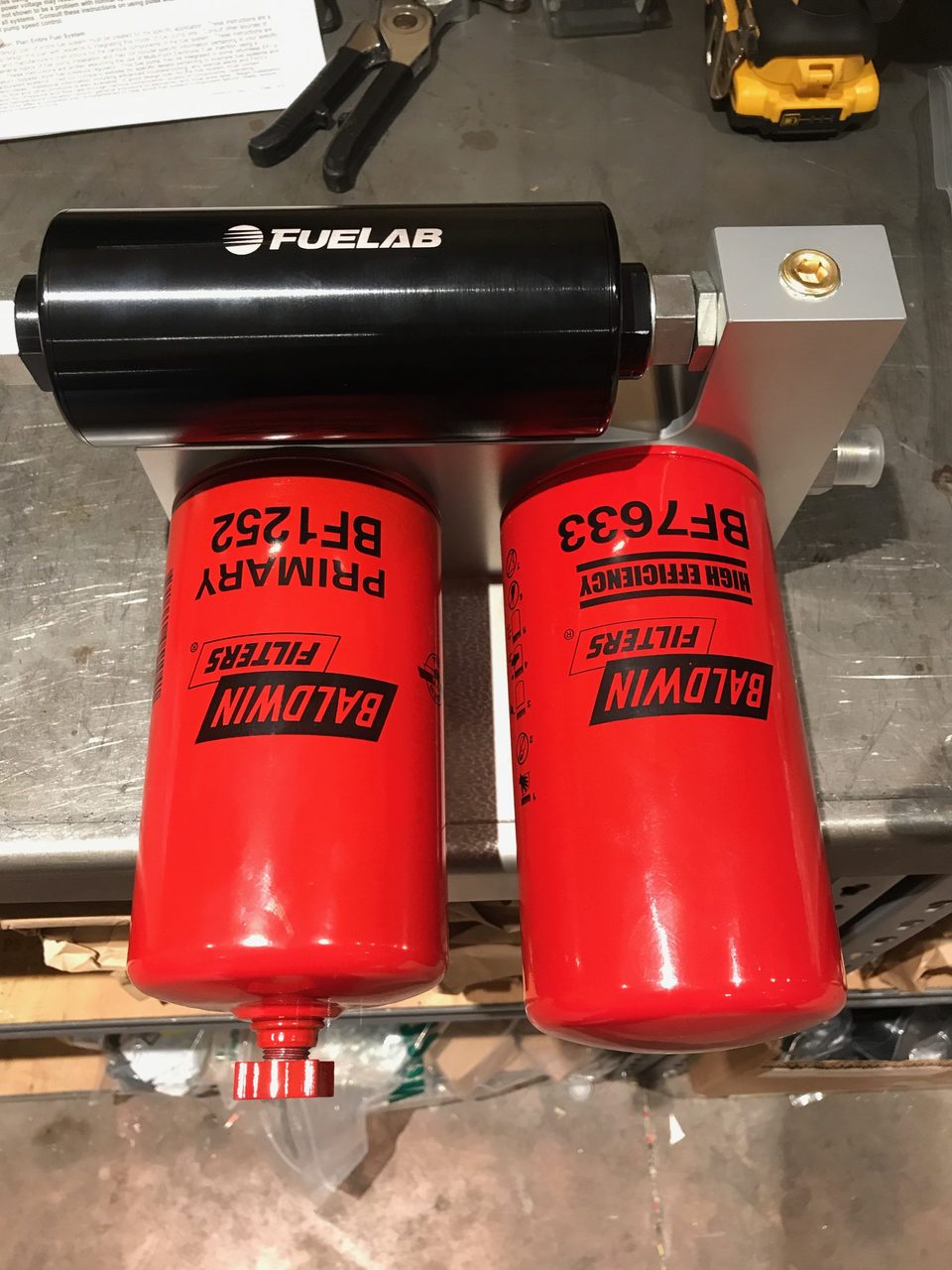

NEW UPDATED FILTER AND PUMP BASE!

Limited Lifetime Warranty From Fuelab

Install instructions

Irate-Diesel-wiring-diagram
