KC Turbos Gen 3 Stage 1 Conversion Kit - 1994-1997 Ford F-Series

KC300x Gen 3 Stage 1 OBS Conversion Kit – 1994.5–1997 Ford 7.3L Powerstroke

Supports: Up to 205cc/30% Injectors

If you're looking for the ultimate bolt-on turbo upgrade for your OBS Powerstroke, the KC300x Gen 3 Stage 1 Conversion Kit delivers modern turbocharger technology without sacrificing the factory OBS layout.

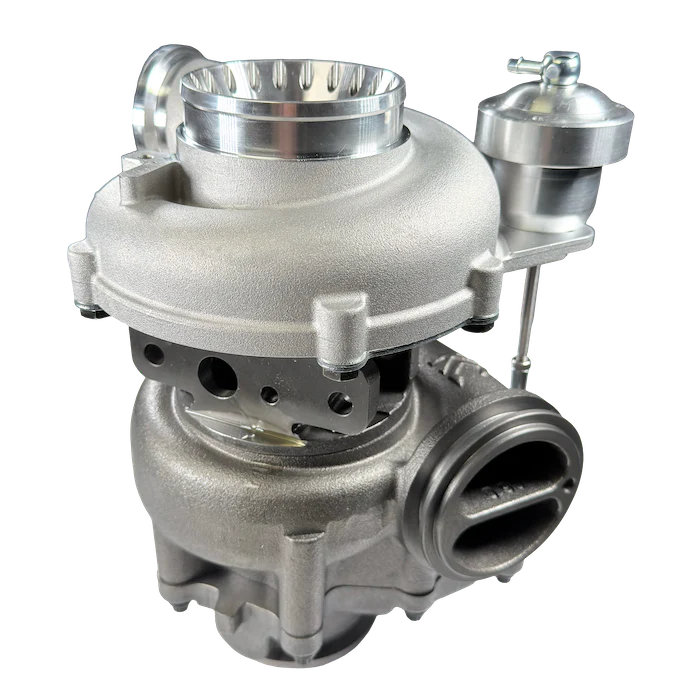

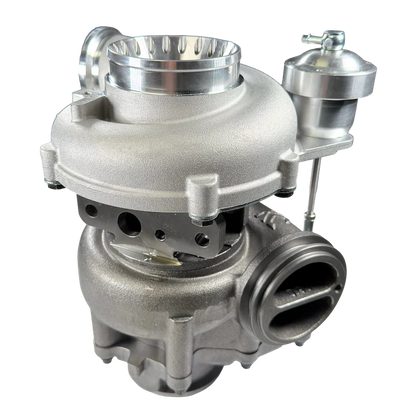

Designed specifically for 1994.5–1997 Ford 7.3L Powerstroke trucks, this complete conversion kit allows you to install the KC300x Gen 3 E99 turbo while retaining your factory OBS downpipe and Y-bridge. Unlike piecing together a conversion yourself, this kit includes everything required to make the installation straightforward and truly bolt-on.

The result is dramatically quicker spool-up, lower EGTs, increased airflow, and industry-leading reliability—all while supporting injector sizes from stock up to 205cc/30% hybrids.

🔥 Key Features

• Fits 1994.5–1997 Ford 7.3L Powerstroke (OBS)

• Supports Injectors Up To 205cc/30%

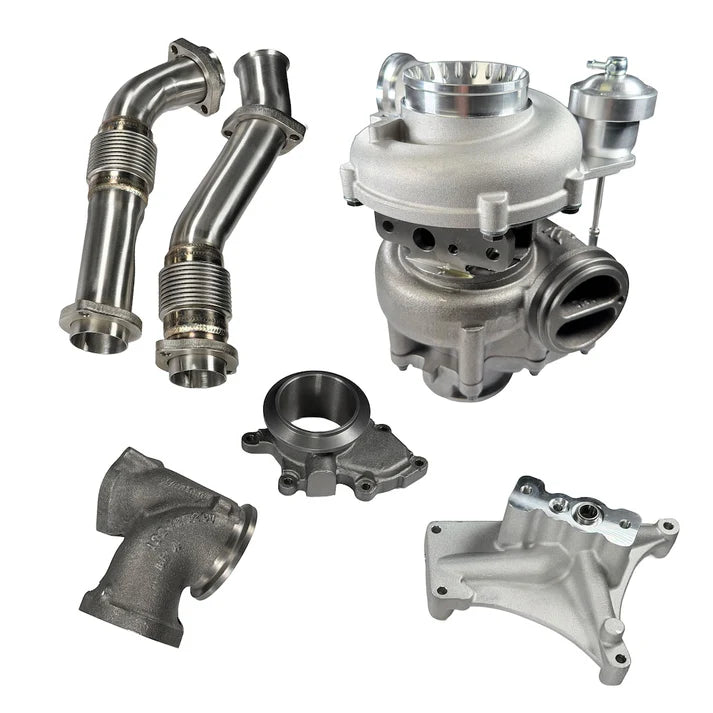

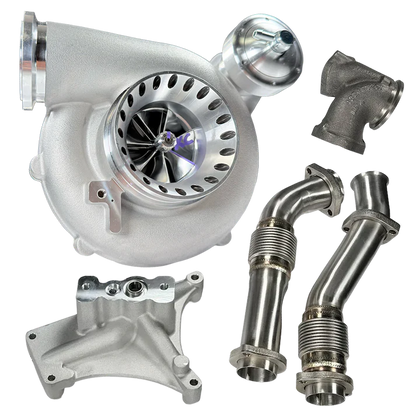

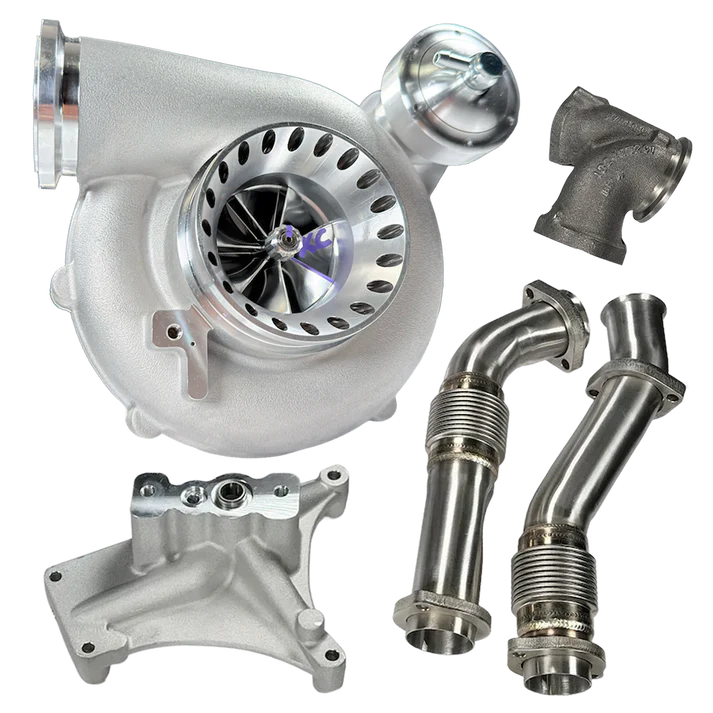

• Complete OBS Conversion Kit
  Everything needed to install a KC300x Gen 3 E99 turbo on an OBS truck

• 100% Bolt-On Installation
  No modifications required

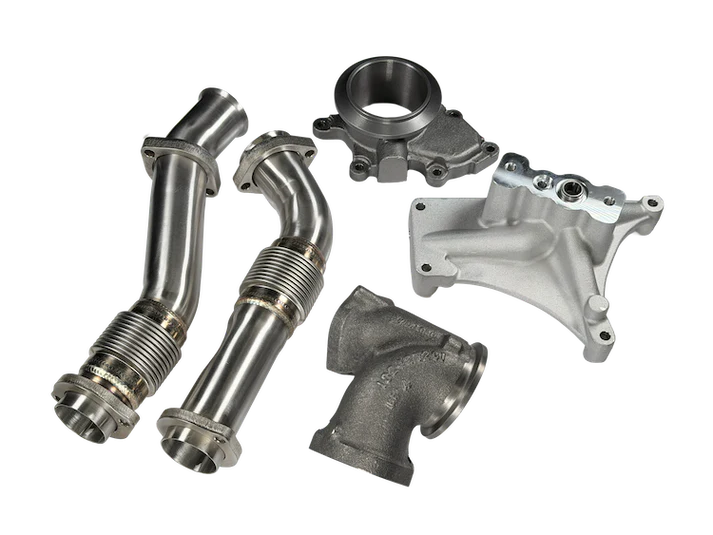

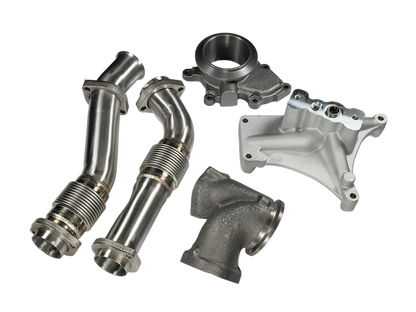

• Includes Non-EBPV Pedestal & Up-Pipes

• Custom Outlet Flange
  Retains the factory OBS downpipe and Y-bridge

• Dyno-Proven Power Gains

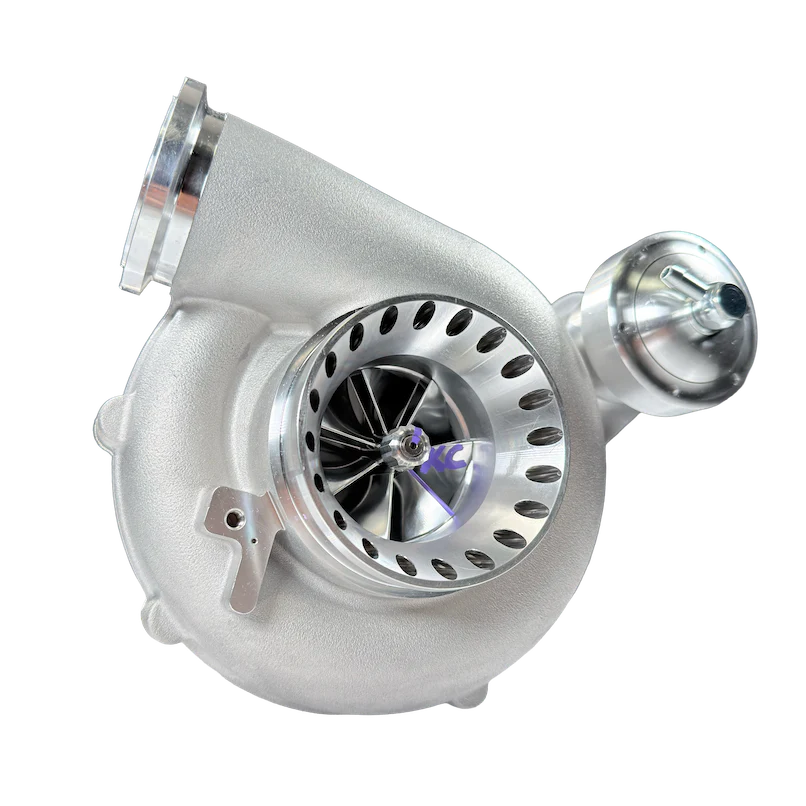

• Gen 3 7x7 SXE Compressor Wheel
  Redesigned billet wheel with improved aerodynamics and extended-tip technology

• Gen 3 Thick Shaft SXE Turbine Wheel
  Increased strength for higher boost and horsepower levels

• 0.70 A/R Ported Compressor Cover
  Improved spool characteristics with modern anti-surge technology

• Redesigned 0.91 A/R Turbine Housing
  Quicker spool than the previous 0.84 housing while flowing more than the former 1.00 A/R design

• 200% Larger Thrust & Journal Bearings

• Integrated Cast Iron Backing Plate
  Improves bearing housing rigidity and high-speed stability

• Steel Thrust Insert
  Eliminates common bearing fatigue and improves long-term durability

• High-Flow Non-EBPV Outlet
  Designed specifically for the factory OBS downpipe

• Round-Top Wastegate Actuator
  Improved boost control

• Includes All Gaskets & O-Rings

• Includes Updated 3.5" Intake Boot
  Improved fitment over previous designs

• Optional Powder Coat Available
  Powder-coated turbos may require up to 3 weeks before shipping

🛠️ Why Upgrade to the KC300x Gen 3?

The KC300x Gen 3 represents years of research and development focused on improving every weak point found in the factory GTP38 turbo.

Compared to previous-generation drop-in turbos, the Gen 3 offers:

• Faster spool-up

• Lower exhaust gas temperatures

• Improved throttle response

• Increased airflow

• Higher sustained boost

• Significantly improved reliability

The redesigned compressor and turbine housings utilize modern flow paths, anti-surge technology, and optimized volute geometry to produce more usable power across the entire RPM range.

💪 Built for Reliability

The KC300x isn't just designed to make more horsepower—it's engineered to survive it.

Major reliability upgrades include:

• 200% larger thrust bearing system

• Larger journal bearings

• Thick-shaft turbine wheel

• Cast iron integrated backing plate

• Steel thrust insert

• Reduced housing deflection under extreme heat and boost

These improvements make the Gen 3 one of the strongest journal-bearing drop-in turbos available for the 7.3 Powerstroke.

🚚 Fitment

• 1994.5–1997 Ford F250 7.3L Powerstroke

• 1994.5–1997 Ford F350 7.3L Powerstroke

⚠️ Fitment Notes

• Designed specifically for OBS pickup trucks

• Retains the factory OBS downpipe and Y-bridge

• Will NOT fit E99 or Super Duty trucks

• Will NOT fit vans

• Fitment cannot be guaranteed with all aftermarket fuel systems, plenums, piping kits, or other custom components

💉 Injector Compatibility

Recommended For:

• Stock injectors

• Stage 1 injectors

• Up to 205cc/30% hybrid injectors

Running larger injectors?

We recommend stepping up to the KC300x Gen 3 Stage 2 OBS Conversion Kit.

💻 Recommended Supporting Modifications

For the best performance, we highly recommend:

• Hydra Performance Chip

• Free-flowing exhaust

• High-flow intake system

• Healthy fuel system

⚠️ Exhaust Brake Compatibility

Some exhaust brake systems may interfere with turbocharger operation due to excessive backpressure or internal flapper design. Clearance and compatibility vary by manufacturer and should be verified before installation.

✨ Optional Polished Compressor Cover

KC300x turbos are supplied with a sand-cast compressor housing unless otherwise specified.

A polished compressor cover is available for an additional $250.

Please allow approximately two weeks for polished cover orders.

If you're ready to bring modern turbo technology to your OBS Powerstroke, the KC300x Gen 3 Stage 1 OBS Conversion Kit delivers unmatched spool-up, reliability, and performance—all in a true bolt-on package that retains your factory OBS layout.
