SKU:300221

(1994.5-1997) - KC300x Stage 2 Turbo (63/73) - 7.3 PowerStroke

(1994.5-1997) - KC300x Stage 2 Turbo (63/73) - 7.3 PowerStroke

Regular price $1,240.00
Regular price Sale price $1,240.00
Sale Sold out

View full details

(1994.5-1997) - KC300x Stage 2 Turbo (63/73) - 7.3 PowerStroke



Recommended injectors: 180cc-30%

Minimum injectors: Stock

Maximum injectors: 205cc/30%



Features & Details:

  • 100% drop in turbo¬†(no modifications required)
  • 63mm 7x7 SXE style compressor wheel with extended tip technology
  • 73mm¬†SXE style turbine wheel
  • 4" ported compressor housing with drilled anti-surge for high flow
  • High Flow Non-EBPV outlet flange
  • Upgraded 360 Thrust Journal Bearing Design
  • Comes with all gaskets and o-rings to install
  • Comes with new 4" intake boot

Description:

Improve your 7.3 Powerstroke engine's performance with the KC300x Stage 2 63/73 Gen 2 Turbo. This turbo features a 4" ported housing with drilled anti-surge for better flow, a 63mm 7x7 SXE style compressor wheel with extended tip technology, and a 73mm SXE style turbine wheel. The KC300x is a reliable journal bearing drop in turbo perfect for increasing your 7.3 Powerstroke's performance.

This turbo will surprise you at how much it will wake up your 7.3! We have torture tested it for longevity, proven its capability on the dyno, and at the Race Track. The 1.0 A/R Housing is intended to cool your EGTs above 3000 RPMS. For dedicated tow rigs and daily drivers, the .84 A/R Housing will provide a quicker spool and cooler EGT's below 3000 RPMs.

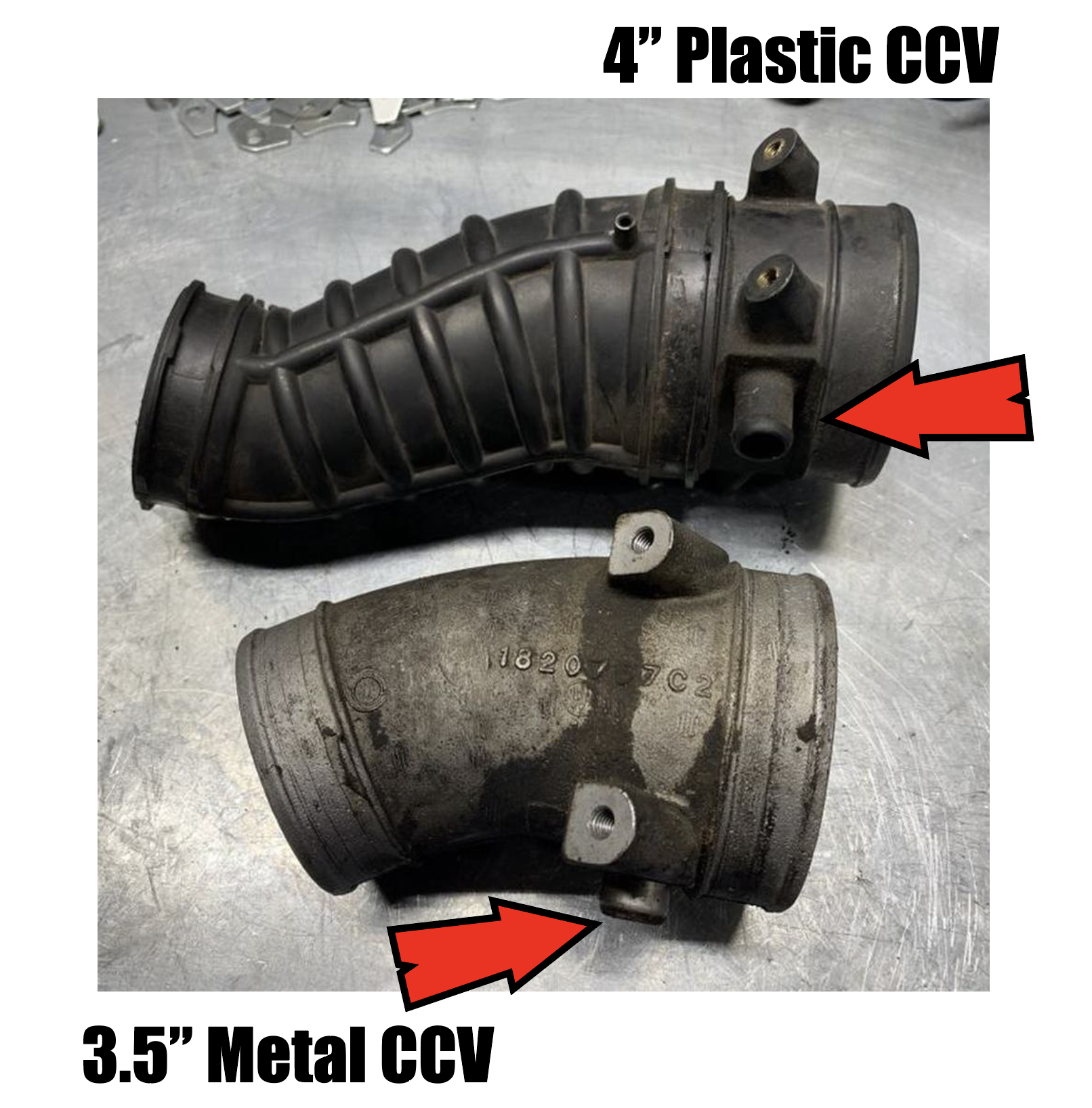

**Please select your trucks CCV when ordering**

**EXHAUST BRAKES:  We get asked a lot about exhaust brakes and if they work with our turbos.  We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.**



Click here for more information on the KC300x in Diesel World Magazine.

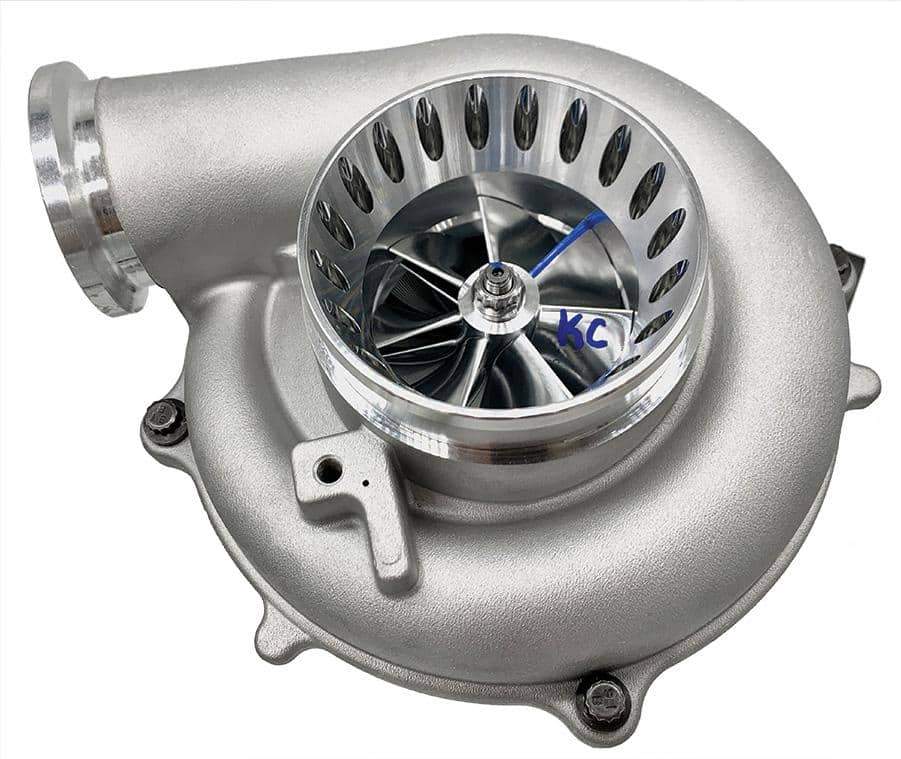

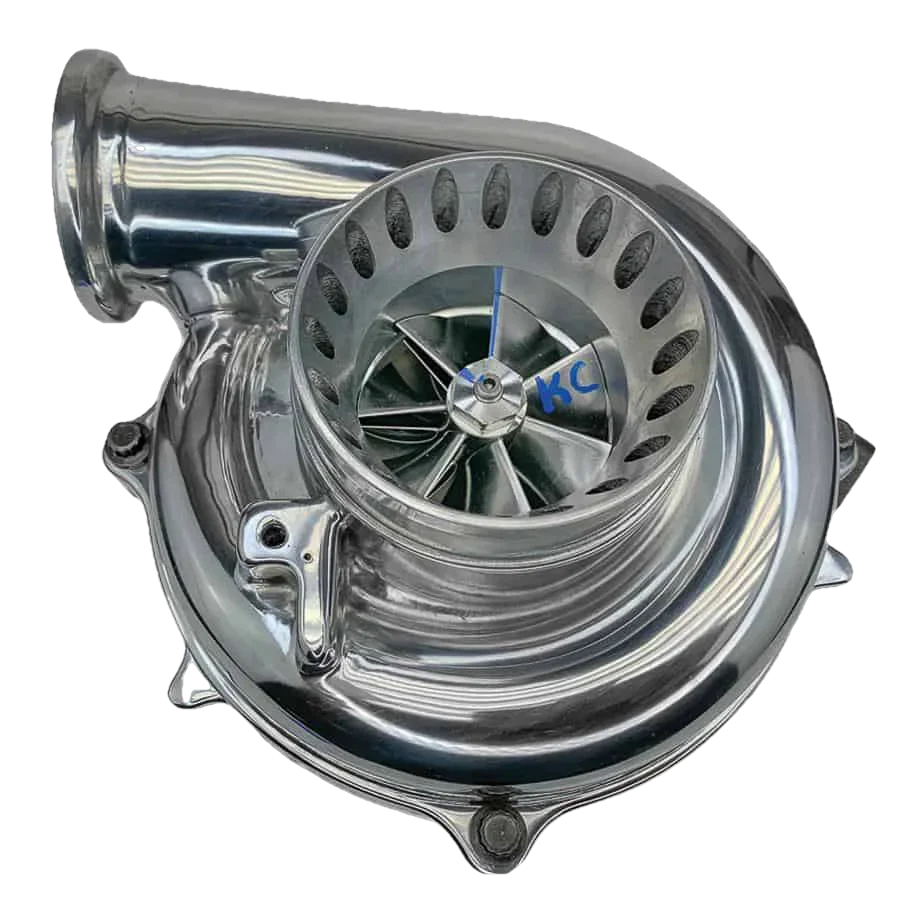

**Pictured is a polished cover, these turbos come sand cast unless specifically requested. You may get a polished unit depending on stock. You can add a polished cover for an additional $250. Two week lead time on all polished covers**

**Our turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although our turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment**
