SKU:PMF-OBRSK-1004-22

PMF Suspension OBS Spring Reverse Shackle Kit - 1992-1997 Ford F-Series

PMF Suspension OBS Spring Reverse Shackle Kit - 1992-1997 Ford F-Series

Regular price $400.00
Regular price Sale price $400.00
Sale Sold out
Pivot Brackets*?

These pivot brackets are typically used if you are converting your truck from 2wd to 4wd. You will absolutely need them. Other uses are if you have a factory 4wd and your factory brackets are rust damaged.


Frame Boxing Plates for 2wd*
customers are viewing this product

Pairs Well With

View full details

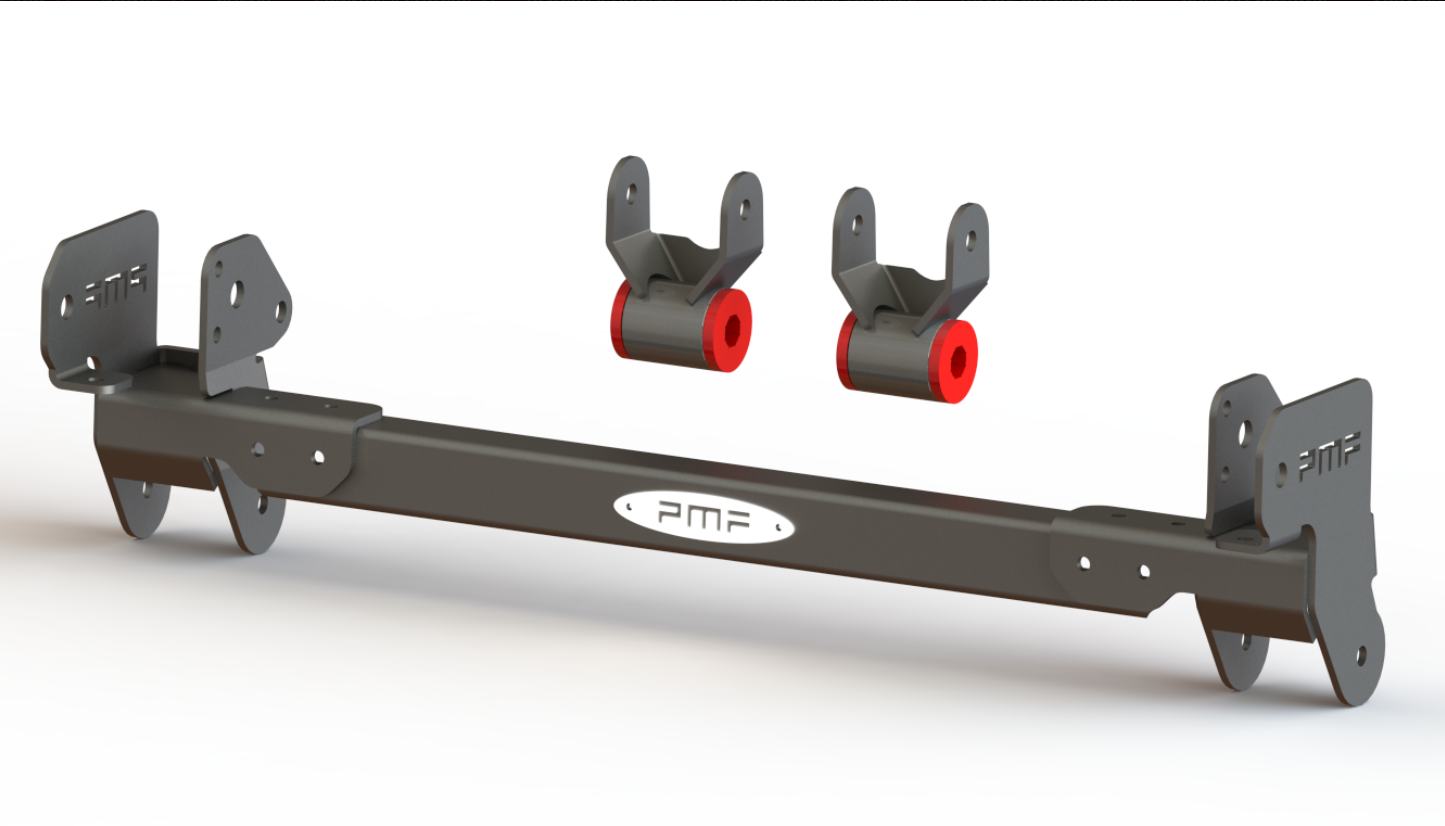

OBS Leaf Spring Reverse Shackle Kit (RSK)

1992–1997 Ford F-250/F-350

Bring modern ride quality and improved handling to your 1992–1997 OBS Ford 4x4 with our Leaf Spring Reverse Shackle Kit (RSK). Developed with feedback from real OBS owners, this kit is engineered to retain factory OBS leaf springs while delivering a bolt-on installation that requires no frame or bumper modifications.

🔥 Key Features:

  • OEM Spring Compatibility – Must be used with factory OBS leaf springs or exact-length replacements

  • No Major Mods Required – Bolts directly to existing frame holes, clears all factory bumper mounts and components

  • Improved Ride Quality – Relocates the shackle to the rear of the leaf spring, allowing impacts to transfer rearward for smoother handling

  • Heavy-Duty Design – CAD-modeled, modular 3-piece system ensures strength, adjustability, and simple install on older frames

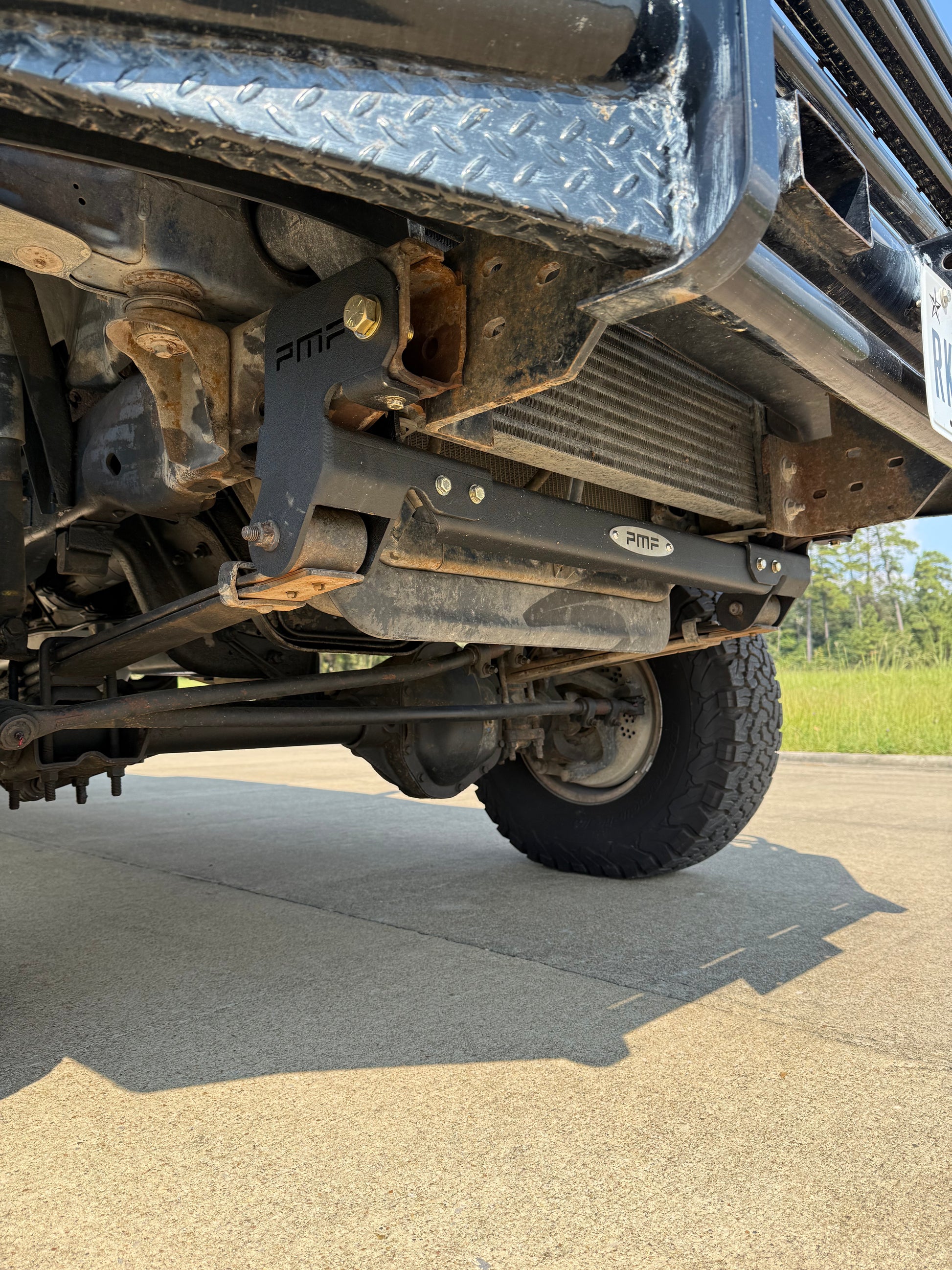

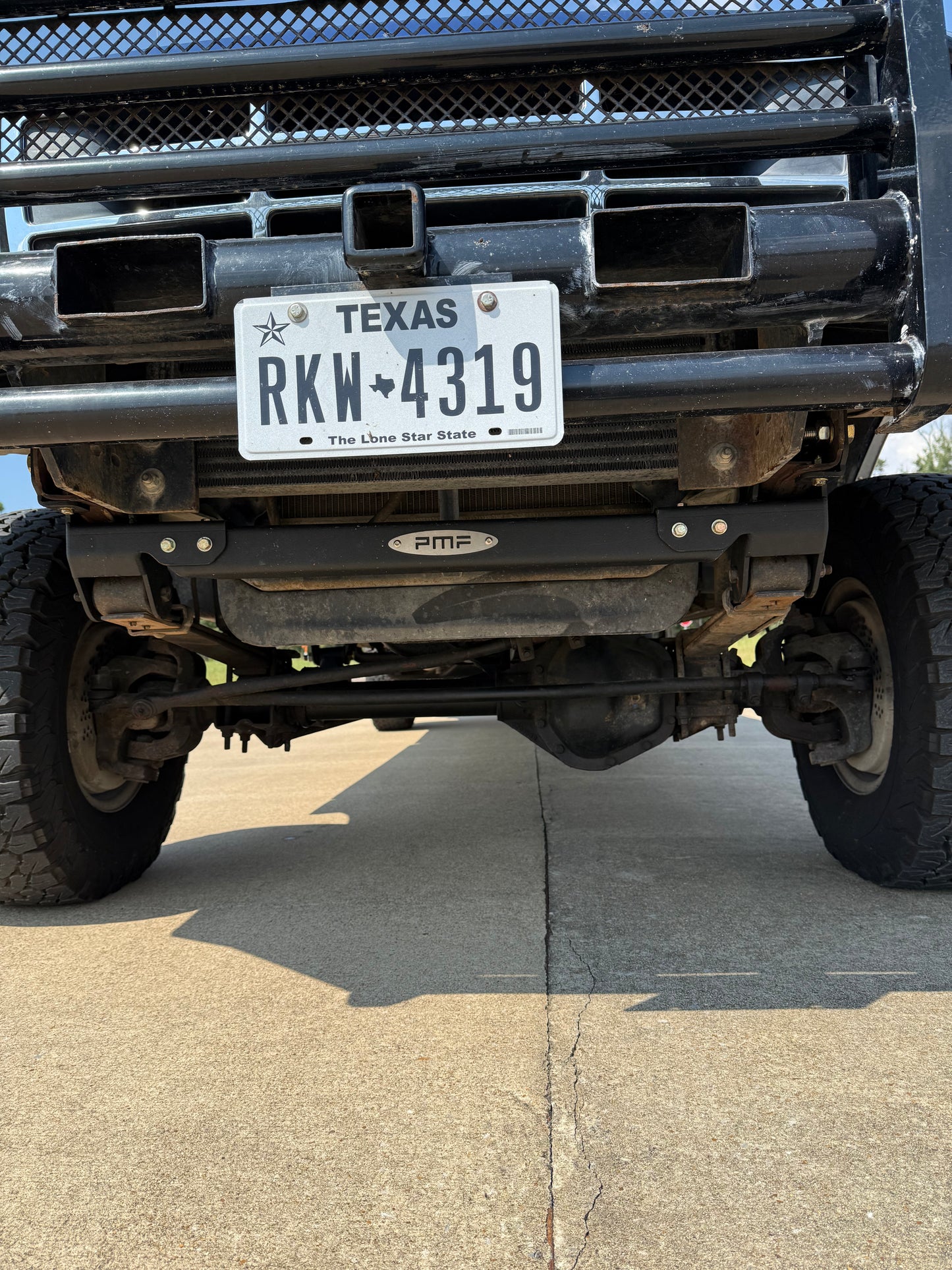

  • Crossbar Support – Includes a heavy-duty crossbar that ties hangers together and reinforces the frame

📏 Available Lift Options:

  • 2.25" Lift

  • 3.5" Lift

  • 4.5" Lift

🛠️ Installation Notes:

  • Designed for 4x4 boxed frame rails

  • For 2WD open frames, the Front Frame Rail Box Kit (sold separately) is required

  • Will reuse OEM leaf hanger under the body mount on 4x4 chassis

  • For 2WD conversions, the Shackle Pivot Bracket (sold separately) is required

  • Some aftermarket springs (especially Pro Comp) are shorter than OEM spec and will cause geometry/axle placement issues — use OEM-length springs only

⏱️ Lead Time:

  • Custom built to order – typically ships in 1–2 weeks

Proven Performance:
By relocating the shackle to the rear of the spring, this RSK kit dramatically improves handling and ride comfort while maintaining factory geometry. For maximum ride quality, consider our Super Duty Leaf Spring RSK Kit, which uses longer 1999–2004 Super Duty leafs.
