(1983-1997) F-Series - Rear Diesel Sending Unit

(1983-1997) F-Series - Rear Diesel Sending Unit

3 sold in last 16 hours

Regular price $188.43
Regular price Sale price $188.43
Sale Sold out

Select The Correct Unit
Select The Correct Unit
1983-1984 (Metal 19 gal.)
1985-1986 (Metal 19 gal.)
1985-1986 (Plastic 23 gal.)
1987-1989 (Metal 19 gal.)
1990-1991 (Metal 19 gal.)
1990-1991 (Plastic 23 gal.)
1992-1993 (Metal 19 gal.)
1992-1993 (Plastic 23 gal.)
1994-1996 (Metal 19 gal.)
1994-1997 (Plastic 23 gal.)
Sending Unit Strainer*
- Select One -
Add Sending Unit Strainer ($59.95)
No Thanks
18 customers are viewing this product

Pairs Well With

View full details

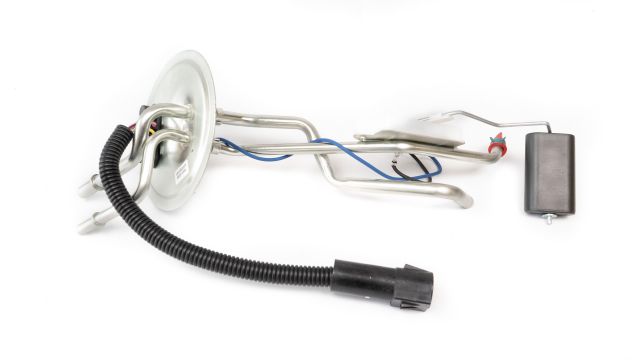

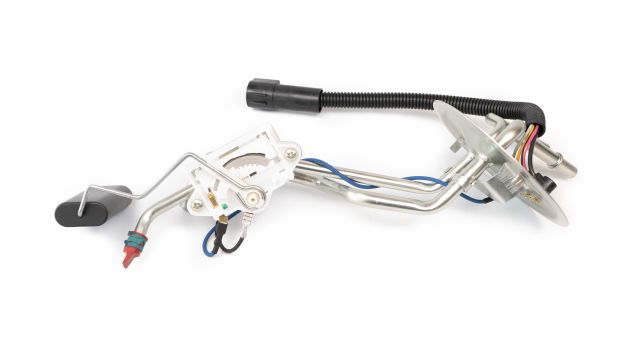

Rear Diesel Sending Unit (1983-1997)

The images shown are for illustration purposes only and may not be an exact representation of the product.





YOU WILL NEED A FUEL STRAINER WITH THIS KIT - ORDER HERE

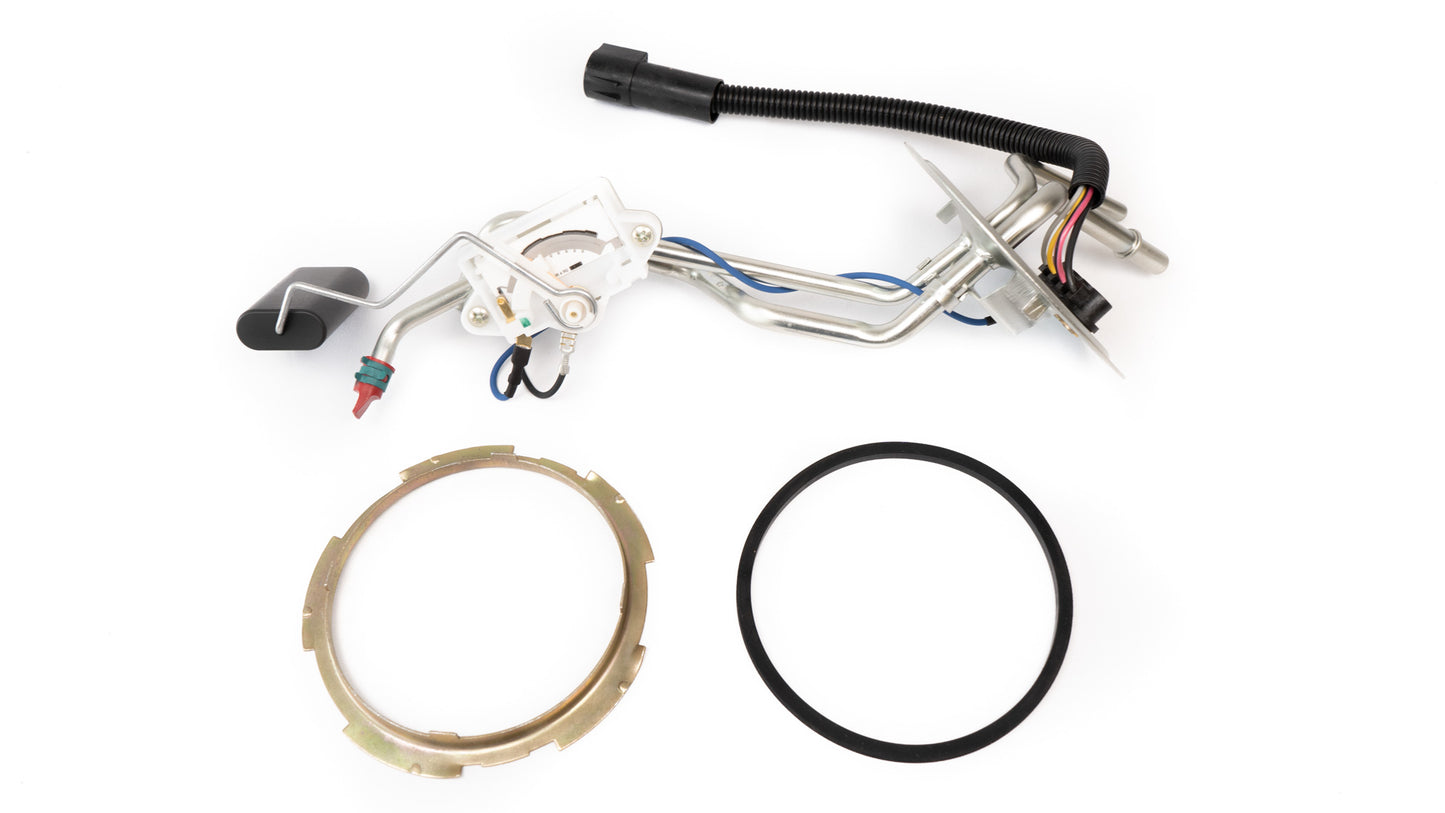

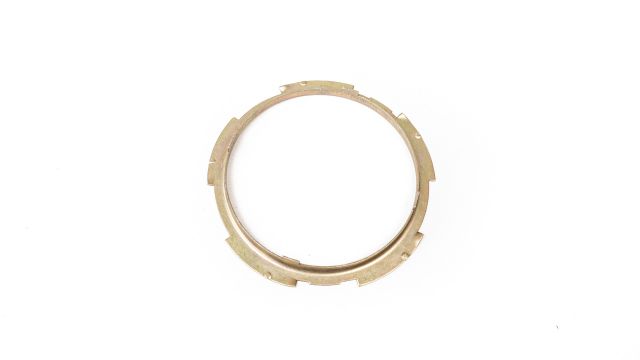

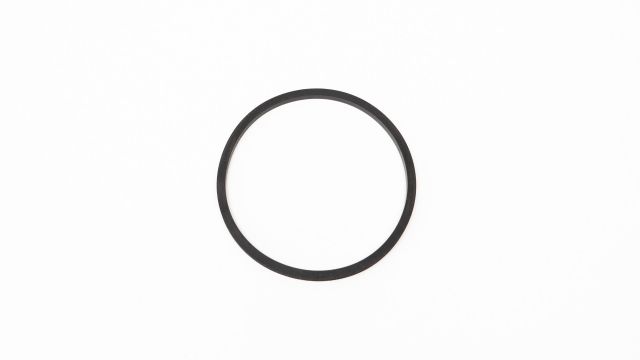

This high quality replacement rear fuel sending unit is manufactured to the original factory specifications. This comes with a new lock ring and o-ring. It does not come with a filter strainer.

Ford used the same 4-wire harness on gas and diesel engine trucks from 1994-1997. Only two wires are used in the diesels, the hot and ground, the other two are dead.

The other two wires in the harness from 1994-1997 were used when the truck had an in-tank fuel pump for the gas engines.

The two wire units on the diesel's from 1983-1993, were plugged into the two pin clip on top of the unit.


Fits:

1983-1997 Ford F250/F350 (19 gallon 7.3L DIESEL ONLY rear tank sending unit.)

**Some 1994-1996 Models have different sending unit plug ends.**
**Yellow wire = Sending Unit Hot
**Gray wire = Sending Unit Ground
**Pink/Black wire = Dead
**Black wire = Dead

WILL NOT FIT F350 Cab & Chassis with Plastic Fuel Tanks - CAB AND CHASSIS trucks ONLY
