SKY Manufacturing (85-91) F-350 4x4 2" Front Shackle Reversal (Superduty Spring)

SKY Manufacturing (85-91) F-350 4x4 2" Front Shackle Reversal (Superduty Spring)

sold in last hours

Regular price $799.95
Regular price Sale price $799.95
Sale Sold out

customers are viewing this product

Pairs Well With

View full details

SKY Manufacturing (85-91) F-350 4x4 2" Front Shackle Reversal (Superduty Spring)

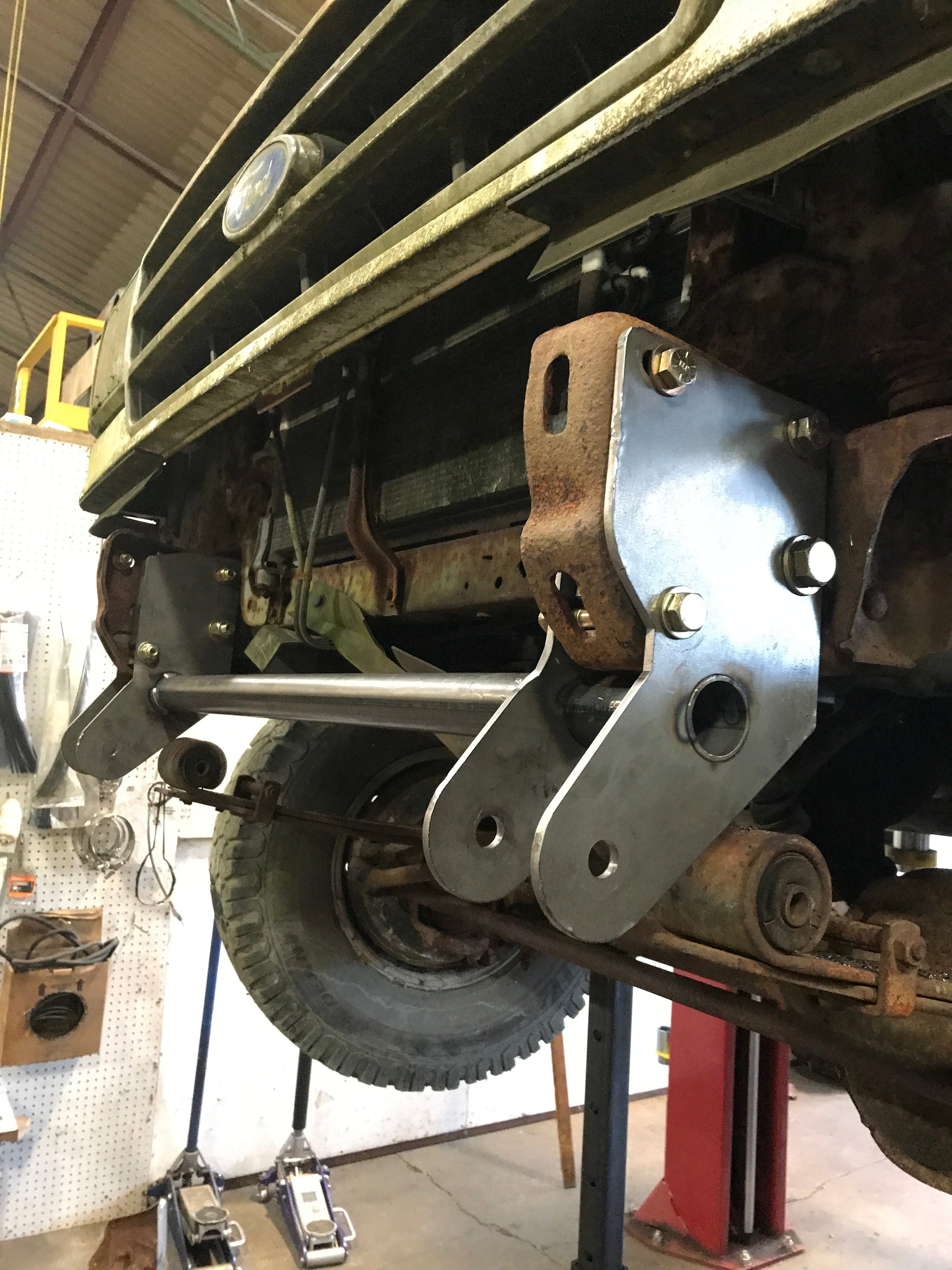

  • Kit provides much better ride than stock by moving shackle to rear of spring.
  • Eliminates the weak front shackle design.
  • Levels truck by lifting 2" and allows use of 35's minor trimming possibly
  • Adapts the much better riding 99-04 Superduty Springs
  • NEW OPTION!Ā 2wd -> 4wd frame plates. Put a Dana 60 in your 2wd!
  • Now available in black powdercoat

Application:


  • Truck:Ā 85-91 F-350 4x4 straight axle trucks.Ā Ā *NOTE* Can be used on 80-91 F150/250/350 Bronco to swap in a solid axle. Bronco/F150 use 2wd kitĀ Ā
  • Springs:Ā 56" 99-04 Superduty Front Springs
  • Axle:Ā 85-97 F-350 Dana 60

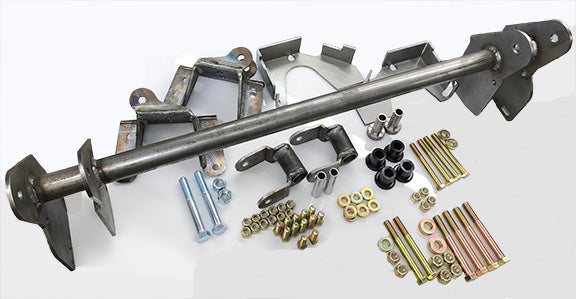

Included:

Ā

  • 1 - Front Hanger
  • 2 - Inner Frame Plates (Weld-on)
  • 2 - Shouldered Frame Sleeve
  • 2 - Shackles
  • 4 - Bushing halves
  • 2 - Bushing Sleeves
  • 1 - Hardware Kit

Ā

Additional Information:

Check out Diesel World's Project Obsessed running Sky's FSR (RSK) KitĀ

Install Instructions

NOTE : Cheap, foreign aftermarket springs are not recommended. We have had issues with the military wrap leaf being way too large and contacting the hanger. This is not an issue with quality USA made springs.

  • Lift amounts rated for V-Code 43-814 Springs
  • X-Code 43-818 Springs will lift an extra 1.5"
  • Clearance for intercoolers
  • If you need help deciding what other parts you may need to complete yourĀ swap please Click Here.
  • Part numbers and specs for Superduty Springs can be found online Here or Here.
