Crossover Panhard Conversion Kit - 1985-1997 Ford F-Series

Sky's Offroad Crossover Panhard Kit

Fits: 1985–1997 Ford F-350 & Solid Axle Converted F-250
Axles: 1985–1997 Ford Dana 60 or 1999–2004 Super Duty Dana 50/60
Designed For: 5”+ lifts with crossover steering

🔧 Overview:

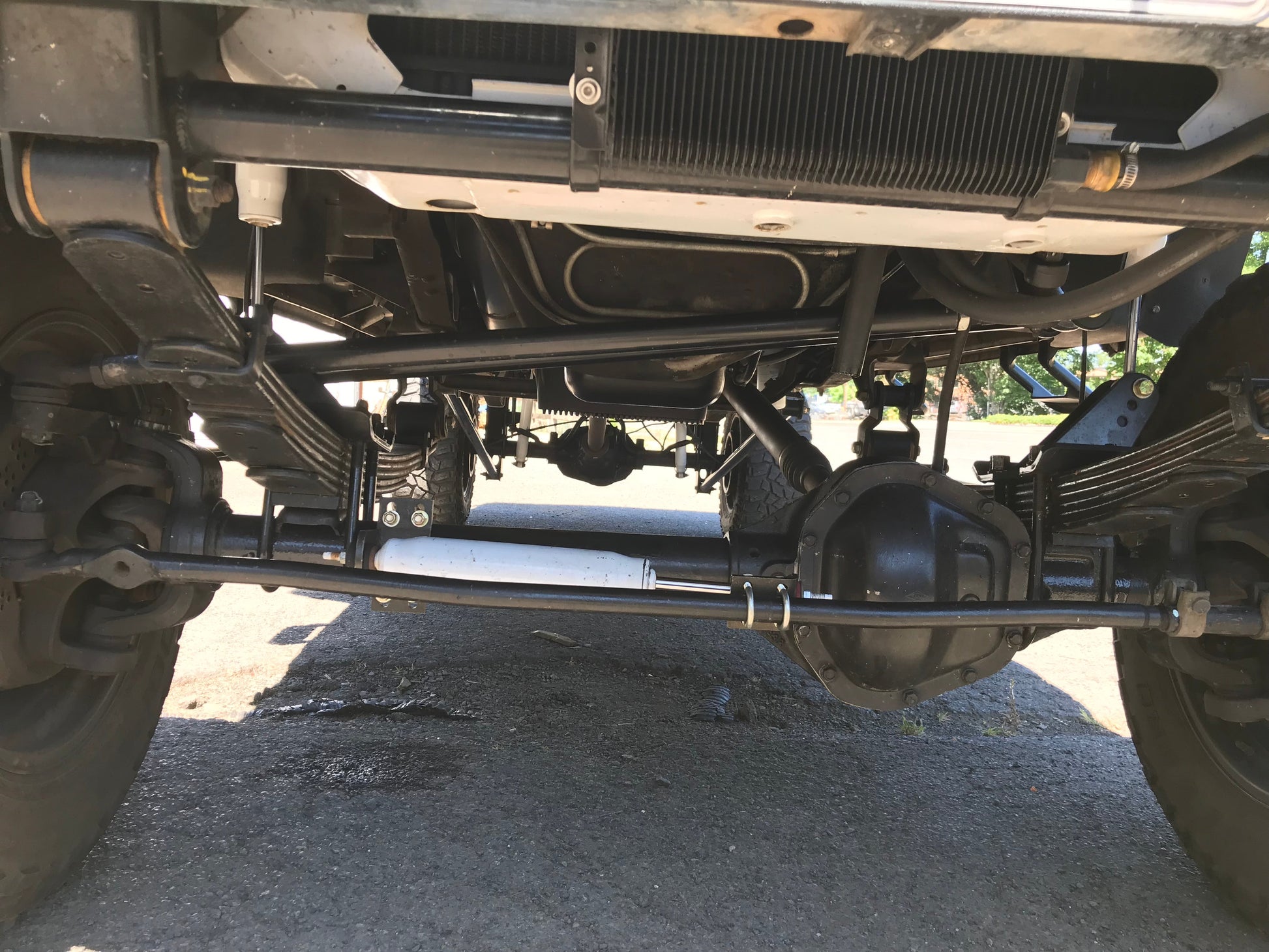

This crossover panhard kit is engineered for trucks running 5" or more lift and helps eliminate bump steer by keeping your drag link and panhard bar flat and parallel. Perfect when combined with a crossover steering setup, this system improves on-road stability and off-road articulation.

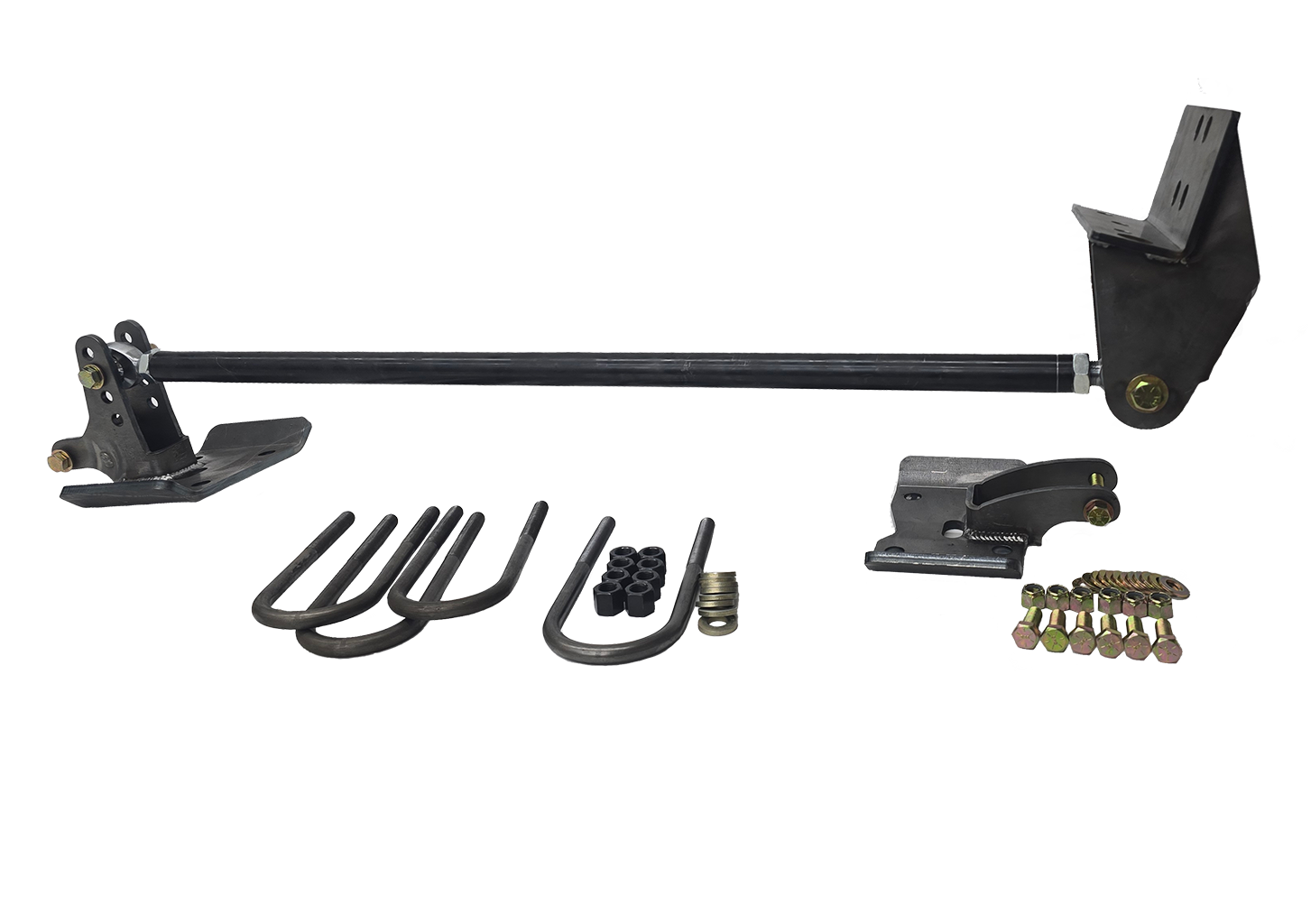

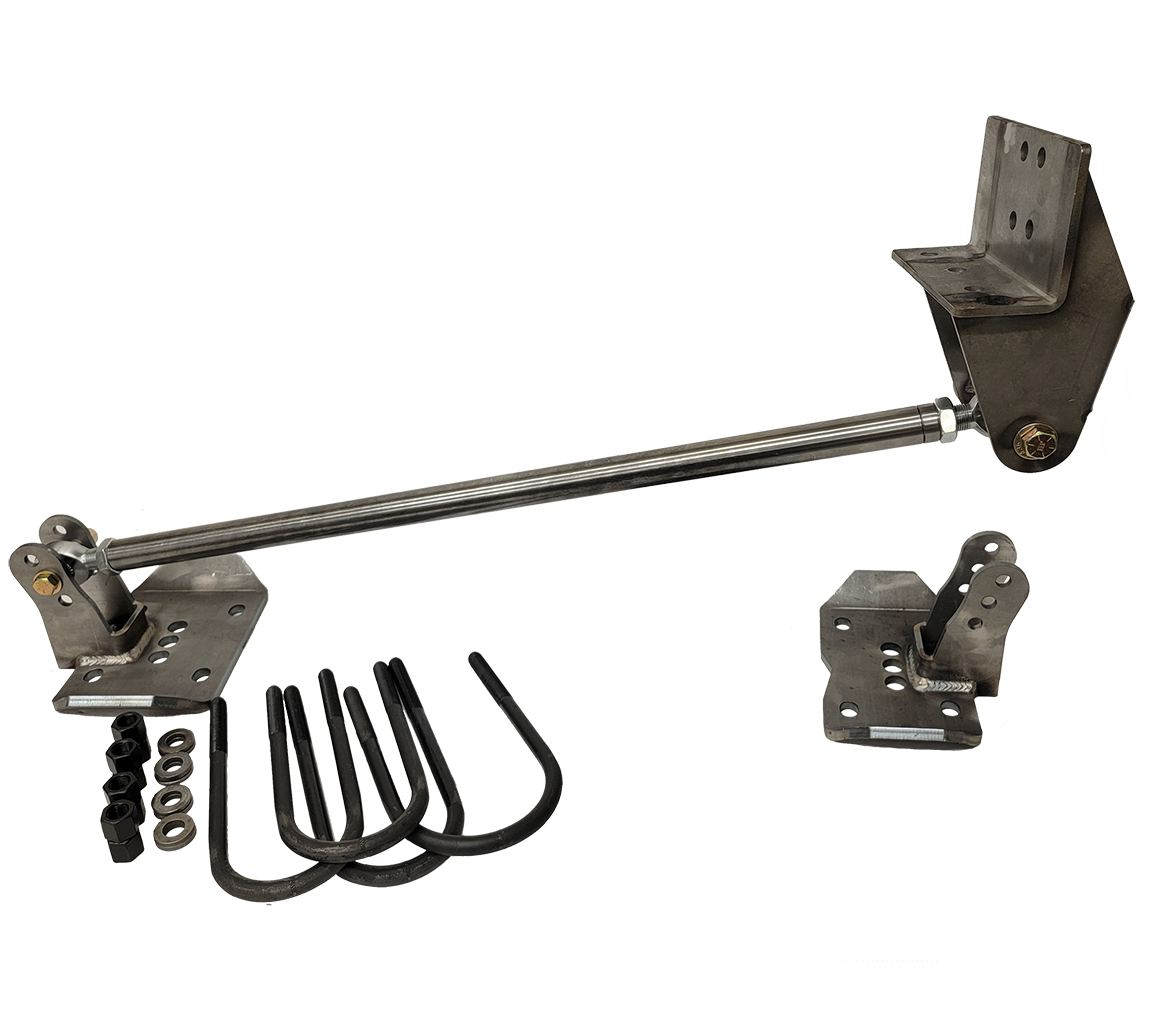

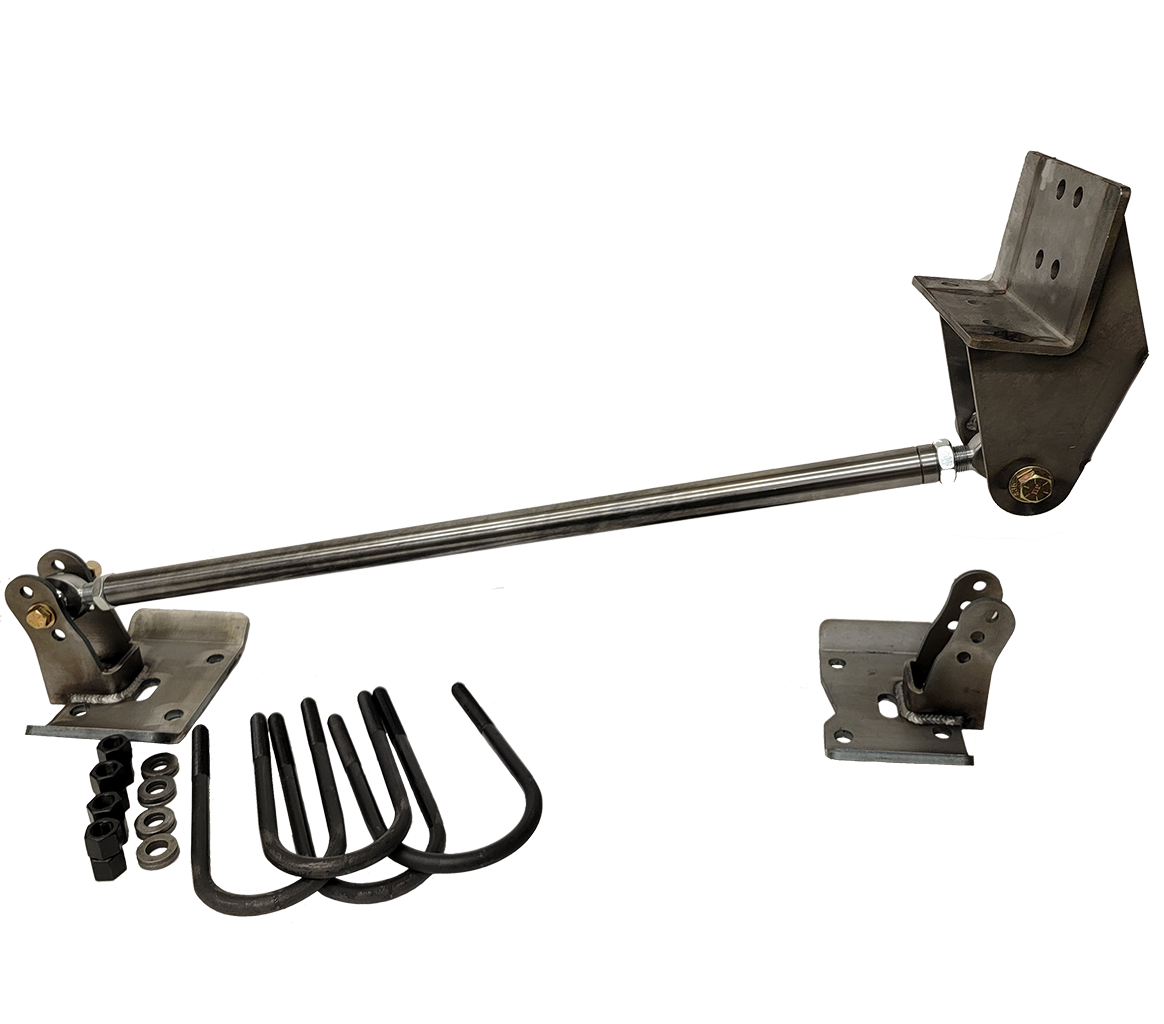

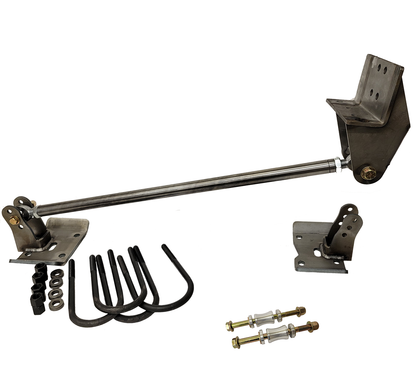

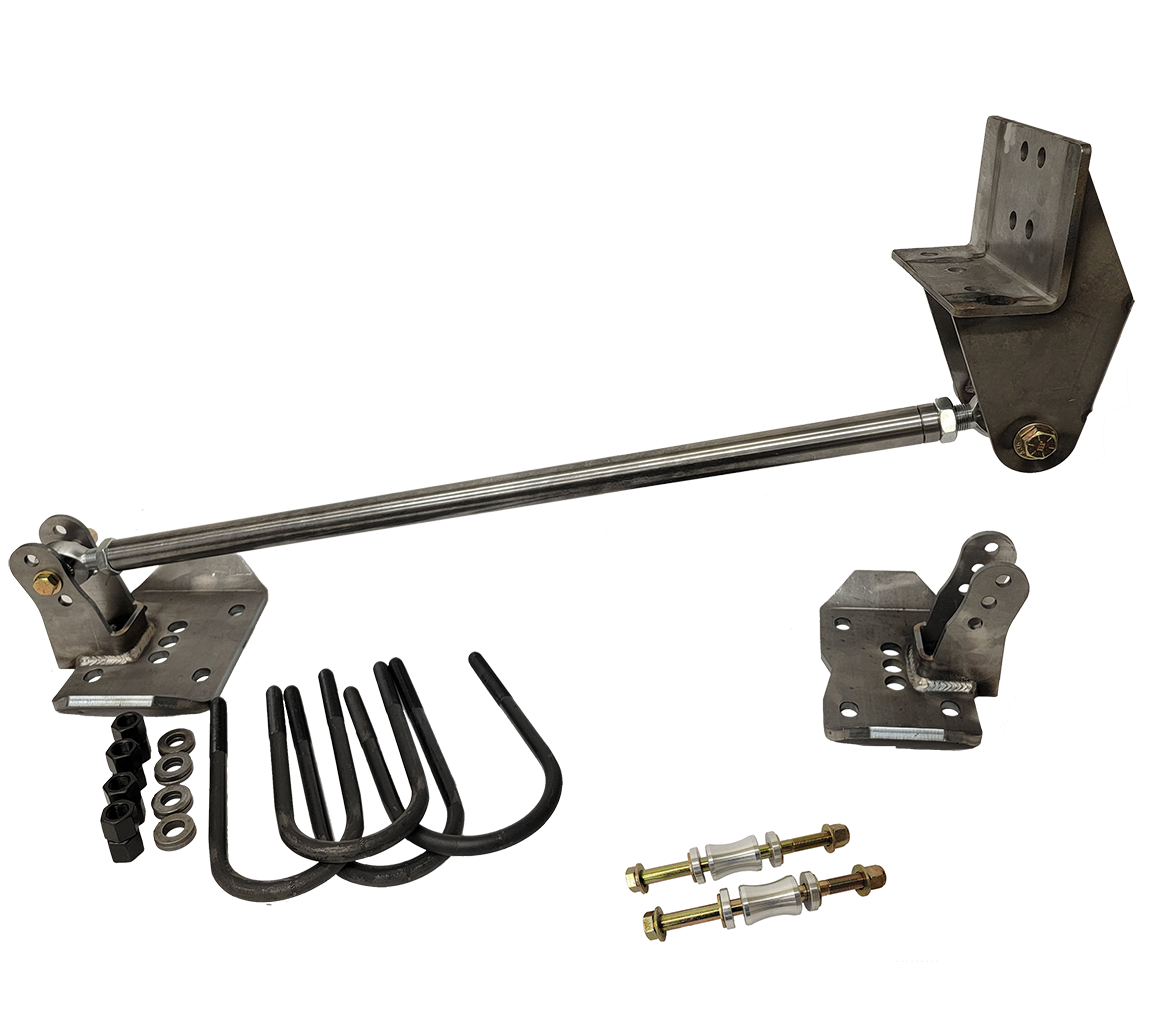

🛠 What's Included:

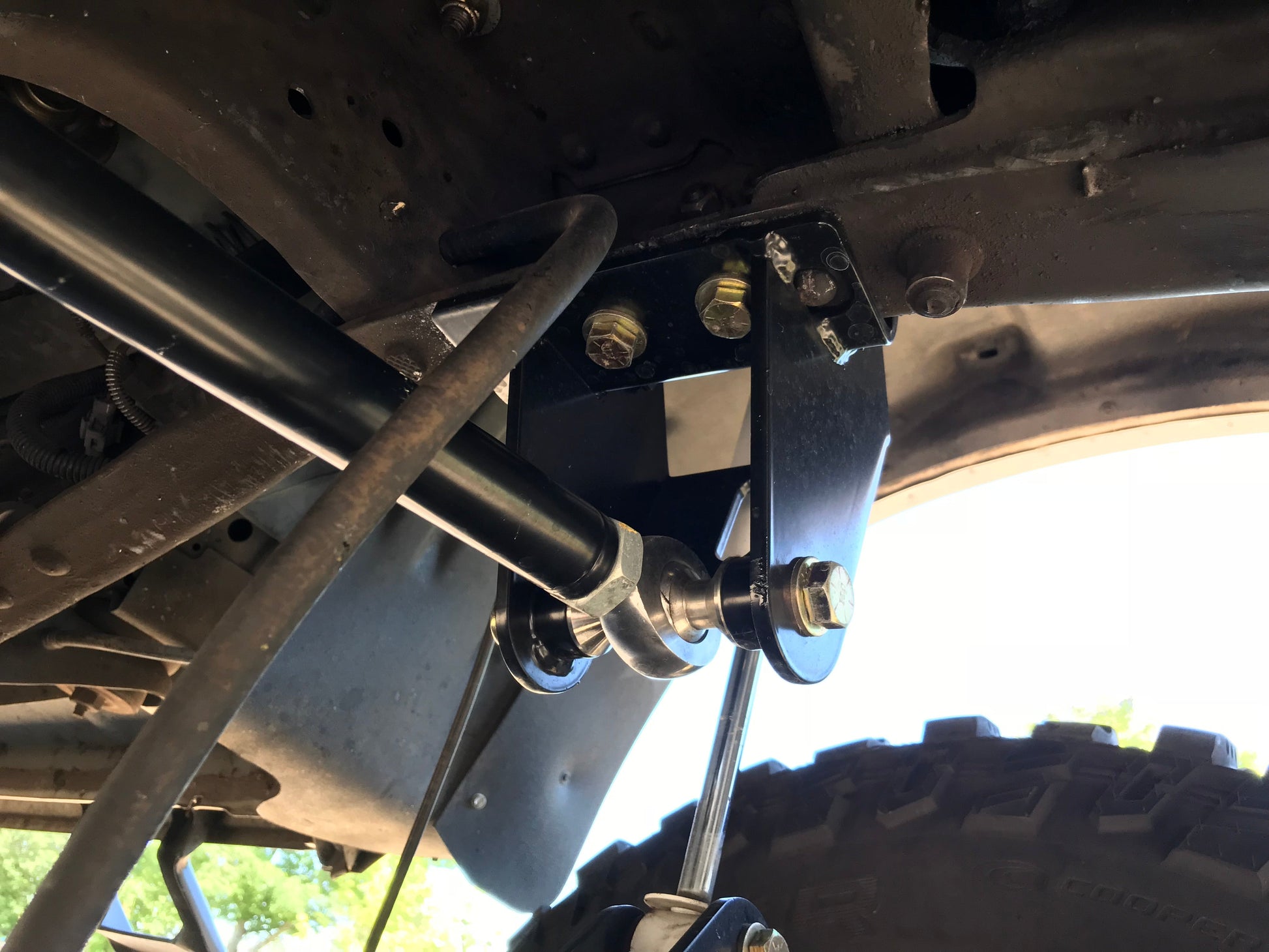

• Panhard bar (adjustable; can be trimmed to fit)

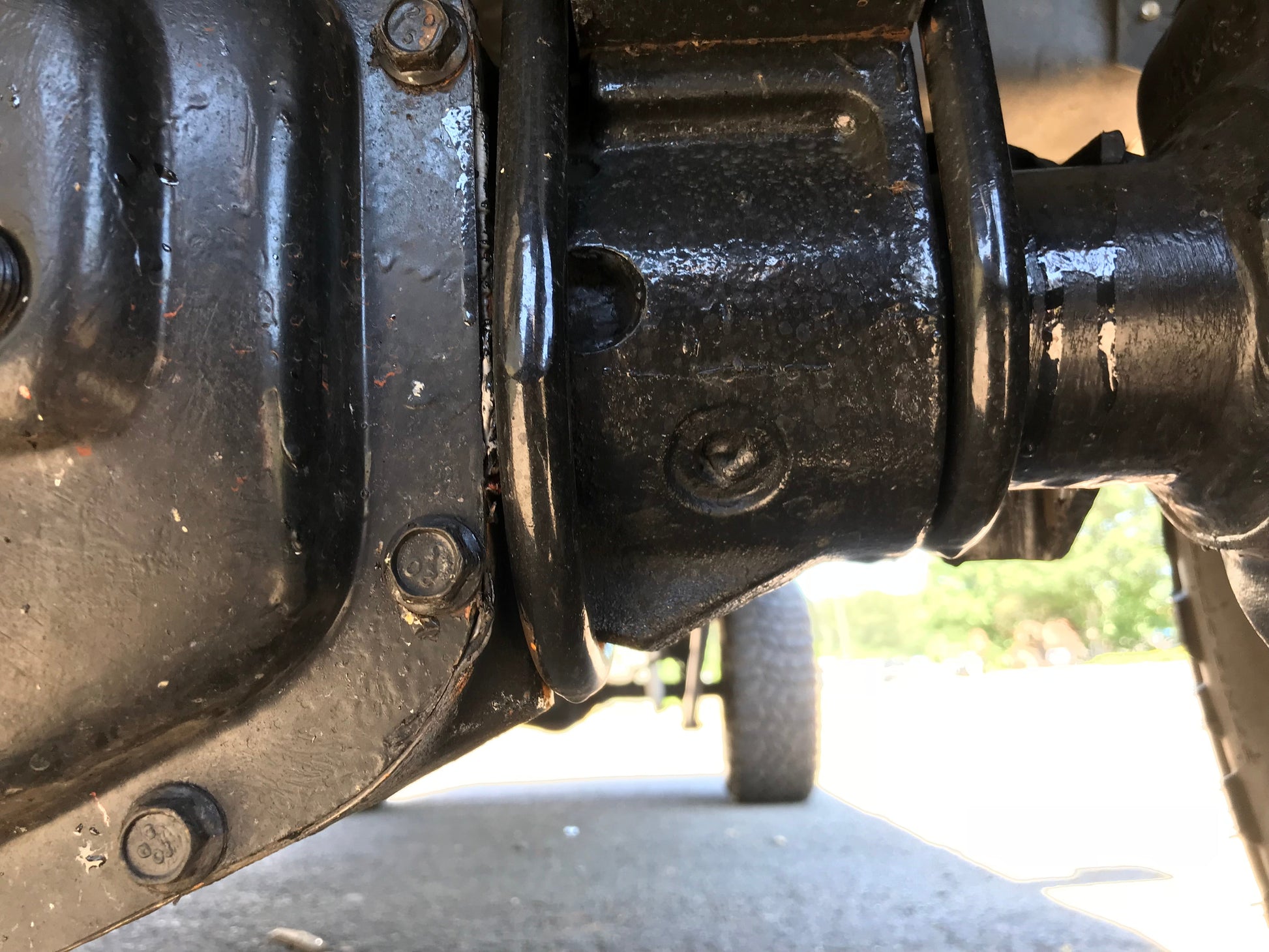

• U-bolt flip kit (with notching required on driver-side housing)

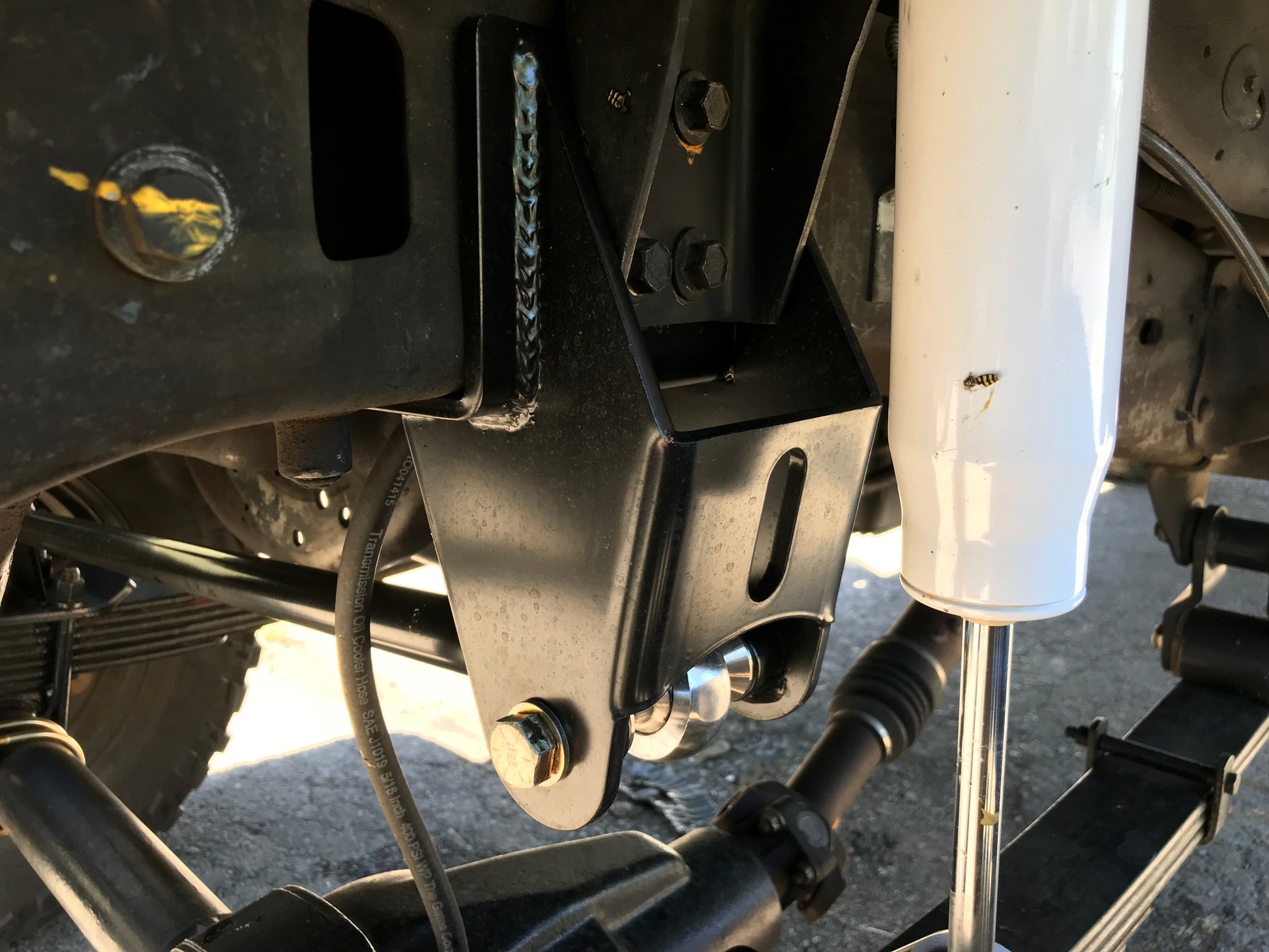

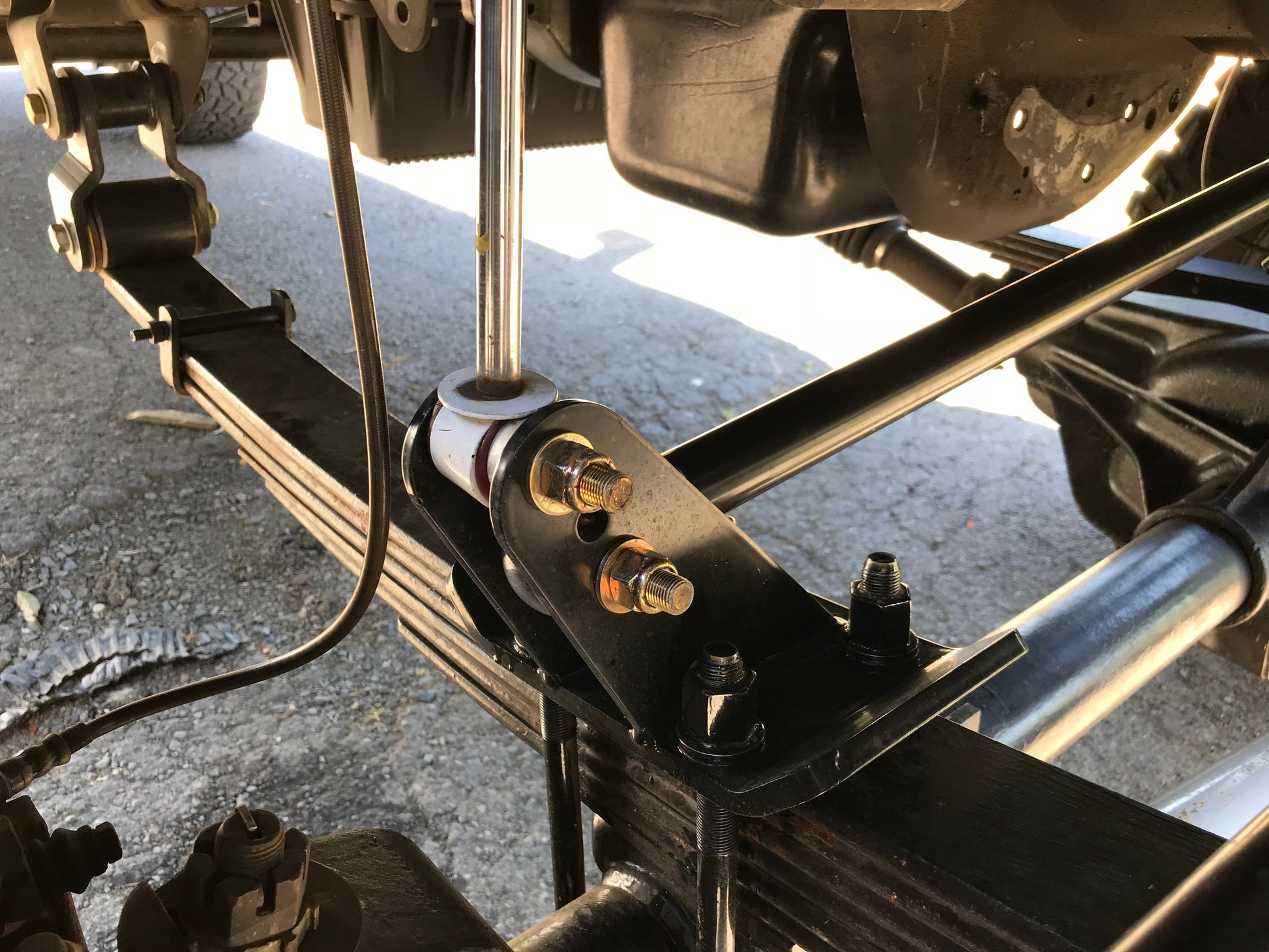

• Lower shock mounts (choose one):

  • Standard high-clearance mount (raises shock mount ~4”)

  • Low-profile mount (keeps shock closer to stock position)

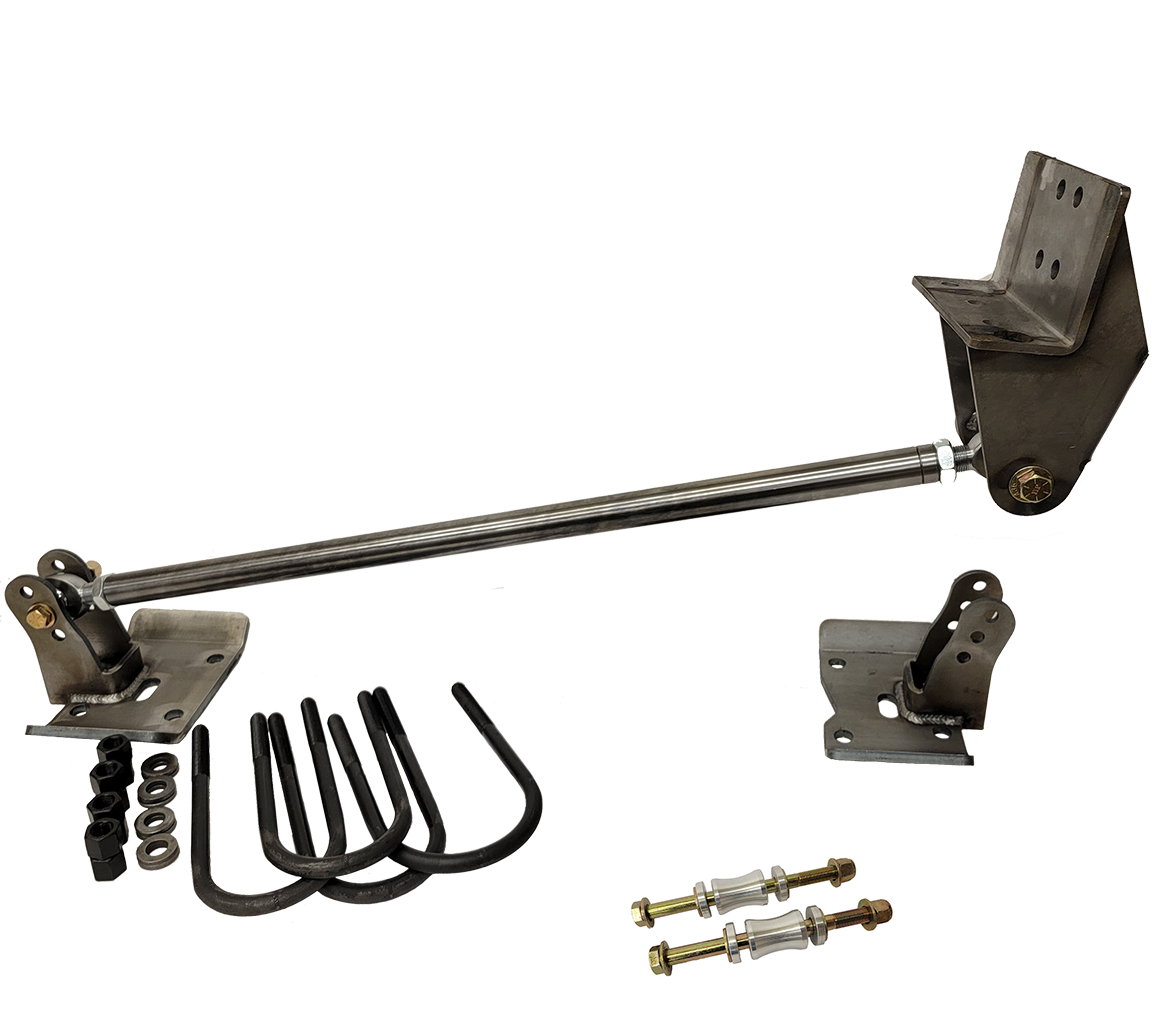

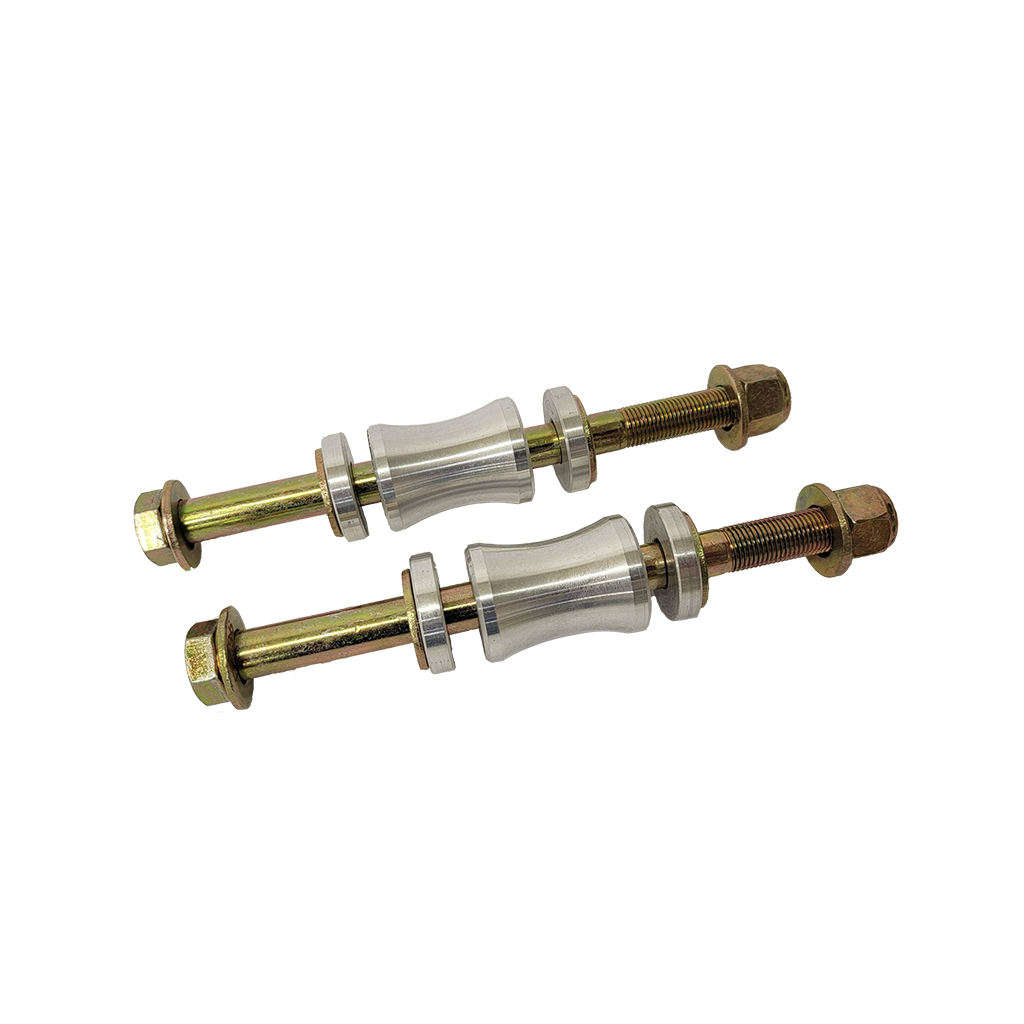

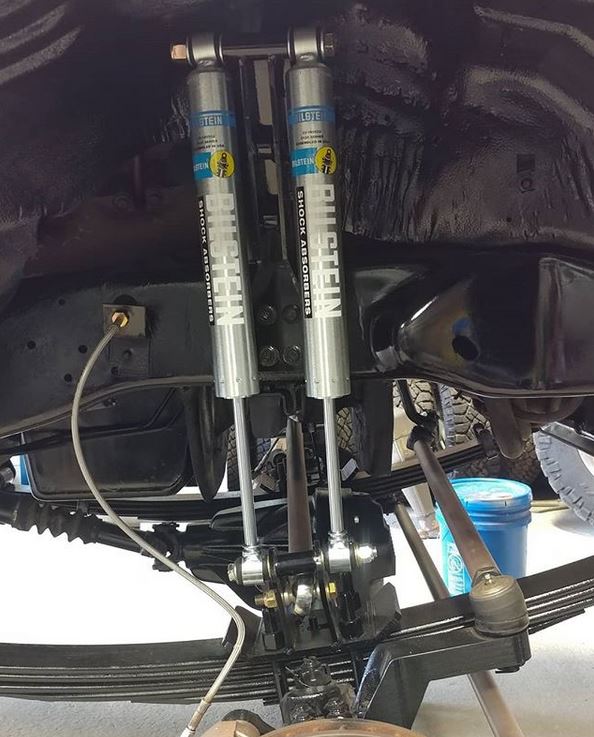

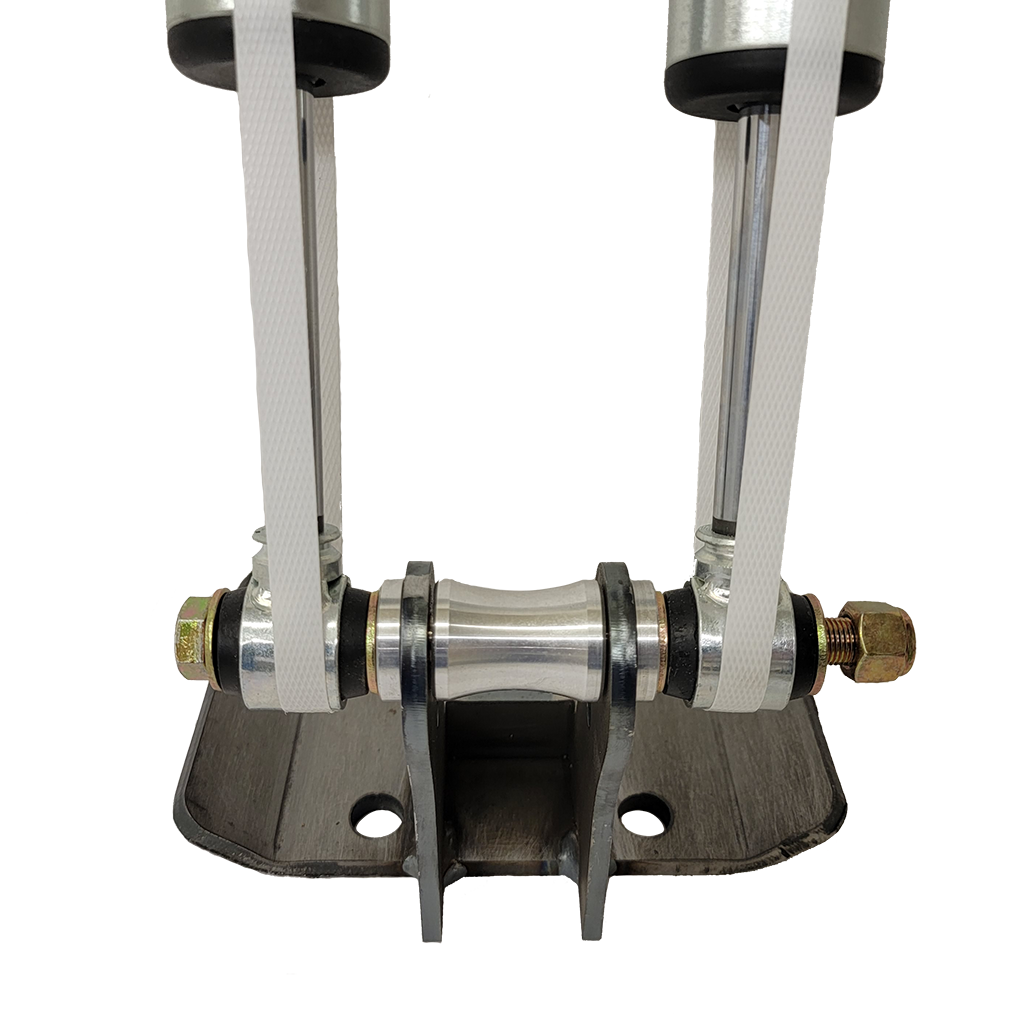

• Dual shock option: CNC spacers to align perfectly with Ford-BDSM upper mounts

⚙️ Installation Notes:

• Bolt-on design with minor axle housing notching required

• Requires removal of factory passenger-side panhard bracket

• Designed around 3" or thicker lift spring packs (thinner packs may require shorter U-bolts)

✅ Key Benefits:

• Fixes steering geometry on lifted trucks

• Reduces bump steer and tie rod roll

• Offers shock mount flexibility for different lift setups

• Works with both ball joint and kingpin Dana 60 front axles

Whether you’re tackling trails or daily driving with a big lift, this crossover panhard kit brings stability, adjustability, and clean geometry to your OBS Ford build.
