SuperDuty Axle Conversion PanHard Kit - 1992-1997 Ford F-Series

Sky's Offroad Design Front-Mount Panhard Bracket Kit

For Super Duty Axle Swaps (1999–2004 Dana 50/60)
Fits: 1992–1997 Ford F-350 / Solid Axle Converted F-250
(Can be adapted to 1980–1991 trucks with additional shimming)

🔧 Overview:

Swapping a 1999–2004 Super Duty Dana 50/60 axle into your 1992–1997 OBS Ford? This panhard bracket kit is your solution for handling the forward-facing factory Super Duty panhard mount, unlike the rear-facing mount found on the 85–97 Dana 60s.

🛠 Features:

• Corrects panhard geometry for Super Duty Dana 50/60 axles

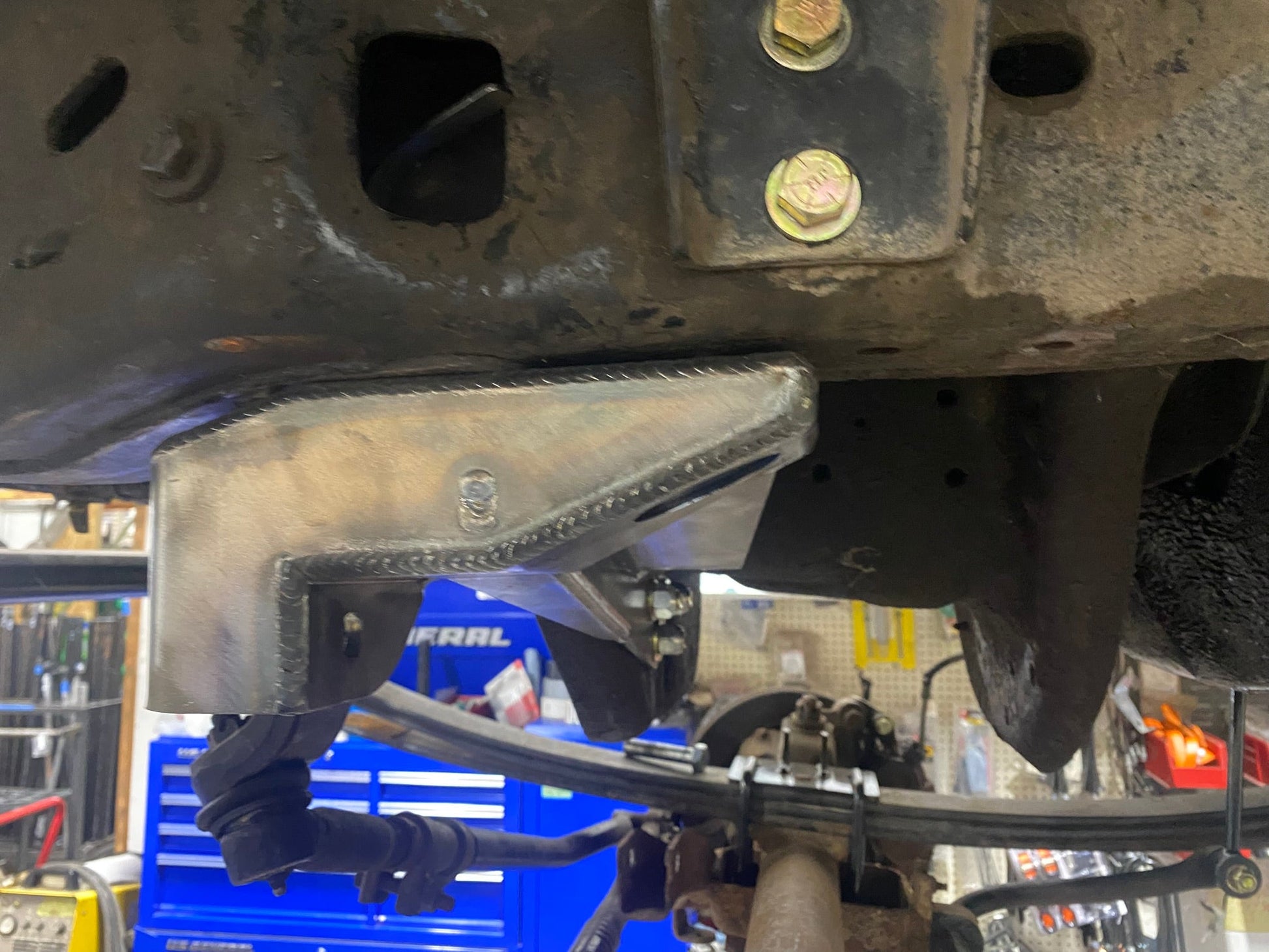

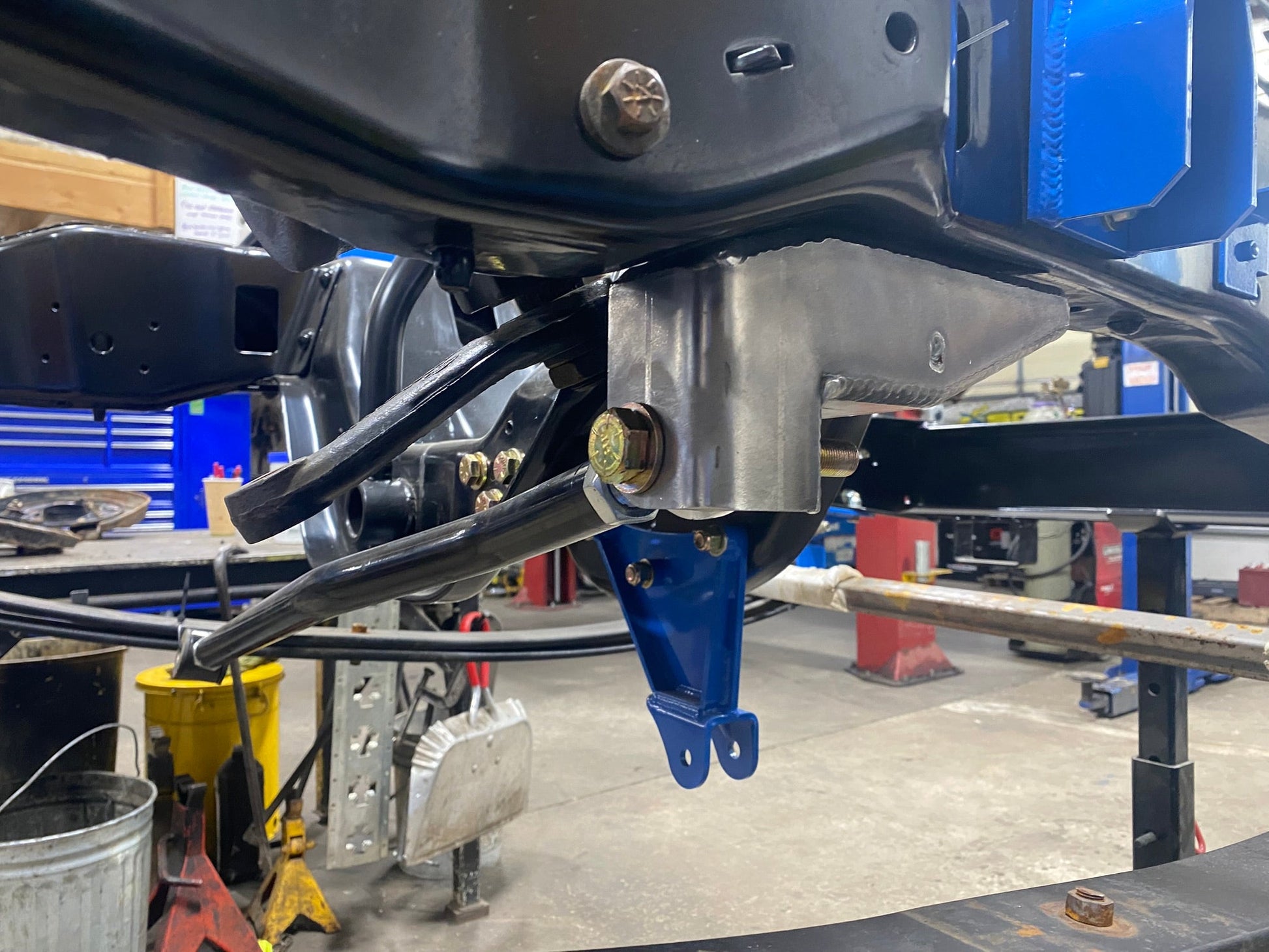

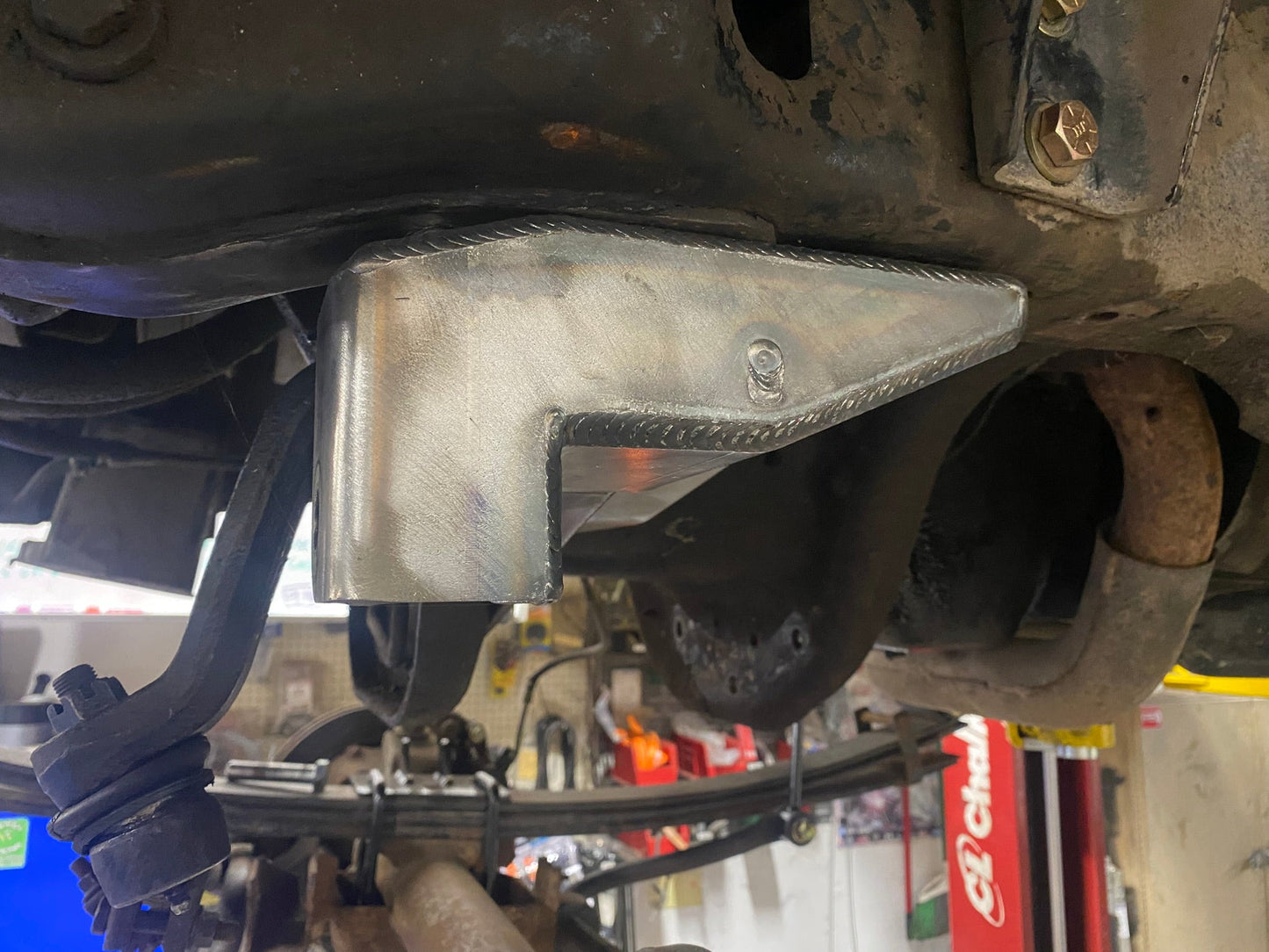

• Bolt-on installation to the driver’s side frame

• Includes a reinforcement brace to tie the bracket into the engine cradle

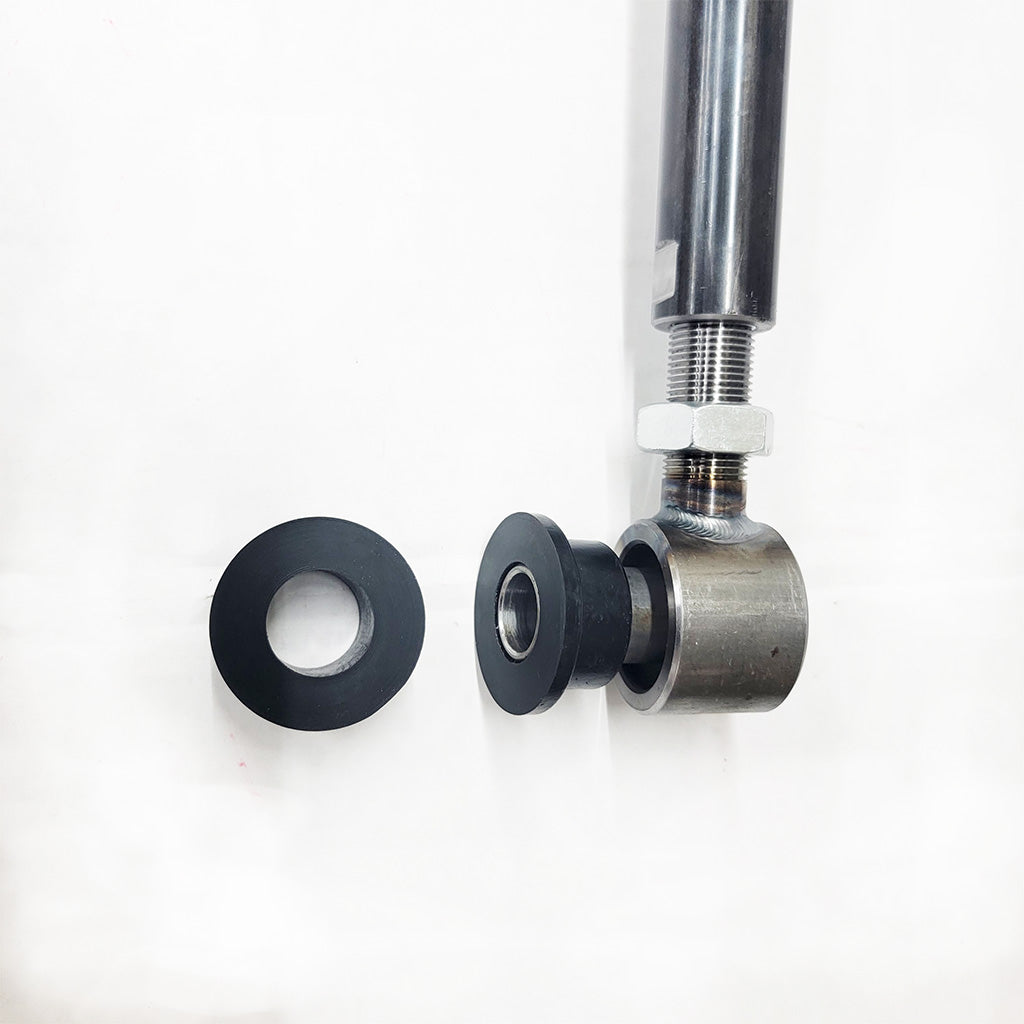

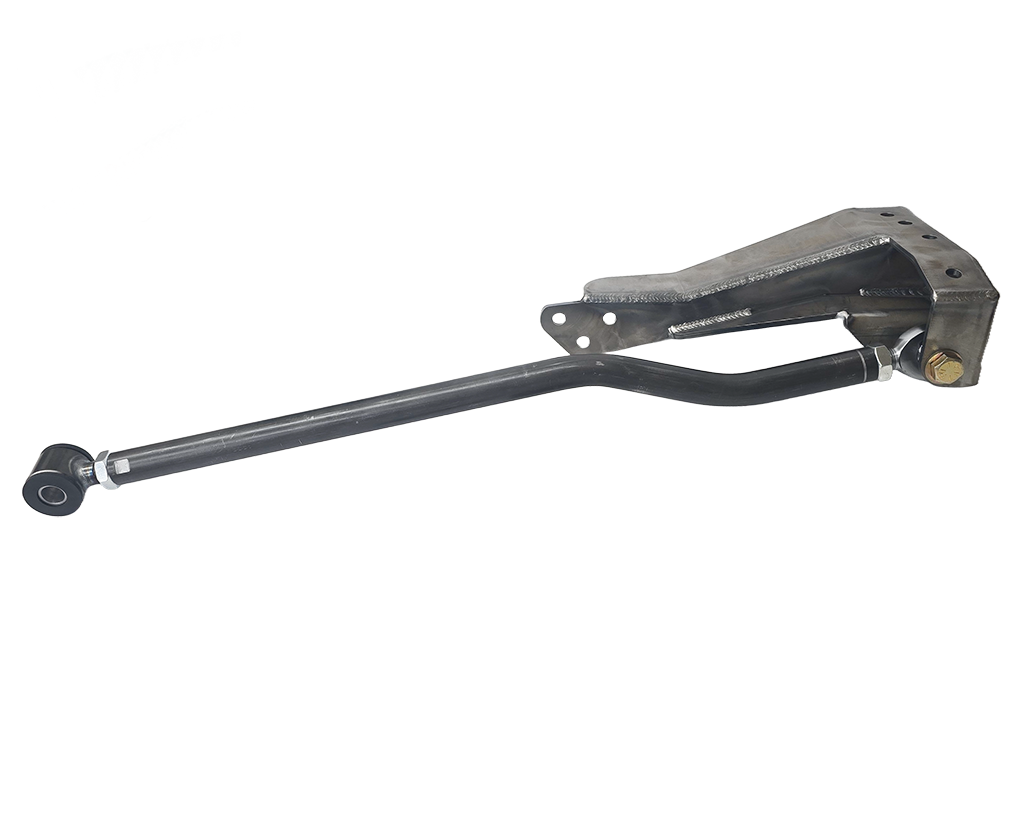

• Formed panhard bar included to connect bracket to axle

• Ideal for 2–4" lift setups

  • Works up to 6” lift, but Crossover Panhard Kit is recommended for anything higher

• Heavy-duty construction with proper frame bracing

🛠 Installation Notes:

• 80–91 F-Series trucks will need a ¼” shim due to the frame’s double-layer bottom flange

• No welding required, though final alignment should be verified with plumb bob or alignment tools

• For lifts over 6", consider upgrading to Sky’s Crossover Panhard + Steering Kit for correct geometry and clearance

This bracket is a must-have when adapting late-model Super Duty axles into your OBS Ford build. It preserves steering precision and front-end alignment while eliminating the need for a custom panhard solution.
