Knuckle Taper Sleeve for Ford Tie Rod Ends (sold individually) - 1980-1997 Ford F-Series

Tapered Sleeve – Ford Tie Rod Conversion

Sold Individually — Update Quantity for Multiple Sleeves

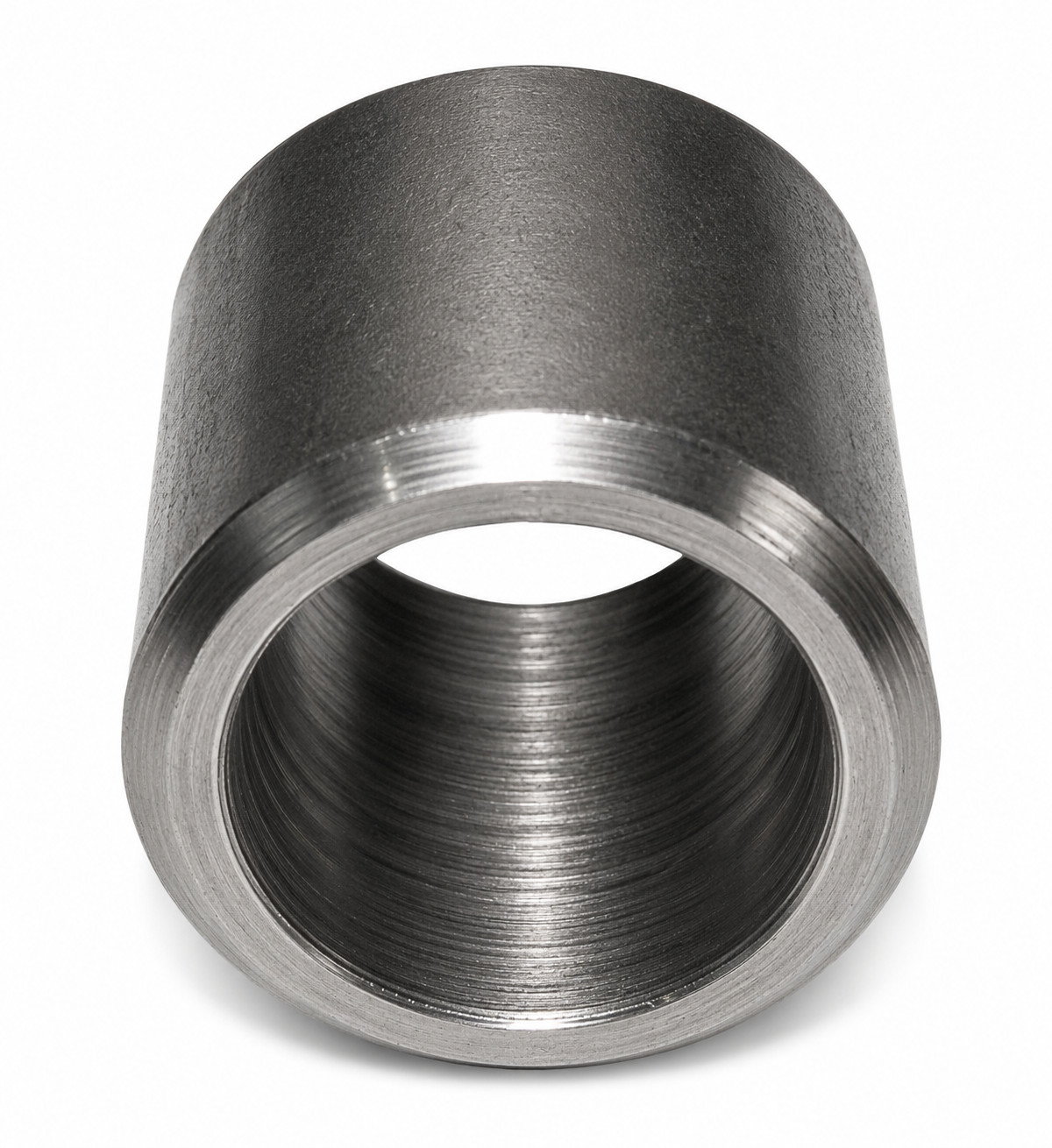

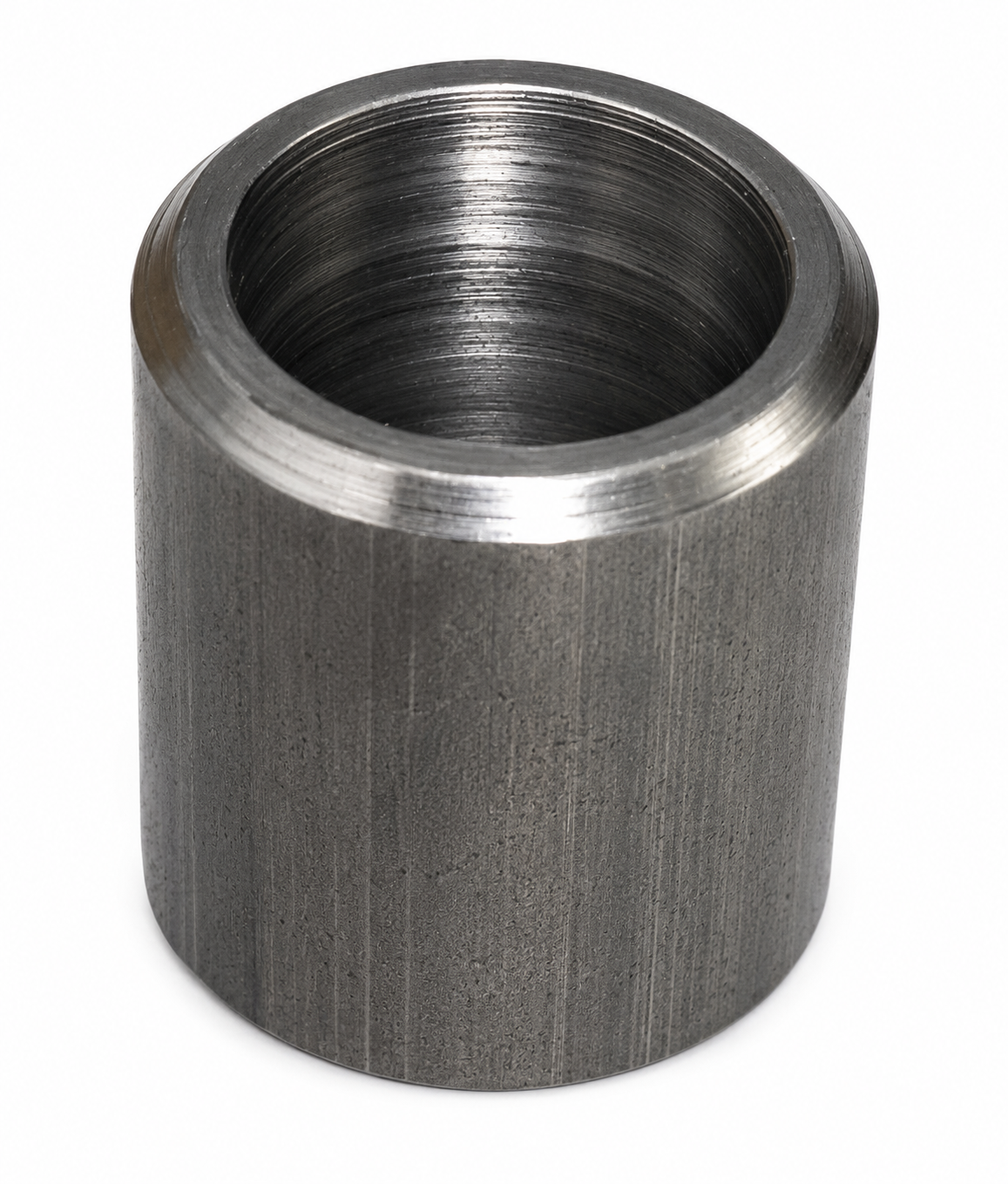

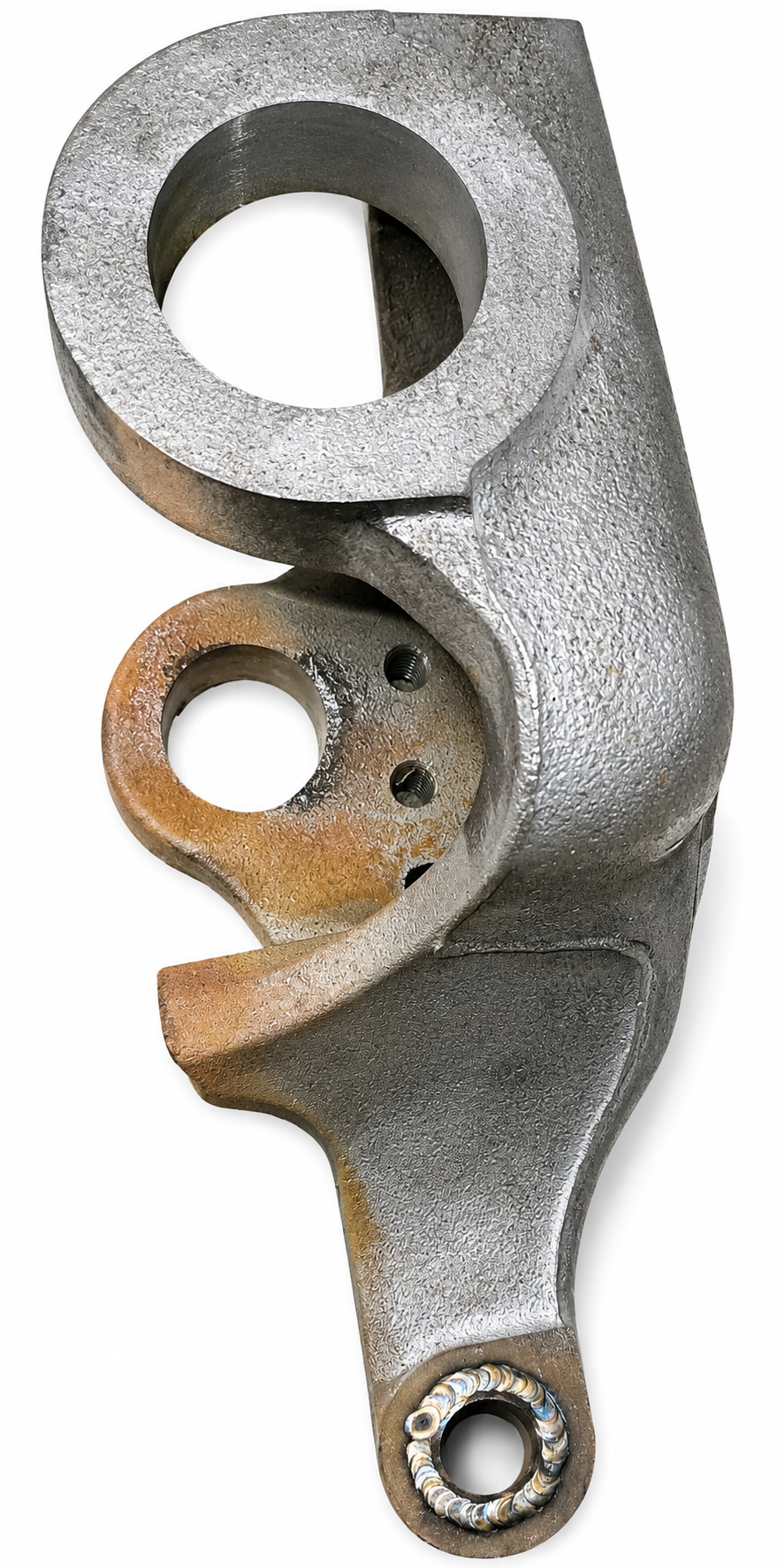

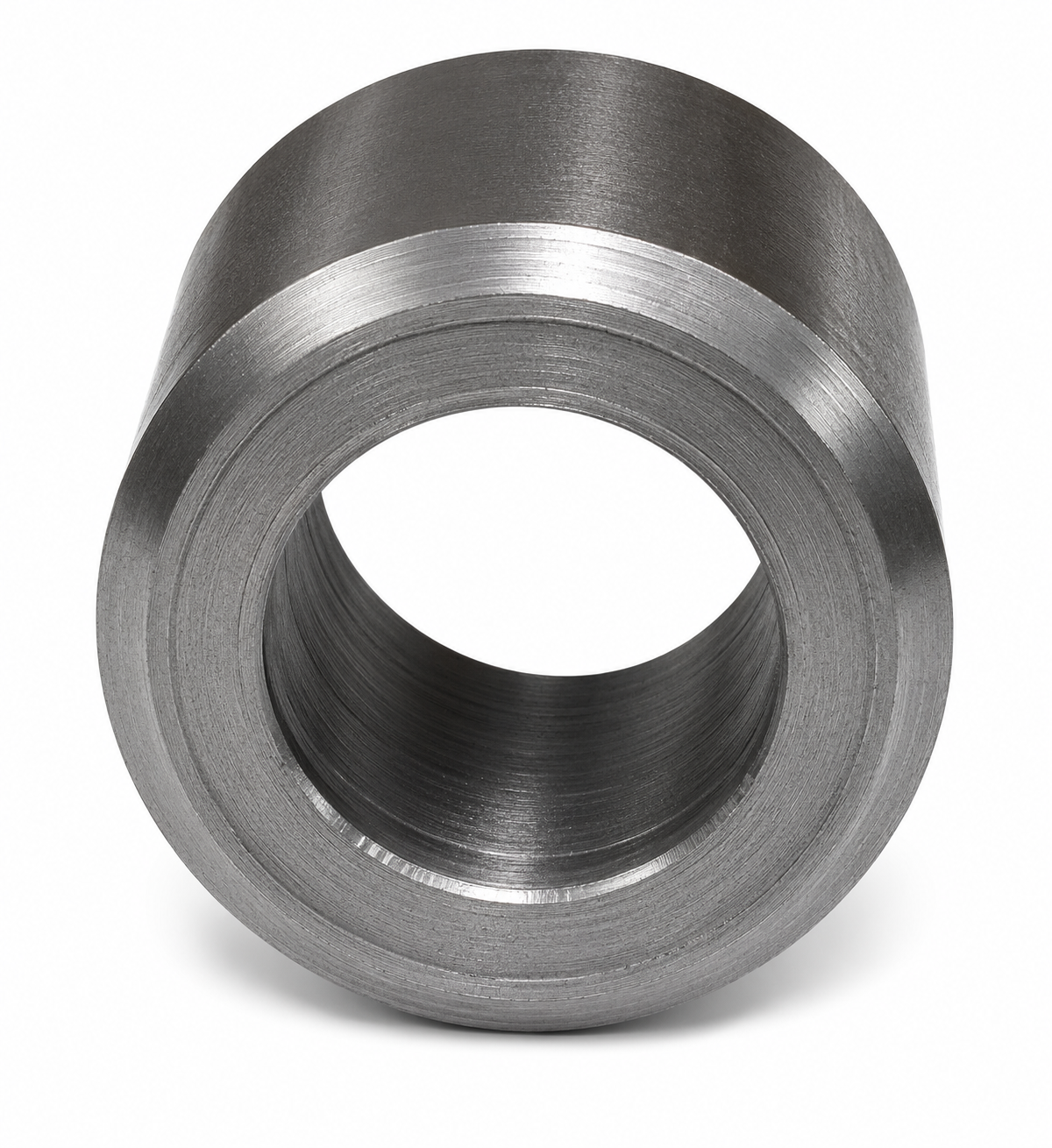

Need to fix a wallowed-out tie rod hole or convert your steering components to fit Ford tie rod ends? This CNC-machined weld-in sleeve is your solution. Perfect for modifying or repairing steering knuckles, arms, or pitman arms to accept factory Ford tie rod ends (Moog DS1071 or ES3009R) from 1985–1997 F-Series trucks.

🔩 Specifications:

• Taper Size: 0.710" Major / 0.595" Minor

• Outer Diameter: 1.000"

• Overall Length: 1.120"

• Material: 1020 DOM Steel

• Made in the USA

🛠 Installation Notes:

1. Drill hole to 1.000" OD

2. Press-fit sleeve in place (preferably with frozen sleeve + heated knuckle for interference fit)

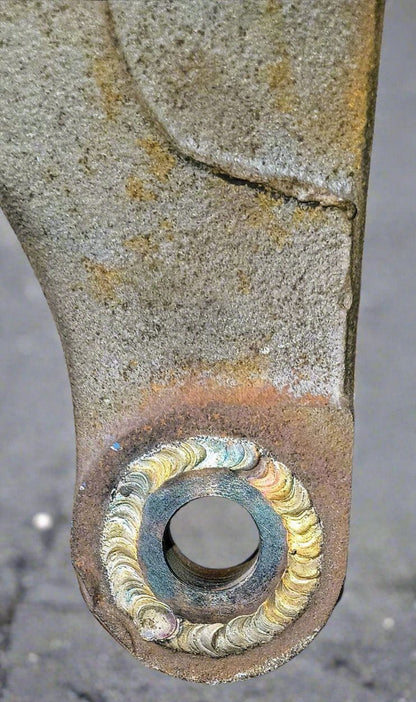

3. TIG weld around the sleeve after proper seating

4. Let cool before use

Ideal for any steering rebuild or upgrade project, this is a must-have when running factory-style Ford tie rod ends with custom or damaged steering components.
