Super Duty Axle Swap Adjustable Panhard BracketĀ

Ā

Description:
Our latest adjustable panhard bracket is the strongest and most refined solution on the market for Super Duty axle swaps. Designed with functionality, strength, and maximum suspension performance in mind, this bracket is ideal for high-performance builds using the 1999-2004 Super Duty Dana 50/60 axles under 80-97 F-Series trucks.


Key Features:

  • Six-position adjustable mounting for precise axle centering and suspension tuning

  • Box-braced design distributes loads evenly and resists flex under extreme use

  • Engineered to mimic factory Super Duty geometry for predictable handling

  • Provides up to 3.5" of up-travel at stock ride height – comparable to new trucks

  • Designed for maximum clearance around the diff and at full steering lock


Recommended Pairing:
Pair this with our Adjustable Panhard Bar for optimal performance. It converts the axle-side ball joint to a vertical heim and is shaped to clear the engine crossmember without modification.


Installation Notes:

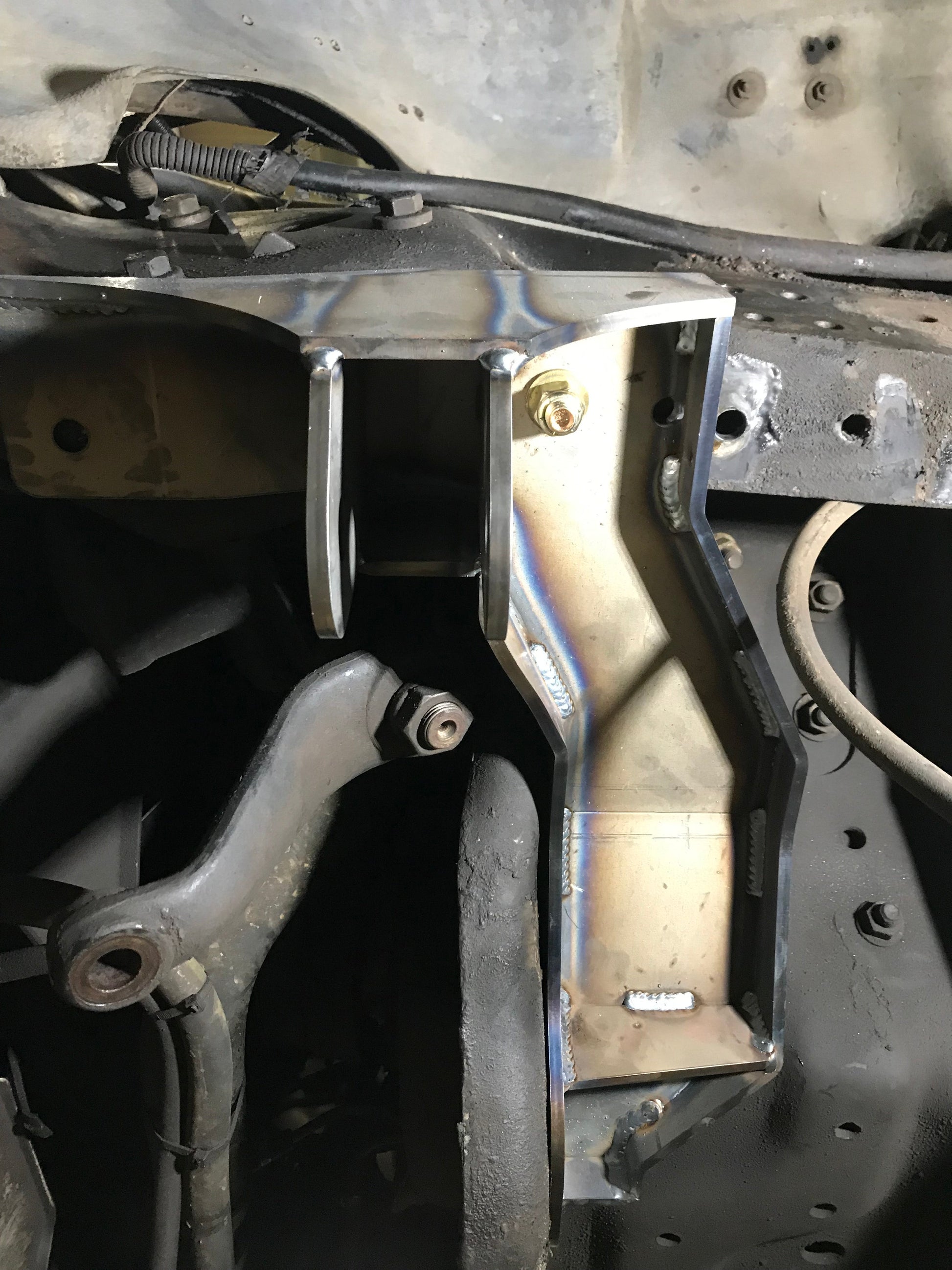

  • Requires minor trimming of the front corner of the engine cradle (see product photos for guidance)

  • Works with stock and aftermarket adjustable Super Duty panhard bars


Upgrade your Super Duty axle swap with the confidence and adjustability you need for performance both on- and off-road.
