TTB Differential Armor Plate | Dana 35, Dana 44 & Dana 50

Protect the Bottom of Your Dana 35, Dana 44 or Dana 50 TTB

The bottom of your TTB differential is one of the lowest and most exposed areas of the front suspension. Rocks, ledges, stumps, and trail debris can deliver a direct hit to the differential and quickly turn a day on the trail or in the desert into a much bigger problem.

Our TTB Differential Armor Plate adds a heavy-duty layer of protection underneath this vulnerable area and is available for Dana 35, Dana 44, and Dana 50 TTB applications.

Built from 1/4-inch-thick steel, the armor plate is designed to take the abuse instead of your differential while providing a strong, smooth surface to help the front end slide across rocks and other obstacles.

Depending on the application, the armor plate is compatible with stock, modified, and extended-width TTB beams, making it a great protection upgrade for everything from mostly stock trail trucks to long-travel desert and prerunner builds.

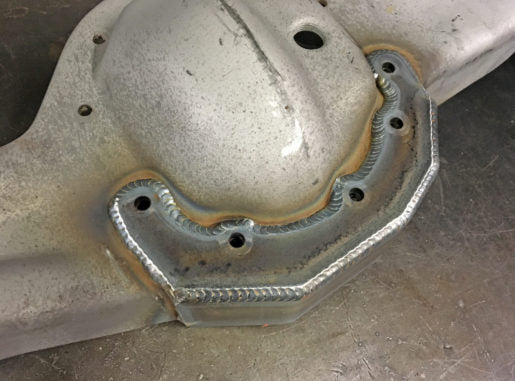

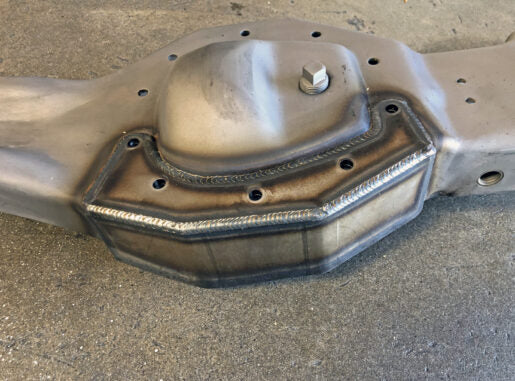

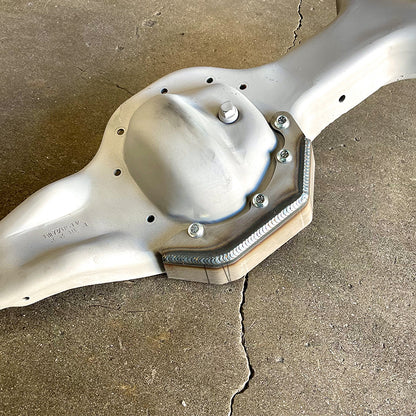

Installation can be completed by either bolting or welding the armor plate directly to the beam.

Key Features, Applications & Kit Contents

• Available for Dana 35 TTB
• Available for Dana 44 TTB
• Available for Dana 50 TTB
• Heavy-duty 1/4" steel construction
• Protects the bottom of the differential and TTB beam
• Helps protect against rocks, ledges, stumps, and trail debris
• Designed to help the differential slide across obstacles instead of taking the impact directly
• Compatible with applicable stock TTB beams
• Compatible with applicable modified and extended-width TTB beams
• Bolt-on or weld-on installation
• No cutting or drilling required for applicable installations
• Grade 8 mounting hardware included

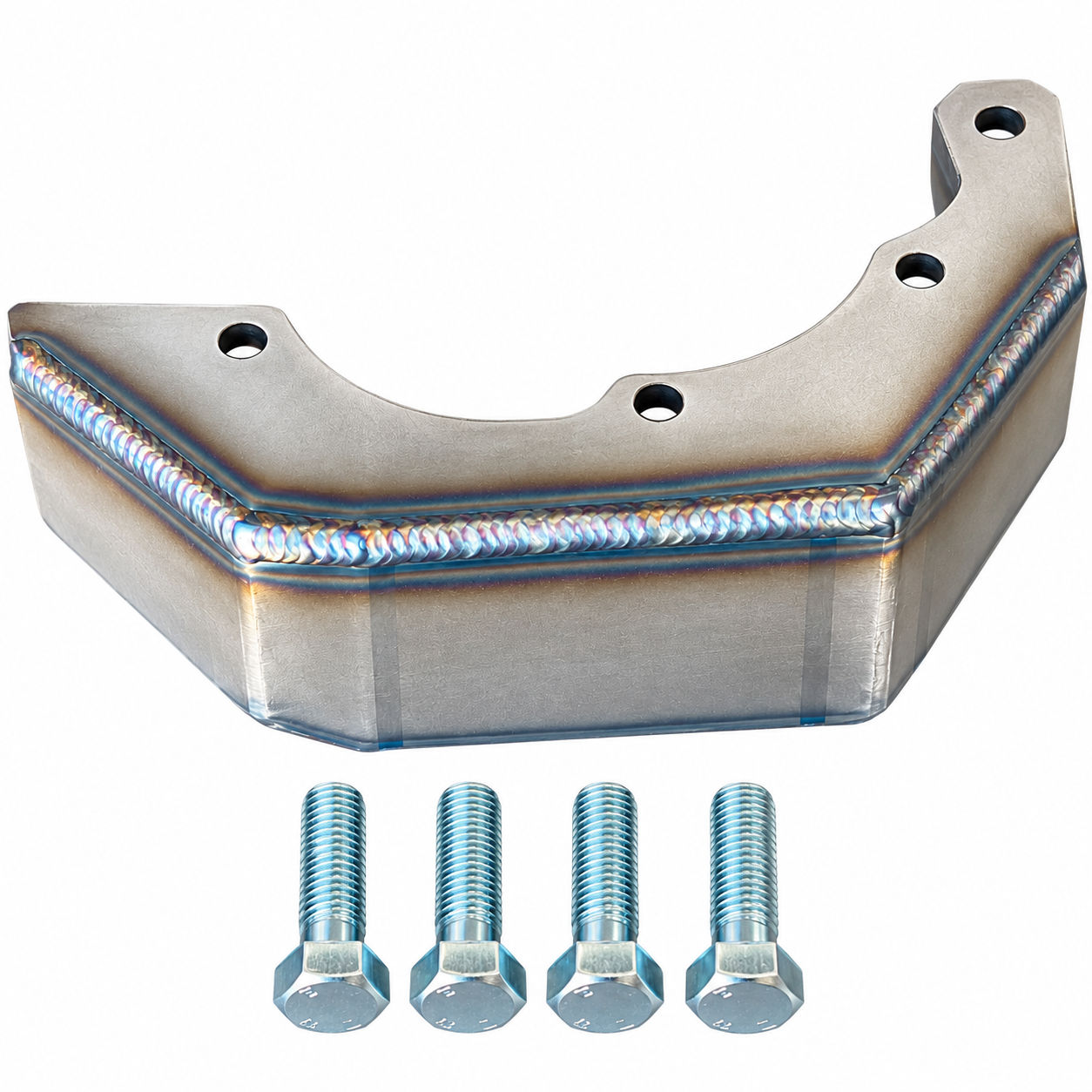

• Includes (1) TTB Differential Armor Plate for the selected Dana axle
• Made in the USA

IMPORTANT: Be sure to select the correct Differential Armor Plate for your front axle before ordering: Dana 35, Dana 44, or Dana 50 TTB.
