(85-97) OBS Adjustable Panhard Bar
(85-97) OBS Adjustable Panhard Bar
Please select a valid combination of attributes.

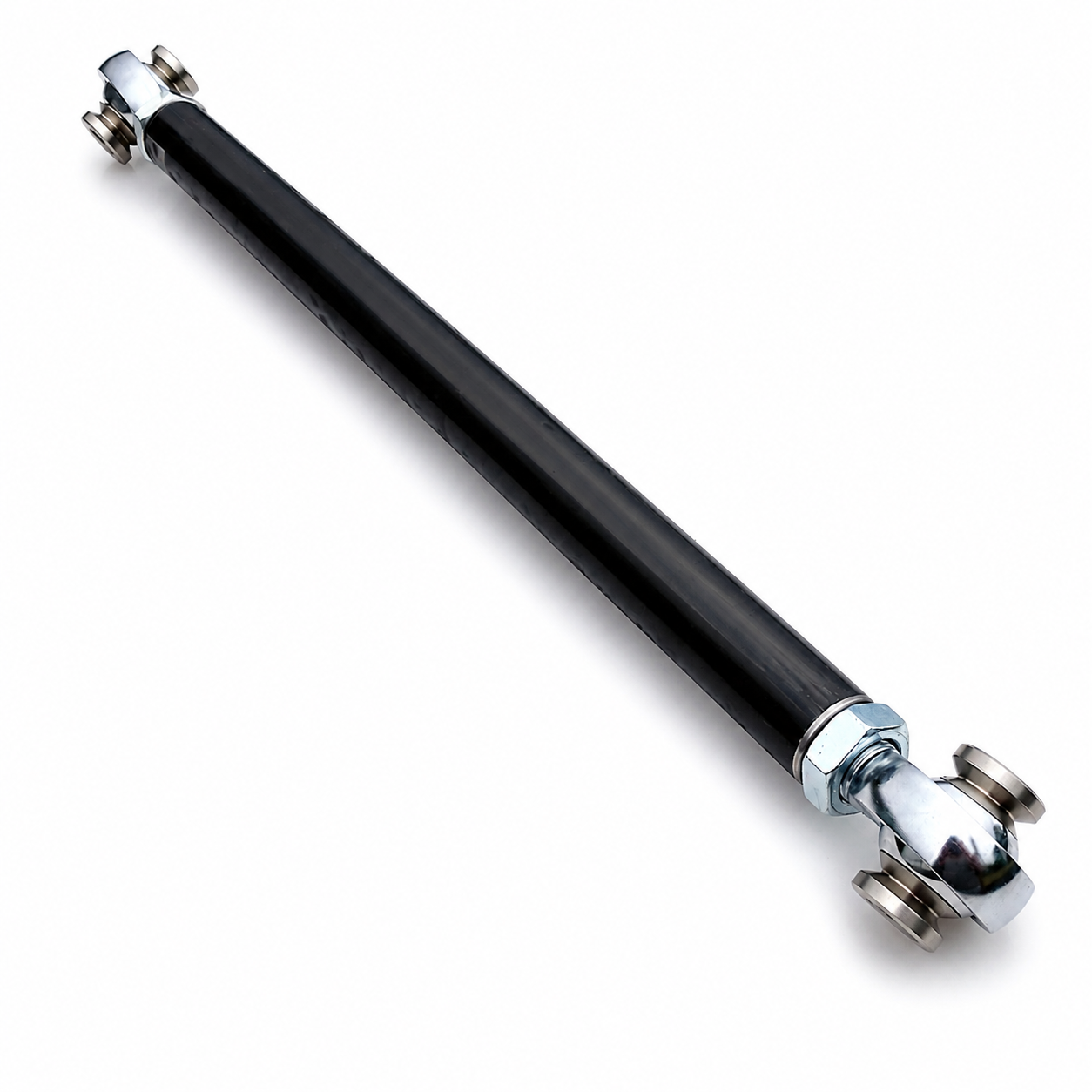

Sky's Offroad Design F-350 4x4 Adjustable Panhard Bar (aka Trac Bar) (88-97)
- Adjustable panhard bar to locate the axle underneath the truck
- Replaces factory non-adjustable bar
- Improved steering feel from less side to side axle movement.
- Heavy wall 1.125 x .250 wall D.O.M tube
Application:
- Truck: 85-97 F-350 or Solid Axle Converted F-250
- Axle: 85-97 Ford Dana 60
Additional Information:
Threaded ends will adjust out to 1 1/2". Bar is factory length fully collapsed. Combined with the pan hard drops you can correct for up to a 6" lift.
At 6"+ of lift we recommend the Crossover Panhard Kit and Crossover Steering.
You will feel increased road vibration with heim joints, but they will last longer.
Installation:
Installs the same as factory. Install at ride height, adjust until bolts slide in. To check alignment a pair of plumb bobs on a string across the hood will tell you exactly how far off you are. We have seen up to a 3/4 inch of axle offset from the factory.
